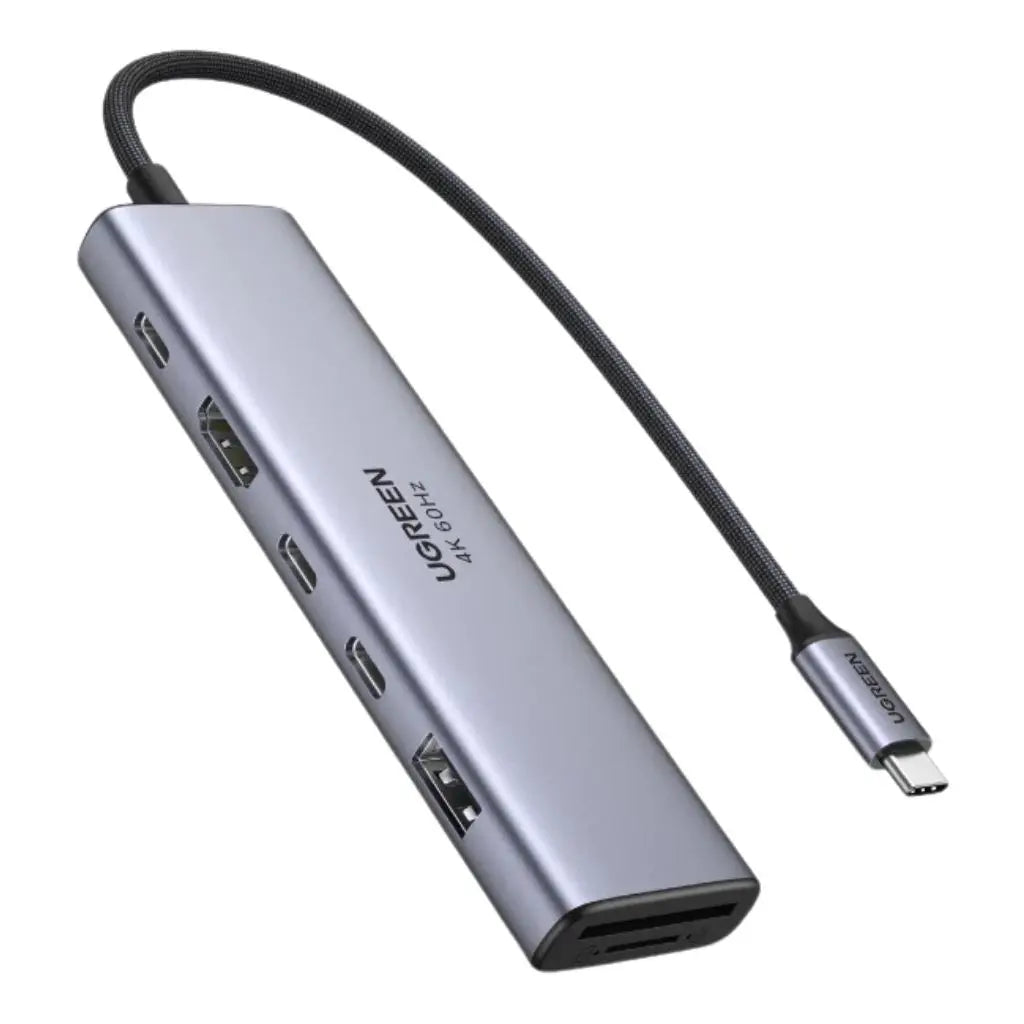

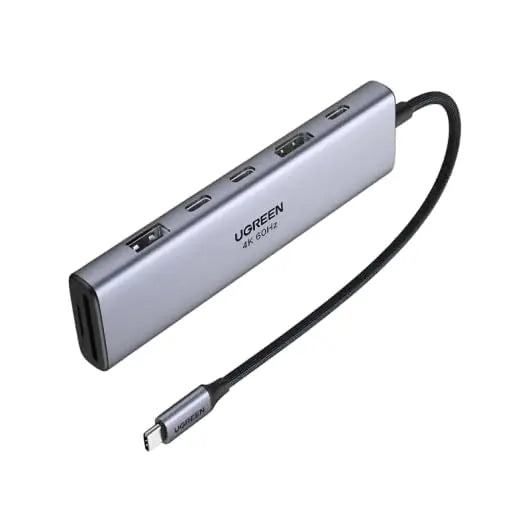

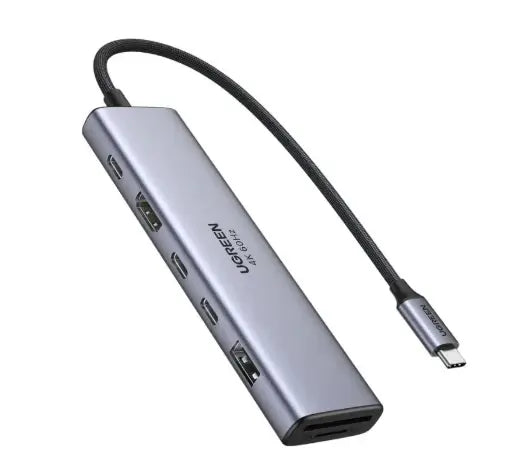

UGREEN CM511 7-in-1 USB-C Hub with 4K@60Hz HDMI, 10Gbps Data, SD/TF & 100W PD – 45521
UGREEN CM511 7-in-1 USB-C Hub with 4K@60Hz HDMI, 10Gbps Data, SD/TF...
UGREEN CM511 7-in-1 USB-C Hub with 4K@60Hz HDMI, 10Gbps Data and 100W PD
Expand a compatible USB-C laptop, tablet or computer with one 4K HDMI display output, three high-speed USB data ports, separate SD and microSD card readers, and USB-C Power Delivery pass-through in a compact aluminium hub.
HDMI Display Output
USB 3.2 Data
PD Power Input

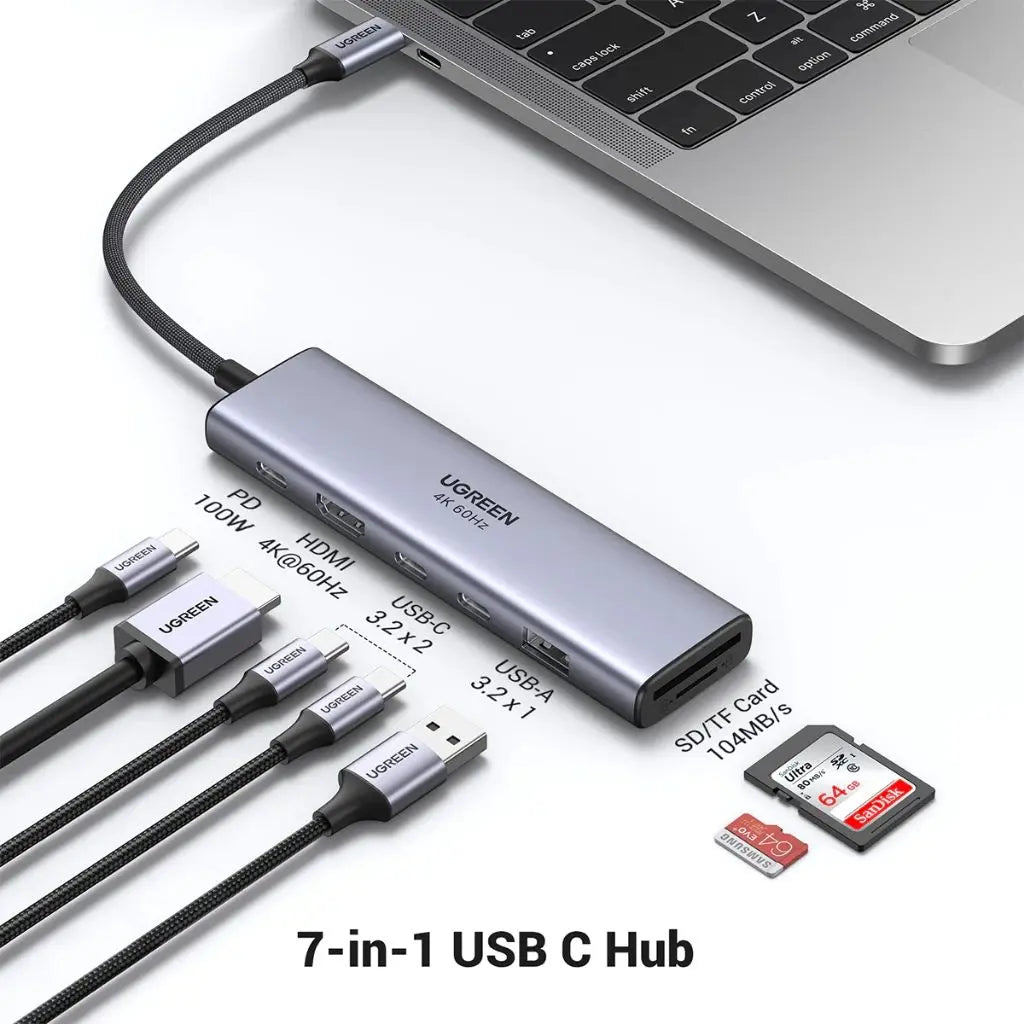

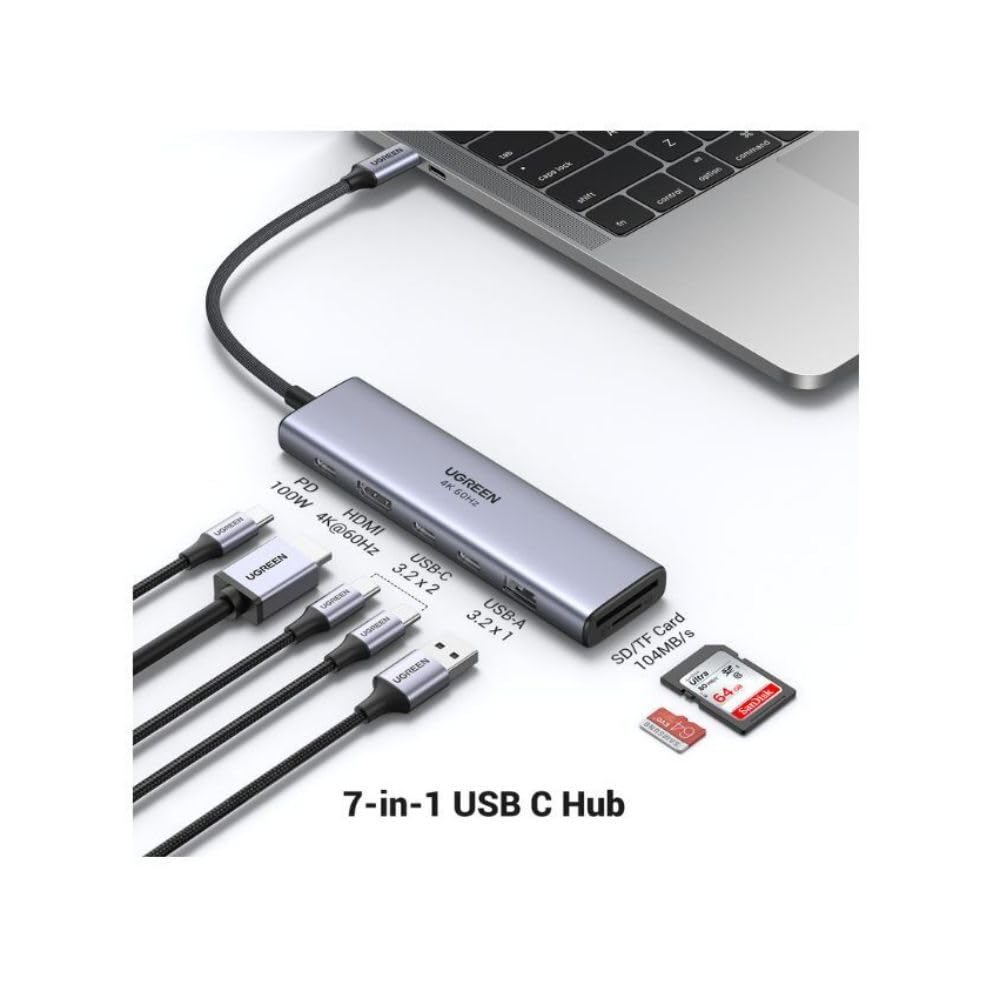

Complete Expansion
Display, Data, Memory Cards and Charging through One USB-C Port
CM511 combines the connections commonly required by mobile professionals, photographers, content creators and hybrid workers in one compact adapter.
1× HDMI 2.0
Connect one compatible monitor, television or projector at resolutions up to 4K@60Hz.
2× USB-C 3.2
High-speed data ports for compatible USB-C SSDs, drives, card readers and peripherals.
1× USB-A 3.2
Connect compatible flash drives, external storage, keyboards, mice and USB-A accessories.
1× SD Reader
Access compatible full-size SD, SDHC and SDXC memory cards.
1× microSD / TF Reader
Read compatible microSD, microSDHC and microSDXC cards without a separate adapter.
1× USB-C PD Input
Connect a compatible USB-C charger to power the host device while the hub remains connected.

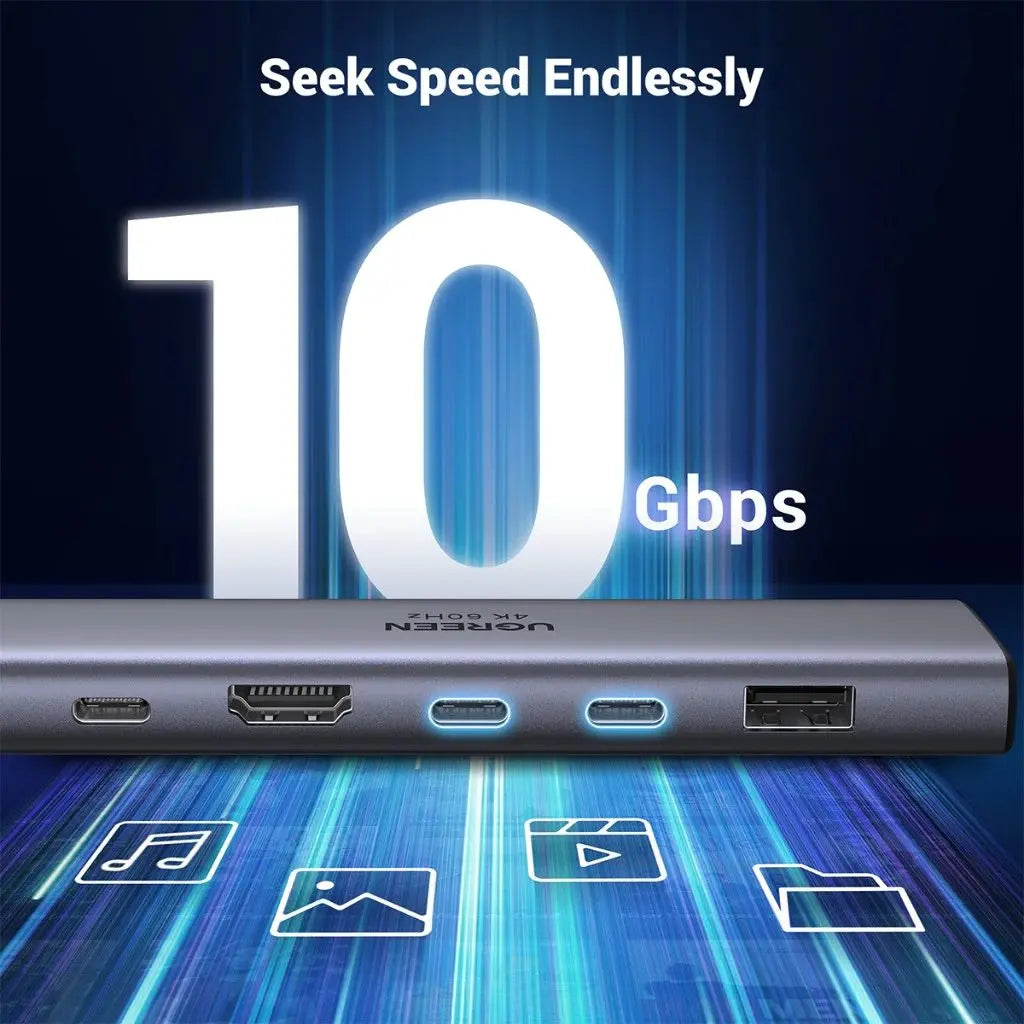

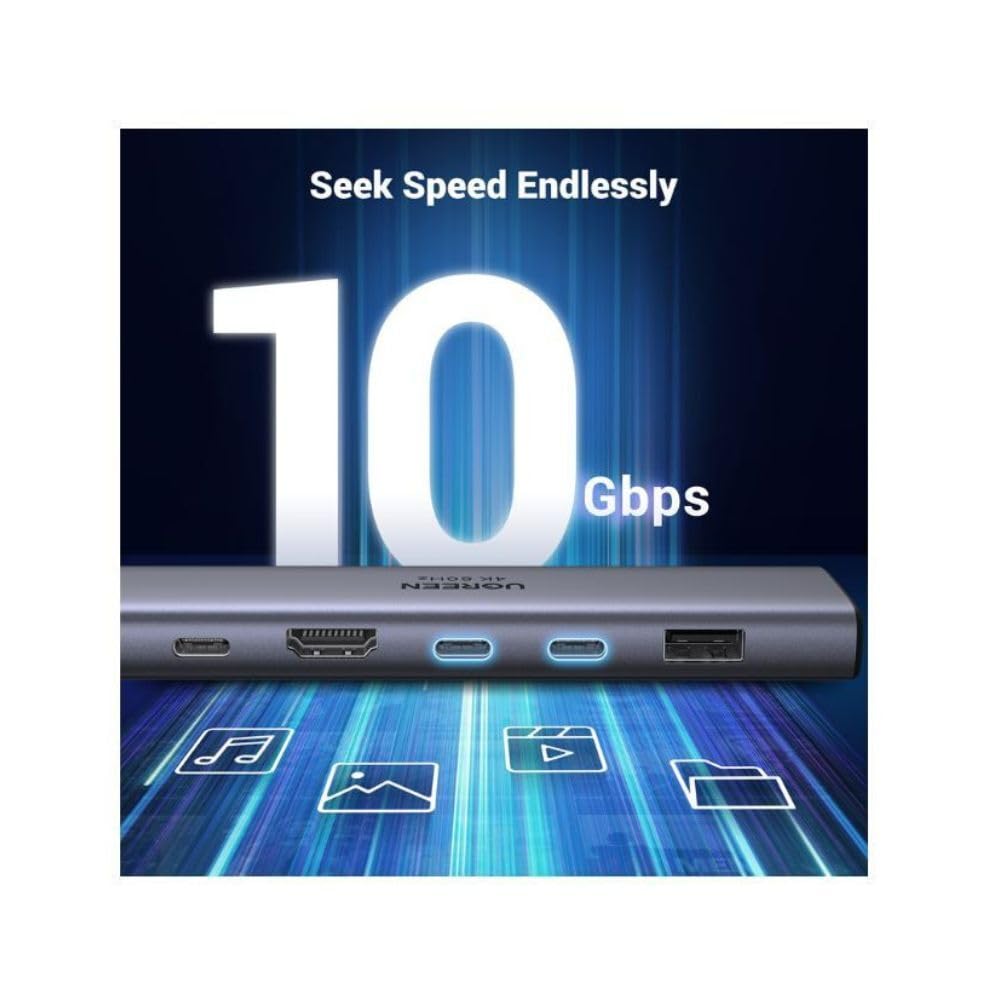

Transfer Compatible Data at up to 10Gbps
Use the two USB-C data ports and USB-A data port with compatible high-speed SSDs, drive enclosures, flash drives, card readers and professional accessories.
For 10Gbps Operation
- The host USB-C port must support USB 10Gbps.
- The peripheral must support USB 10Gbps.
- The peripheral cable must support the required speed.
- The connected storage must be sufficiently fast.
- Actual throughput is lower than the theoretical link rate.
USB Devices Share the Available Upstream Bandwidth
All connected USB devices communicate through the hub’s single attached USB-C host cable. Simultaneous transfers divide the bandwidth available from the host computer.
Actual Performance Depends On
- The host USB-C controller and port specification
- The number of simultaneously active devices
- External-drive and storage performance
- File size and operating-system overhead
- Power available to the connected peripherals
Connect One External Display at up to 4K@60Hz
Connect a compatible HDMI monitor, television or projector for presentations, productivity, entertainment and creative work. Supported resolution and refresh rate depend on the host device, operating system, display and HDMI cable.
4K@60Hz
Smooth Ultra HD output with a compatible source, monitor and HDMI cable.
HDR10
Passes compatible HDR10 video when the source, application, content and display support HDR.
HDCP 2.2
Supports compatible protected video playback across a compliant source, software and display chain.
The Host Port Must Support DisplayPort Alt Mode
A USB-C connector does not automatically provide video. HDMI output requires a host USB-C or Thunderbolt port capable of carrying a DisplayPort video signal.
Before Connecting a Display
- Confirm DisplayPort Alt Mode or Thunderbolt video support.
- Use a suitable HDMI 2.0 cable for 4K@60Hz.
- Confirm that the monitor supports the selected mode.
- Update the graphics driver and operating system.
- Enable the required display mode in system settings.
Mirror or Extend Your Workspace
Mirror Mode
Display the same presentation, video or application on the host and external screen.
Extended Desktop
Use the connected HDMI display as an additional workspace where supported by the host.
Single HDMI Display
The hub provides one HDMI output and directly supports one external display.
Transfer Photos and Videos from SD and microSD Cards
Separate SD and microSD/TF slots support compatible camera, drone, action-camera, dash-camera and mobile-device memory cards. Both card slots can be accessed together with a supported host system.
Full-Size SD
Supports compatible SD, SDHC and SDXC memory cards.
microSD / TF
Supports compatible microSD, microSDHC and microSDXC memory cards.
Simultaneous Access
Read compatible SD and microSD cards at the same time without swapping slots.
Transfer Speed Depends on the Card and Host
Memory-card performance depends on the card standard, rated read/write speed, file system, host USB connection and whether both slots are active simultaneously.
For Better Card Performance
- Use a high-speed SD 3.0-compatible card.
- Connect the hub to a high-speed USB-C host port.
- Use cards from reliable manufacturers.
- Safely eject cards before removing them.
- Avoid interrupting power during file transfers.

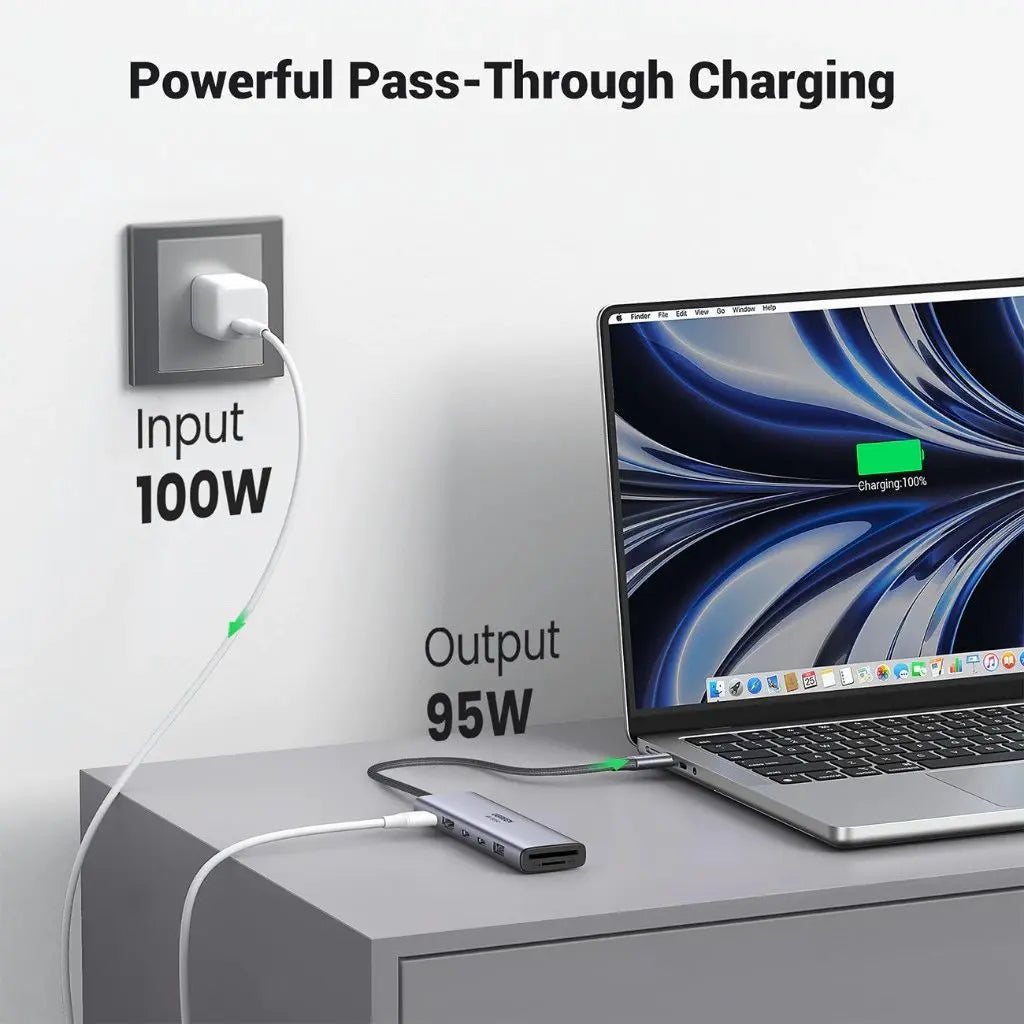

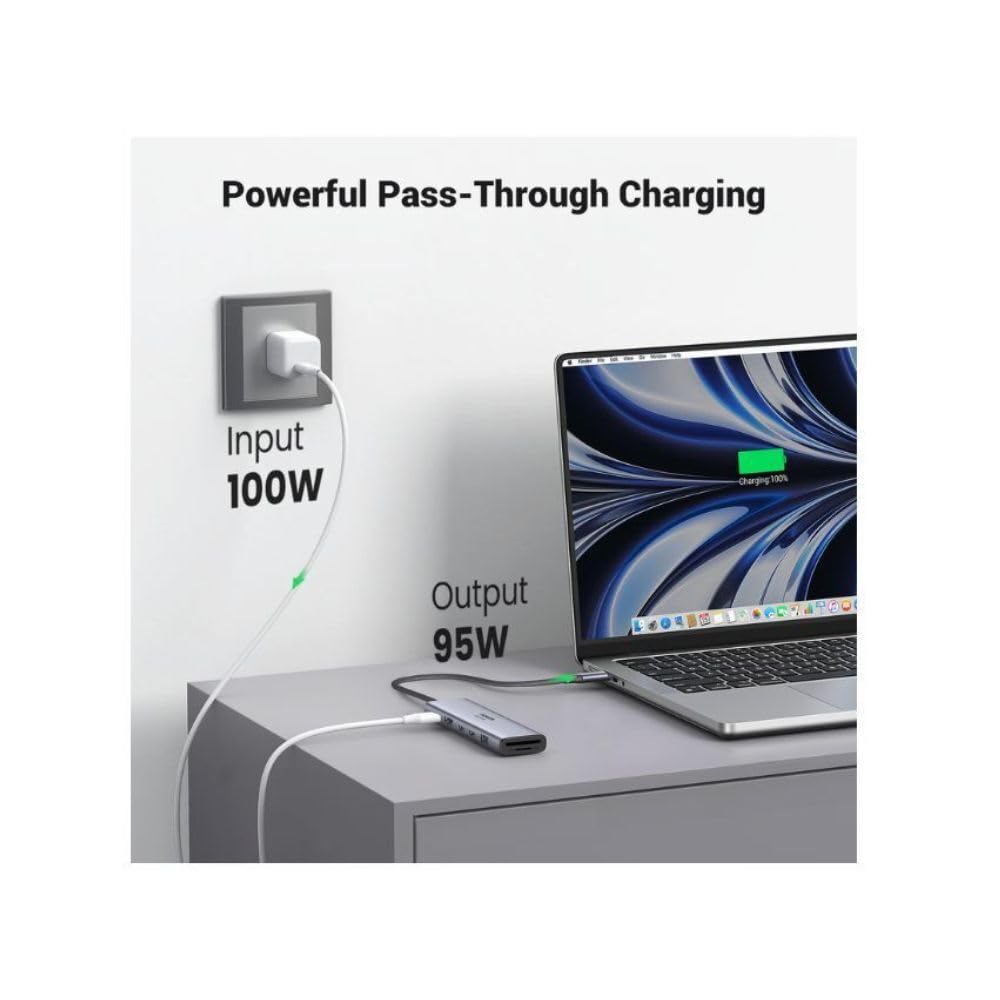

Up to 100W Power Input with Approximately 95W for the Host
Connect a compatible USB-C Power Delivery charger to the dedicated PD input to charge the host laptop or tablet while using the hub’s display, data and card-reader functions.
Full-Power Requirements
- A compatible USB-C PD charger rated up to 100W
- A suitable 5A E-Marker USB-C charging cable
- A host device supporting USB-C Power Delivery input
- The charger connected to the dedicated PD port
- Charging power accepted according to the host’s limit
Charging Speed Is Determined by the Complete Power Chain
The hub accepts up to 100W at its PD input, but the host receives only the power it supports. A lower-powered charger or cable results in lower host charging.
Important PD Notes
- A USB-C charger is not listed as included.
- A charging cable is not listed as included.
- The hub uses a small portion of the input power.
- The PD port is a power input, not a data port.
- Connected USB peripherals share power supplied by the host.
For Compatible MacBook, Windows, Chromebook, Tablet and USB-C Systems
Data, charging and display functionality depend on the capabilities of the connected USB-C host port. A compatible Thunderbolt 3 or Thunderbolt 4 port can operate the hub as a standard USB-C device.
MacBook & Mac
Compatible with supported MacBook Air, MacBook Pro, iMac and Mac mini USB-C or Thunderbolt ports.
Windows Laptops
Suitable for compatible Dell, HP, Lenovo, ASUS, Acer, Microsoft Surface and other USB-C systems.
Chromebooks
Works with compatible ChromeOS devices supporting USB accessories and external displays.
USB-C Tablets
Supports compatible iPad, Surface and Android tablets according to their USB host and video capabilities.
Desktop Computers
Connects to compatible desktop USB-C or Thunderbolt ports providing data and display support.
Thunderbolt Hosts
Works as a USB-C hub when connected to a compatible Thunderbolt 3 or Thunderbolt 4 host port.
Compatible with the Host Port — Not a Thunderbolt Dock
CM511 connects to Thunderbolt-equipped computers through standard USB and DisplayPort functions. It does not provide downstream Thunderbolt ports or Thunderbolt-specific expansion.
Not Included
- No 40Gbps Thunderbolt data connection
- No Thunderbolt daisy chaining
- No PCIe tunnelling
- No external-GPU support
- No downstream Thunderbolt connection
- No dual-display Thunderbolt docking function
The Two USB-C Expansion Ports Are Intended for Data
Connect compatible USB-C storage and peripherals through these ports. Monitor output and high-wattage charging are handled separately through HDMI and the dedicated PD input.
USB-C Data Ports
- Support compatible USB peripheral data
- Provide normal USB bus power to peripherals
- Are not HDMI or DisplayPort outputs
- Are not downstream Thunderbolt ports
- Are not 100W charging outputs
- Do not replace the dedicated PD input
Designed for Mobile Work, Content Creation and Travel
The slim aluminium enclosure and attached braided host cable make CM511 easy to carry between home, office, classroom, studio and travel setups.
Aluminium Enclosure
Protects the internal electronics and helps distribute normal operational heat.
Braided Host Cable
Provides flexible positioning beside a laptop, tablet or desktop computer.
Portable Size
Fits easily inside a laptop sleeve, electronics organiser or travel bag.
Mild Warmth during High-Speed Use Is Normal
The aluminium enclosure can become warm during sustained data transfer, HDMI output and host charging. Keep the hub uncovered and allow air to circulate around it.
Recommended Care
- Place the hub on a firm and open surface.
- Do not cover it with fabric or bedding.
- Use undamaged HDMI, USB and charging cables.
- Keep the ports free from moisture and debris.
- Disconnect equipment showing abnormal heat or damage.
Product Highlights
- Expands one compatible USB-C host port into seven connections.
- Provides one HDMI 2.0 output up to 4K@60Hz.
- Supports compatible HDR10, HDCP 2.2 and 3D video.
- Provides two USB-C 3.2 data ports.
- Provides one USB-A 3.2 data port.
- Supports compatible USB data transfer up to 10Gbps.
- Includes separate SD and microSD/TF card readers.
- Supports simultaneous access to both card slots.
- Accepts up to 100W USB-C PD input.
- Provides approximately 95W maximum host charging.
- Uses an aluminium-alloy enclosure.
- Includes an attached braided USB-C host cable.
Compatibility Checklist
- The host USB-C port must support USB data.
- HDMI requires DisplayPort Alt Mode or Thunderbolt video.
- 4K@60Hz depends on the source, monitor and HDMI cable.
- The hub directly supports one HDMI display.
- USB devices share the upstream host bandwidth.
- The two downstream USB-C ports are data ports.
- The dedicated USB-C PD port is a power input.
- A USB-C charger and charging cable are sold separately.
- The host determines the final charging power accepted.
- No Ethernet, VGA, DisplayPort or audio port is included.
- The product is not a Thunderbolt docking station.
- Mobile-device support depends on the operating system.
Technical Specifications
UGREEN CM511 7-in-1 USB-C Multifunction Hub, SKU 45521.
| Specification | Details |
|---|---|
| Brand | UGREEN |
| Model | CM511 |
| SKU | 45521 |
| EAN / GTIN | 6941876245215 |
| Product Type | 7-in-1 USB-C multifunction hub with HDMI, USB data, card readers and Power Delivery |
| Host Connector | Attached USB Type-C male cable |
| Total Expansion Ports | 7 |
| HDMI | 1× HDMI 2.0 output |
| Maximum HDMI Resolution | Up to 3840 × 2160 at 60Hz with compatible equipment |
| HDMI Features | Compatible HDR10, HDCP 2.2 and 3D video support |
| Maximum Number of Direct Displays | One HDMI display |
| Video Requirement | Host USB-C port with DisplayPort Alt Mode or compatible Thunderbolt video output |
| USB-C Data Ports | 2× USB-C 3.2 data ports |
| USB-A Data Port | 1× USB-A 3.2 data port |
| Maximum USB Data Rate | Up to 10Gbps theoretical with compatible host and peripherals |
| Shared Bandwidth | All connected USB devices share the bandwidth of the upstream USB-C connection |
| Downstream USB-C Video | Not supported through the USB-C data ports |
| Downstream USB-C PD Output | Not supported through the USB-C data ports |
| SD Card Reader | 1× full-size SD card slot |
| microSD / TF Reader | 1× microSD / TF card slot |
| Card Standards | Compatible SD, SDHC, SDXC, microSD, microSDHC and microSDXC cards |
| Simultaneous Card Use | Supported with a compatible host operating system |
| Card-Reader Interface | SD 3.0 class card-reader functionality |
| USB-C PD Port | 1× dedicated USB-C Power Delivery input |
| Maximum PD Input | Up to 100W |
| Maximum Host Charging | Up to approximately 95W after hub power consumption |
| PD Charger Included | Not listed as included |
| Charging Cable Included | Not listed as included |
| Ethernet | Not included |
| 3.5mm Audio | Not included |
| DisplayPort | Not included |
| VGA | Not included |
| Thunderbolt Compatibility | Connects to compatible Thunderbolt 3 and Thunderbolt 4 host ports as a USB-C hub |
| Thunderbolt-Specific Functions | No 40Gbps transfer, downstream Thunderbolt, PCIe tunnelling or daisy chaining |
| Compatible Operating Systems | Windows, macOS and Linux; available functions depend on the host system |
| Typical Compatible Hosts | Compatible MacBook, iMac, Mac mini, Windows laptops, Surface, Chromebook, USB-C tablets and desktop computers |
| Enclosure Material | Aluminium alloy |
| Host Cable | Attached braided USB-C cable |
| Approximate Host-Cable Length | Approximately 20cm according to regional specifications |
| Dimensions | Approximately 11 × 1.95 × 2.3cm as listed by UGREEN India |
| Listed Weight | Approximately 110g |
| Colour | Space Grey |
| Package Contents | 1× UGREEN CM511 7-in-1 USB-C hub with attached host cable; documentation according to current packaging |
| Warranty | Covered by the applicable UGREEN India warranty terms |
| GST Invoice | Available |
Frequently Asked Questions
Key information about UGREEN CM511, SKU 45521.
What ports are included?
CM511 includes one HDMI port, two USB-C data ports, one USB-A data port, one SD slot, one microSD/TF slot and one USB-C Power Delivery input.
Does it support 4K@60Hz?
Yes. HDMI output supports up to 4K@60Hz when the source, USB-C video output, display and HDMI cable support that mode.
Does every USB-C port support HDMI?
No. The host USB-C port must support DisplayPort Alt Mode or compatible Thunderbolt video output.
How many external displays can be connected?
The hub has one HDMI port and directly supports one external display.
Do the USB-C expansion ports support video?
They are intended for USB data peripherals. Display output is provided through the HDMI port.
Which ports support 10Gbps?
The two USB-C 3.2 data ports and USB-A 3.2 data port support theoretical transfer up to 10Gbps with compatible equipment.
Can all three data ports operate at full speed simultaneously?
All USB devices share the hub’s upstream USB-C bandwidth, so simultaneous transfers divide the available connection.
Can SD and microSD cards be used together?
Yes. Both card slots can be accessed simultaneously with a compatible host operating system.
Does the PD port support 100W?
The dedicated PD input accepts up to 100W from a compatible charger. Approximately 95W may be available to the host after hub power consumption.
Is a 100W charger included?
A USB-C charger and charging cable are not listed as part of the standard hub package.
Can the USB-C data ports charge phones?
They may provide standard USB bus power to compatible peripherals but are not dedicated high-wattage PD charging outputs.
Does it include Ethernet?
No. SKU 45521 does not include an RJ45 Ethernet port.
Does it have a headphone port?
No. A 3.5mm audio connector is not included.
Does it work with MacBook?
It works with compatible MacBook models offering USB-C or Thunderbolt data and display functionality. External-display limits depend on the exact Mac model.
Does it work with Windows laptops?
Yes, with compatible USB-C Windows systems. HDMI requires the selected host port to support video output.
Is this a Thunderbolt dock?
No. It can connect to compatible Thunderbolt host ports as a USB-C hub but does not provide downstream Thunderbolt functions or 40Gbps transfer.
Is it normal for the hub to become warm?
Mild warmth is normal during sustained USB transfers, HDMI output and Power Delivery charging. Keep the aluminium enclosure uncovered and ventilated.
UGREEN India Product Assurance
Genuine UGREEN product with GST invoice availability, applicable India warranty support and responsive local customer assistance.
-
Dimentions
-
Warranty
-
Version
-
Connector Type
-
Cable Type
-
Weight
GST Invoice available, just mail back with details to order confirmation mail.
Buy direct from official UGREEN India
GST Invoice, Warranty, authenticity, faster support
