UGREEN 20cm Micro HDMI Type-D to HDMI Female Adapter, 4K60 (20134)
An exhaustive, practical guide to exact ports, signal roles, performance, power, setup, compatibility, safe use and troubleshooting.
Product overview
Overview

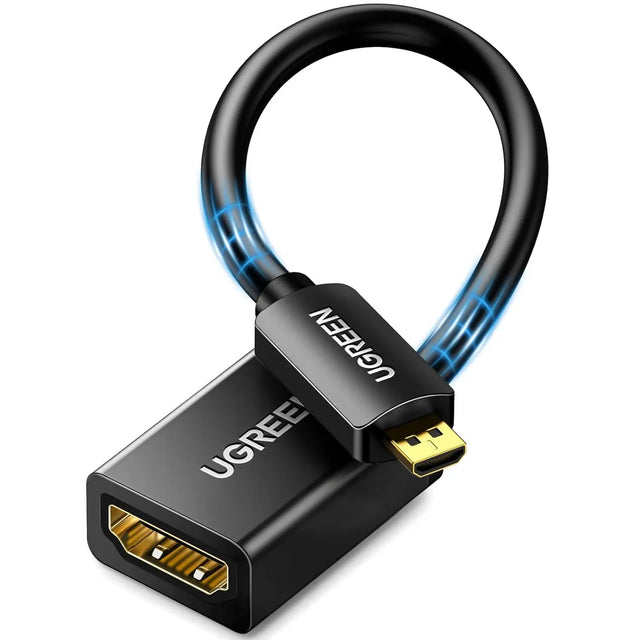

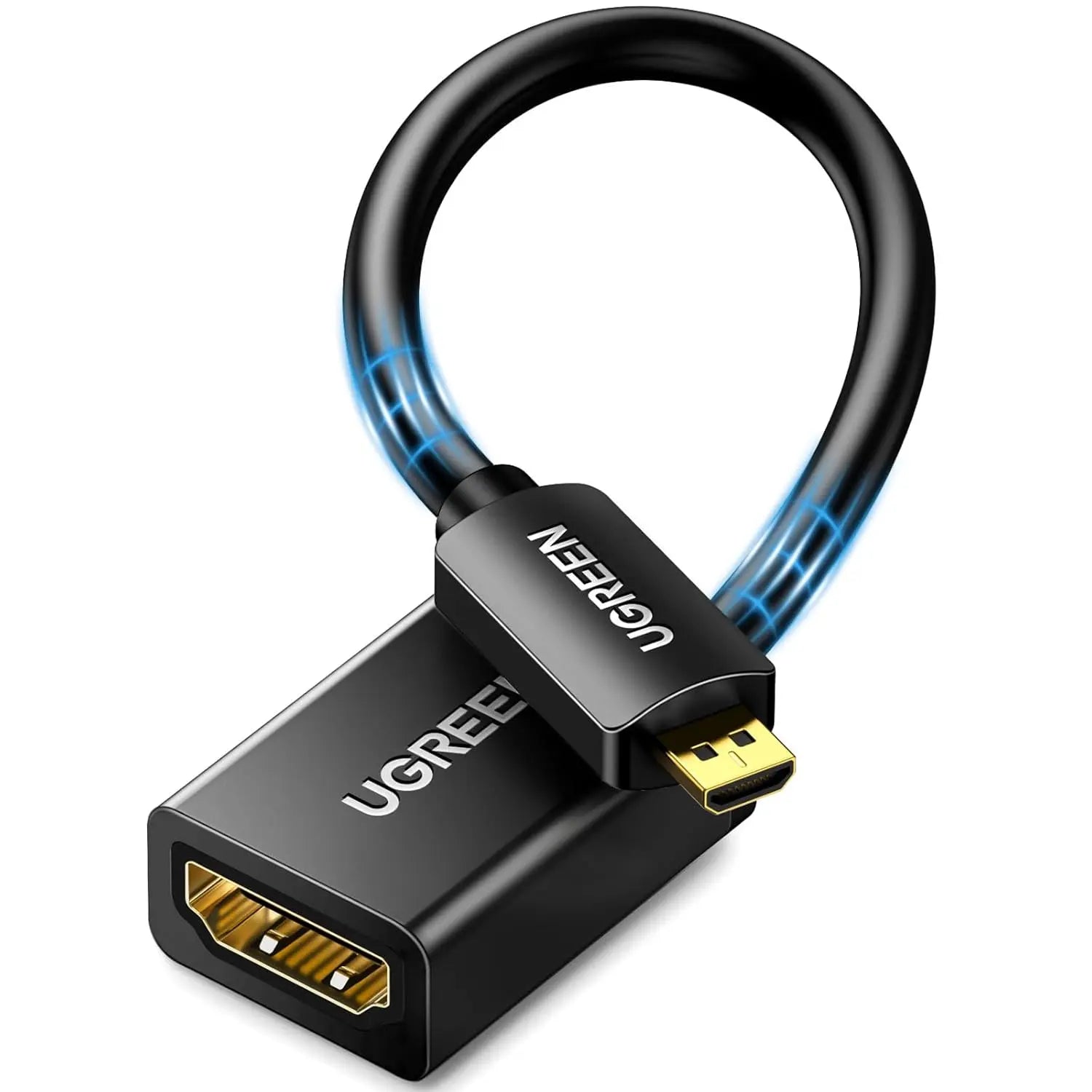

UGREEN 20134 is a passive short flexible adapter lead with a Micro HDMI Type-D male connector and HDMI Type-A female socket. It lets a compatible Micro HDMI Type-D device attach to a separately supplied full-size HDMI male-to-male cable. Up to 4K at 60Hz on the exact current performance artwork. The adapter does not upscale, convert an unsupported format or add video output to a device port.
The buying decision begins with the exact interfaces and application, not the largest printed number. Confirm that the physical ports, protocol, device software and complete route match this model.
Product highlights
Key features
Approximately 20cm
Exact model format or length for planning the physical connection.
Micro HDMI Type-D male
Verified product capability, subject to the complete end-to-end connection.
up to 4K60
The defining connector, protocol or construction detail for this exact SKU.
One clear job
Adapts one Micro HDMI Type-D male connection to one HDMI Type-A female socket.
No hidden upgrade
It does not add HDMI output to a device that lacks the required video-capable compact port.
Exact media only
All 9 current Shopify-owned product images were reviewed; embedded images remain attached to SKU 20134.
Port and direction check
Choose the right connection
Micro HDMI Type-D male to HDMI Type-A female; Approximately 20cm; separate HDMI Type-A male-to-male cable required
The passive wiring can carry compatible HDMI signals, but device port roles remain decisive: a source output must feed a receiving input. Connector wiring cannot turn an input-only port into an output. Identify the exact compact HDMI connector before insertion.

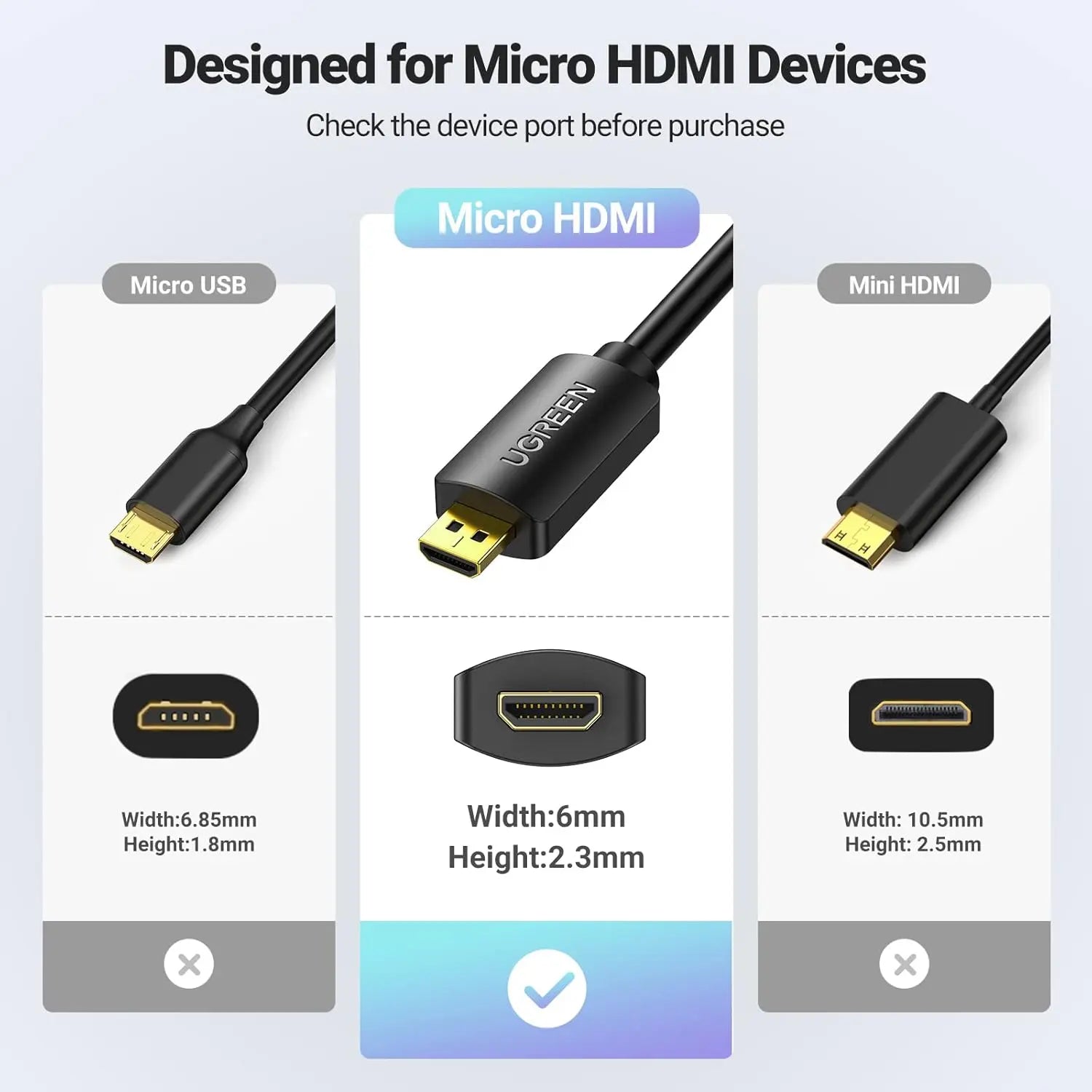

Inspect labels and connector shapes under good light. Mini HDMI, Micro HDMI, DisplayPort, HDMI, USB-C, USB-A, USB-B and RJ45 are distinct; even matching USB-C sockets may support different data, power or video functions.
Video, data, power and audio
Verified performance and signal path
Up to 4K at 60Hz on the exact current performance artwork. Compatible digital HDMI audio plus conditional 3D, ARC and HDMI Ethernet features when the full chain supports them. Every mode and optional HDMI feature depends on the source port, adapter, separate HDMI cable, receiving input, content and settings.
A maximum resolution, refresh rate, data rate, link speed, pickup distance or wattage is a ceiling rather than a guaranteed result. The complete host, cable, power, peripheral and receiving-device path controls the working outcome.
When a high mode or combined setup fails, establish one conservative direct function first, then add load or raise one setting at a time while checking picture, data, power, network and audio behaviour.
Physical build
Ports, audio and construction

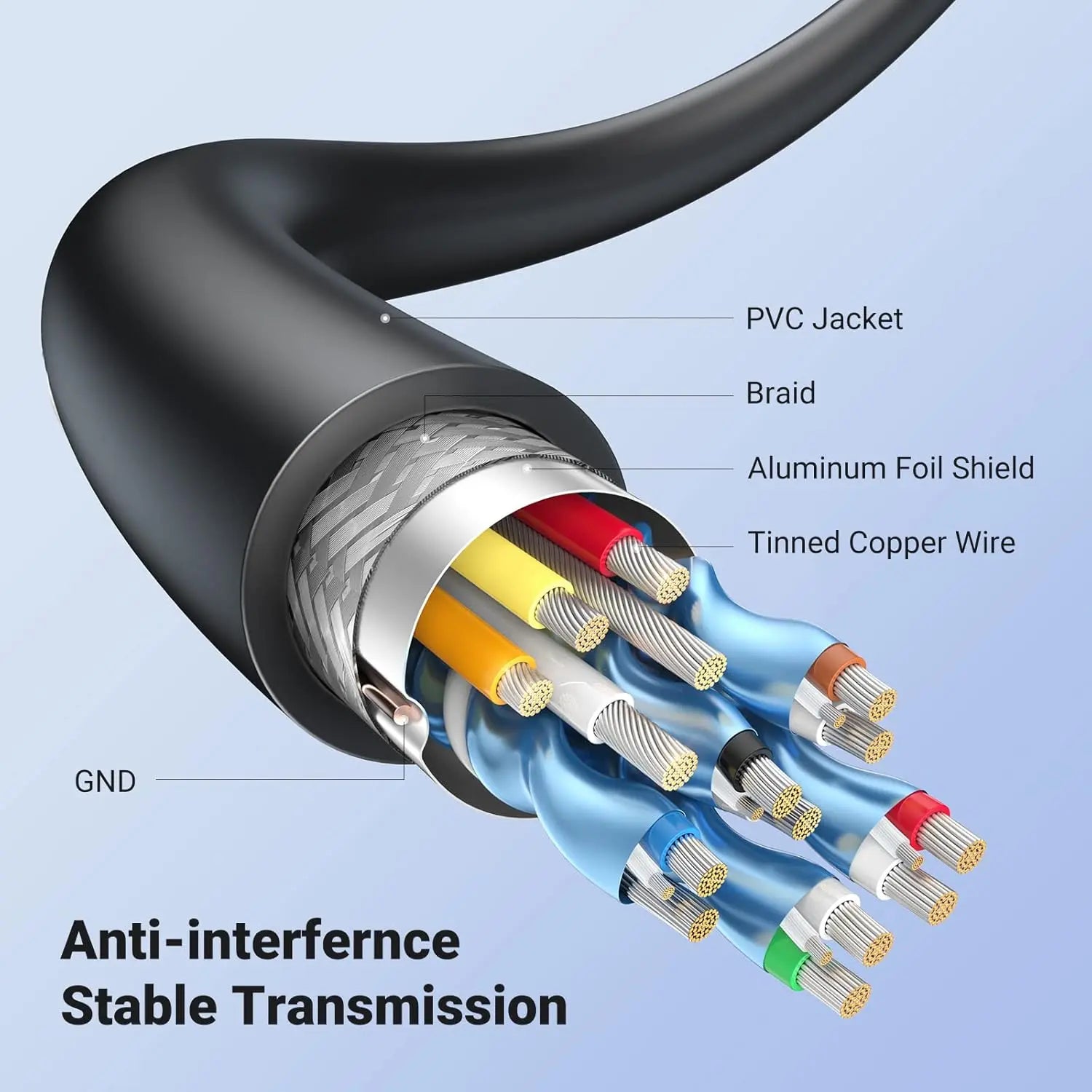

Tinned-copper-wire artwork, aluminium foil, braid, ground path and PVC jacket with plated contacts
| Compact connector | Micro HDMI Type-D male |
|---|---|
| Full-size socket | HDMI Type-A female |
| Form / length | Approximately 20cm |
| Signal type | Passive HDMI wiring; no scaling or active conversion |
| Maximum cleaned mode | Up to 4K at 60Hz on the exact current performance artwork |
| Audio / optional features | Compatible digital HDMI audio plus conditional 3D, ARC and HDMI Ethernet features when the full chain supports them |
| Construction | Tinned-copper-wire artwork, aluminium foil, braid, ground path and PVC jacket with plated contacts |
| Required accessory | Separate HDMI Type-A male-to-male cable |
| Power / driver | None required |
Port, signal and construction details describe this exact product only. They are not borrowed from another connector direction, cable length or visually similar family model.
Where it fits
Use scenarios

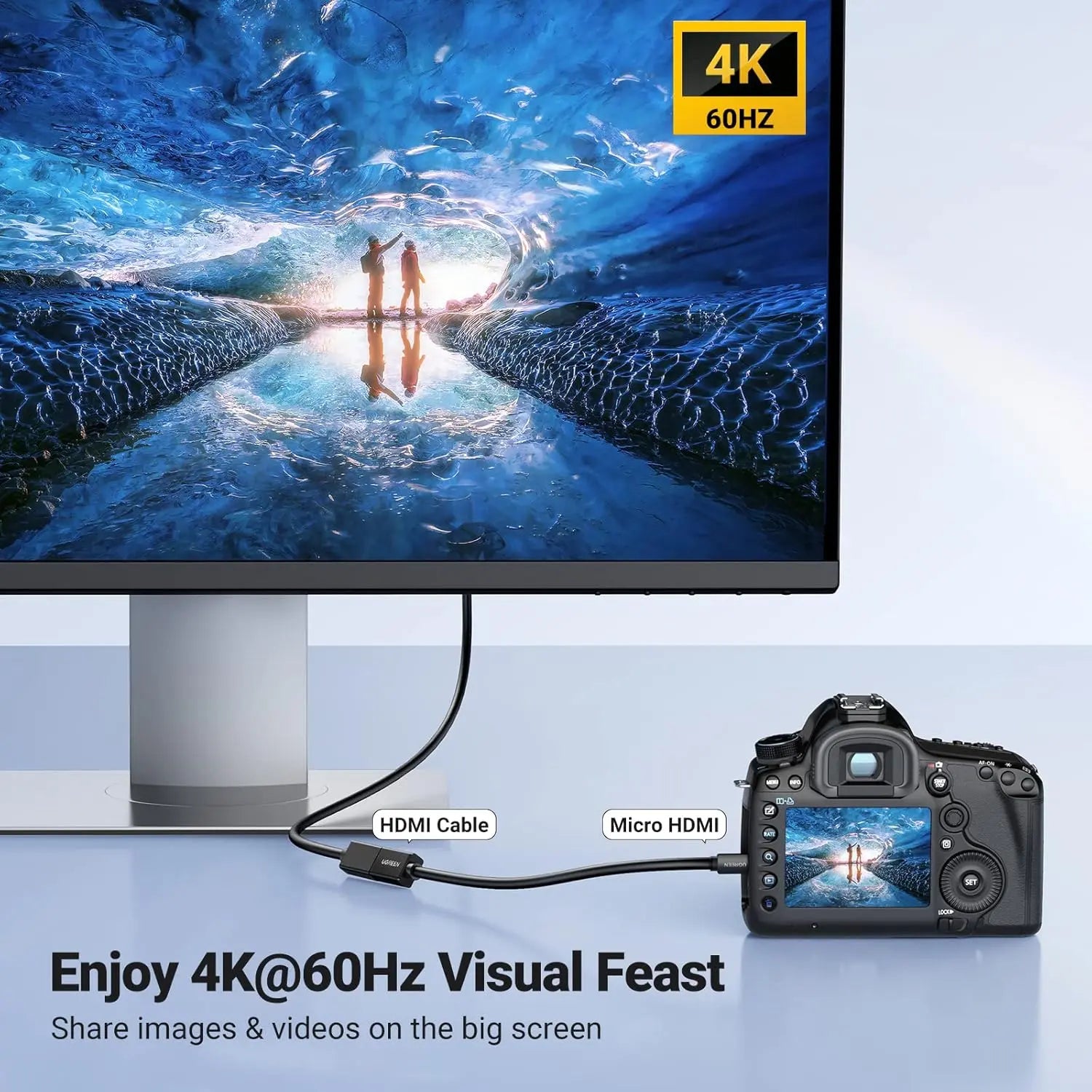

Camera to television
Connect a Micro HDMI Type-D-equipped camera to one HDMI television through a separate cable.
Camera to monitor
Review supported video on a larger HDMI monitor without promising a camera clean-output mode.
Projector presentation
Use a compatible Micro HDMI Type-D source with an HDMI projector at a shared display mode.
Capture workflow
Connect to a compatible capture input only when the source provides a supported clean HDMI signal.

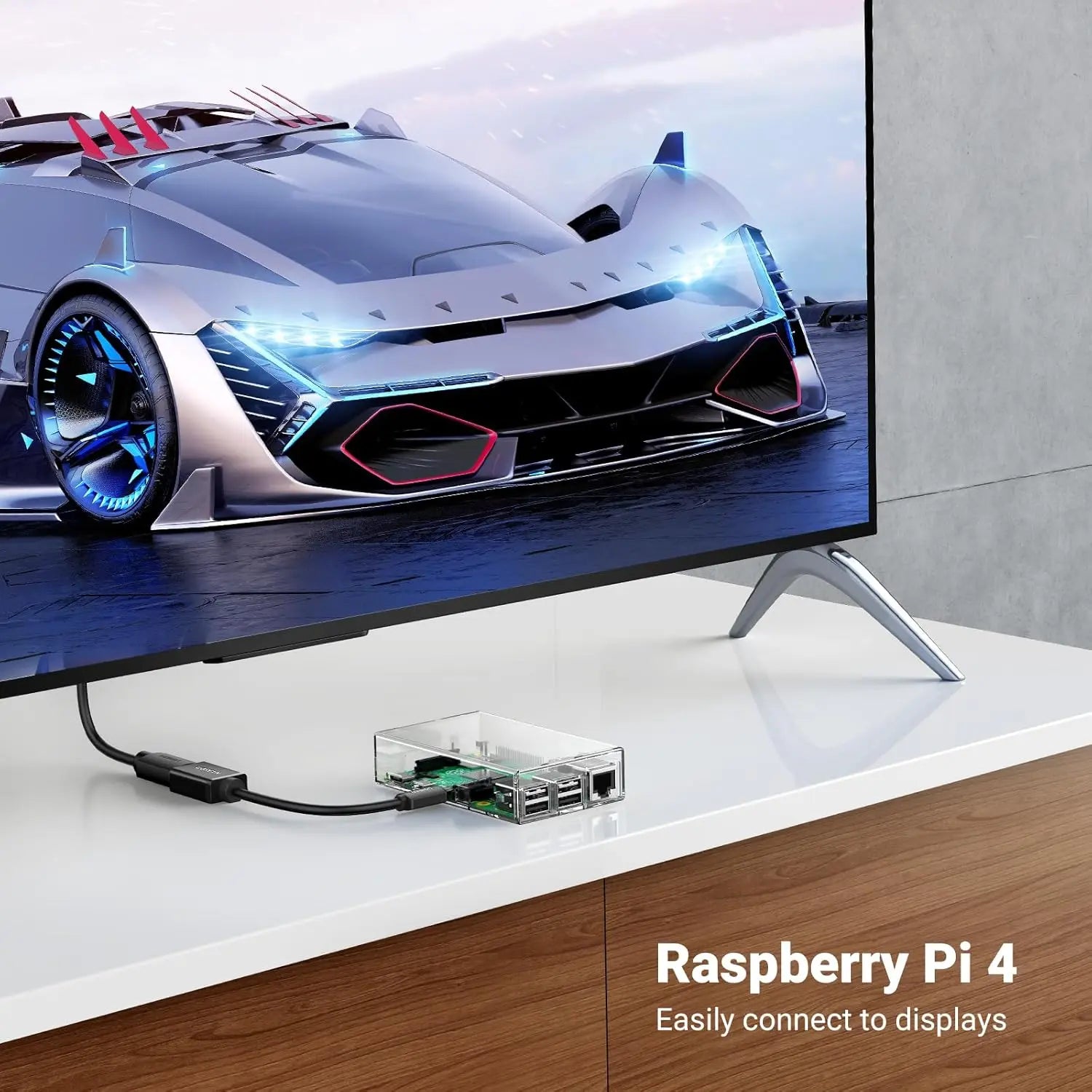

Raspberry Pi or compact device
Use only when the exact device has Micro HDMI Type-D video output; model names alone do not prove the port.
Travel adapter
Carry the compact adapter with a tested HDMI cable while protecting the small device connector from leverage.
A reliable first connection
Setup and usability guidance
Follow a controlled sequence so connector, direction, display, data, power, network and audio faults remain easy to isolate.
- Inspect the source and confirm Micro HDMI Type-D; do not confuse it with Mini HDMI, Micro USB or USB-C.
- Power down or place both endpoints in standby before the first connection.
- Insert the Micro HDMI Type-D plug straight into the source without twisting or levering it.
- Attach a separately supplied HDMI Type-A male cable to the adapter’s female socket.
- Connect the other HDMI plug to the receiving display and select that input.
- Begin at 1080p, then raise only within the exact cleaned up to 4K60 ceiling.
- Support the cable and adapter so their weight cannot stress the compact source port.
Compatibility explained
Compatible devices and systems
Source devices
- Cameras, action cameras, compact computers or tablets with actual Micro HDMI Type-D output
- Source firmware/settings must enable the intended HDMI output
- Device examples do not guarantee every revision
Receiving devices
- HDMI Type-A monitor, television or projector
- Compatible HDMI capture input where source clean output exists
- Separate HDMI male-to-male cable
Signal behaviour
- Up to 4K at 60Hz on the exact current performance artwork
- Compatible digital HDMI audio plus conditional 3D, ARC and HDMI Ethernet features when the full chain supports them
- No active scaling, format conversion or signal boosting
Explicit exclusions
- Not Mini HDMI Type-C, Micro USB or USB-C
- No exact HDCP-version promise
- No included HDMI cable
Compatibility is conditional. A device name or logo in product artwork identifies a use category, not universal support for every hardware revision, operating system, graphics mode, port direction or accessory chain.
Supported jobs
What this product does
Use SKU 20134 for these verified roles.
- Adapts one Micro HDMI Type-D male connection to one HDMI Type-A female socket.
- Provides an approximately 20cm flexible lead to extend the small device port.
- Passes compatible video up to 4K60.
- Passes compatible HDMI audio where the complete path supports it.
- Works without a driver, software or external power.
- Accepts a standard HDMI Type-A male cable at the female socket.
Each role stays within the product category described above; it does not imply conversion, amplification, routing or software support that is not listed.
Important exclusions
What this product does not do
These exclusions prevent the most common wrong-product purchases and unsafe installations.
- It does not add HDMI output to a device that lacks the required video-capable compact port.
- It does not fit the other compact HDMI size, Micro USB or USB-C.
- It does not upscale resolution or convert unsupported video formats.
- It does not include the separately required HDMI cable.
- It does not guarantee clean camera output, capture compatibility or protected-content playback.
- It does not guarantee 4K60 unless every path component supports it.
Best-practice checklist
What to do
Protect the connection and make later diagnosis straightforward.
- Confirm every physical port and its input/output role before making the connection.
- Begin with a direct, conservative setup and add higher modes or extra devices only after it is stable.
- Hold connector housings rather than cables and leave every small device port free of tension.
- Use correctly rated, undamaged external cables and power accessories where the product requires them.
- Change one variable at a time when troubleshooting so the limiting component remains identifiable.
- Keep the product dry, supported, ventilated and accessible for inspection.
A labelled, supported and tested connection is easier to maintain than one hidden immediately after purchase.
Avoid these mistakes
What not to do
Most failures come from wrong interfaces, unsupported claims, strain or uncontrolled channel changes.
- Do not force a plug into a similar-looking connector or assume all USB-C and HDMI-shaped ports have the same functions.
- Do not pull, crush, sharply bend, staple or let accessory weight hang from a host port.
- Do not treat a printed maximum as guaranteed performance from every source, cable, display or peripheral.
- Do not disconnect storage, video or power paths during an active transfer, firmware operation or write process.
- Do not use the product outdoors or permanently inside a wall without the required published rating.
- Do not continue using cracked, loose, contaminated or abnormally hot connectors or housings.
Stop using the product if a connector, housing, jacket or lead is cracked, loose, contaminated, unusually hot or exposes conductive parts.
Read before installation
Warnings and limitations
The following limits remain important even when the connector appears to fit.
- Confirm Micro HDMI Type-D before ordering; the small HDMI sizes are not interchangeable.
- Support both ends and keep the short lead free of sharp bends.
- 4K60 requires source, separate HDMI cable and receiving input support.
- ARC, HEC, 3D and audio functions apply only when every device and cable in the path supports them.
- Capture use additionally depends on source clean output, capture hardware and software.
- No outdoor, in-wall, plenum, direct-burial, LSZH or fire-resistance rating is stated for this exact product.
Exact-model specification table
Technical specifications
| Product type | Passive Micro HDMI Type-D-to-HDMI female lead |
|---|---|
| SKU | 20134 |
| Compact connector | Micro HDMI Type-D male |
| Full-size interface | HDMI Type-A female |
| Length / form | Approximately 20cm |
| Signal roles | Compatible HDMI source output to receiving input; passive wiring |
| Maximum cleaned mode | Up to 4K at 60Hz on the exact current performance artwork |
| Audio | Compatible digital HDMI audio plus conditional 3D, ARC and HDMI Ethernet features when the full chain supports them |
| Required cable | Separate HDMI Type-A male-to-male |
| Construction | Tinned-copper-wire artwork, aluminium foil, braid, ground path and PVC jacket with plated contacts |
| Active conversion | None |
| Scaling | None |
| External power | None |
| Driver | None |
| HDCP version | Not safely stated |
“Not stated” means the current exact product sources do not safely establish that detail; it is intentionally not filled from another family model.
What is in the pack
Package contents
1 × UGREEN 20134 20cm Micro HDMI Type-D male to HDMI Type-A female adapter lead
Included only as stated for this exact current product record.
Source devices, displays, separately required HDMI, VGA or audio cables, wall plates, switches, receivers and installation hardware are not included unless individually listed above. Inspect the retail package before installation.
Problem-to-check sequence
Troubleshooting guide
| Adapter does not fit | Stop and identify the exact compact port; never force Mini HDMI, Micro HDMI, Micro USB or USB-C. |
|---|---|
| No picture | Confirm source-output and display-input roles, select the receiving input and test a known-good HDMI cable at 1080p. |
| Higher mode is missing | Keep within up to 4K60 and verify the source port, separate cable and display all support that mode. |
| No audio | Select HDMI audio at the source and choose a format the receiving device supports. |
| Capture card shows no signal | Set a supported timing and confirm the camera provides clean output without unsupported protection or overlays. |
| Signal changes when the cable moves | Relieve strain immediately and inspect the small source port, adapter and HDMI cable for looseness or damage. |
Change one variable at a time. A known-good direct connection with one basic function is the fastest way to separate a product fault from a port, direction, cable, power source, graphics setting, peripheral, network or application problem.
Collapsible answers
Product-specific FAQ
Open any question for a concise answer about exact SKU 20134.
Is this Mini HDMI or Micro HDMI?
It is Micro HDMI Type-D.
Is it the same as USB-C or Micro USB?
No. Those are different connectors and protocols.
Is another HDMI cable required?
Yes. Connect a separate HDMI Type-A male-to-male cable to the female socket.
What is the maximum cleaned mode?
Up to 4K at 60Hz on the exact current performance artwork
Does it carry audio?
Compatible digital HDMI audio plus conditional 3D, ARC and HDMI Ethernet features when the full chain supports them
Is it active or passive?
It is passive and performs no scaling, boosting or format conversion.

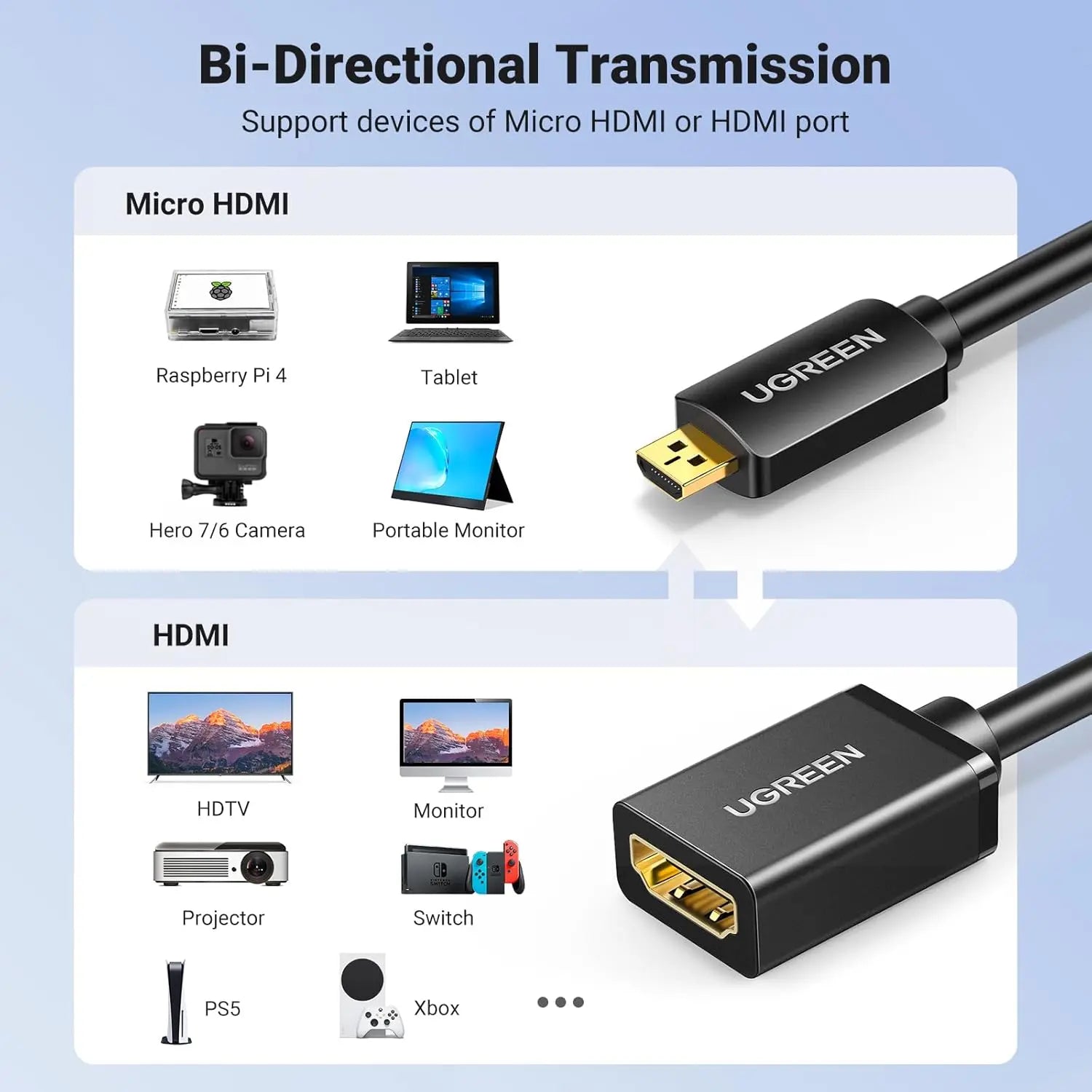

Can it work in both wiring directions?
Passive wiring may carry compatible HDMI signals, but one device must still provide output and the other must accept input.
Does it need power or a driver?
No external power or product-specific driver is required.
Can it be used with a camera?
Yes only when the exact camera has Micro HDMI Type-D video output and supports the requested mode.
Can it be used for capture?
Only when the source supplies compatible clean output and the separate capture device supports the timing and content.
Is an HDCP version guaranteed?
No exact HDCP version is safely stated.
What is included?
1 × UGREEN 20134 20cm Micro HDMI Type-D male to HDMI Type-A female adapter lead
Exact-model verification
Research and source note
The exact current record and nine gallery items establish a passive approximately 20cm Micro HDMI Type-D male to HDMI Type-A female adapter lead, up to 4K60, compatible audio and 3D, tinned-copper artwork, foil/braid shielding and PVC. Current art calls the wiring bidirectional, but device port roles still control use: an output must feed an input. A separate HDMI cable is required. No HDCP version, upscaling or guaranteed camera clean-output claim is added.
The current Shopify record and all 9 exact product-owned gallery items were checked. Only exact-SKU media is embedded, once each at most, as a large contextual figure with unique alternative text and caption.
