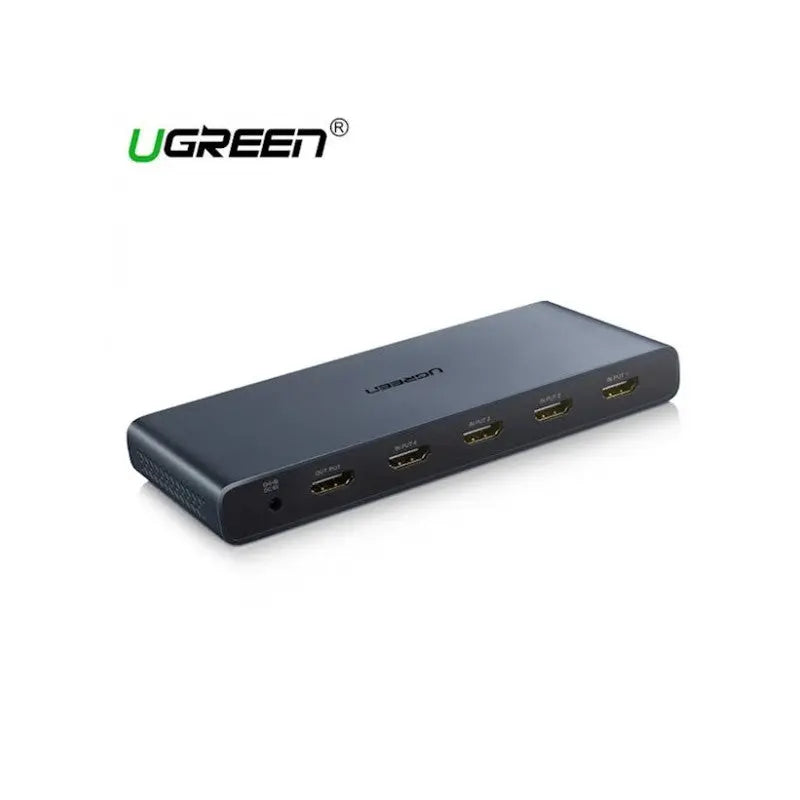

UGREEN HDMI 4x1 Quad Multi-Viewer 4 In 1 Out HDMI Switcher Seamless Switching Full HD 1080P TV Monitor Projector Display 50745

UGREEN CM201 HDMI 4×1 Quad Multi-Viewer (50745)

Display and manage up to four HDMI sources on one Full HD screen. The UGREEN CM201 combines selected inputs into a single HDMI output and offers multiple viewing layouts, making it useful for monitoring several compatible sources without switching the display cable.

Display modes and control

• 4 × HDMI inputs and 1 × HDMI output
• Full-screen, dual-view, picture-in-picture and four-source quad-view layouts
• Output resolution up to 1920 × 1080 at 60Hz
• Front-panel buttons and an included infrared remote control
• Hot-plug support and power-off memory for the previous operating state

Verified specifications

• Model: UGREEN CM201
• Product code: 50745
• HDMI standard: HDMI 1.3
• Content-protection support: HDCP 1.2
• Maximum output: 1080p at 60Hz

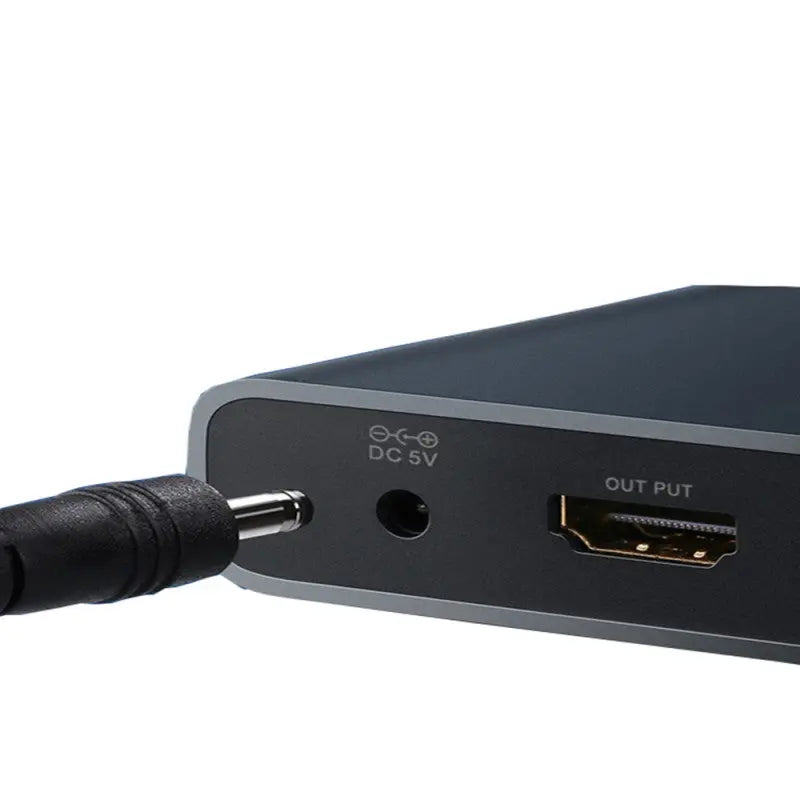

• Power input: 5V DC, 2A

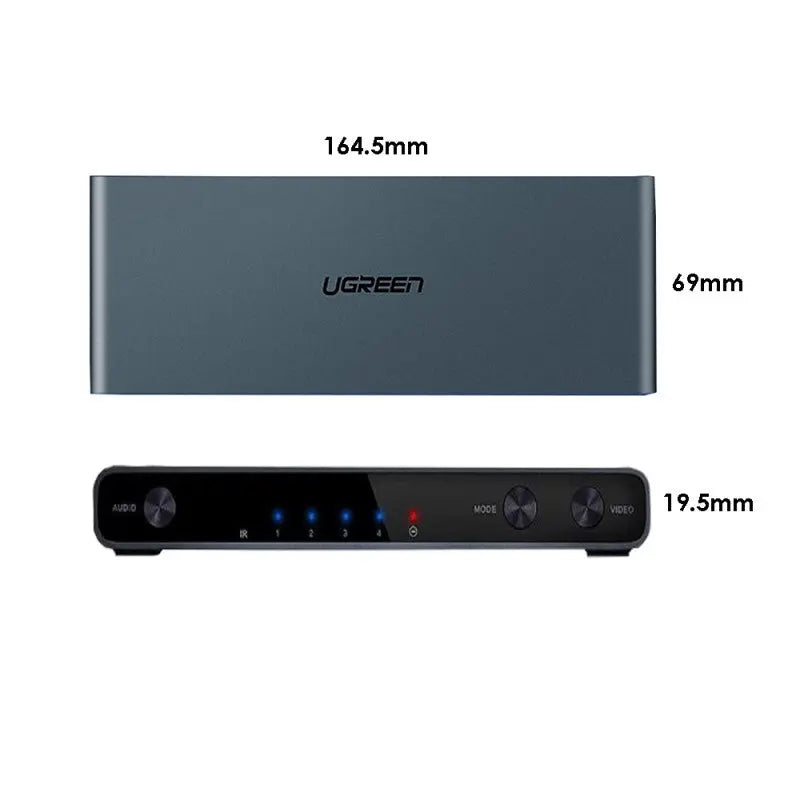

• Approximate dimensions: 164.5 × 69 × 19.5mm

Compatibility and use

Suitable for combining compatible computers, cameras, media players, set-top boxes or other HDMI sources on one Full HD television, monitor or projector. Choose the required layout with the front controls or remote, then select the sources assigned to the available windows.

Important before buying

This is a multi-viewer, not a passive splitter: it combines inputs into one output and does not send one source to several displays. Its output is limited to 1080p 60Hz, so it is not a 4K-output device. HDMI 1.3 and HDCP 1.2 limits apply; equipment that requires newer HDCP may not display correctly. Input formats, audio behaviour and seamless switching depend on the complete source/display setup. A power connection and HDMI cables are required.

Package contents

• 1 × UGREEN CM201 multi-viewer
• 1 × 5V/2A power adapter
• 1 × infrared remote control
• 1 × user manual
