Ugreen  |  SKU: 60558
25% off
New arrival

UGREEN 60558 Cat6 Unshielded RJ45 Modular Plugs, 100-Pack

Rs. 833.00 Rs. 1,109.00
Tax included Shipping calculated at checkout.

Blazing Speed
Rock-Solid Link
Easy Terminate
Universal Fit
Reliable Data
CAT6 UTP • 8P8C • 100 PACK

UGREEN 60558 Cat6 Unshielded RJ45 Modular Plugs, 100-Pack

Overview

UGREEN 60558 is a pack of 100 unshielded Cat6 8P8C modular plugs for terminating compatible Ethernet cable. Each clear plug accepts eight prepared conductors and is crimped to form a male cable end. The plug does not create network speed or correct a poor cable. This guide explains selection, installation, compatibility, real limitations and safe use without treating a passive accessory as active networking equipment.

Exact SKU 60558ACTIVE productCAT6 UTP • 8P8C • 100 PACK
UGREEN 60558 exact product overview
UGREEN 60558 exact product overview
1

Key features

Exact role

Each clear plug accepts eight prepared conductors and is crimped to form a male cable end. The plug does not create network speed or correct a poor cable.

Compatibility boundary

Compatible unshielded Cat6 cable with the listed 0.8–1.1mm conductor diameter range. The exact page describes use with both single- and multi-strand conductor, so sample-fit and pull testing are important.

Performance reality

Listed for Gigabit Ethernet applications when the finished cable and complete channel comply. A plug by itself cannot certify 1000Mbps or 250MHz operation.

Important exclusion

This is not shielded, not automatically suitable for every Cat6/6A cable, not a pass-through design, not reusable after crimping and not a female extender.

2

Where it fits in the connection

1. Network device
2. Crimped plug
3. Matched cable
4. Crimped plug
5. Network device

The system rule: every stage must match. The lowest-rated, damaged or incorrectly terminated component can limit speed, reliability, shielding, PoE operation or serviceability.

3

Use scenarios

Scenario 1

Making compatible Cat6 UTP patch leads in required lengths.

Scenario 2

Repairing a cable end after verifying all eight conductors remain sound.

Scenario 3

Bulk home, office or rack installation work with sample-first checks.

Scenario 4

Maintaining spares for tested unshielded Cat6 cable construction.

4

Compatibility and selection guide

Use when

Compatible unshielded Cat6 cable with the listed 0.8–1.1mm conductor diameter range. The exact page describes use with both single- and multi-strand conductor, so sample-fit and pull testing are important.

Do not assume

not shielded, not automatically suitable for every Cat6/6A cable, not a pass-through design, not reusable after crimping and not a female extender.

Before bulk purchase: trial the exact cable, module, plug or rack fit and complete one tested installation. Small physical differences can matter even within the same category name.

UGREEN 60558 construction or installation detail
UGREEN 60558 construction or installation detail
5

Setup and usability guidance

  1. Step 1: Confirm UTP Cat6 cable construction and the listed 0.8–1.1mm conductor fit.
  2. Step 2: Select T568A or T568B and keep the scheme consistent with the installation design.
  3. Step 3: Strip the minimum jacket length and avoid nicking insulation or excessive pair untwist.
  4. Step 4: Arrange, straighten and trim conductors evenly before full insertion.
  5. Step 5: Inspect colour order, conductor reach and jacket capture through the clear housing.
  6. Step 6: Crimp with the correct die, inspect every contact and test the wire map plus actual link speed.

Work cleanly: dust, copper scraps and loose braid strands can create faults. Collect offcuts and inspect the finished area before energising connected equipment.

6

Compatible devices and systems

Network endpoints

Routers, switches, access points, computers, printers, smart televisions, cameras and other RJ45 network equipment only through a correctly built compatible link.

Structured cabling

Wall outlets, patch panels, permanent cable and patch leads must share a suitable category, shielding design and wiring scheme.

PoE equipment

Possible only within the verified boundary: No separate PoE class is provided. PoE use requires suitable copper conductors, gauge, connector fit, termination quality, bundle temperature control and compliant powered equipment.

Operating systems

No operating-system driver is required for this passive accessory or manual tool; active adapters and switches are separate products.

7

What this product does

  • Provides its exact documented function: Each clear plug accepts eight prepared conductors and is crimped to form a male cable end. The plug does not create network speed or correct a poor cable.
  • Supports the stated compatibility class: Compatible unshielded Cat6 cable with the listed 0.8–1.1mm conductor diameter range. The exact page describes use with both single- and multi-strand conductor, so sample-fit and pull testing are important.
  • Can form part of a serviceable labelled network: when installed with matched components and tested.
  • Keeps infrastructure modular: damaged or changed portions can be traced and replaced without rebuilding unrelated equipment.
  • Uses no software: this product is passive or manual and has no configuration app.
8

What this product does not do

  • It is not shielded, not automatically suitable for every Cat6/6A cable, not a pass-through design, not reusable after crimping and not a female extender.
  • It does not upgrade a lower-category cable or repair split pairs, poor conductor material, corrosion or bad device ports.
  • It does not guarantee PoE, bandwidth or error-free operation without a compliant complete link.
  • It does not remove the need for correct tools, installation practice, labelling and testing.
  • It should not be installed outdoors, in wet areas or beside mains wiring without a suitable compliant enclosure and qualified design.
9

What to do

Match

Match the exact SKU: use the title, construction and limits for 60558 rather than borrowing specifications from a similar family member.

Check

Check the complete path: confirm cable category, shielding, conductor construction, connector geometry, patch leads and endpoints.

Label

Label both ends: record room/port, wiring scheme and destination so later maintenance does not become guesswork.

Test

Test in stages: verify the cable or module before closing a wall plate or rack, then test again after final assembly.

Protect

Protect bend radius and strain relief: route cable gently and keep load away from contacts, IDC slots and device sockets.

10

What not to do

Do not force

Do not force parts: a keystone, plug, cable or tool that does not fit cleanly is probably the wrong geometry.

Do not miswire

Do not mix T568A and T568B accidentally: document the chosen scheme and check all eight conductors.

Do not over-untwist

Do not untwist pairs excessively: preserving pair geometry near termination matters to high-frequency performance.

Do not guess

Do not claim speed from appearance: clear housings, gold colour or a category marking do not replace complete-link testing.

Do not reuse damage

Do not use damaged parts: discard cracked housings, bent contacts, dull blades, loose shutters or failed crimp terminations.

11

Warnings and limitations

  • Sharp tools and contacts: keep fingers clear of blades, IDC contacts, trimmed conductors and crimp dies. Wear appropriate eye protection during cutting and termination.
  • Indoor low-voltage scope: no outdoor ingress rating is established. Keep the product dry, clean and away from corrosive environments or excessive heat.
  • Category is system-wide: a Cat5e, Cat6 or Cat7 label on one part does not upgrade the remaining cable, patch leads, terminations or equipment.
  • Test before service: visual inspection is not enough. Verify conductor map and real link negotiation; professional installations may require certification testing.
  • Do not work on live mains: networking hardware is low voltage, but wall boxes and racks may be close to hazardous electrical circuits.

Exact model limit: Listed for Gigabit Ethernet applications when the finished cable and complete channel comply. A plug by itself cannot certify 1000Mbps or 250MHz operation.

12

Technical specifications

Brand / SKU UGREEN 60558
Product role a pack of 100 unshielded Cat6 8P8C modular plugs for terminating compatible Ethernet cable
Product type Unshielded Cat6 modular plugs
Cable category Cat6 U/UTP
Connector 8P8C male modular plug
Pack quantity 100
Housing Clear plastic

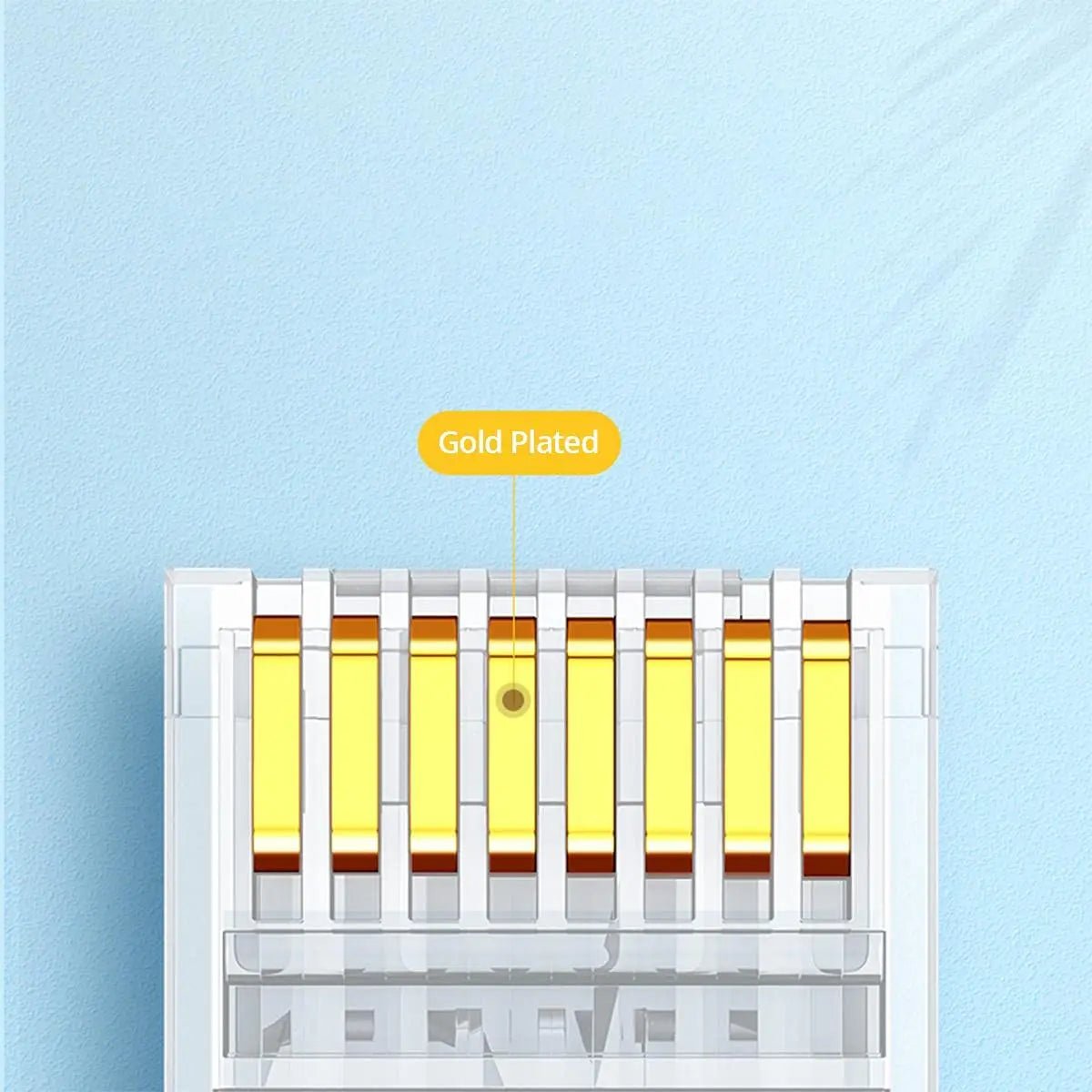

Contacts 3U gold-plated, as listed
Listed conductor diameter 0.8–1.1mm
Listed application Up to 1000Mbps with a compliant finished link
Termination Crimp; compatible tool required
Electronics None; passive
Verified source https://www.ugreenindia.com/collections/networking-accessories/products/ugreen-cat-6-u-utp-unshielded-modular-plug-lan-high-speed-gigabit-network-compatible-with-router-modem-smart-tv-pc-laptop-100-pcs60558
13

Product research and claim reconciliation

Primary source: exact UGREEN India SKU page and the current live Shopify product record.

Visual check: Exact India copy and live images agree on an unshielded Cat6 clear plug, three-prong-style contact artwork and gold-plated contacts. Copy treats 1000Mbps as a compliant-link capability, not an unconditional promise from loose connectors, and does not borrow shielding or higher-category compatibility from SKU 50248/50634.

Claim policy: conflicting family artwork, mistranslated metadata, impossible dimensions and adjacent-model specifications are excluded rather than averaged together.

UGREEN 60558 exact detail retained after conflict review
UGREEN 60558 exact detail retained after conflict review
14

Troubleshooting checklist

No link

Confirm both active devices, patch leads and port selections. Then check conductor map, full insertion and the exact connector/cable fit.

Lower speed than expected

Verify negotiation settings and every component category. Excessive untwist, split pairs and unsuitable cable construction can pass continuity yet fail performance.

Intermittent link

Look for incomplete seating, weak strain relief, damaged latch, nicked conductor, IDC not fully closed or a crimp made with the wrong die.

PoE device restarts

Stop use and inspect conductor material, gauge, contact engagement, heat and the powered equipment budget. Do not continue with a hot or damaged termination.

Shield or noise concern

For shielded products, check end-to-end shield design and grounding practice. Mixing shielded and unshielded parts can defeat the intended system.

Port or label mismatch

Trace one cable at a time, compare labels at both ends and update records immediately after correction.

15

Package contents

In the box

100 × UGREEN 60558 Cat6 unshielded 8P8C modular plugs. Cable, boots, crimping tool and tester are not identified as included.

Devices, cables, racks, wall boxes, modules, tools and testers are not included unless explicitly named above.

16

Product-specific FAQ

What exactly is UGREEN 60558?
A pack of 100 unshielded Cat6 8P8C modular plugs for terminating compatible Ethernet cable.
What is included in the package?
100 × UGREEN 60558 Cat6 unshielded 8P8C modular plugs. Cable, boots, crimping tool and tester are not identified as included.
Which cables, modules or devices are compatible?
Compatible unshielded Cat6 cable with the listed 0.8–1.1mm conductor diameter range. The exact page describes use with both single- and multi-strand conductor, so sample-fit and pull testing are important.
Does it guarantee the advertised network speed?
Listed for Gigabit Ethernet applications when the finished cable and complete channel comply. A plug by itself cannot certify 1000Mbps or 250MHz operation. Test the complete channel rather than judging one component in isolation.
Can it be used in a PoE network?
No separate PoE class is provided. PoE use requires suitable copper conductors, gauge, connector fit, termination quality, bundle temperature control and compliant powered equipment.
Which tools are required?
Use a compatible 8P modular crimper, careful cable preparation and an Ethernet cable tester. Confirm contact and strain-relief engagement on the actual conductor type.
Does it split, switch, route or convert a network connection?
No. not shielded, not automatically suitable for every Cat6/6A cable, not a pass-through design, not reusable after crimping and not a female extender. Any active switching, routing, conversion or power function requires separate purpose-built equipment.
How should a finished installation be tested?
Start with a wire-map or continuity test that checks all required conductors and shield where applicable. Then connect known-good equipment, confirm negotiated link speed and observe errors under normal traffic.
Is it suitable for outdoor or mains-power installation?
No outdoor or ingress-protection rating is verified. This is a low-voltage networking accessory; it is not a mains device. Follow separation, fire, grounding and building rules.
What should I do if the link is intermittent?
Remove power where applicable, inspect for partial insertion, wrong colour order, excessive untwist, nicked conductors, poor strain relief or an incompatible cable/connector fit. Reterminate only with matched parts, then test again.
How is this exact SKU different from similar UGREEN products?
Exact India copy and live images agree on an unshielded Cat6 clear plug, three-prong-style contact artwork and gold-plated contacts. Copy treats 1000Mbps as a compliant-link capability, not an unconditional promise from loose connectors, and does not borrow shielding or higher-category compatibility from SKU 50248/50634.

Exact-model check before ordering

Match SKU 60558, product type, port or die count, cable category/construction and package contents. Similar UGREEN networking accessories can look nearly identical while using different shielding, conductor fit, rack format or termination method.

SKU 60558CAT6 UTP • 8P8C • 100 PACK
