5m USB 2.0 printer cable

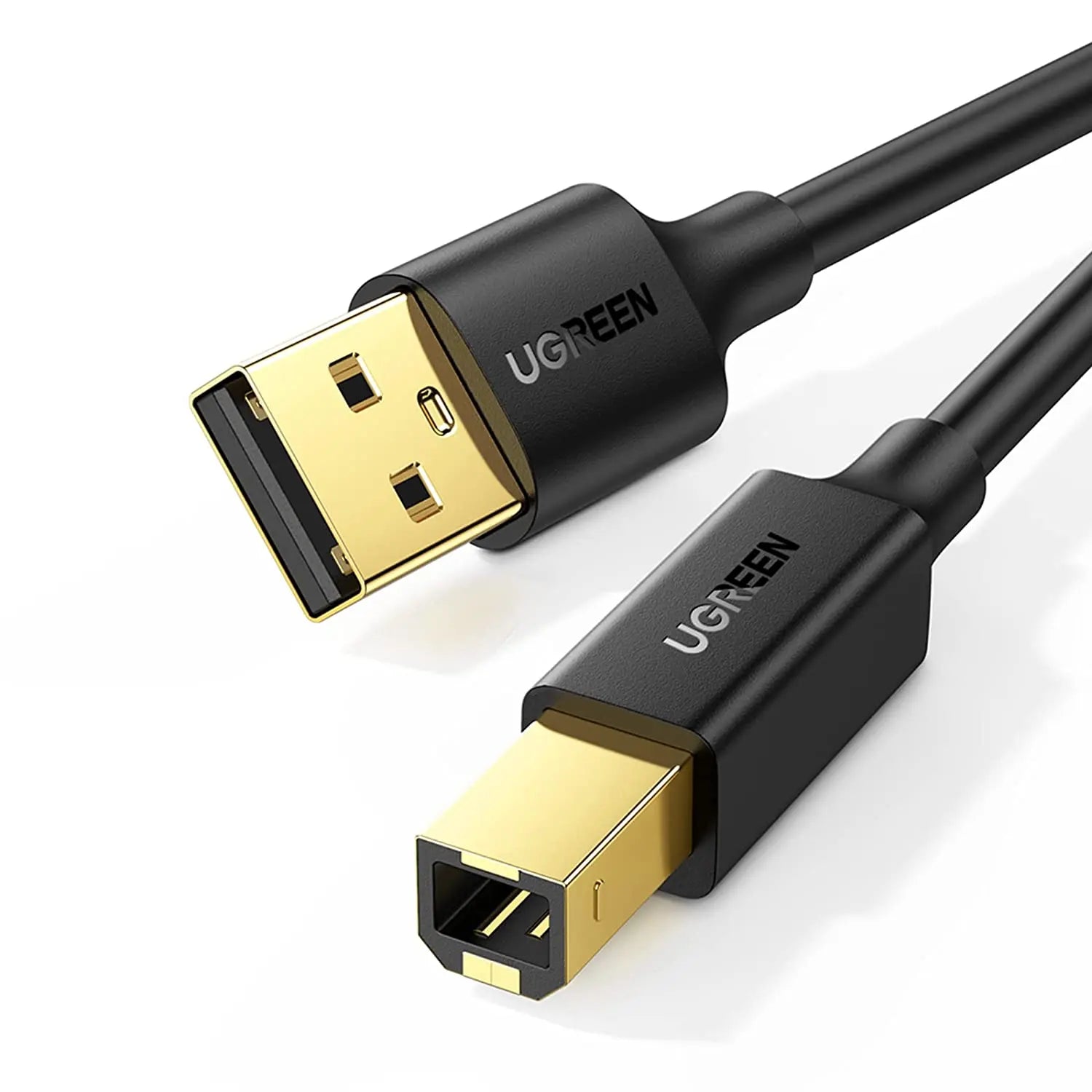

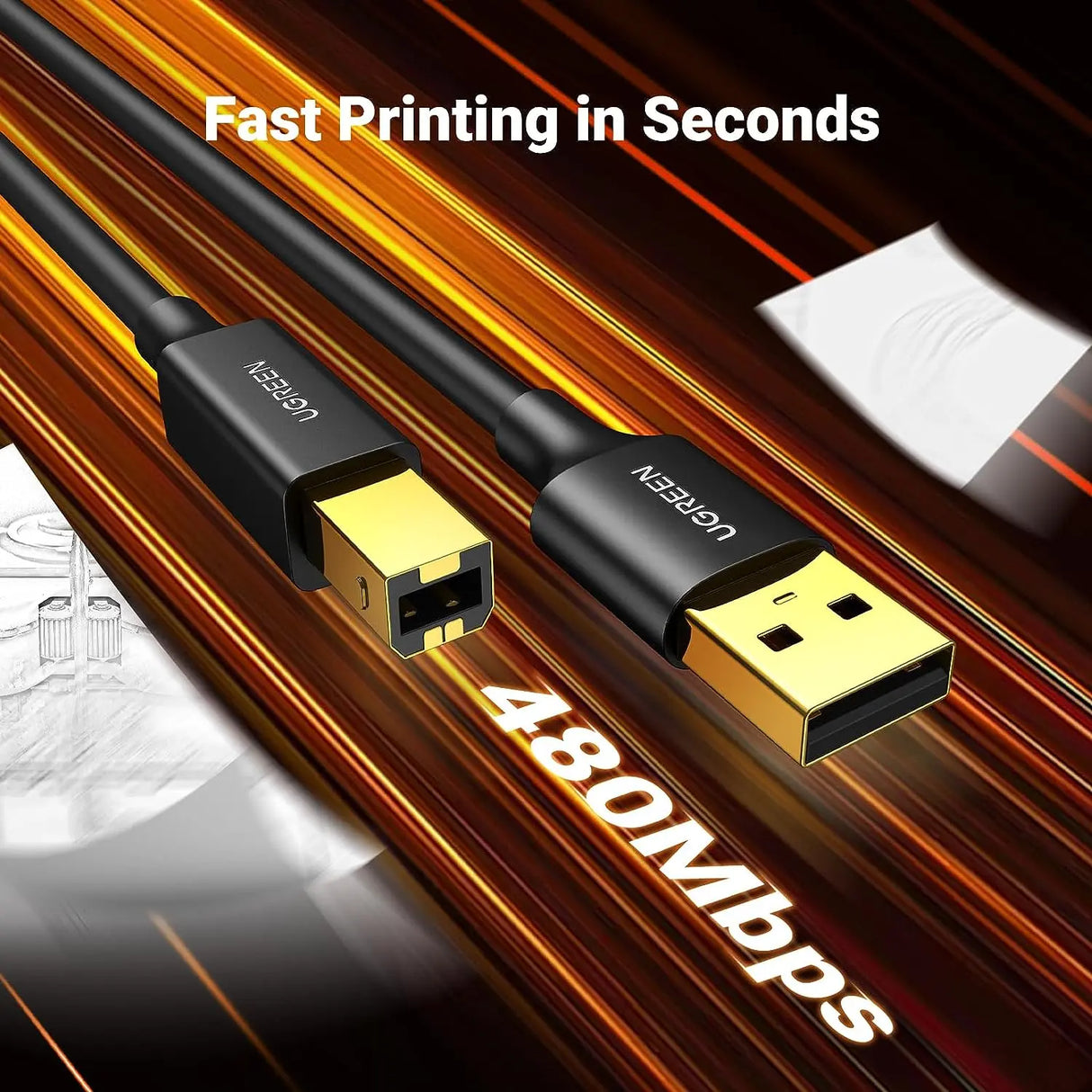

UGREEN 5m USB-A to USB-B Printer Cable (10352)
A long passive USB-A-to-USB-B cable for direct data connection between a computer and a compatible printer, scanner, fax, digital piano, DAC or other USB 2.0 Type-B peripheral.
Product introduction
Overview
A long passive USB-A-to-USB-B cable for direct data connection between a computer and a compatible printer, scanner, fax, digital piano, DAC or other USB 2.0 Type-B peripheral.
Host-to-peripheral USB data connection; the data protocol is bidirectional after enumeration. Matching the connector shape alone is not enough: the host port, peripheral role, data generation, power requirement and installed driver must also be compatible.
This guide separates the headline interface ceiling from practical results and states what the exact SKU should not be used for, helping customers choose correctly before opening or routing the cable.
Quick reference
Key features
Exact length
5 metres
Data capability
Up to 480Mbps USB 2.0; backward-compatible with USB 1.1/1.0 at their supported lower rates
Host/source side
USB-A male for a computer, powered hub or compatible USB host
Device/downstream side
USB 2.0 Type-B male for a printer-style peripheral port
Connections and roles
How it fits into your setup
Host or source
USB-A male for a computer, powered hub or compatible USB host
Peripheral or downstream side
USB 2.0 Type-B male for a printer-style peripheral port
Connection role
Host-to-peripheral USB data connection; the data protocol is bidirectional after enumeration
Power expectation
Carries ordinary USB bus power required for interface operation; not sold as a device-charging cable
Real-world performance
Stable 480Mbps-class USB 2.0 over a practical 5m run
The 480Mbps value is the USB 2.0 signalling ceiling, not guaranteed file-copy throughput. Printer, scanner, storage, host-controller and software limits can reduce the real rate.
Oxygen-free copper conductors, foil-and-braid shielding and gold-plated connector surfaces are stated for this exact SKU to reduce interference and contact loss during normal use.
A five-metre passive run is useful when equipment is spaced apart, but it should remain a single direct cable. Extra extensions, switches and loose adapters reduce signal margin.
Materials and handling

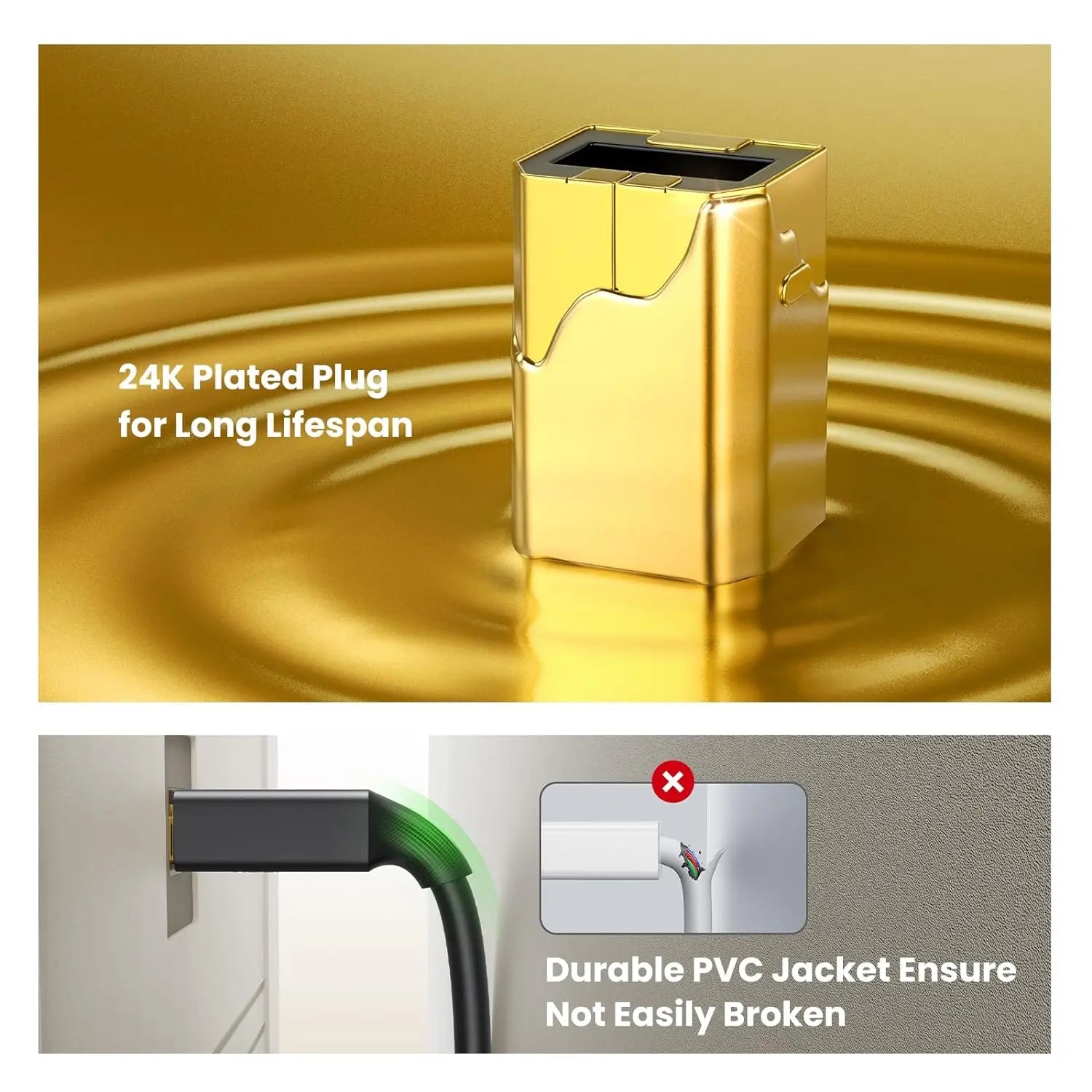

Construction and everyday durability
Construction detail 1
Flexible black PVC outer jacket
Construction detail 2
Gold-plated connector surfaces
Construction detail 3
Copper conductors with multiple shielding
Construction detail 4
More than 10,000 stated insertion and bend cycles
Durability claims describe controlled product testing, not immunity from crushing, repeated sharp bends, liquid, corrosion or worn sockets. Grip the connector housing rather than pulling the cable.
Where it is useful
Use scenarios
Office printer link
Connect a desktop or laptop USB-A port to the square USB-B port on a supported printer or multifunction device.
Scanner or label station
Place a scanner, label printer or fax away from the host while retaining a direct wired data path.
Music and audio equipment
Use with a compatible digital piano, MIDI keyboard or DAC that exposes a standard USB 2.0 Type-B device port.
Replacement cable
Replace a missing or damaged A-to-B data lead after verifying the exact connector and required length.
Compatibility planning

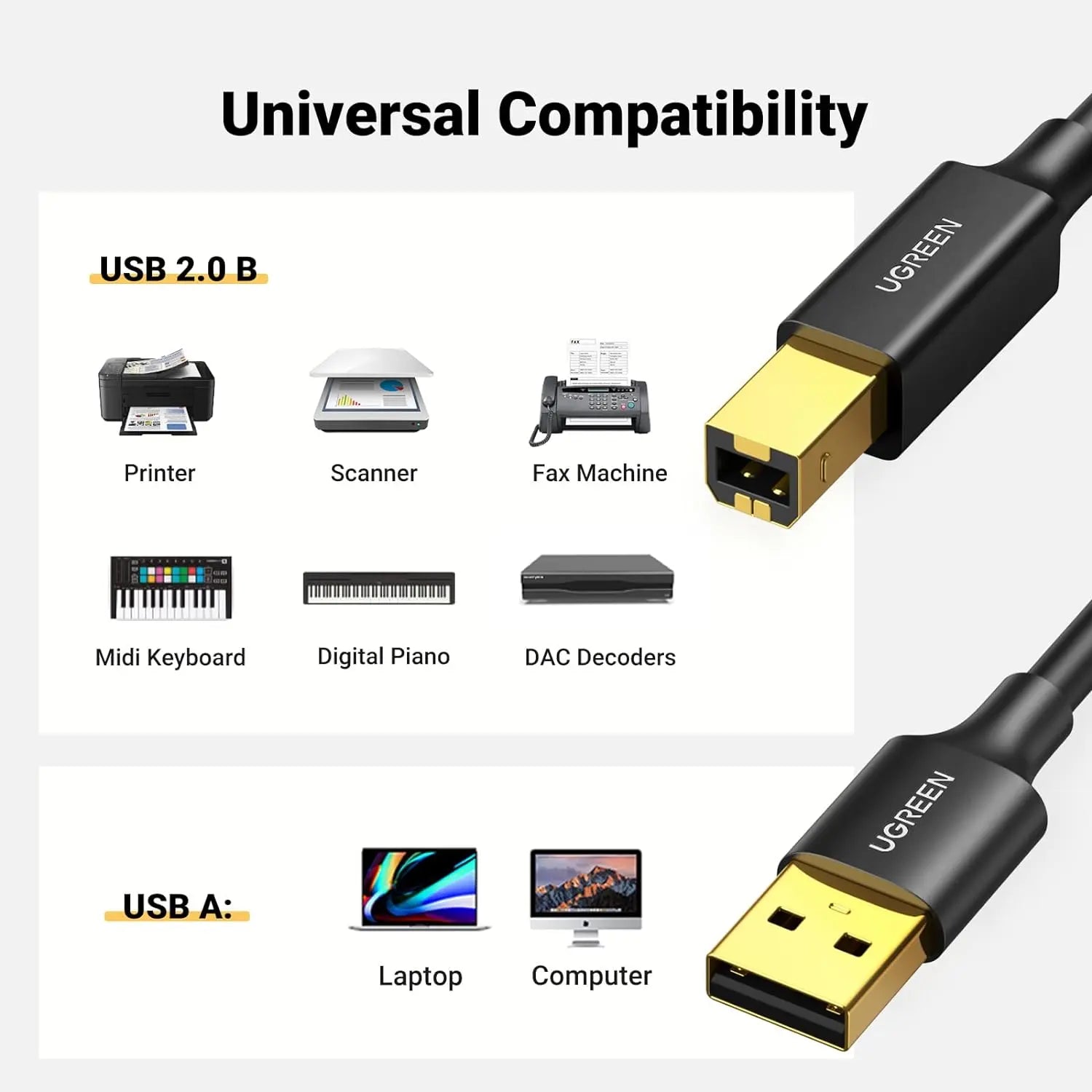

Compatible devices and systems
Compatibility examples are categories, not blanket certification for every model or revision. Confirm the exact port and required function in the device manual.
Compatibility check 1
Windows, macOS, Linux or ChromeOS computers with a working USB-A data port
Compatibility check 2
Printers, scanners, fax machines and multifunction devices with USB 2.0 Type-B
Compatibility check 3
Selected digital pianos, MIDI keyboards, DACs, hubs or storage devices with a standard Type-B device port
Compatibility check 4
USB 1.1/1.0 peripherals at their supported slower rate
Pre-purchase checklist
Check before buying
Connector shape
USB-A male for a computer, powered hub or compatible USB host; USB 2.0 Type-B male for a printer-style peripheral port.
Port roles
Host-to-peripheral USB data connection; the data protocol is bidirectional after enumeration
Required performance
Up to 480Mbps USB 2.0; backward-compatible with USB 1.1/1.0 at their supported lower rates
Power and video
Carries ordinary USB bus power required for interface operation; not sold as a device-charging cable. No native display, HDMI, DisplayPort or USB-C Alt Mode video
What this product does
- Provides one direct USB-A male to USB-B male data link
- Supports USB 2.0 signalling up to 480Mbps
- Works without a cable-specific driver
- Provides a 5m routing length with shielded construction
What this product does not do
- Not USB 3.0 Type-B; the wider two-part SuperSpeed-B socket uses a different plug
- Not USB-C, Mini-USB, Micro-USB, Lightning or an Ethernet cable
- Not a Wi-Fi adapter and does not make an offline printer wireless
- Not a fast-charging, USB Power Delivery or monitor cable
Installation workflow
Setup and usability guidance
- Power off or idle the peripheral before changing a fixed cable where its manual recommends it
- Connect USB-B straight into the peripheral without rocking or forcing the keyed plug
- Connect USB-A directly to the computer or a suitable powered hub
- Install the printer, scanner, audio or other device driver if the operating system requests it
- Print, scan or transfer a small test job before routing the cable permanently
Operating-system, driver and software guidance
The cable or hub normally has no standalone application. The connected device can still require its manufacturer driver, firmware, print queue, audio/MIDI setting, storage permission or USB mode. A physical connection cannot add a missing operating-system feature.
When troubleshooting, test one variable at a time: a direct host port, a known-good peripheral, the original device cable, an updated driver and a simple workload. This distinguishes cable, power, port and software faults.
Good practice
What to do
Verify first
Check SKU, connector, length, role, data generation and power expectation before ordering.
Use a direct path
Remove unnecessary adapters and hubs while installing or diagnosing the connection.
Support the plugs
Leave a gentle service loop and prevent cable weight from pulling on small sockets.
Test before routing
Complete repeated real tasks before hiding the cable behind furniture or inside management channels.
What not to do
Do not force a near-match
Stop when plug shape or insertion resistance is wrong. Similar USB connectors are not interchangeable.
Do not exceed the stated role
No native display, HDMI, DisplayPort or USB-C Alt Mode video. Carries ordinary USB bus power required for interface operation; not sold as a device-charging cable.
Do not stack unknown links
Unsupported extensions and adapters reduce signal and power margin.
Do not ignore heat or damage
Unplug equipment that is wet, frayed, loose, crushed or unusually hot.
Read before use
Warnings and limitations
- Do not force USB-B into the visually similar but wider USB 3.0 Type-B socket arrangement
- Keep the cable dry and away from sharp edges, wheels, doors and high-temperature equipment
- Do not coil excess cable tightly around a power adapter or high-current mains lead
- Avoid unsupported daisy-chaining; use one direct 5m run
- A matching socket does not guarantee the peripheral exposes a compatible USB function
Performance reminder: advertised USB rates are theoretical ceilings. Real results depend on the slowest compatible component and on shared bandwidth, software, workload and power conditions.
Diagnose methodically
Troubleshooting by symptom
Not detected
Confirm the exact connector and port role; test direct without a hub and restart the peripheral.
Connects then drops
Inspect for loose ports or cable strain, simplify the link and reduce bus-power demand.
Transfer is slow
Verify every endpoint supports the advertised USB generation and test with one large file.
Printing or scanning fails
Install the manufacturer driver, select the correct device and clear stalled print/scan jobs.
Works on one computer only
Compare drivers, USB power settings, security permissions and port capability.
Charging is weak or absent
Review the stated power role; this product may be data-focused and cannot add a charging protocol.
Video is absent
Use a dedicated video-capable solution unless the exact product explicitly supports USB-C display mode.
Exact-model reference
Technical specifications
| Brand / SKU | UGREEN 10352 |
|---|---|
| Model | UGREEN 10352 |
| Product type | 5m USB 2.0 printer cable |
| Length | 5 metres |
| Host/source side | USB-A male for a computer, powered hub or compatible USB host |
| Device/downstream side | USB 2.0 Type-B male for a printer-style peripheral port |
| Connection role | Host-to-peripheral USB data connection; the data protocol is bidirectional after enumeration |
| Data capability | Up to 480Mbps USB 2.0; backward-compatible with USB 1.1/1.0 at their supported lower rates |
| Power/charging role | Carries ordinary USB bus power required for interface operation; not sold as a device-charging cable |
| Native video | No native display, HDMI, DisplayPort or USB-C Alt Mode video |
| Construction | Flexible black PVC outer jacket; Gold-plated connector surfaces; Copper conductors with multiple shielding; More than 10,000 stated insertion and bend cycles |
| Cable-specific driver | Not normally required |
| Recommended topology | One direct supported link; avoid unsupported chains |
| Live Shopify status | ACTIVE at research time |
Inside the box
Package contents
1 × UGREEN 10352 5m USB 2.0 Type-A male to Type-B male cable
Computers, chargers, peripherals, displays, drives and adapters shown for context are not included unless explicitly listed above.
