UGREEN 15376 3×1 HDMI 2.0 Switch, 4K60, IR Remote

Rs. 3,021.00 Rs. 6,664.00
Tax included Shipping calculated at checkout.

Seamless Switch
Vivid 4K
Crystal Sound
Fast Transfer
Remote Control
3 SOURCES • 1 DISPLAY • MANUAL + IR

UGREEN 15376 3×1 HDMI 2.0 Switch, 4K60, IR Remote

UGREEN 15376 is a three-input, one-output HDMI switch for selecting one of three connected sources on a single HDMI display. This buying guide makes the port direction, display behavior, power, cable requirements and limitations clear before installation.

Exact SKU 15376Up to 4K60; exact listing also states 1440p120 and 1080p240 with a fully compatible pathSWITCH
UGREEN 15376 three input one output HDMI switch with IR remote
SKU 15376: Exact-model overview: three HDMI sources share one display, selected by the top button or included IR remote.
1

Overview

Three HDMI source inputs → manual or IR source selection → one HDMI display output.

Correct direction is the first troubleshooting check. Similar-looking HDMI, DisplayPort and USB-C products can require completely different source and display sides.

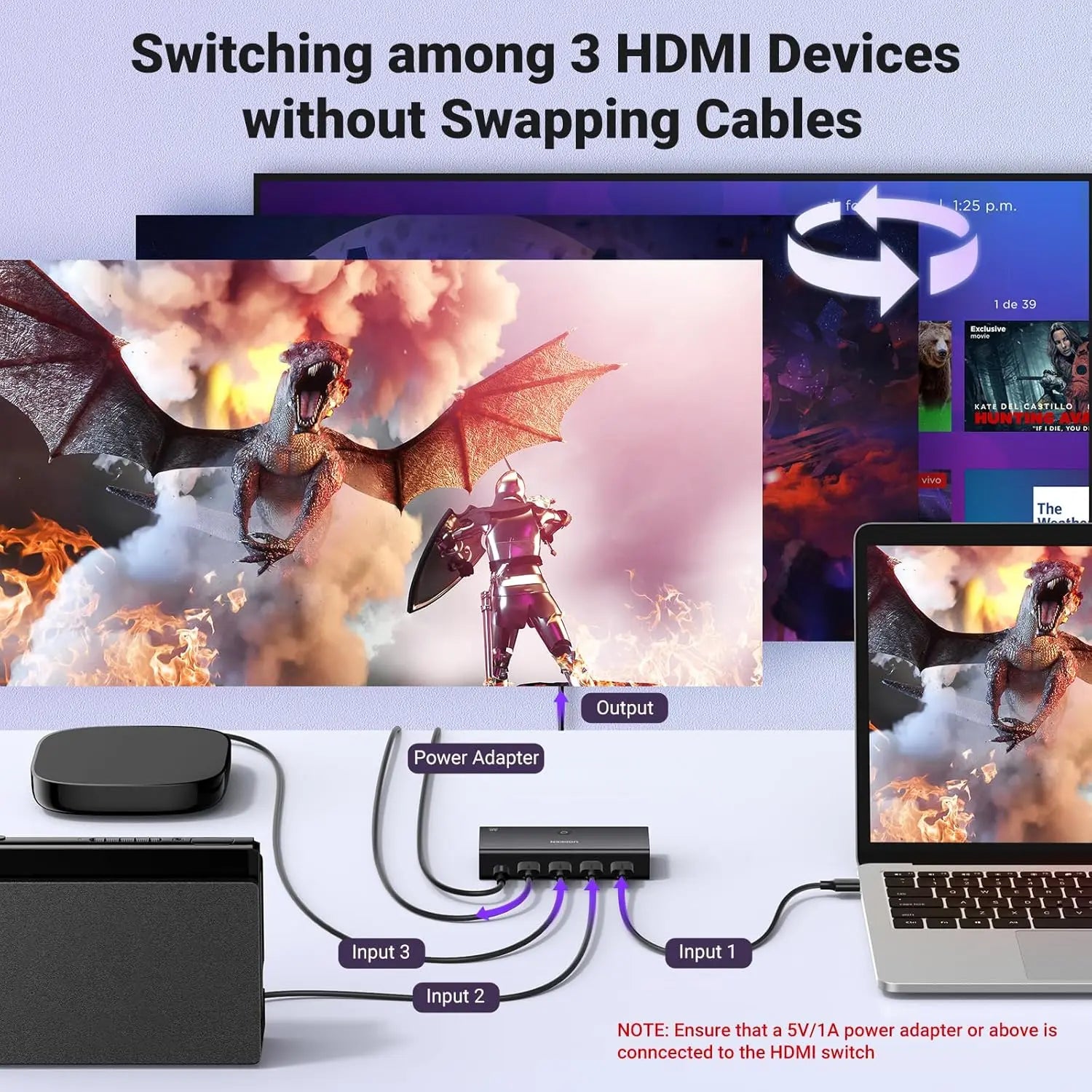

UGREEN 15376 three HDMI sources power cable and one display connection diagram
SKU 15376: The diagram separates the three source inputs, single display output and USB-C power connection; a suitable 5V supply is required separately.
2

Key features

Inputs

3 × HDMI Type-A female

Outputs

1 × HDMI Type-A female

Video ceiling

Up to 4K60; exact listing also states 1440p120 and 1080p240 with a fully compatible path

Power

USB-C power input; USB-A-to-USB-C power cable included, wall adapter not included
UGREEN 15376 HDR comparison artwork for a compatible HDMI display path
SKU 15376: HDR can pass only when the selected source, both HDMI cable legs, the switch and the display all support the same HDR mode.
3

How switching and multi-display behavior works

Only one source is shown at a time. Changing inputs causes a normal HDMI re-handshake. The switch does not split one source across several displays.

Control: Manual button or included IR remote; automatic switching is explicitly not supported.

Never assume: a product advertised as “bidirectional,” “splitter” or “matrix” behaves like another topology. Follow the exact source/output map above.

4

Verified resolution, refresh and feature boundary

Maximum listed mode

Up to 4K60; exact listing also states 1440p120 and 1080p240 with a fully compatible path

Interface boundary

HDMI 2.0/1.4 and HDCP 2.2/1.4 as listed

Audio path

Compatible HDMI audio; the exact listing names PCM 2.0, Dolby 2.0/5.1 and DTS 5.1/7.1. It does not establish every Dolby/DTS variant or eARC.

Complete-path rule

Source, every cable, selector/distributor, display input, EDID and protected-content requirements must all agree. One weaker component can lower or blank the link.
UGREEN 15376 4K60 high refresh performance artwork
SKU 15376: The listed ceiling reaches 4K60 on a fully compatible short-cable path, with lower resolutions available when the complete link negotiates them.
5

Use scenarios

Scenario 1

Switch one TV between a console, streaming device and laptop

Scenario 2

Reduce cable swapping on a home-theatre display

Scenario 3

Select among three meeting-room HDMI sources

Scenario 4

Keep one projector connected while changing presentation devices
6

Setup and usability guidance

  1. Step 1: Connect the USB power cable to a stable 5V USB source; a wall adapter is not supplied.
  2. Step 2: Connect up to three HDMI sources to the numbered inputs.
  3. Step 3: Connect the single HDMI output to the display.
  4. Step 4: Place the IR receiver path where the remote can reach it and fit a compatible battery separately.
  5. Step 5: Select sources manually or by remote; do not expect auto-switching.
  6. Step 6: Begin at 1080p60 and move to 4K60 only when both HDMI cable legs and endpoints support it.

Best first test: one source, one short cable path, one display and 1080p60. Expand only after this baseline works.

UGREEN 15376 switching by local button and infrared remote
SKU 15376: Use either the local button or the included IR remote; automatic input switching is not supported by this exact model.
7

Compatible devices and systems

Compatible system boundary

HDMI-output consoles, streaming boxes, computers, disc players and set-top boxes feeding one HDMI television, monitor or projector.

Cable planning

For 4K60 the exact listing recommends no more than 10ft (about 3m) on both the input and output HDMI cable. The 33ft figure applies to IR remote range, not HDMI cable length.

Audio planning

Compatible HDMI audio; the exact listing names PCM 2.0, Dolby 2.0/5.1 and DTS 5.1/7.1. It does not establish every Dolby/DTS variant or eARC.

Power planning

USB-C power input; USB-A-to-USB-C power cable included, wall adapter not included

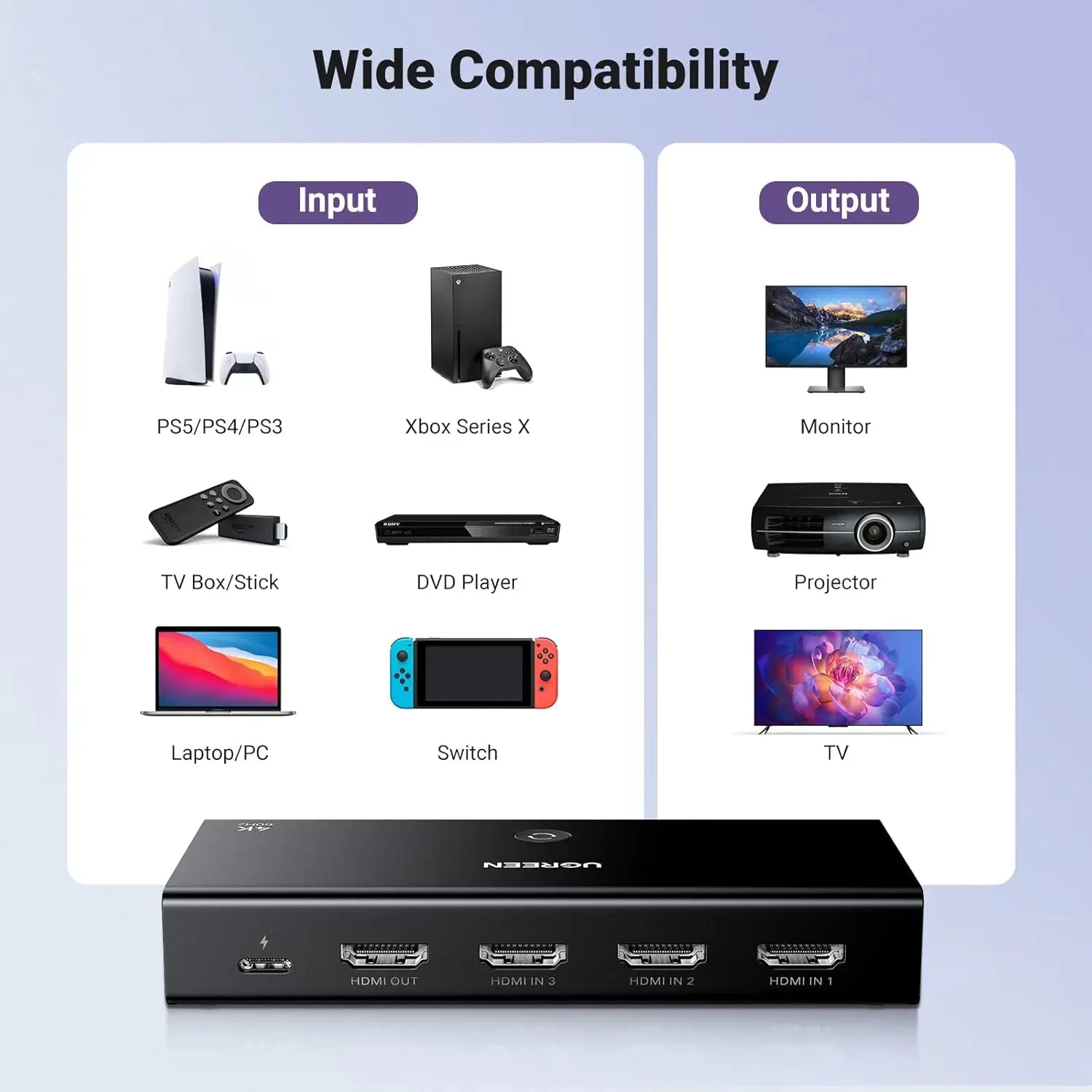

UGREEN 15376 compatible HDMI consoles computers players monitors projectors and TVs
SKU 15376: The switch accepts standard HDMI sources and feeds one HDMI display; compatibility still depends on resolution, audio, HDR and HDCP agreement.
8

What this product does

  • Follows this path: Three HDMI source inputs → manual or IR source selection → one HDMI display output.
  • Supports its exact ceiling: Up to 4K60; exact listing also states 1440p120 and 1080p240 with a fully compatible path.
  • Uses these ports: 3 × HDMI Type-A female → 1 × HDMI Type-A female.
  • Handles control this way: Manual button or included IR remote; automatic switching is explicitly not supported.
  • Passes compatible audio: Compatible HDMI audio; the exact listing names PCM 2.0, Dolby 2.0/5.1 and DTS 5.1/7.1. It does not establish every Dolby/DTS variant or eARC.
UGREEN 15376 Dolby and DTS compatible HDMI audio artwork
SKU 15376: Compatible HDMI audio follows the selected source, but the switch does not decode, mix or create a new surround format.
9

What this product does not do

  • No automatic switching despite the old keyword-stuffed title
  • One HDMI output only
  • Power adapter and remote batteries are not included
  • Not a splitter, capture card or KVM
  • No eARC or variable-refresh guarantee is established
10

What to do

Label

Label every source, output and power cable before installation.

Build gradually

Start at 1080p60 with one display, then add outputs or increase resolution in stages.

Verify cables

Use short, verified cables for 4K/high-refresh operation and replace suspect cables before changing advanced settings.

Power safely

Keep ventilation openings clear and use only the specified power arrangement.

Record settings

Save working resolution, HDR, HDCP and audio settings for future troubleshooting.
11

What not to do

Do not reverse

Do not infer reverse direction or simultaneous outputs beyond the exact topology.

Do not confuse

Do not treat a switch as a splitter, a splitter as a switch, or either as a capture device.

Do not assume scaling

Do not assume every display can use its own independent resolution or refresh rate.

Do not force

Do not force connectors, hot-plug damaged cables or use an unverified power supply.

Do not overclaim

Do not promise DSC, MST, eARC, VRR or gaming modes unless this exact SKU explicitly lists them.
12

Warnings and limitations

  • Power: USB-C power input; USB-A-to-USB-C power cable included, wall adapter not included.
  • Display negotiation: mixed displays can force a lower common mode or create a blank screen.
  • Protected content: HDCP must be supported end to end; the device cannot bypass protection.
  • Heat and moisture: indoor use only; keep dry, ventilated and away from direct heat.
  • Cables: For 4K60 the exact listing recommends no more than 10ft (about 3m) on both the input and output HDMI cable. The 33ft figure applies to IR remote range, not HDMI cable length.
13

Technical specifications

Brand / SKU UGREEN 15376
Product type a three-input, one-output HDMI switch for selecting one of three connected sources on a single HDMI display
Signal path Three HDMI source inputs → manual or IR source selection → one HDMI display output.
Inputs 3 × HDMI Type-A female
Outputs 1 × HDMI Type-A female
Power USB-C power input; USB-A-to-USB-C power cable included, wall adapter not included
Topology 3 HDMI inputs / 1 HDMI output
Listed maximum 4K@60Hz
Other listed modes 1440p@120Hz; 1080p@240Hz
Bandwidth 18Gbps as listed
Switching Button + IR remote
Auto switching Not supported
Power USB-C input; USB-A-to-C cable included

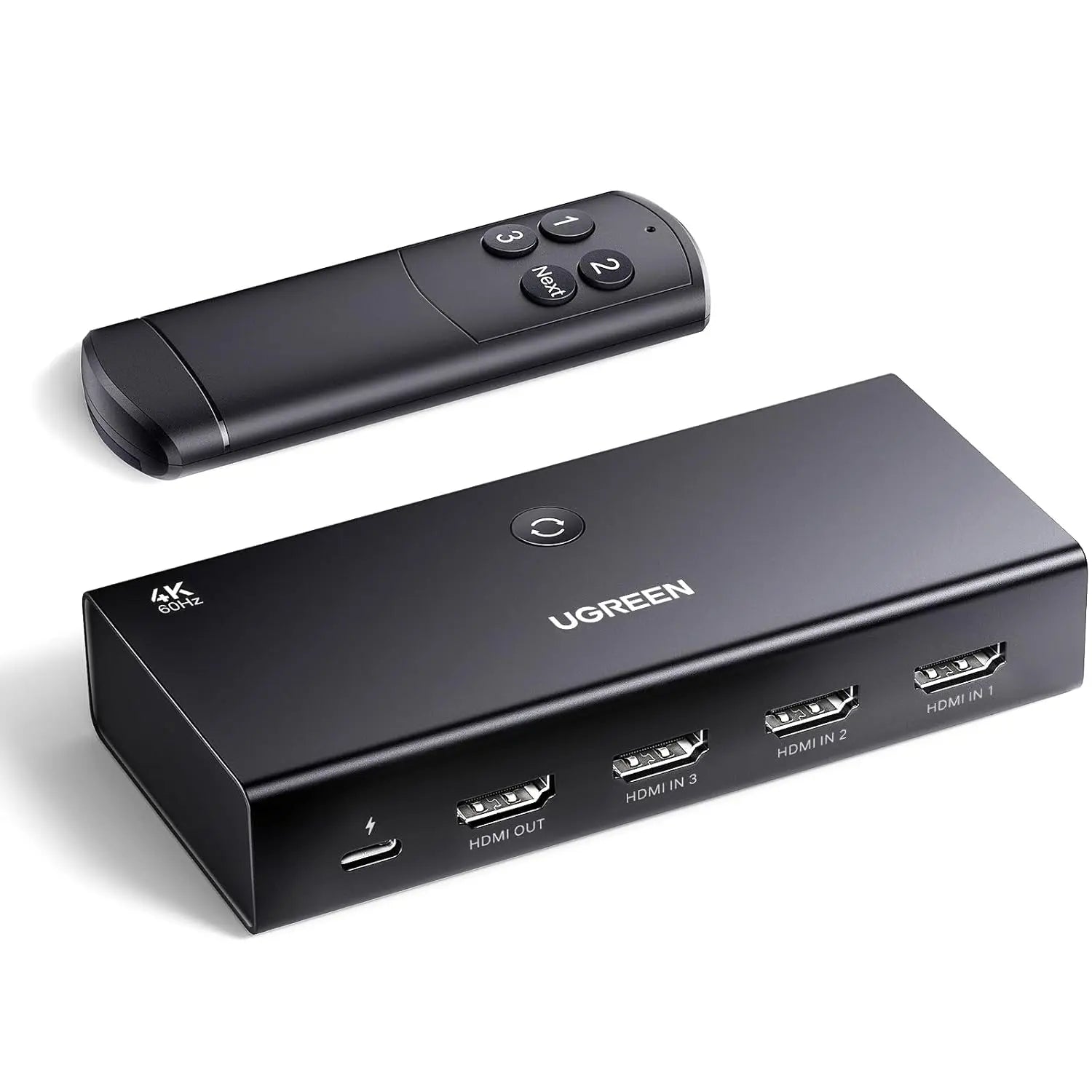

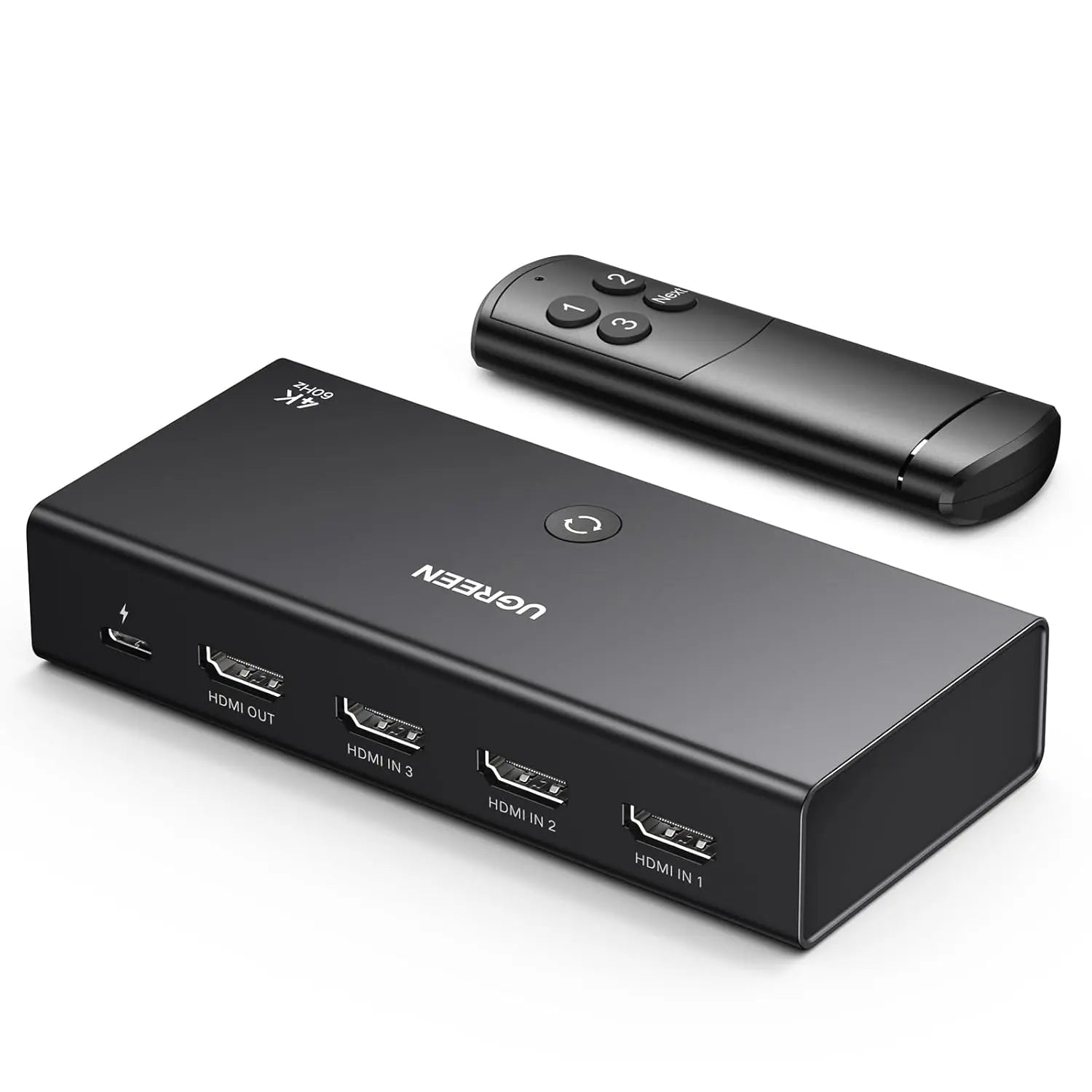

UGREEN 15376 HDMI output three numbered inputs USB-C power and remote
SKU 15376: The exact hardware view confirms one HDMI output, three numbered HDMI inputs, USB-C power and the supplied selection remote.
14

Troubleshooting checklist

No picture

Confirm direction, power, active source and display input. Test one display at 1080p60 with short cables.

Picture drops

Replace one cable at a time, reduce resolution/refresh and disconnect extra outputs until the failing leg is isolated.

Wrong resolution

Choose a mode supported by every connected display and check the exact EDID or output-selection behavior.

No audio

Select the display path as the source audio output and use a format supported by the display or receiver.

Remote or hotkey fails

Use the documented control path, check battery/IR line of sight or designated keyboard port, then test the local button.

Protected video blanks

Confirm the exact HDCP level across the source, device and every active display. This product cannot bypass HDCP.
15

Package contents

In the box

1 × UGREEN 15376 HDMI switch, 1 × IR remote and 1 × USB-A-to-USB-C power cable. Power adapter, remote battery and HDMI cables are not included.

16

Exact-SKU research and media reconciliation

Primary source: the exact UGREEN India page and current live Shopify record.

Visual check: Exact live copy and artwork agree on 3-in/1-out, 4K60, button/remote control and USB power. The old title incorrectly says “Auto Switching”; exact notes explicitly say automatic switching is not supported, so the corrected title removes it. “No frames lost” and broad Atmos wording were not repeated.

Research policy: conflicting shared artwork, adjacent-model specifications and unsupported feature combinations were excluded instead of being blended into the copy.

17

Product-specific FAQ

What does UGREEN 15376 do?
It is a three-input, one-output HDMI switch for selecting one of three connected sources on a single HDMI display.
What is the exact signal direction?
Three HDMI source inputs → manual or IR source selection → one HDMI display output.
What is the maximum verified display mode?
Up to 4K60; exact listing also states 1440p120 and 1080p240 with a fully compatible path. The final mode is limited by the source, every cable, the switch/splitter and the display or displays.
Can it create an extended desktop?
No independent multi-display workspace is created. Only one source is shown at a time. Changing inputs causes a normal HDMI re-handshake. The switch does not split one source across several displays.
Does it need external power?
USB-C power input; USB-A-to-USB-C power cable included, wall adapter not included.
Does it carry audio?
Compatible HDMI audio; the exact listing names PCM 2.0, Dolby 2.0/5.1 and DTS 5.1/7.1. It does not establish every Dolby/DTS variant or eARC.
Which cables are required?
For 4K60 the exact listing recommends no more than 10ft (about 3m) on both the input and output HDMI cable. The 33ft figure applies to IR remote range, not HDMI cable length. Cables not named in the package contents must be supplied separately.
What should I try if there is no picture?
Confirm the signal direction and active source, attach required power, select the correct display input, reseat cables and begin at 1080p60 with one display. Add other outputs or higher modes only after a stable base link.
Can it improve resolution, refresh rate or HDCP?
No. It can only pass or route modes already supported throughout the complete connection. It cannot upgrade a source, cable or display.
What is included?
1 × UGREEN 15376 HDMI switch, 1 × IR remote and 1 × USB-A-to-USB-C power cable. Power adapter, remote battery and HDMI cables are not included.
What exact-model conflicts were removed?
Exact live copy and artwork agree on 3-in/1-out, 4K60, button/remote control and USB power. The old title incorrectly says “Auto Switching”; exact notes explicitly say automatic switching is not supported, so the corrected title removes it. “No frames lost” and broad Atmos wording were not repeated.

Before ordering UGREEN 15376

Match the source connector, display connector, exact topology, power method and highest mode you really need. Count separately purchased HDMI, DisplayPort and USB-C cables before installation day.

SKU 153763 SOURCES • 1 DISPLAY • MANUAL + IR
