UGREEN HD103 2m Right-Angle HDMI 2.0 Cable (10173)
Model-specific connection guide
UGREEN HD103 2m Right-Angle HDMI 2.0 Cable (10173)
Connect wall-mounted TVs, consoles and players with UGREEN’s 2m 90° HDMI 2.0 cable. Supports 18Gbps, 4K 60Hz, HDR, ARC and HDMI Ethernet support.
Overview
UGREEN HD103 model 10173 is a 2-metre HDMI 2.0 male-to-male cable with one 90-degree right-angle plug. It is designed for a television, monitor or source positioned close to a wall or cabinet, where a straight connector would project too far or place extra strain on the port. With compatible equipment, the cable supports up to 18Gbps and video up to 4K (3840 × 2160) at 60Hz, along with HDR, 3D, Audio Return Channel and HDMI Ethernet Channel.
Key features
The points below describe the exact UGREEN SKU and the conditions required to obtain its stated performance.
One right-angle HDMI connector lets the cable leave the port along the device surface instead of projecting straight backwards.

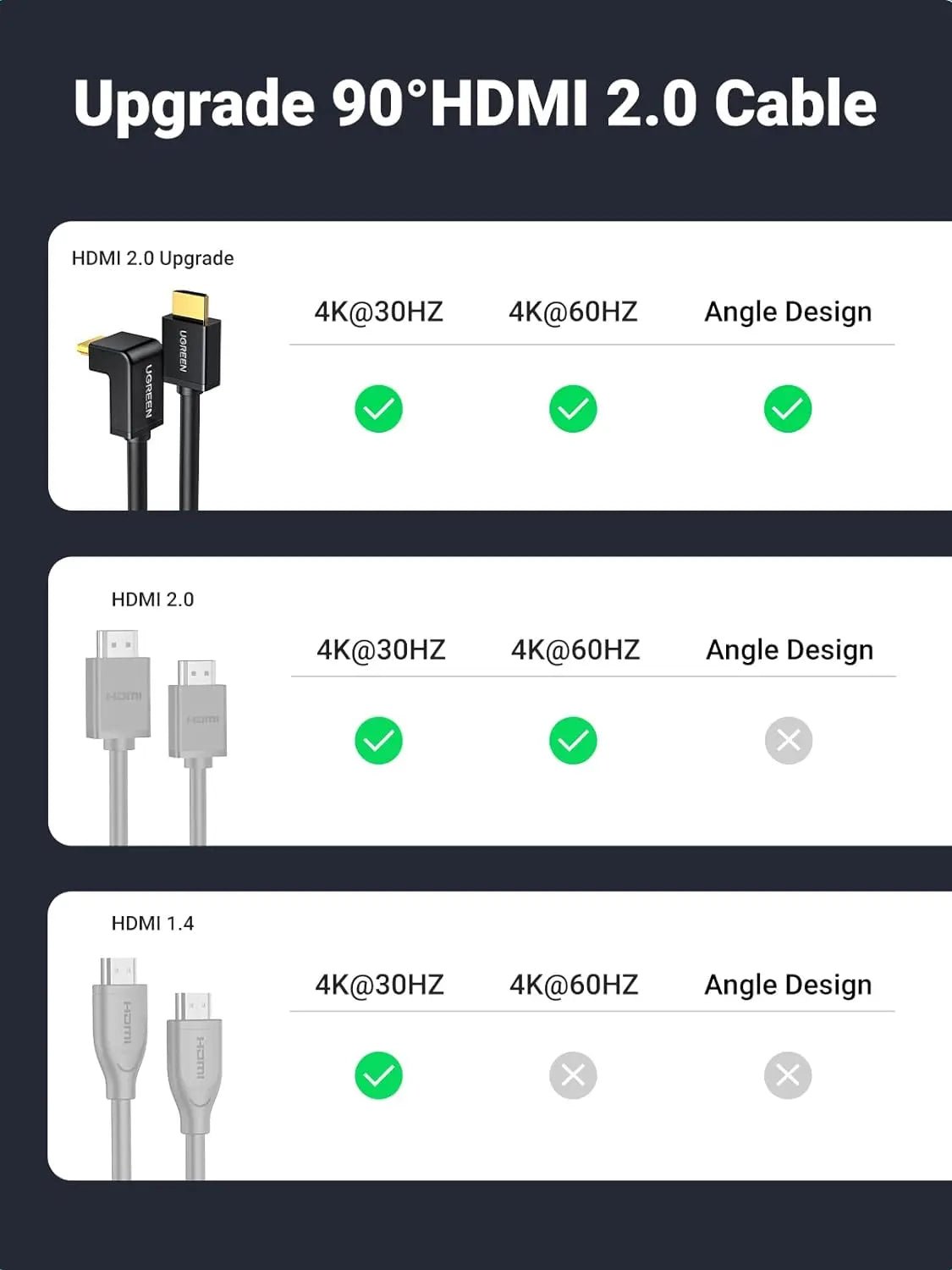

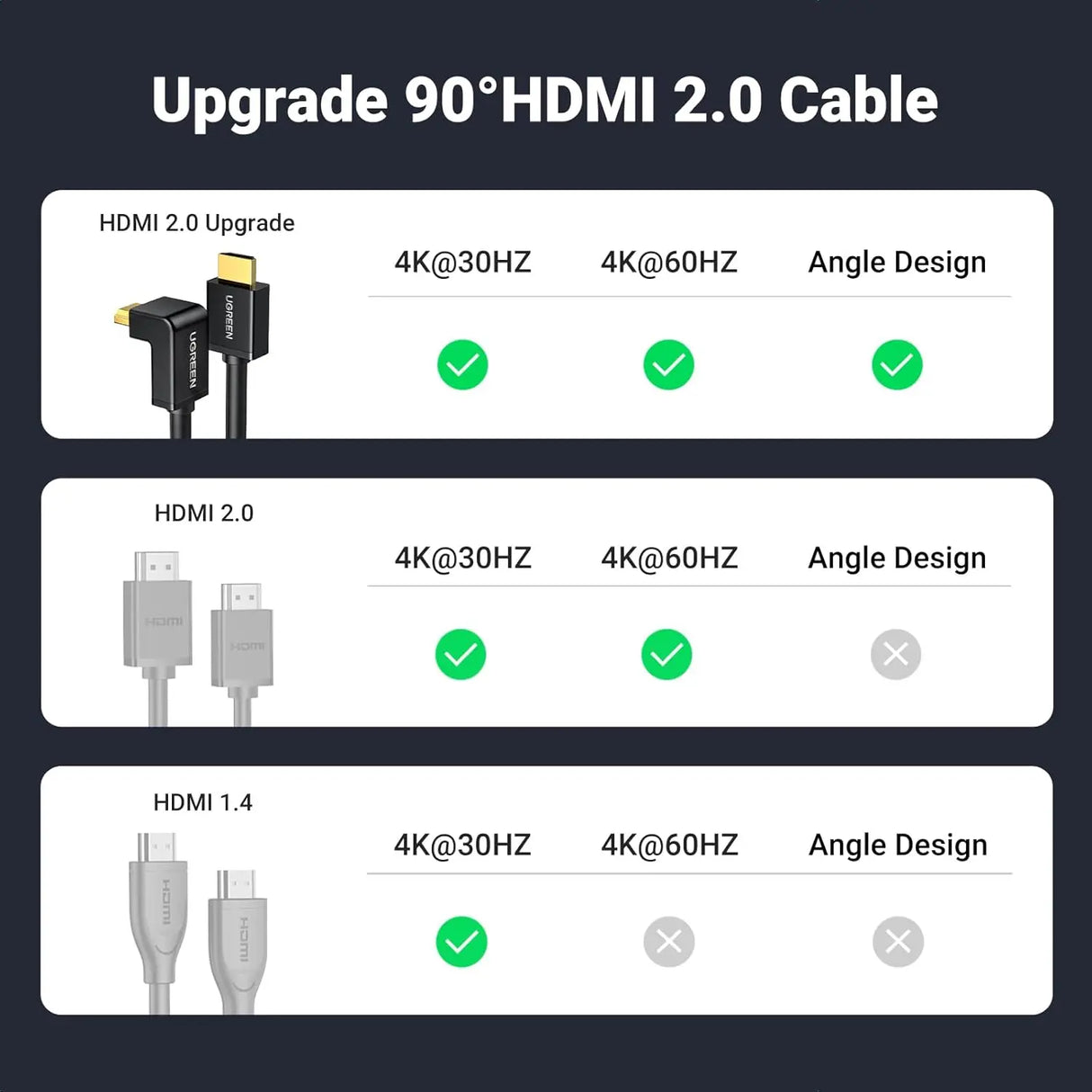

HDMI 2.0-class bandwidth up to 18Gbps supports 4K at 60Hz when source, display, content and selected ports all support it.
Carries digital video and audio through one cable, including ARC, HDR, 3D and HDMI Ethernet Channel where supported by the complete system.
Two-metre length suits wall-mounted televisions, consoles, media players and nearby AV equipment.
Triple-shielded construction and gold-plated connector contacts are specified to reduce interference and corrosion.
Plan the right-angle installation before connecting
The cable’s electrical performance and its physical fit are separate checks. Confirm both before routing it behind a television or inside a cabinet so the fixed elbow reduces strain instead of creating a new obstruction.
Compare the fixed 90-degree connector in the product image with the actual HDMI socket. Depending on whether the port faces up, down or sideways, this elbow may point toward open space or directly toward the wall, stand or neighbouring port.
Measure around the full connector shell, not only the cable diameter. A recessed HDMI bay, mounting rail or adjacent plug can prevent full insertion even when there appears to be enough space for the cable itself.
For 4K60 or HDR, the source output, any AV receiver or switch, the display input and its enhanced-input setting must all support the selected HDMI format. The cable cannot raise the capability of a lower-rated component.
Use the angled end where clearance is tight, support the two-metre cable’s weight and keep a relaxed bend after the strain relief. The fixed elbow is a routing aid, not a lever or swivel joint.
Use scenarios

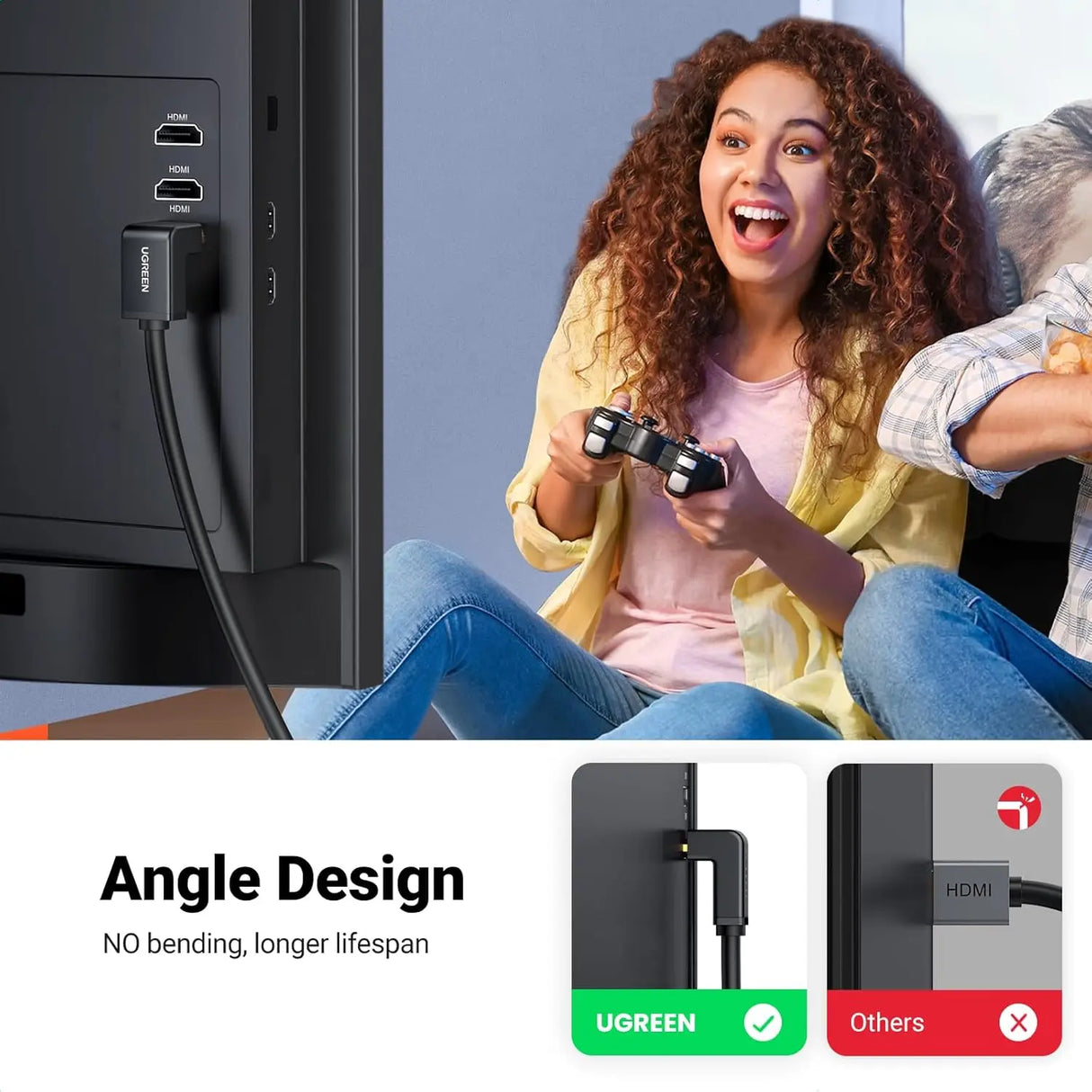

Connect a wall-mounted TV to a console, set-top box, streaming player or AV receiver without a straight plug pressing against the wall.
Route HDMI from a desktop or laptop to a nearby monitor where rear-port clearance is limited.
Use ARC between a compatible television and soundbar/receiver when both ports are labelled for ARC.
Connect a Blu-ray player, PlayStation, Xbox or Nintendo Switch dock to a 4K television within a two-metre equipment layout.
Setup and usability guidance

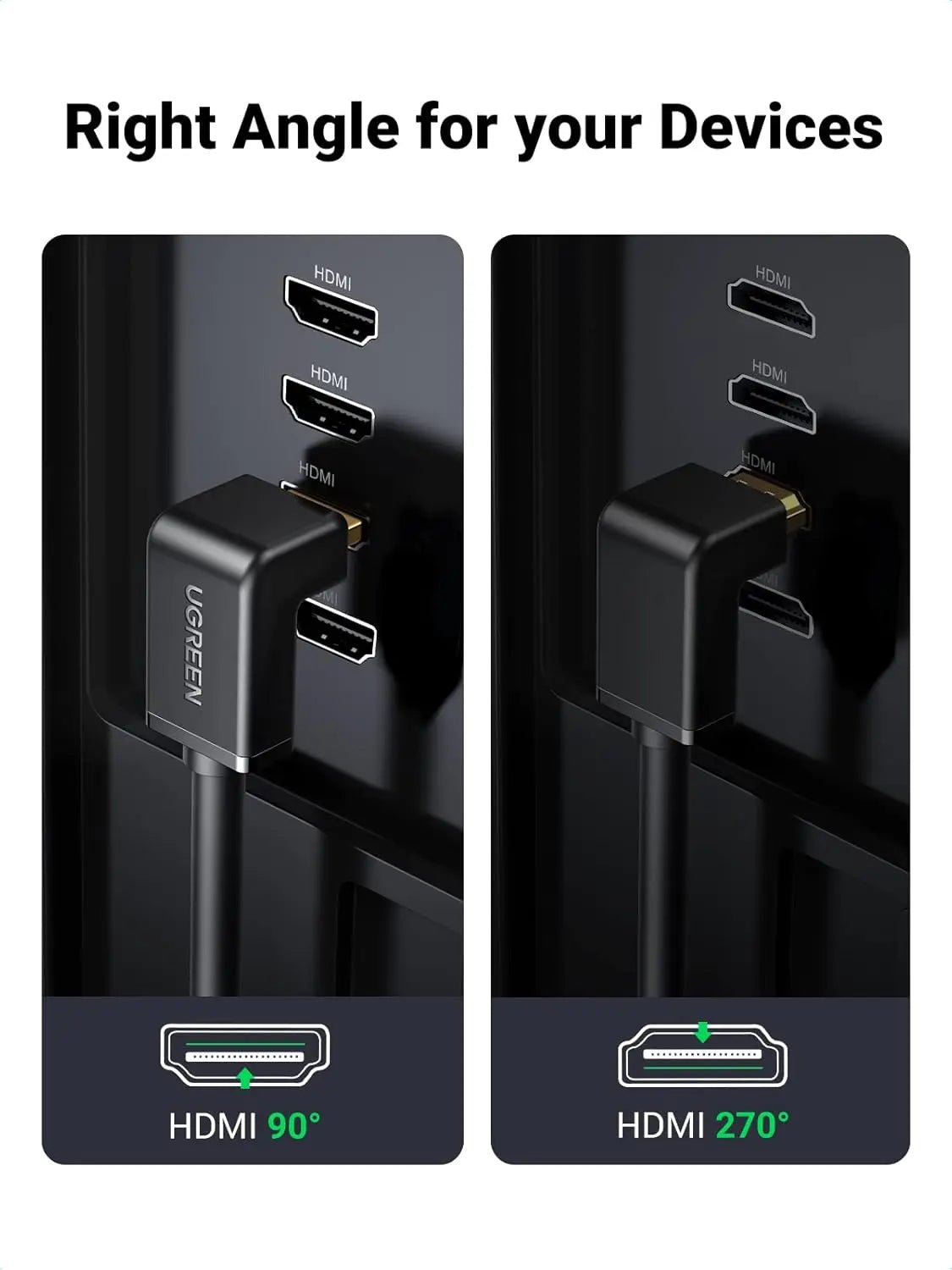

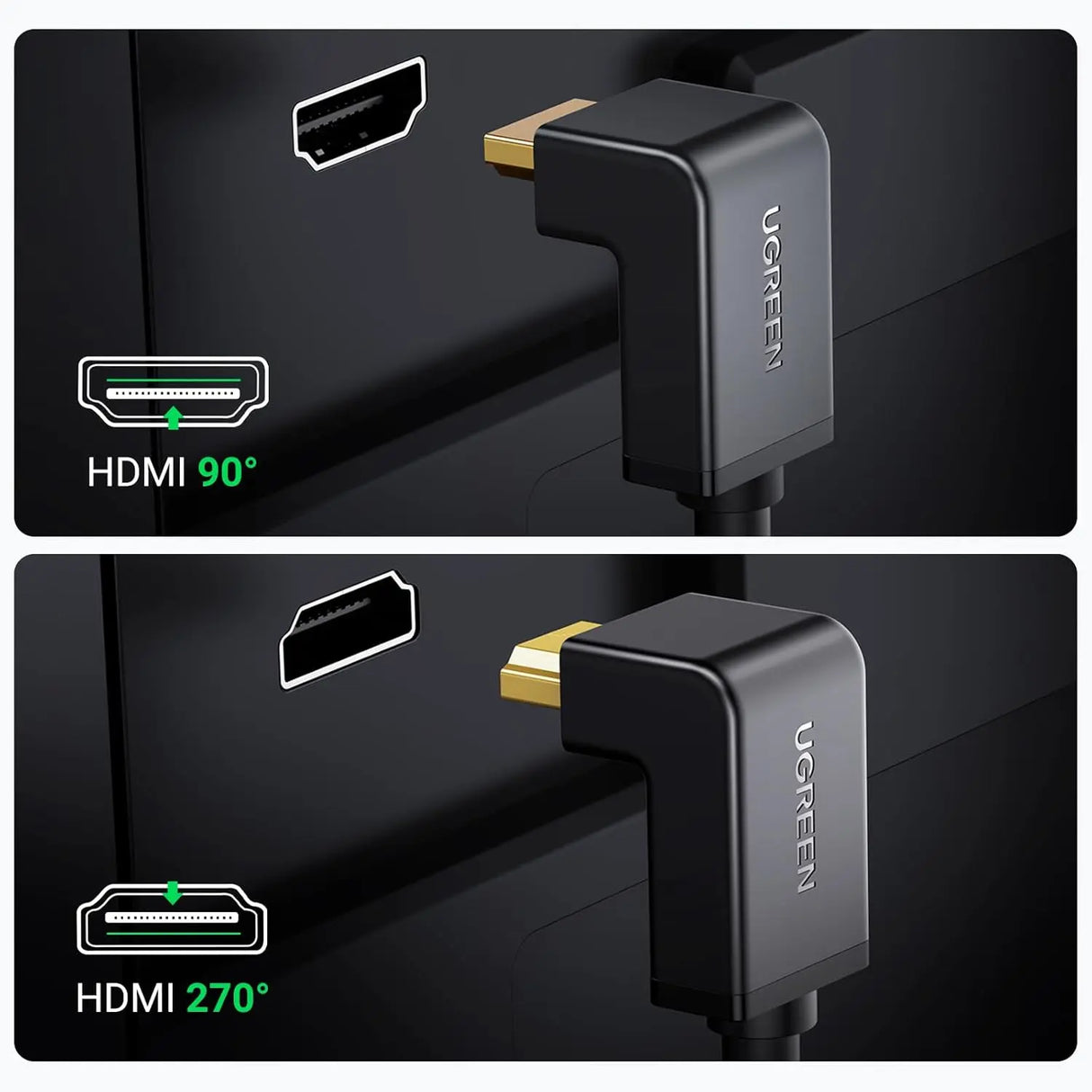

Inspect the HDMI port’s orientation before ordering. A 90-degree and 270-degree plug bend in opposite directions.
Measure the route and confirm the angled shell will not block an adjacent port, ventilation opening or mounting bracket.
Place the devices in standby, insert each HDMI plug fully and select the corresponding display input.
Set a format supported by the complete chain. If 4K60 or HDR does not appear, confirm enhanced HDMI mode on the display and check the source setting.
Leave a relaxed bend after the angled connector; the elbow reduces projection but should not be used as a lever against the port.

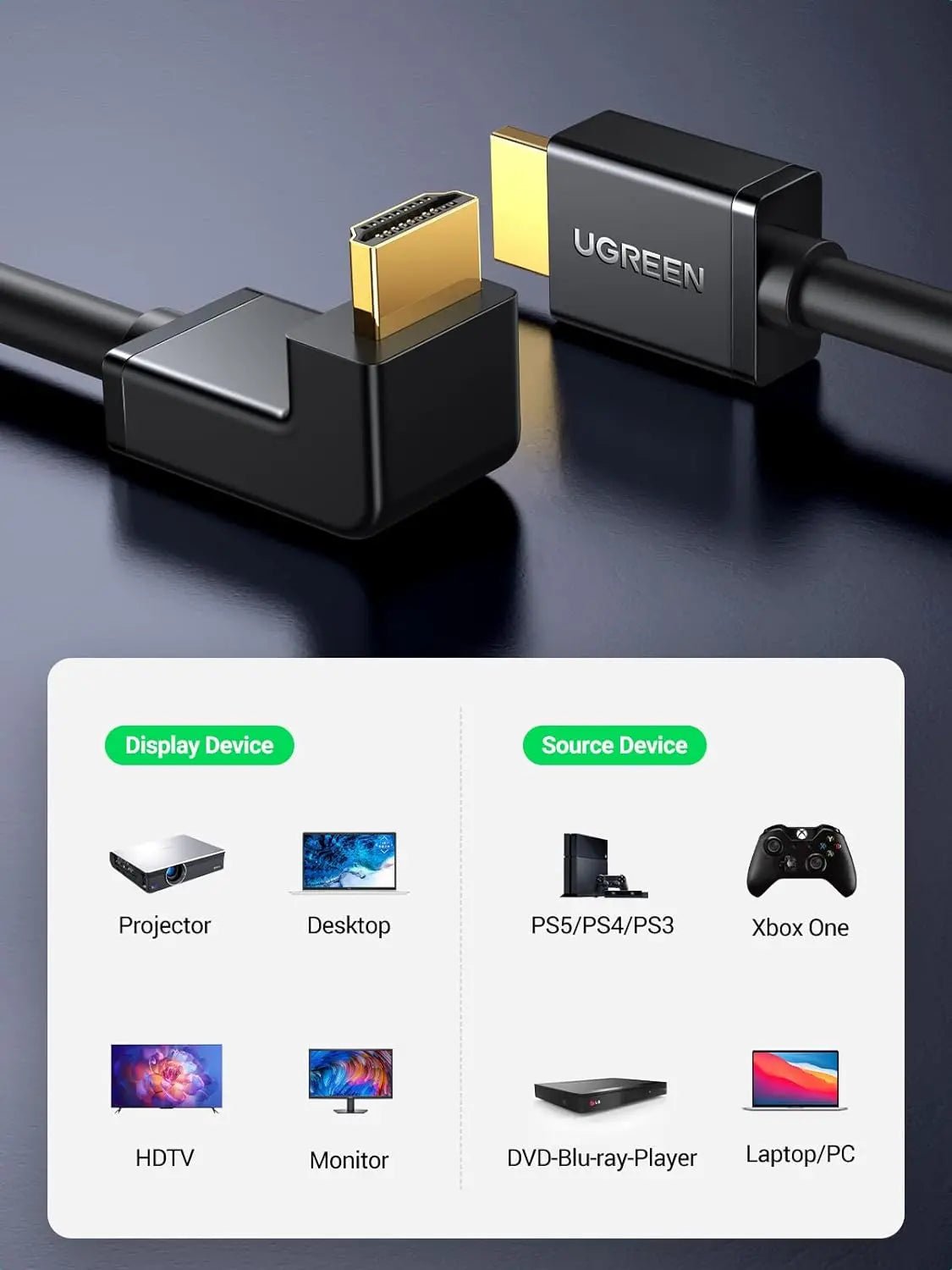

Compatible devices and systems

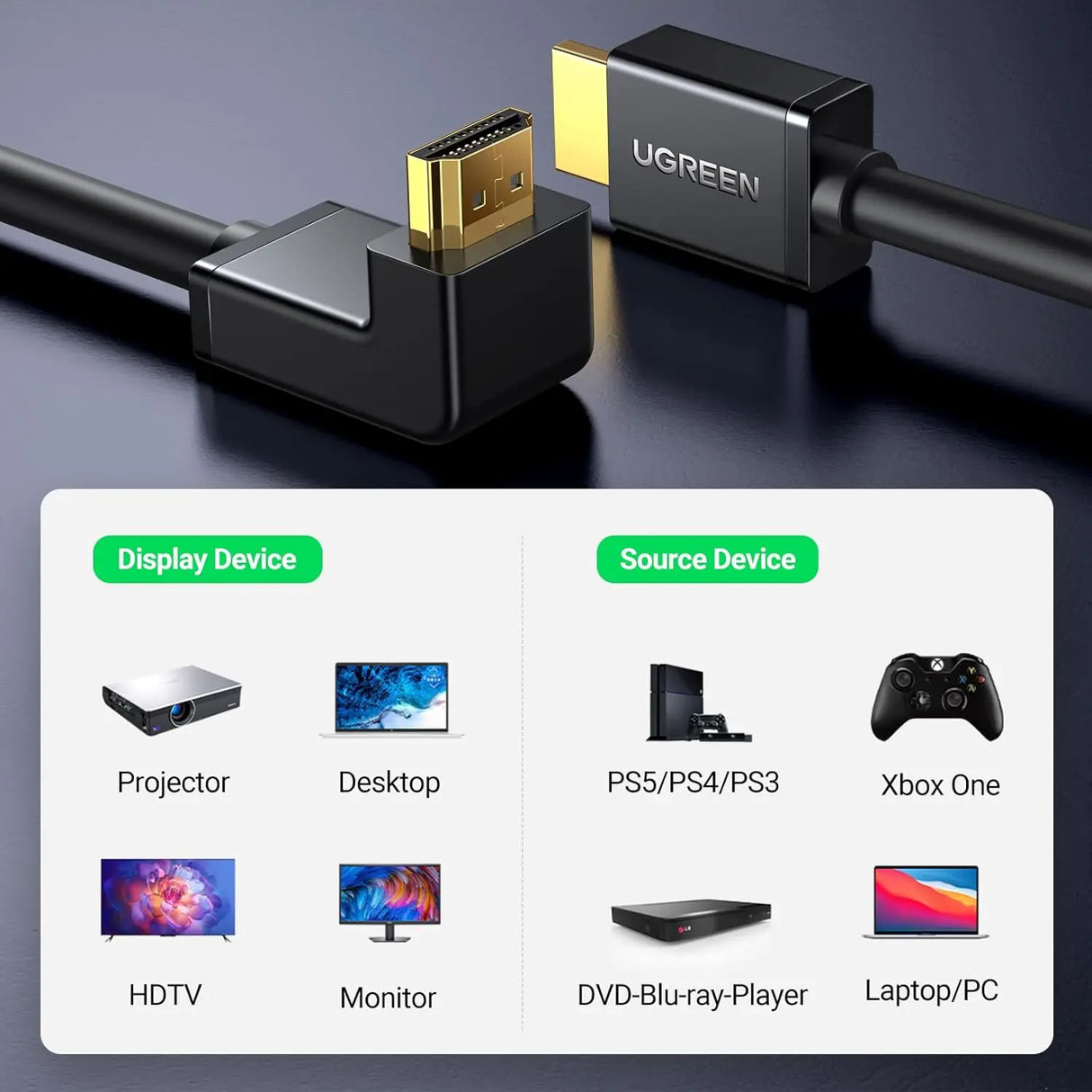

Compatible with full-size HDMI outputs and inputs on televisions, monitors, projectors, AV receivers, laptops, desktop graphics cards, Blu-ray players, streaming devices and game consoles. Physical fit is not universal: the right-angle direction depends on whether the device’s HDMI socket faces up, down or sideways. HDMI features such as 4K60, HDR, ARC, HEC and multichannel audio operate only when every connected component supports the same feature.
What this product does
- Carries one HDMI digital audio/video connection over a two-metre passive cable.
- Provides a lower-profile cable exit at one HDMI port.
- Supports negotiated HDMI formats up to the stated 18Gbps/4K60 maximum.
What this product does not do
- It does not convert HDMI to USB-C, DisplayPort, VGA or another connector.
- It does not split, switch, capture or upscale a video signal.
- It does not support HDMI 2.1 bandwidth or promise 8K60/4K120 operation.
- The right-angle connector does not rotate and may point the wrong way on some devices.
What to do
- Compare the connector direction with the actual port before purchase.
- Use HDMI inputs rated for the required resolution and enable enhanced mode when needed.
- Support the cable so its weight does not pull sideways on the angled plug.
- Troubleshoot by reseating the plugs and testing 1080p before restoring higher formats.
What not to do
- Do not assume 90° and 270° HDMI cables are interchangeable.
- Do not force the elbow into a recessed port or let it cover a neighbouring connector.
- Do not crush, sharply fold or pull the cable by either plug.
- Do not expect 4K60, HDR or ARC from endpoints that lack those capabilities.
Warnings and limitations
- The angle is the primary pre-purchase fit check; photos should be compared with the device’s socket orientation.
- Maximum video performance depends on the source, display, content and any receiver or adapter in between.
- HDMI Ethernet Channel and ARC are optional endpoint features; the cable cannot add them to unsupported equipment.
- Replace the cable if the jacket, strain relief or connector shell becomes damaged.
Technical specifications
| Brand / model | UGREEN HD103 / SKU 10173 |
|---|---|
| Connector A | Full-size HDMI male, straight |
| Connector B | Full-size HDMI male, 90-degree right-angle |
| Length | 2 metres |
| HDMI capability | HDMI 2.0-class |
| Bandwidth | Up to 18Gbps |
| Maximum stated video | 3840 × 2160 at 60Hz |
| Supported functions | HDR, 3D, ARC, HEC and HDCP with compatible endpoints |
| Construction | Round, shielded cable with gold-plated contacts |
| Signal direction | Passive cable; either electrical end can carry the source signal, but the physical angle must suit the port |
Package contents
- 1 × UGREEN HD103 90-degree HDMI cable, 2m (SKU 10173). No additional supplied accessories are specified.
Product-specific FAQ
Which connector is angled?

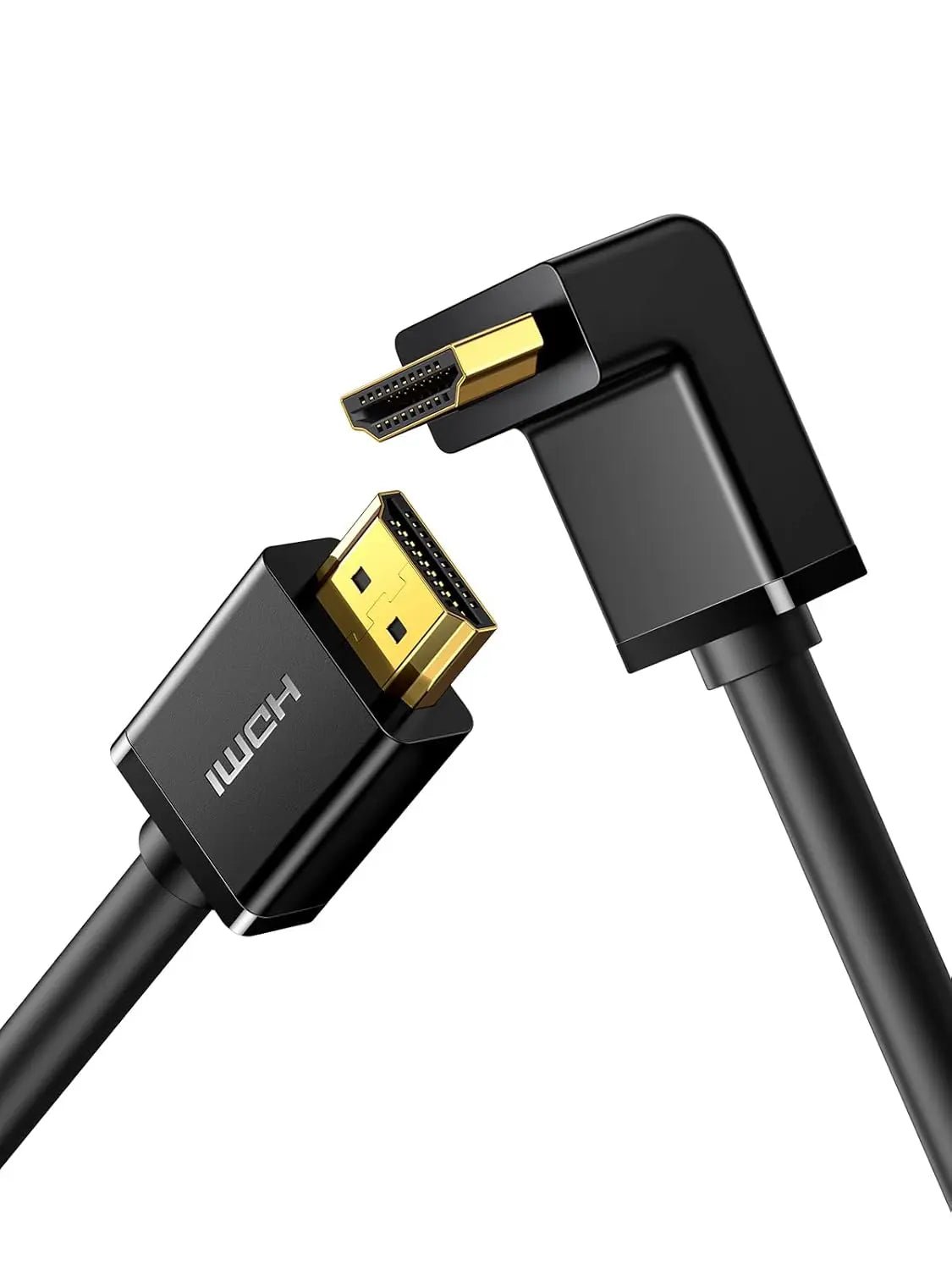

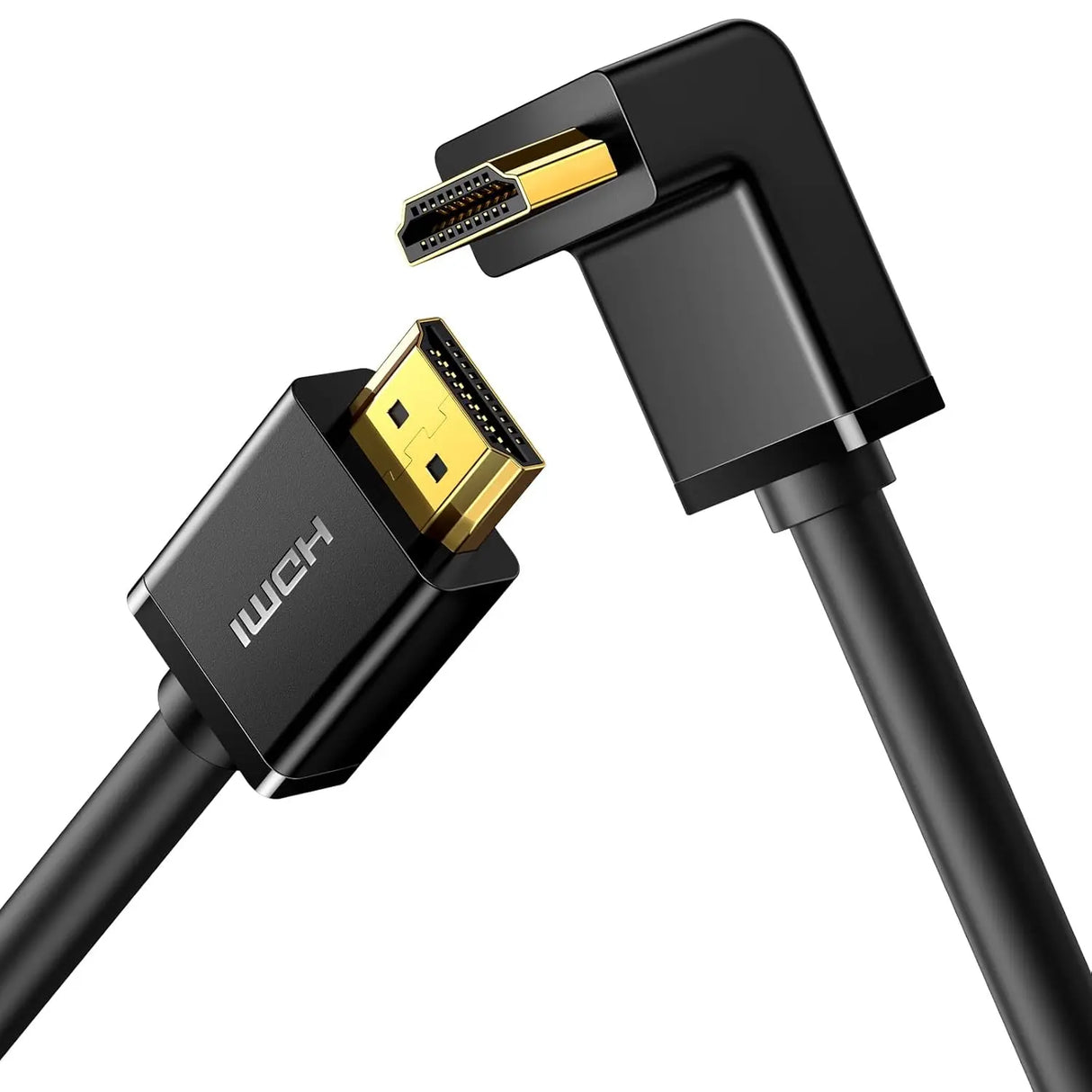

One end has a fixed 90-degree HDMI male plug and the other is straight. Check the product images against the port you intend to use.

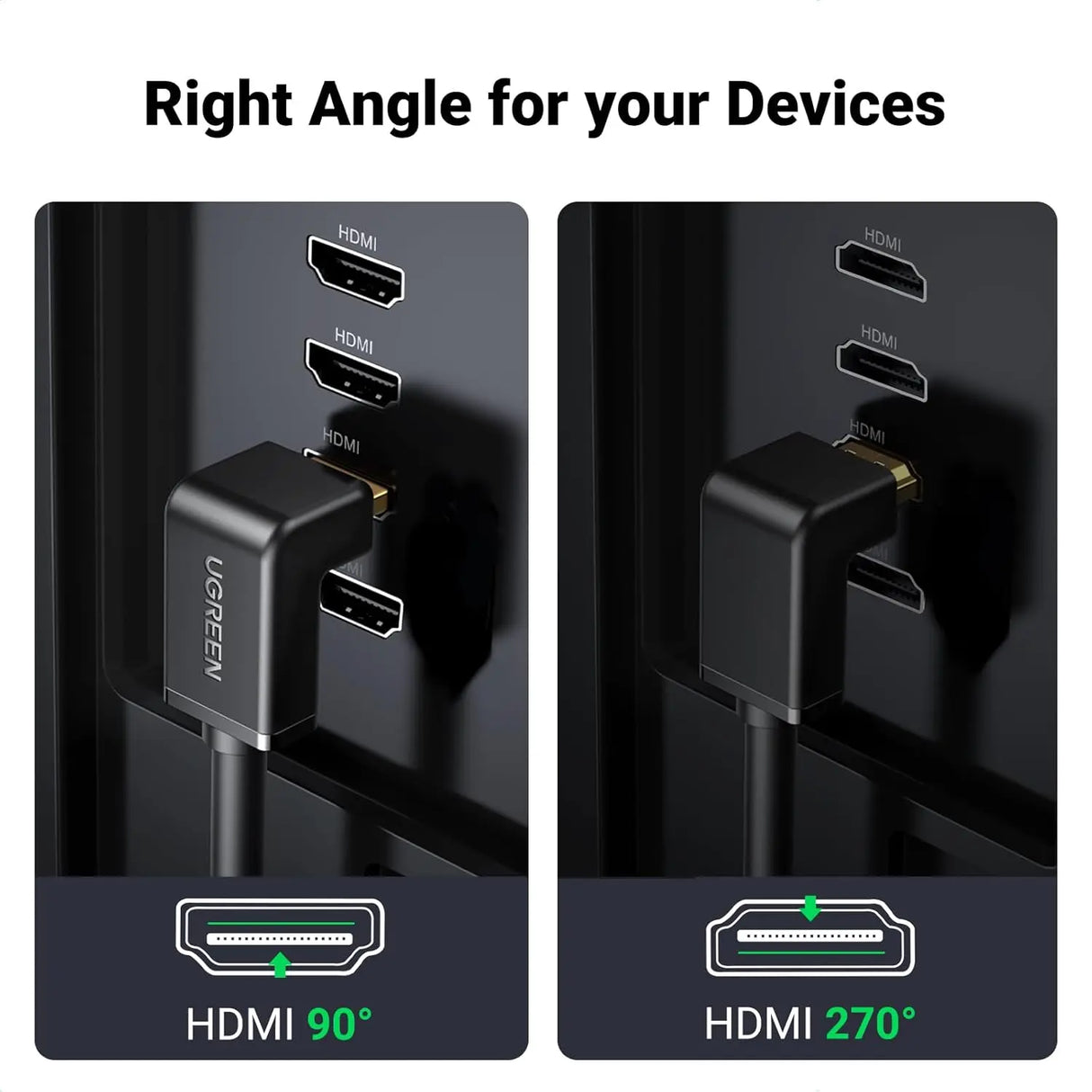

How is 90 degrees different from 270 degrees?
The cable exits in the opposite direction. The correct choice depends on the HDMI socket orientation and the free space around it.
Can it carry 4K at 60Hz?
Yes, up to the stated 18Gbps maximum when every source, port, display and content setting supports 4K60.
Does it support HDR?
HDR is supported by the cable’s feature set, but the source, content and display input must support a compatible HDR format.
Can I use it with PS5 or Xbox?
Yes for supported HDMI 2.0 formats. It is not an HDMI 2.1 cable for 4K120 or 8K modes.
Does it support ARC?
Yes when connected between compatible ARC-labelled ports and ARC is enabled on both devices.
Is the cable directional electrically?
No. It is a passive HDMI cable. The limitation is the physical bend direction of the angled plug, not signal direction.
What if the angled plug blocks another port?
Do not force it. Use a straight cable, the opposite elbow direction or a suitable short adapter after checking bandwidth requirements.
What should I do if there is no picture?
Select the correct display input, reseat both plugs, restart the endpoints and test a lower resolution before checking 4K/HDR settings.
Can I connect it through an AV receiver or HDMI switch?
Yes, provided every added device and port supports the chosen resolution, refresh rate, HDR and HDCP requirements. Test the full chain because each extra connection can affect stability.
Confirm the exact UGREEN model
Use SKU 10173 on the product label or retail package as the reference for these specifications. Similar-looking UGREEN variants can have different cable lengths, connector layouts, output limits or compatibility requirements.
-
