UGREEN 60W Right-Angle USB-C Cable 1m | 50123
Charge and sync USB-C devices with the UGREEN 50123 1m braided cable, featuring one right-angle connector, up to 60W charging and 480Mbps data.
Overview

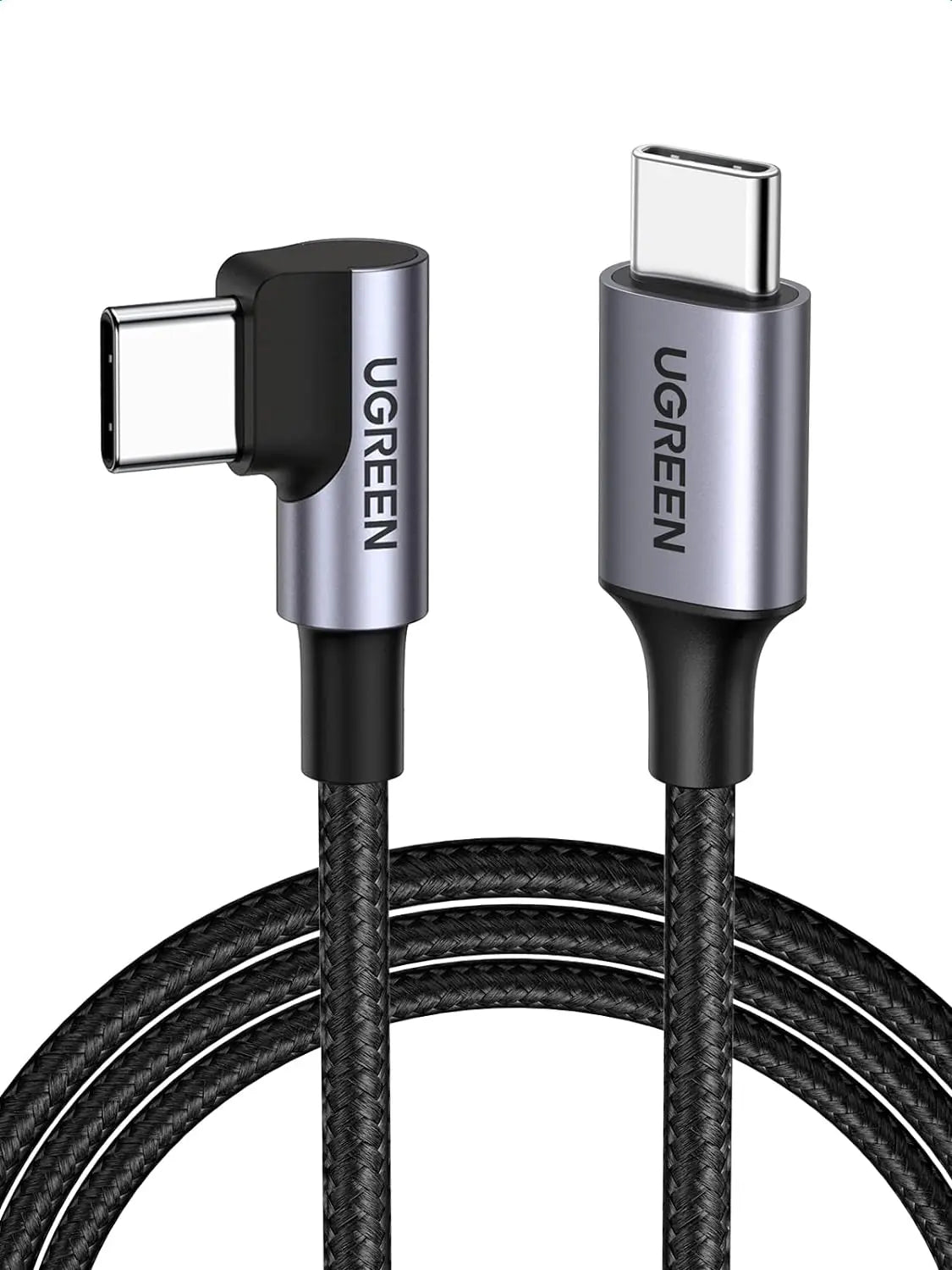

UGREEN model 50123 is a 1-metre USB-C to USB-C cable with one 90-degree right-angle connector. It supports USB Power Delivery charging up to 60W (20V/3A maximum) and USB 2.0 data transfer up to 480Mbps. The angled plug can reduce cable projection and bending beside a phone, tablet or laptop, especially during handheld use or where space around the port is limited.
Key features
These capabilities apply to the exact UGREEN SKU and remain conditional on the connected equipment described below.
- Up to 60W charging for compatible USB-C phones, tablets and laptops when paired with a suitable USB-C Power Delivery charger.
- Right-angle USB-C plug sits closer to the device edge and can make charging more comfortable during gaming, reading or desk use.
- USB 2.0 data link supports synchronisation and file transfer up to 480Mbps.
- Nylon-braided exterior, reinforced joints and aluminium-alloy connector shells are designed for routine bending and storage.
- USB-C at both ends works with USB-C chargers, computers, power banks and devices; no USB-A adapter is built in.
Choose the angled cable for the job
The right-angle connector improves fit only when its fixed direction matches the device and case. Charging, data and video capabilities must be checked separately.
Compare the angled USB-C shell with the device port, protective case and neighbouring openings. The elbow does not rotate and may point the wrong way on some devices.
Up to 60W requires a compatible USB-C Power Delivery charger and a device that accepts the requested power. The cable is rated to 20V/3A and does not support 100W.
USB 2.0 data is specified up to 480Mbps. It is suitable for synchronisation and ordinary file transfer, not for the higher throughput of USB 3.x storage.
This model is not specified for DisplayPort Alt Mode, Thunderbolt or monitor video. Use a video-capable USB-C cable when connecting a display or dock that requires video.
Use scenarios
Charge a USB-C phone while holding it horizontally for games or video, provided the angled plug orientation does not block another opening.
Connect a USB-C Power Delivery charger or power bank to a compatible tablet or laptop within the 60W limit.
Use a shorter, tidier charging route at a desk, bedside table or in a vehicle.
Synchronise files between a USB-C phone/tablet and a USB-C computer at USB 2.0 speed.
Setup and usability guidance
Confirm that both the charger/host and device use USB-C and that the device accepts charging or data through that port.
Check the angled plug orientation against the case, speaker grille and adjacent ports before inserting it.
For fast charging, use a USB-C PD charger and device that support a common profile up to 20V/3A.
For data, connect to a data-capable USB-C computer port; some charger ports and cables are power-only.
Hold the connector shell when disconnecting and route the cable without a tight bend at either joint.
Compatible devices and systems
Compatible with many USB-C phones, tablets, laptops, chargers and power banks, including supported MacBook, iPad USB-C, Galaxy, Pixel, Huawei, Xiaomi, OnePlus, Surface and other USB-C families. Compatibility means physical USB-C connection; charging rate and data functions depend on the specific port. A device case or neighbouring port can interfere with the right-angle shell, so inspect the layout before purchase.
What this product does
- Carries up to 60W of negotiated USB-C charging power and USB 2.0 data.
- Provides a lower-profile cable exit at the angled device end.
- Works with lower-power USB-C charging profiles when endpoints negotiate them.
What this product does not do
- It does not output HDMI/DisplayPort video and is not a monitor cable.
- It does not provide USB 3.x, Thunderbolt, USB4 or 10Gbps data.
- It does not support 100W or 240W charging and cannot increase a charger’s wattage.
- It does not convert USB-A, Lightning or Micro-USB.
What to do
- Use a charger and device whose power ratings are compatible with each other.
- Check that the angled shell clears the protective case and nearby connectors.
- Keep connectors clean and dry, and coil the cable loosely for storage.
- Use a direct computer connection when diagnosing data recognition.
What not to do
- Do not force the angled plug when its orientation conflicts with the case.
- Do not use this cable for a display, Thunderbolt dock or high-speed external SSD.
- Do not pull by the braid, crush the cable or fold it sharply at the connector.
- Do not expect 60W from a lower-wattage charger or on a device that accepts less.
Warnings and limitations
60W is the cable’s stated maximum; actual power is negotiated by charger, device and cable and normally falls as a battery fills.
USB-C describes the connector, not the feature set. This model carries USB 2.0 data and is not specified for video.
Right-angle fit varies by device and case. Verify the desired cable exit direction before ordering.
Stop using the cable if the connector becomes loose, unusually hot or physically damaged.
Technical specifications
| Brand / SKU | UGREEN / 50123 |
|---|---|
| Connector A | USB-C male, straight |
| Connector B | USB-C male, 90-degree right-angle |
| Length | 1 metre |
| Maximum charging | 60W, up to 20V/3A |
| Listed charging protocols | PD, PPS and BC1.2 |
| USB data standard | USB 2.0 |
| Maximum data rate | 480Mbps |
| Exterior | Nylon-braided cable with aluminium-alloy connector shells |
Package contents
- 1 × UGREEN right-angle USB-C to USB-C cable, 1m (SKU 50123). No additional supplied accessories are specified for this SKU.
Product-specific FAQ
Which end is angled?
One USB-C plug is 90-degree right-angle and the other is straight, letting the cable exit along the device edge.
Can it charge at 60W?
Yes, up to 20V/3A with a compatible USB-C PD charger and device. A lower-rated endpoint will negotiate less power.
Does it support 100W charging?
No. Model 50123 is rated up to 60W and 3A.
Can it transfer files?
Yes, at USB 2.0 speeds up to 480Mbps through data-capable USB-C ports.
Can it connect a laptop to a monitor?
No video output is specified. Use a USB-C video/Thunderbolt cable that matches the laptop and display.
Will it fit with my phone case?
It may, but thick cases and recessed ports can obstruct the right-angle shell. Check clearance and orientation.
Can I use it with an iPhone?
It fits iPhones with USB-C ports, subject to case clearance. Lightning-port iPhones need a different cable.
Why is charging slower than expected?
Check the charger wattage/protocol, device limit, battery temperature and state of charge. The cable cannot make endpoints negotiate 60W.
Is it suitable for an external SSD?
It may establish a USB 2.0 link, but it is not suitable when USB 3.x SSD speed is required.
Is a USB-C charger included?
No. The verified package contents identify the cable only. Supply a compatible USB-C Power Delivery charger separately.
UGREEN India Assurance
Genuine UGREEN product supplied with GST invoice availability. Product warranty and after-sales assistance are provided subject to the applicable UGREEN India warranty terms, eligibility requirements and support policy. Match SKU 50123 on the product or retail package because similar-looking variants can have different specifications.
