UGREEN 1 to 2 Ethernet Splitter 1000Mbps (45311)

Ethernet Splitter 1 to 2: This RJ45 ethernet splitter can divide the one-gigabit network into two-gigabit networks, and it can simultaneously enable the transmission speed of two devices to reach 1000Mbps, perfectly solving the issues of insufficient network wiring and unstable signal transmission.

1000Mbps High-Speed Transmission: The ethernet switch supports a maximum of 1000M Ethernet network connections, providing lightning-fast network transmission speeds for two output signals, with no crosstalk between the two sets of signals, and backward compatibility with 100Mbps/10Mbps network speeds. It is ideal for those who require fast and consistent transfer of large amounts of data. Note: The maximum speed achievable by a network splitter depends on the actual network speed, which is influenced by other network devices, such as ethernet cables, and routers.

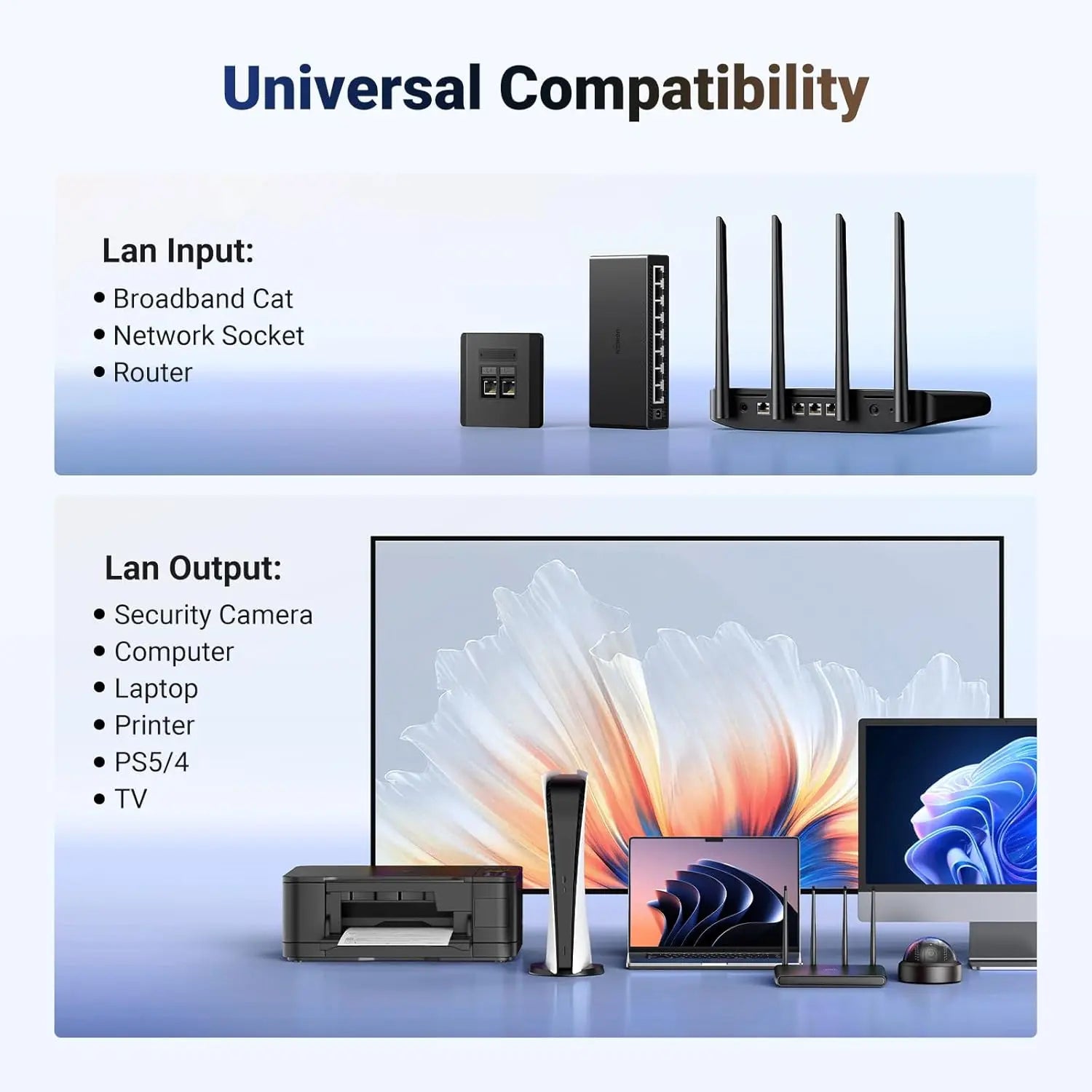

Plug and Play: Simple and efficient, no drivers required, just a 5V power connection (USB cable included in the package). This internet splitter is compatible with Cat 8, Cat 7, Cat 6, Cat 5, and Cat5e network Ethernet cables. This wide range ensures that it can be used with virtually any ADSL, hub, switch, TV, set-top box, router, wireless device, or computer.

Signal Stability & Durability - The ethernet LAN splitter is made of high-quality aluminum alloy material, with an eco-friendly PCB board built-in, full metal protection for RJ45 sockets, and gold-plated pin cores, ensuring no signal crosstalk and interference. It offers fast and stable transmission speeds, is not prone to damage, and safer and more reliable data transfer.

Compact and Lightweight: The design of the internet splitter is compact and lightweight, making it highly portable. It can be easily carried in a laptop bag for business trips.

Short Description:

• Network Standards: IEEE 802.3/u/x/ab
• Interface Performance: 3x10/100/1000Mbps auto-negotiation RJ45 port;
• Auto MDl/MDIX;
• Supports full/half duplex modes;
• MAC address entry learning and aging;
• No-blocking forwarding at full wire-speed

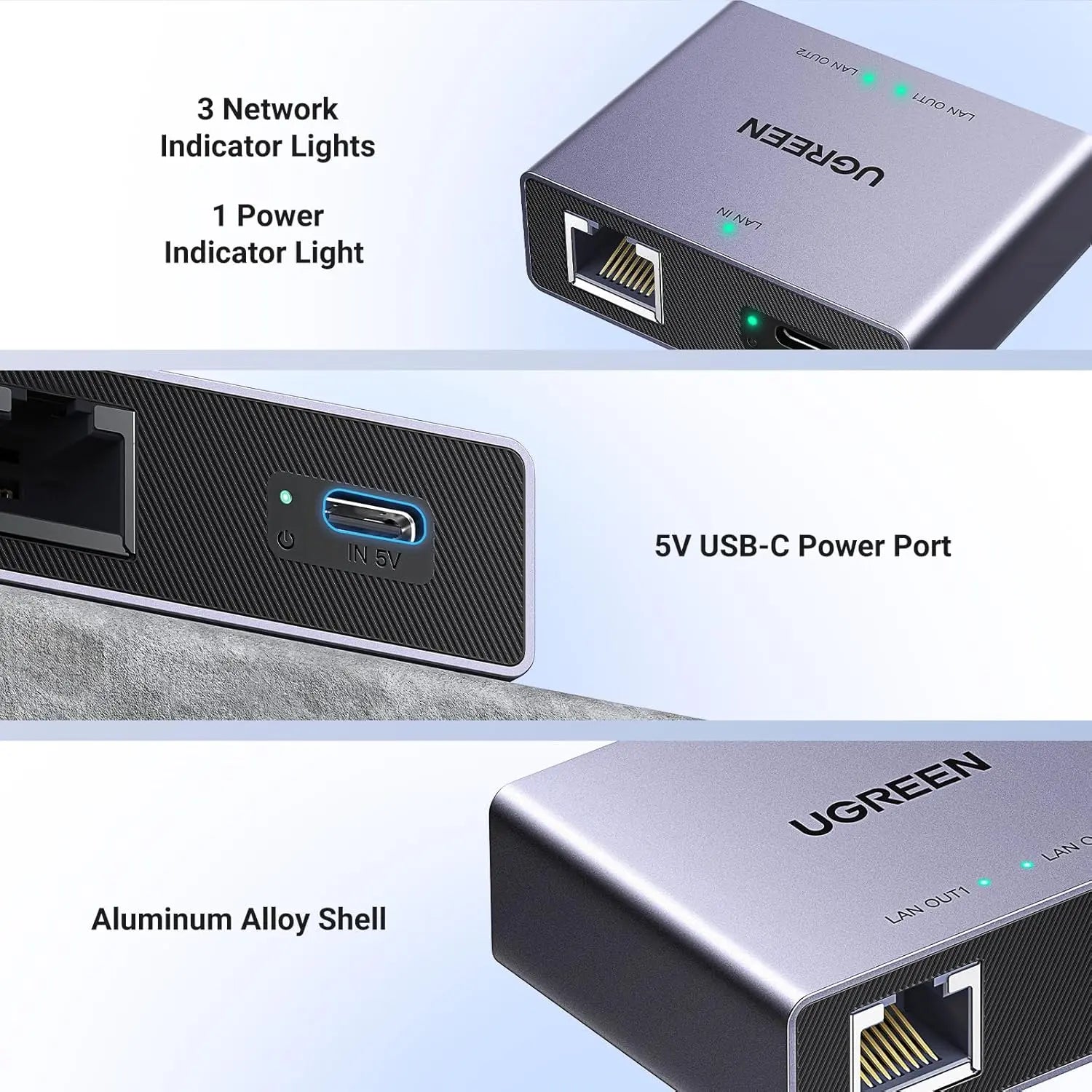

• LED Indicator: l x Power indicator;
• 3xLink/Act connection status indicator
• Transmission Medium: 10Base-T: Cat 3 or later(<100m/328ft);
• 100Base-TX: Cat 5 or later(<100m/328ft);
• 1000Base-T: Cat 5 or later(<100m/328ft )
• Transfer Method: Store and forward
• Forwarding Rate: 10Mbps: 14880pps/port;
• 100Mbps: 148800pps/port;
• 1000Mbps:1488000pps/port
• Power Input: 5.0V---0.5A Max
• Operating: Temperature: 0°C-40°C (32°F-104°F);
• Humidity: 10%6-90%RH,non-condensing
• Warranty: 2 Year.
