Ugreen  |  SKU: 10385
Sold out
32% off
New arrival

UGREEN US132 10385 USB-A to Mini-B Cable, 1.5m

Rs. 529.00 Rs. 776.00
MRP: Rs. 776.00 (inclusive of all taxes)
Tax included Shipping calculated at checkout.
Lower price than Amazon, free shipping above ₹1000, official India warranty, GST invoice, easy returns
Fast Transfers
Universal Fit
Rock-Solid
Slim Design
Durable Build
PASSIVE USB 2.0 • USB-A TO MINI-B • 1.5m

UGREEN 10385 1.5m USB-A to Mini-B Cable

Overview

This 1.5 m US132 cable links a standard USB-A host or USB charger to an older device with a 5-pin Mini-USB Type-B socket. It is a passive USB 2.0 data-and-power cable rated up to 480Mbps and up to 5V/2A when the source and device allow it. It does not convert protocols, boost a signal or modernize a Mini-B device.

Passive male-to-male cableUSB 2.0 • 480Mbps1.5 mUS132

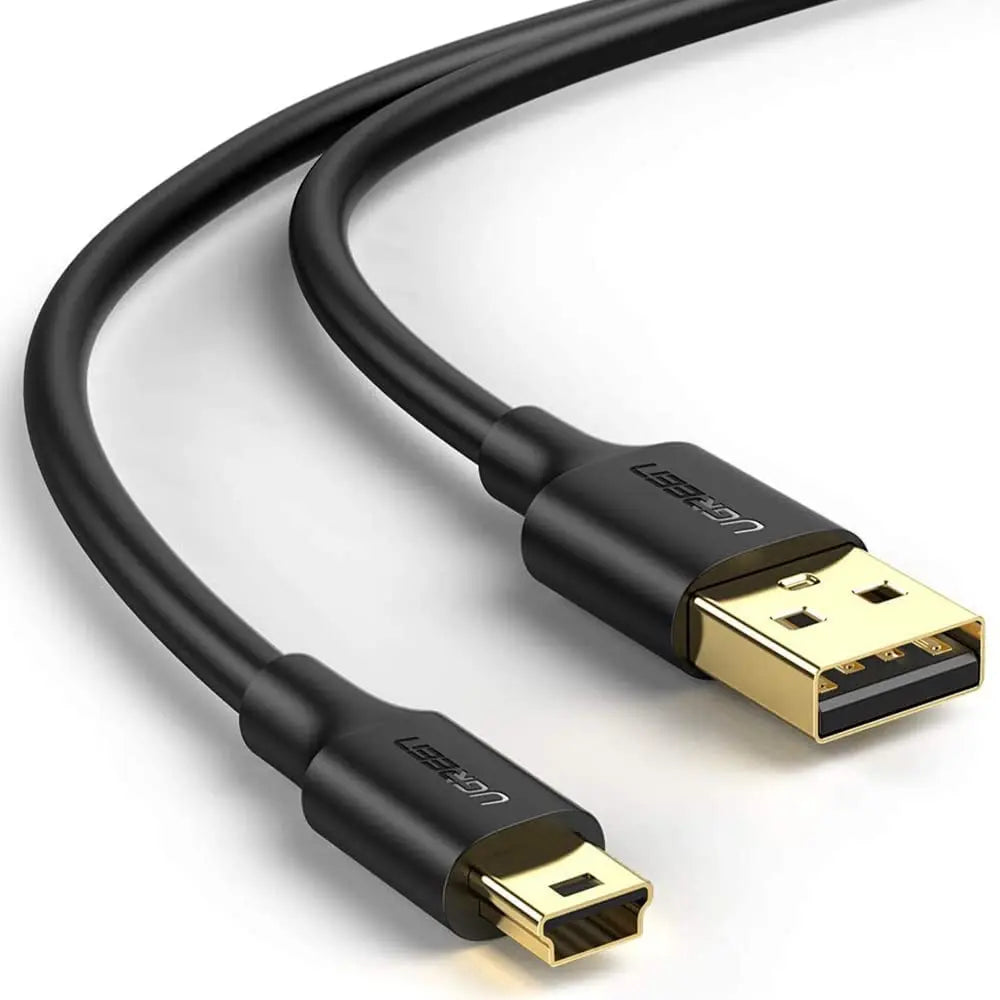

UGREEN 10385 1.5-metre USB-A to five-pin Mini-B cable
SKU 10385 is the 1.5-metre US132 USB 2.0 cable with a USB-A host plug and five-pin Mini-B peripheral plug.

Choose the right cable

connector

USB-A male host/charger end → Mini-USB Type-B 5-pin male device end

length

1.5 m; measure the routed path and allow a gentle service loop.

Data requirement

Up to 480Mbps USB 2.0; backward operation at USB 1.1/1.0 rates where supported; not USB 3.x or USB4.

Power expectation

Up to 5V/2A where the USB source and Mini-B device both permit it; no USB PD or guaranteed QC protocol

Selection rule: match the device socket, host plug, length, data need and charging requirement. Mini-B and Micro-B are not interchangeable.

Key features

Passive point-to-point design

Passive male-to-male cable; no repeater and no auxiliary-power input

USB 2.0 data

Up to 480Mbps USB 2.0; backward operation at USB 1.1/1.0 rates where supported

Device-controlled charging

Up to 5V/2A where the USB source and Mini-B device both permit it; no USB PD or guaranteed QC protocol

Construction

Black PVC jacket, approximately 4mm outer diameter; 24/28 AWG tin-plated copper conductors; foil/braid shielding; gold-plated contacts (official US132 sources)

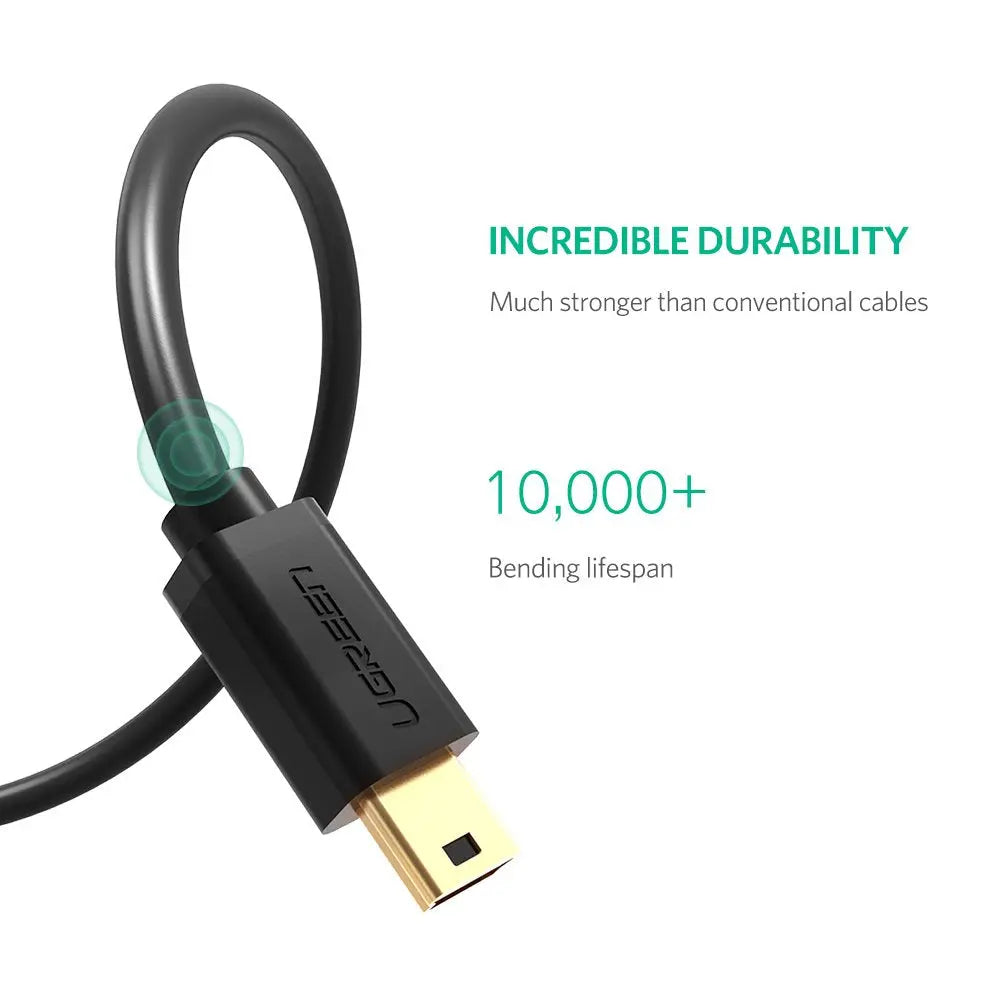

UGREEN 10385 Mini-B connector flex and durability illustration
The molded connector and flexible jacket support routine handling; the pictured bend-test figure describes controlled testing, not a target for everyday abuse.

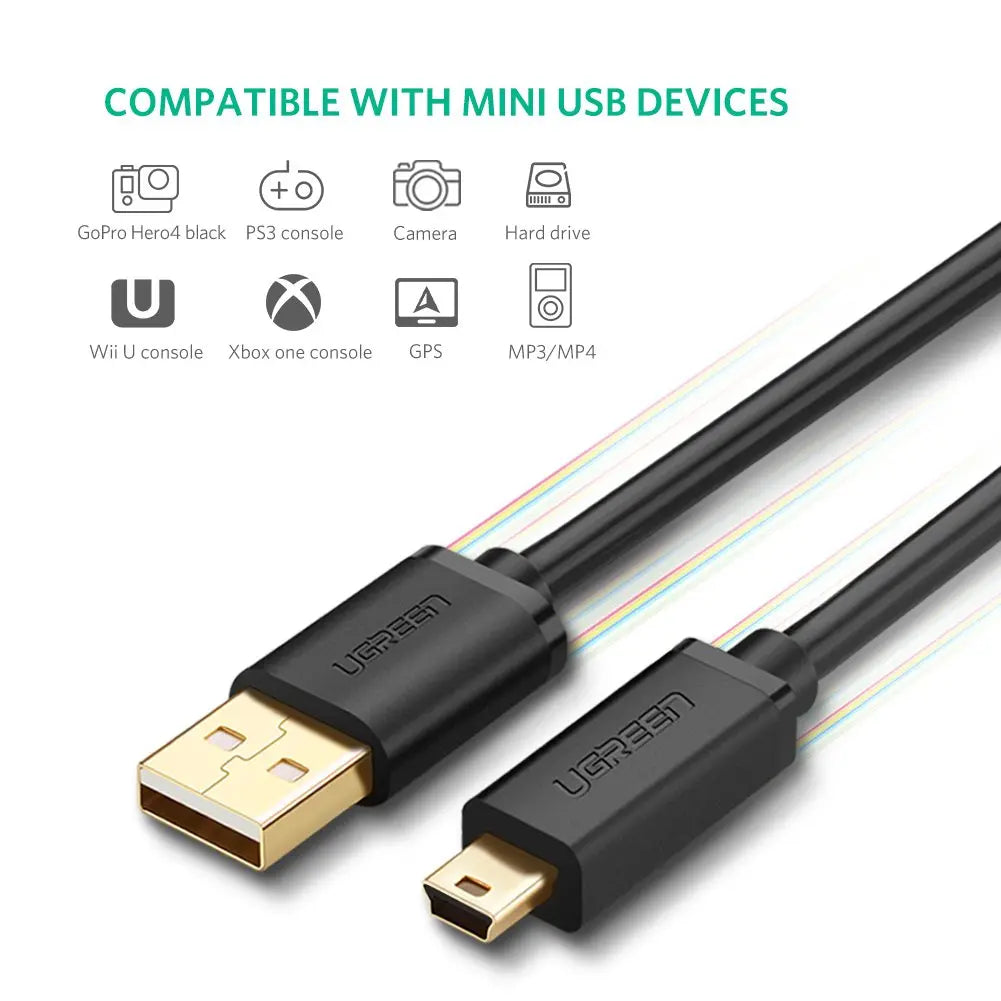

Use scenarios

Nearby charging

Sync photos or files from a Mini-B camera or storage device after confirming its USB mode

Data and media

Power or communicate with a GPS, dash camera, audio recorder or MP3 player that explicitly uses 5-pin Mini-B

Accessory link

Connect a compatible older controller or accessory to a computer or charger without using an adapter

Replacement planning

Replace a lost Mini-B lead with the 1.5 m length after checking the device manual and port outline

A matching plug is necessary but not sufficient; the peripheral must implement the requested function.

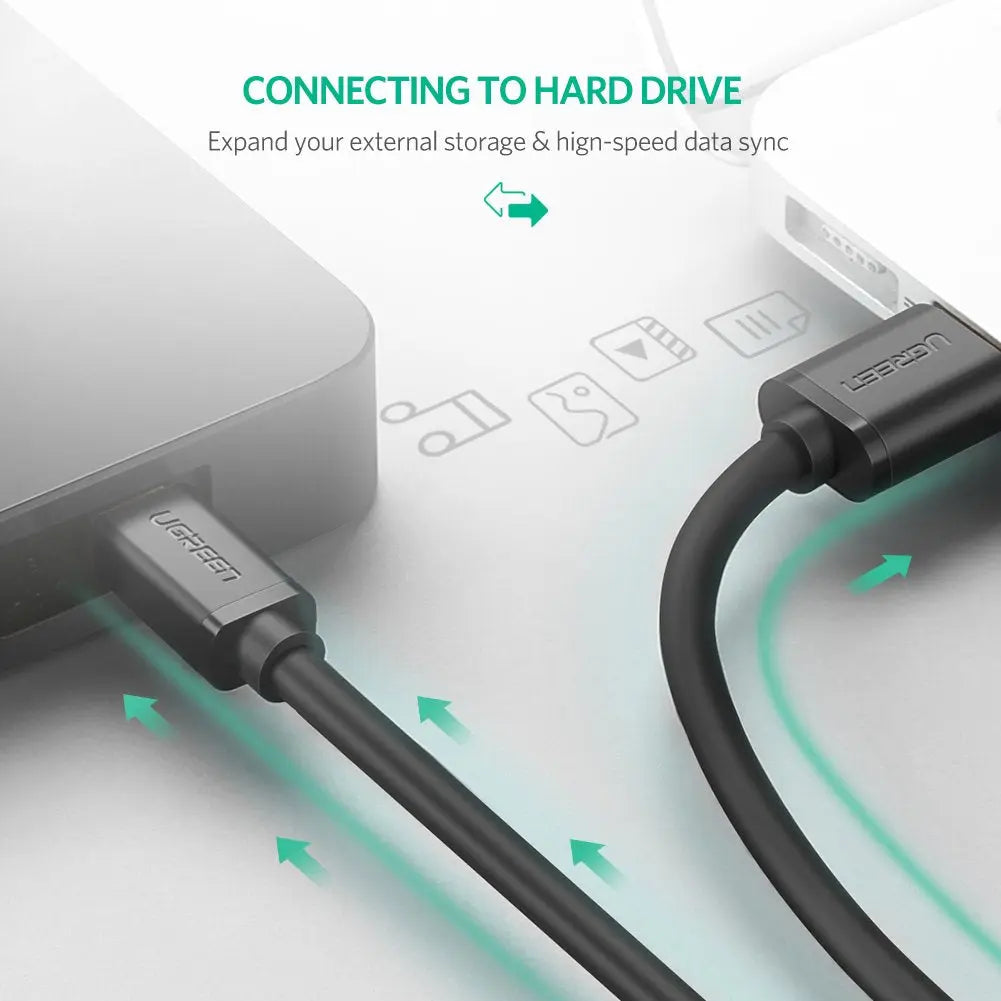

UGREEN 10385 connecting a compatible Mini-B external drive to a USB-A computer
A compatible older Mini-B storage device can use the cable for USB 2.0 data, subject to its own power requirement, driver and supported operating mode.

Setup and usability guidance

  1. Inspect: compare the port with the image and device manual.
  2. Connect roles: USB-A male host/charger end → Mini-USB Type-B 5-pin male device end.
  3. Insert straight: never rock, twist or force a keyed legacy plug.
  4. Select mode: a camera or phone may need PC, MTP or file-transfer mode.
  5. Test separately: charging alone does not prove that data is available.
  6. Route safely: keep dry, use broad bends and support cable weight.

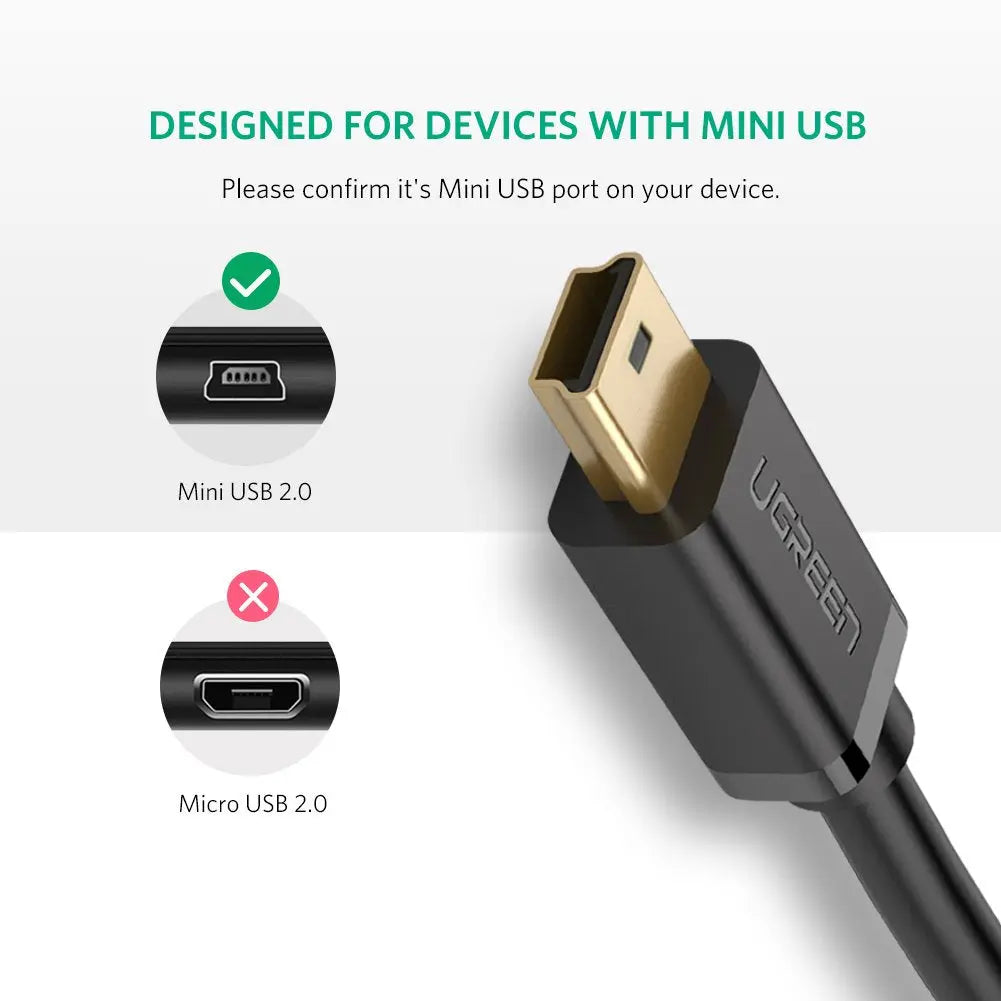

UGREEN 10385 diagram distinguishing five-pin Mini-B from Micro-USB
Confirm the thicker five-pin Mini-B socket shown with the green check; the flatter Micro-USB socket is a different connector and must not be forced.

Compatible devices and systems

Use it with a computer, powered hub or charger that has USB-A and a peripheral whose manual or port shape confirms 5-pin Mini-B. Windows, macOS, Linux and ChromeOS can use standard USB device classes; the cable needs no driver, but the camera, controller, GPS, audio recorder, storage device or other peripheral may require its own software. A USB 3.x Type-A host is normally backward-compatible, but this link remains USB 2.0.

Host/source

USB-A male host/charger end

Peripheral

Mini-USB Type-B 5-pin male device end

Software

The cable has none. A camera, controller, GPS or other device can still need its own driver, firmware or app.

Function

Check whether the device port supports data, charging or both; some legacy ports are service- or power-only.

What this product does

  • Provides the 1.5 m physical connection from USB-A male to 5-pin Mini-B male.
  • Carries ordinary USB 2.0 data traffic in both directions under the host-controlled USB link, up to the 480Mbps interface ceiling.
  • Carries USB bus power for devices that accept power on their Mini-B port, up to the mutually supported 5V/2A level.
  • Works without a cable driver; the connected device can still need a driver, app, file-transfer mode or storage setting.

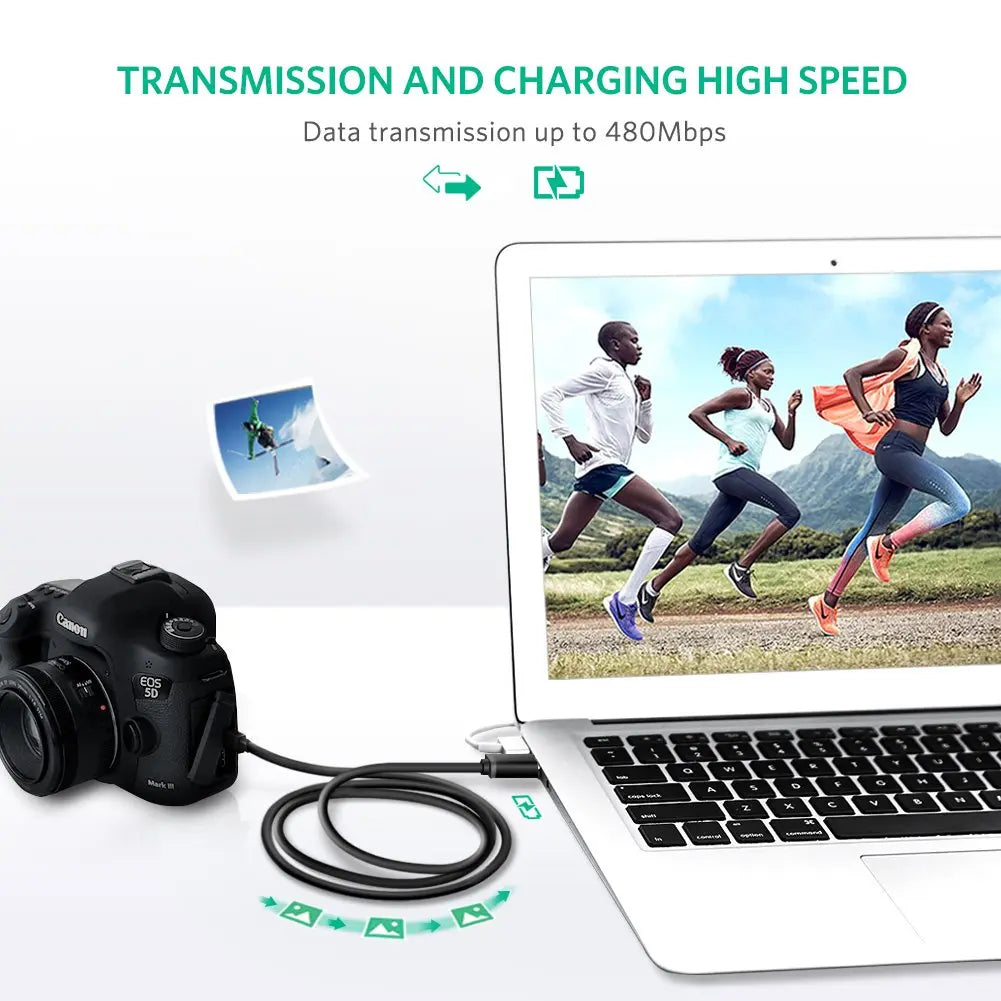

UGREEN 10385 linking a Mini-B camera to a computer for data and charging
The cable carries USB 2.0 data up to the 480Mbps interface ceiling and ordinary USB power when the camera implements those functions.

What this product does not do

  • It is not Micro-USB, USB-C, full-size printer USB-B, Mini HDMI or Micro HDMI. Similar-looking small plugs are not interchangeable.
  • It does not provide USB Power Delivery, a guaranteed Qualcomm Quick Charge mode or a fixed charging rate.
  • It does not carry native HDMI/DisplayPort video, analogue audio, Ethernet or another non-USB protocol.
  • It is not an OTG adapter, host-to-host cable, active repeater or port converter.
  • It cannot make a charge-only device transfer files or force a camera to expose storage when its firmware does not.

What to do

Confirm before ordering

Use this SKU, length, connector images and device manual—not only a marketplace device list.

Choose the shortest suitable run

Measure around obstacles and leave slack without excess cable.

Protect the socket

Grip the molded housing, support cable weight and replace a lead that no longer fits firmly.

Use approved power

The cable has no external-power socket. Power comes from the USB-A host, hub or charger and is governed by that source plus the Mini-B device. A device may support data only, charging only, both functions, or a proprietary operating mode. For a power-sensitive 3m run, test under sustained use and prefer the device maker’s own supply when available.

What not to do

Do not force a near-match

Mini-B, Micro-B, USB-C and HDMI plugs differ. Stop if alignment or insertion resistance is wrong.

Do not join two hosts

This is not a host-to-host bridge; two powered host ports can risk damage.

Do not stack cables

No supported daisy-chain count is published; extra junctions reduce signal and power margin.

Do not trust legacy names

Older listing examples such as GoPro generations, game controllers, GPS units and cameras are historical categories—not blanket certification. Port revisions can change within one model name. Confirm the actual 5-pin Mini-B socket, the device manual and any vendor limits before purchase.

Warnings and limitations

Speed: 480Mbps is the USB 2.0 signalling ceiling, not guaranteed file-copy throughput.

Charging: Up to 5V/2A where the USB source and Mini-B device both permit it; no USB PD or guaranteed QC protocol

Roles: use the documented host/charger-to-peripheral arrangement; this is not OTG or a peer bridge.

No native display video: no HDMI, DisplayPort or USB-C Alt Mode.

Condition: replace bent, loose, corroded, wet, frayed or unusually hot connections.

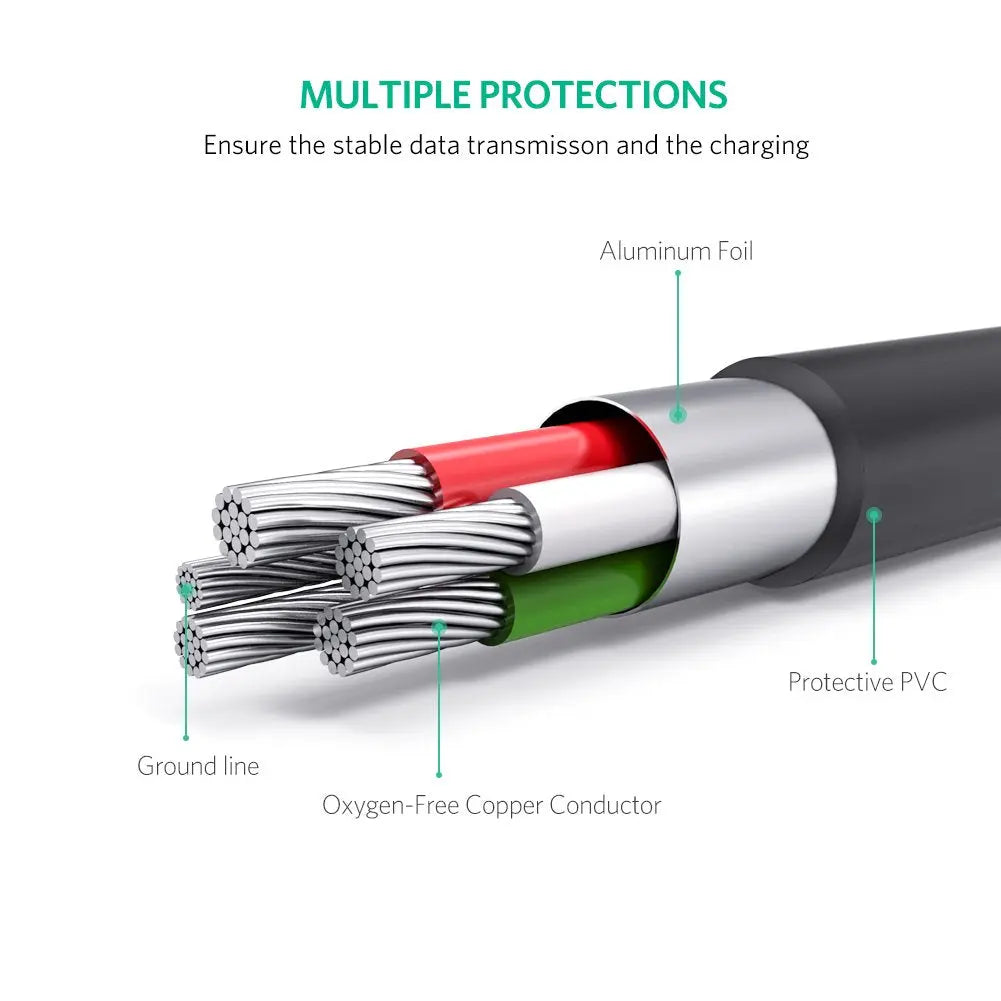

UGREEN 10385 cable cutaway showing conductor ground foil and PVC layers

Troubleshooting path

1 — Verify connector

Confirm the Mini-B or Micro-B port; the plug must align without force.

2 — Prove the device

Test direct with its known-good cable and enable the correct USB/data mode.

3 — Simplify

Remove hubs and adapters; try another suitable host port or approved charger.

4 — Separate symptoms

Test detection, transfer and charging individually; inspect for wear, debris or movement.

Technical specifications

Brand / SKU UGREEN 10385
Model / family US132
Cable length 1.5 m
Connector direction USB-A male host/charger end → Mini-USB Type-B 5-pin male device end
Cable topology Passive male-to-male cable; no repeater and no auxiliary-power input
USB generation USB 2.0
Maximum listed data rate 480Mbps
Charging support Up to 5V/2A where the USB source and Mini-B device both permit it; no USB PD or guaranteed QC protocol
External / auxiliary power None; power is carried from the connected USB source
Native video / Alt Mode Not supported
Audio / Ethernet conversion Not supported
Construction Black PVC jacket, approximately 4mm outer diameter; 24/28 AWG tin-plated copper conductors; foil/braid shielding; gold-plated contacts (official US132 sources)
Driver requirement No cable driver; connected-device requirements still apply
Chaining No supported chain count published; use one suitable cable
Listed dimensions 19.5 × 13.5 × 1 cm
Listed weight 100 g

Dimensions and weight reproduce listing values where reliable and may describe the packed commerce record rather than installation geometry. Malformed or contradictory values are labelled instead of inferred.

See the connector

SKU-first identification

Identity: SKU 10385, US132, 1.5 m. Similar cables can use another connector, jacket or charging profile.

Package contents

1 × UGREEN 10385 1.5 m USB-A male to 5-pin Mini-B male cable. Charger, hub, power adapter, Mini-B device and connector adapters are not included.

Product-specific FAQ

Is this an active or passive cable?

Passive. There is no repeater chipset and no external or auxiliary power input. It simply carries the USB 2.0 signal and bus power between the USB-A host/charger end and the Mini-B peripheral end.

Is Mini-B the same as Micro-USB?

No. This uses the thicker trapezoidal 5-pin Mini-B plug. Micro-USB is flatter, USB-C is reversible, and full-size USB-B is the larger square printer-style connector. Compare the device port before ordering.

What is the maximum data rate?

Up to 480Mbps under USB 2.0. Actual file-transfer speed is lower and depends on the device controller, storage, host, software and protocol overhead. A USB 3.x host port does not make this cable faster.

How fast can it charge?

Official US132 sources list up to 5V/2A. That is a conditional ceiling: the source and Mini-B device decide the real current. Some devices do not charge from a computer port or require a device-specific charging state.

Does it support USB PD or Quick Charge?

No USB Power Delivery or defined QC profile is guaranteed. “Fast charging” in legacy listing language means the cable can carry the documented current when the source and device allow it; it does not add a negotiation protocol.

Can I use it with a camera?

Only if the camera revision has a 5-pin Mini-B USB port and its manual permits the intended data or charging use. Cameras with Micro-USB, USB-C, proprietary multi-connectors or Mini/Micro HDMI need a different cable.

Are the named GoPro, console and GPS examples guaranteed?

No. Those are older merchandising examples, not current certification for every generation or regional revision. Check the physical socket and the manufacturer’s present support guidance for your device.

Will it work in a blue USB 3.0 Type-A port?

Usually for backward-compatible USB 2.0 operation. The connection remains limited to 480Mbps, and the host must still provide a working USB data/power function. Port colour by itself is not a complete specification.

Can it connect two computers or transfer directly from one device to another?

Do not connect two USB hosts. This is wired for a USB-A host/charger on one end and a Mini-B peripheral on the other; it is not a bridge cable or a peer-to-peer transfer controller.

Can I join it to another extension cable?

No supported chain count is published. Every extra junction adds voltage drop and signal loss. Use one shortest suitable cable and test the device instead of planning a chain.

What should I check if the device is not detected or charging?

Verify the port is Mini-B, test the device with its known-good original cable, try another host port, select the camera/device USB mode, remove hubs and adapters, inspect for debris or looseness, and test charging separately from data.

Selection confidence

Match SKU 10385, 1.5 m, both connectors, USB 2.0 data and the device’s charging rules. If one differs, choose another cable.

SKU 103851.5 mUS132480Mbps USB 2.0
