UGREEN exact-model networking guide · SKU 11229
UGREEN 0.5m Cat7 F/FTP Ethernet Cable, 10Gbps (11229)
An exhaustive, practical guide to the exact connector path, verified performance, construction, setup, compatibility, safe use and troubleshooting.
Product overview
Overview
UGREEN 11229 is a 0.5m Cat7 F/FTP Ethernet patch cable for a direct copper-network link between standard RJ45 ports. It is listed for up to 10gbps and 600MHz, with 28awg copper conductors. The cable is passive, requires no software or external power and negotiates the highest common Ethernet mode supported by the full channel.
The buying decision begins with the exact interfaces and application, not the largest printed number. Confirm that the physical ports, protocol, device software and complete route match this model.
Product highlights
Key features
0.5m
Exact model format or length for planning the physical connection.
Up to 10Gbps
Verified product capability, subject to the complete host or network path.
Cat7 · F/FTP
The defining connector, protocol or construction detail for this exact SKU.
One clear job
Creates one passive 0.5m point-to-point Ethernet patch link.
No hidden upgrade
It does not add an Ethernet port to a device that lacks RJ45; use the correct USB or dock adapter for that job.
Exact media only
All 5 current Shopify-owned product images were reviewed; embedded images remain attached to SKU 11229.
Port and direction check
Choose the right connection

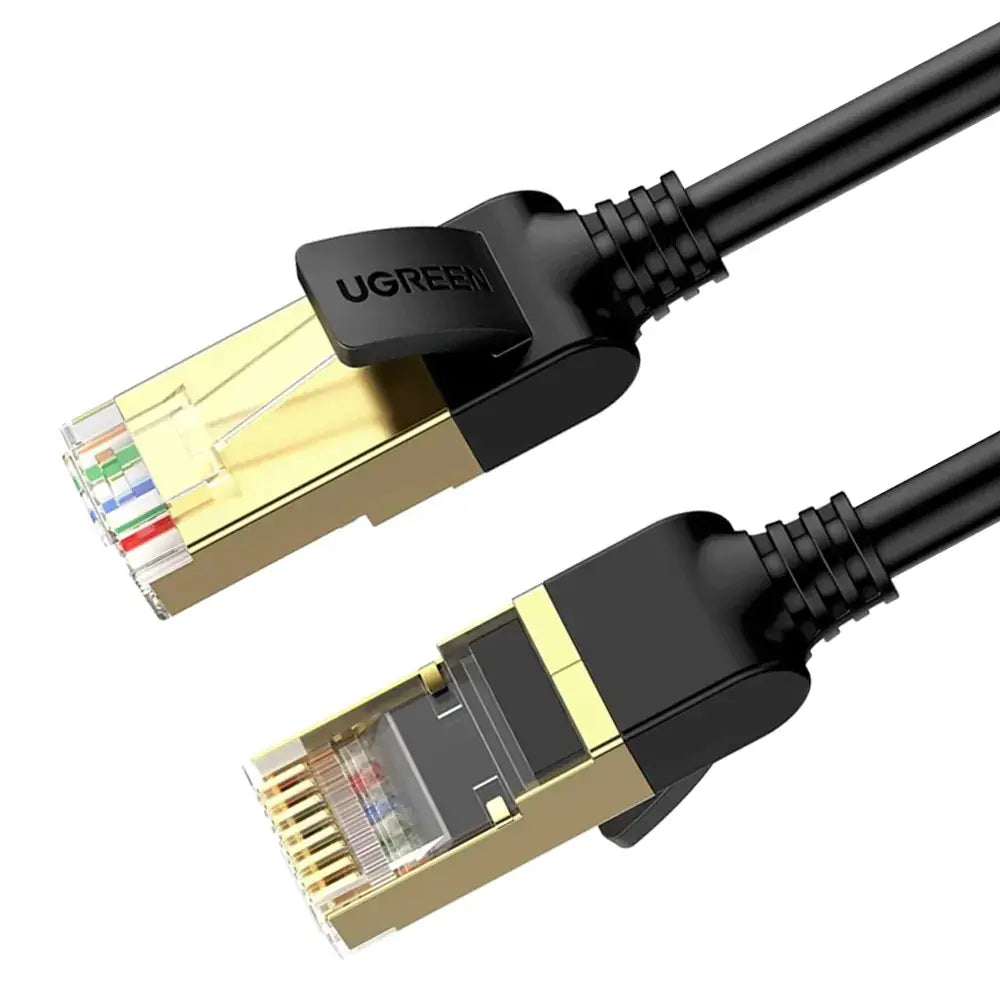

2 × shielded RJ45 male plugs (8P8C), straight-through patch-cable use
Ethernet data is electrically bidirectional. Either identical RJ45 male plug can connect to the network side or endpoint side; what matters is using LAN-capable RJ45 ports rather than telephone, console or management-only sockets.
Inspect port labels and connector shapes under good light before routing. A physically similar socket may serve telephone, console, management, USB or power rather than the network job described here.
Speed, bandwidth and negotiation
Verified network performance
Listed ceiling: Up to 10Gbps with 600MHz. This is the cable capability, not guaranteed file-transfer, game, Wi-Fi or internet speed. The slowest network port, adapter, switch, router, cable segment, connector or service controls real throughput.
A maximum link rate is not the same as measured payload throughput. Protocol overhead, storage speed, CPU load, router processing, remote servers and internet service can all reduce the number shown by an application.
For a useful test, first confirm the negotiated link rate, then run a local transfer between capable devices before testing a public speed service.
Physical build
Shielding, conductors and construction

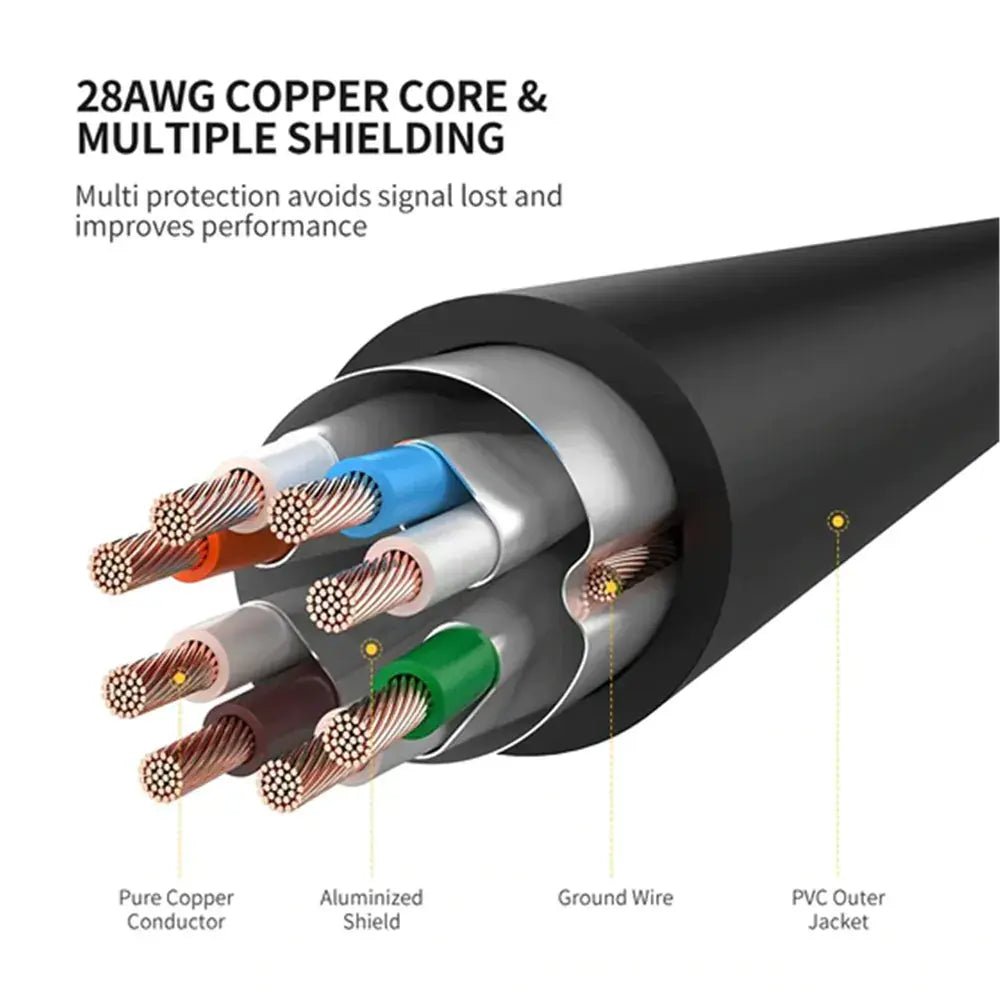

F/FTP shielded construction, 28AWG copper conductors, Shielded RJ45 plugs with gold-plated contact wording and snagless latch guards, round Black PVC jacket.
| Cable category | Cat7 |
|---|---|
| Precise shielding | F/FTP |
| Conductors | 28AWG copper conductors |
| Gauge | 28AWG |
| Cable form | Round; Not stated; exact artwork separately illustrates an approximately 1mm PVC jacket layer |
| Connectors and contacts | Shielded RJ45 plugs with gold-plated contact wording and snagless latch guards |

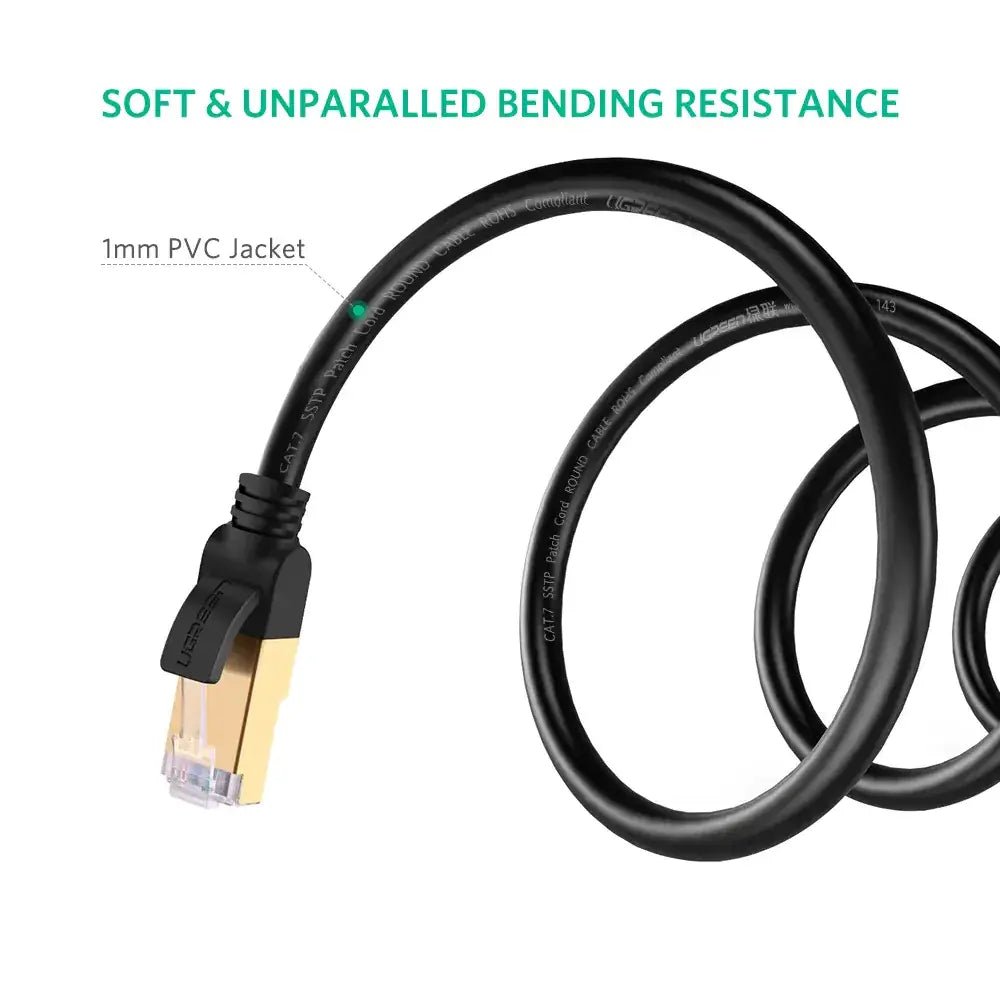

| Outer jacket | Black PVC |
Construction details describe this exact product only. They must not be borrowed from another length, family member or visually similar adapter.
Where it fits
Use scenarios
Router or gateway to wired endpoint
Use the 0.5m cable between a standard RJ45 LAN port and a nearby computer, television, console or other Ethernet endpoint.
Router to switch or access point
Create a short router-to-switch, patch-panel, NAS or workstation links where excess cable would create clutter; confirm both ports support the intended negotiated speed.
Workstation or NAS connection
Connect a desktop, server or network-attached storage device for local transfers that do not depend on Wi-Fi quality.
Console or media device
Use a wired RJ45 connection for a compatible PlayStation, Xbox, Nintendo Switch dock, smart television or media box; application latency still depends on the network path.
Tidy equipment-area patching
Use the stated length to avoid large coils while retaining enough slack that neither connector carries tension.
A reliable first connection
Setup and usability guidance
Follow a controlled sequence so connector, network and software faults remain easy to isolate.
- Confirm the label is UGREEN SKU 11229, the required reach is 0.5m, and both devices expose Ethernet-capable RJ45 ports.
- Power and configure the router, switch or endpoint normally; the cable itself has no software setting.
- Route the cable before insertion, preserving broad bends and keeping it clear of sharp edges, moving chair parts and heat.
- Press each RJ45 plug straight into its port until the latch clicks; do not twist the connector.
- Check the port LEDs or operating-system network status and confirm that the expected link speed has negotiated.
- Run a local-network test before judging internet speed; a broadband plan or remote server may be the limiting factor.
- If the link is stable, secure the route with wide, non-crushing cable management and leave strain-free slack at each end.
Compatibility explained
Compatible devices and systems
Network equipment
- Routers, modems with LAN ports and residential gateways
- Ethernet switches, access points and patch panels with RJ45 jacks
- NAS, servers and other copper-Ethernet equipment
Computers and work devices
- Desktops and workstations with built-in RJ45 Ethernet
- Laptops or tablets used through a compatible Ethernet adapter or dock
- Network printers and office equipment with standard RJ45 ports
Gaming and media
- PlayStation and Xbox consoles with RJ45 Ethernet
- Nintendo Switch through a compatible dock or USB Ethernet path
- Smart televisions, set-top boxes and media players with RJ45 ports
Standards behaviour
- Cat7 cable with F/FTP construction
- Backward operation with slower 1Gbps, 100Mbps and 10Mbps equipment
- No operating-system driver is required for the passive cable
Compatibility is conditional. A device name or logo in product artwork identifies a use category, not universal support for every hardware revision, operating system, driver, network mode or accessory chain.
Supported jobs
What this product does
Use SKU 11229 for these verified roles.
- Creates one passive 0.5m point-to-point Ethernet patch link.
- Supports a listed cable ceiling of Up to 10Gbps and 600MHz on a compatible end-to-end channel.
- Carries ordinary Ethernet frames in both directions between standard RJ45 ports.
- Supports automatic speed negotiation and backward operation with slower Ethernet equipment.
- F/FTP shielding helps manage electromagnetic interference and pair-to-pair crosstalk when properly terminated.
- Provides a wired alternative to Wi-Fi without requiring a cable driver or separate power supply.
Each role stays within the product category described above; it does not imply conversion, amplification, routing or software support that is not listed.
Important exclusions
What this product does not do
These exclusions prevent the most common wrong-product purchases and unsafe installations.
- It does not add an Ethernet port to a device that lacks RJ45; use the correct USB or dock adapter for that job.
- It does not increase a 100Mbps or 1Gbps port to 10Gbps and cannot make internet service faster than the subscribed connection.
- It does not act as a router, switch, modem, repeater, Wi-Fi extender or network-security appliance.
- It does not guarantee game ping, streaming quality, file-transfer rate or application performance.
- It does not supply electrical power by itself, and no exact PoE class is promised on this page.
- It does not have a published outdoor, burial, in-wall or public-space fire rating.
Best-practice checklist
What to do
Protect the connection and make later diagnosis straightforward.
- Measure the real route, including gentle bends and service slack, before selecting the cable length.
- Match the speed goal to every network port and cable component in the channel.
- Use the snagless guard to protect the latch and hold the connector housing when unplugging.
- Keep the cable separated from concentrated heat, sharp metal edges and moving furniture parts.
- Test local link speed and packet stability before concealing or securing the route.
- Label both ends in shared desks, racks or media cabinets so the link can be traced later.
A labelled, supported and tested connection is easier to maintain than one hidden immediately after purchase.
Avoid these mistakes
What not to do
Most failures come from wrong interfaces, unsupported claims, strain or uncontrolled channel changes.
- Do not force an RJ45 plug into a telephone jack or a differently keyed socket.
- Do not staple, crush, knot, sharply fold or repeatedly roll over the cable.
- Do not pull the cable by its jacket or allow its weight to hang from a port.
- Do not assume the printed maximum is guaranteed internet speed or gaming latency.
- Do not place the cable outdoors, underground or inside a wall without the required documented rating.
- Do not claim a PoE wattage or class that is not stated for this exact SKU.
Stop using the product if a connector, housing, jacket or lead is cracked, loose, contaminated, unusually hot or exposes conductive parts.
Read before installation
Warnings and limitations
The following limits remain important even when the connector appears to fit.
- The Up to 10Gbps ceiling requires compatible Ethernet ports, clean connector seating and a complete channel capable of that mode.
- 600MHz is a cabling bandwidth figure and must not be described as CPU clock speed, Wi-Fi frequency or internet throughput.
- F/FTP shielding does not repair damaged conductors, poor terminations, ground problems or an incompatible port.
- No outdoor, direct-burial, in-wall, plenum, LSZH or fire-resistance rating is stated for this exact product.
- Stop using the cable if a latch, shield, jacket or strain relief is cracked, bent, unusually hot or exposes conductors.
- A short cable still needs enough slack that moving equipment does not pull directly on either RJ45 port.
Exact-model specification table
Technical specifications
| Product type | Cat7 F/FTP Ethernet patch cable |
|---|---|
| SKU | 11229 |
| Length | 0.5m |
| Connector pair | 2 × shielded RJ45 male plugs (8P8C), straight-through patch-cable use |
| Signal direction | Bidirectional Ethernet data; either identical plug may be placed at either end |
| Category | Cat7 |
| Precise shielding | F/FTP |
| Maximum listed link speed | Up to 10Gbps |
| Listed cabling bandwidth | 600MHz |
| Conductor construction | 28AWG copper conductors |
| Conductor gauge | 28AWG |
| Cable shape / size | Round; Not stated; exact artwork separately illustrates an approximately 1mm PVC jacket layer |

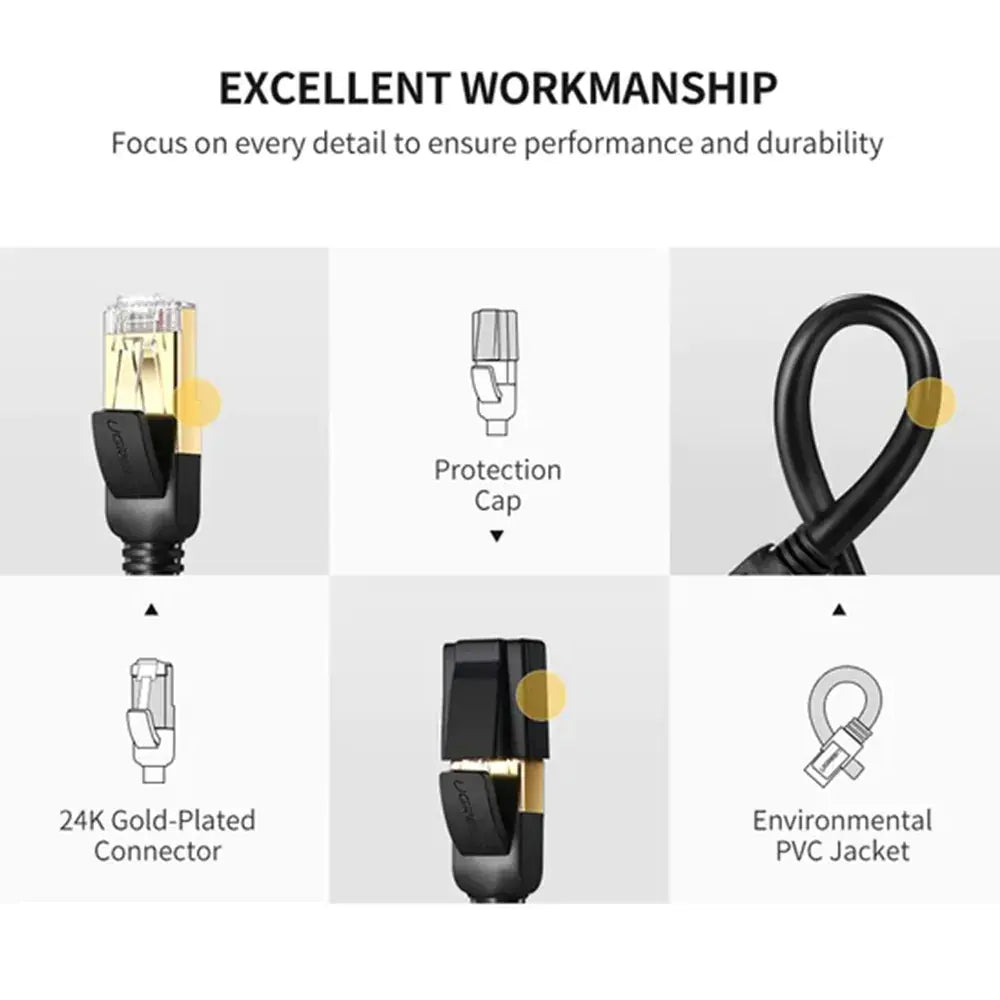

| Connector details | Shielded RJ45 plugs with gold-plated contact wording and snagless latch guards |
| Jacket / colour | Black PVC; black |
| Driver / external power | None required |
| Installation ratings not stated | Outdoor, direct burial, in-wall, plenum, LSZH and fire-resistance |
“Not stated” means the current exact product sources do not safely establish that detail; it is intentionally not filled from another family model.
What is in the pack
Package contents
1 × UGREEN NW107 0.5m Cat7 F/FTP Ethernet cable (SKU 11229)
Included only as stated for this exact current product record.
Routers, computers, printers, network cables, USB adapters, installation hardware and power supplies are not included unless individually listed above. Inspect the retail package before installation.
Problem-to-check sequence
Troubleshooting guide
| No link light or “cable unplugged” | Reseat both plugs until the latch clicks, verify that both devices are powered, try known-good RJ45 ports and test a second cable. |
|---|---|
| Link negotiates below the expected speed | Check every port rating, adapter, switch and cable segment; disable forced mismatched speed settings and inspect the connectors for damage. |
| Internet remains slow | Test a local LAN transfer, then compare router and broadband results. The passive cable cannot exceed the router, service plan, remote server or endpoint. |
| Dropouts when equipment moves | Relieve strain, remove tight bends and replace the cable if the latch, plug, jacket or internal conductors may have been damaged. |
| Console or TV does not connect | Confirm the device is set to wired Ethernet, the port is LAN-capable and DHCP is enabled on the network unless a correct static configuration is required. |
Change one variable at a time. A known-good direct connection is the fastest way to separate a product fault from a port, cable, driver, address or network problem.
Collapsible answers
Product-specific FAQ
Open any question for a concise answer about exact SKU 11229.
What connectors does UGREEN 11229 use?
It uses 2 × shielded RJ45 male plugs (8P8C), straight-through patch-cable use. Both plugs are standard Ethernet connectors; do not confuse an RJ45 LAN port with a smaller telephone jack or a management-only socket.
What is the maximum listed network speed?
Up to 10Gbps is the cable ceiling. Achieving it requires compatible ports and a sound complete channel; real file-transfer and internet speed are normally lower.
What does 600MHz mean?
It is a cabling bandwidth figure used to describe signal handling, not an internet-speed promise, processor clock, Wi-Fi band or guaranteed application rate.
Can the cable upgrade a slower router, switch or computer port?
No. Ethernet auto-negotiates the highest common rate, so a 100Mbps or 1Gbps port continues to operate at its own ceiling.
Is the cable directional?
No. Ordinary copper Ethernet data is bidirectional, and either identical RJ45 plug can be placed at either end.
What shielding does this exact model use?
F/FTP is the precise construction used on this page. Broader STP wording is only a generic family description and does not replace the exact notation.
Will it work with Cat6, Cat5e or slower equipment?
Standard Ethernet is backward compatible. The connection negotiates the best common mode, and the complete channel performs only as well as its weakest component.
Can I use it for gaming or streaming?
Yes, with a compatible RJ45-equipped device. A cable can provide a wired path, but it cannot guarantee ping, frame rate, streaming quality or broadband speed.
Is a PoE power class guaranteed?
No exact PoE class or wattage is stated for this SKU, so this page does not promise a powered-device installation.
Can I install it outdoors, underground or inside a wall?
No outdoor, direct-burial, in-wall, plenum, LSZH or fire-resistance rating is stated. Use appropriately certified installation cable where required.
What should I try if the link is slow or unstable?
Reseat both plugs, test known-good ports, verify negotiated speed, try a second cable and run a local LAN test before judging internet performance.
What is included in the package?
1 × UGREEN NW107 0.5m Cat7 F/FTP Ethernet cable (SKU 11229)
Exact-model verification
Research and source note
The exact live title, body and all five current gallery images agree on 0.5m length, Cat7 classification, F/FTP shielding, up to 10Gbps, 600MHz, 28AWG copper conductors, shielded RJ45 connectors and a round black PVC jacket. Broad STP wording is treated only as a generic shielded-cable label; F/FTP is the precise construction.
The current Shopify record and all 5 exact product-owned gallery items were checked. Only exact-SKU media is embedded, once each at most, as a large contextual figure with unique alternative text and caption.
