PB502 USB power bank · exact battery and port guide

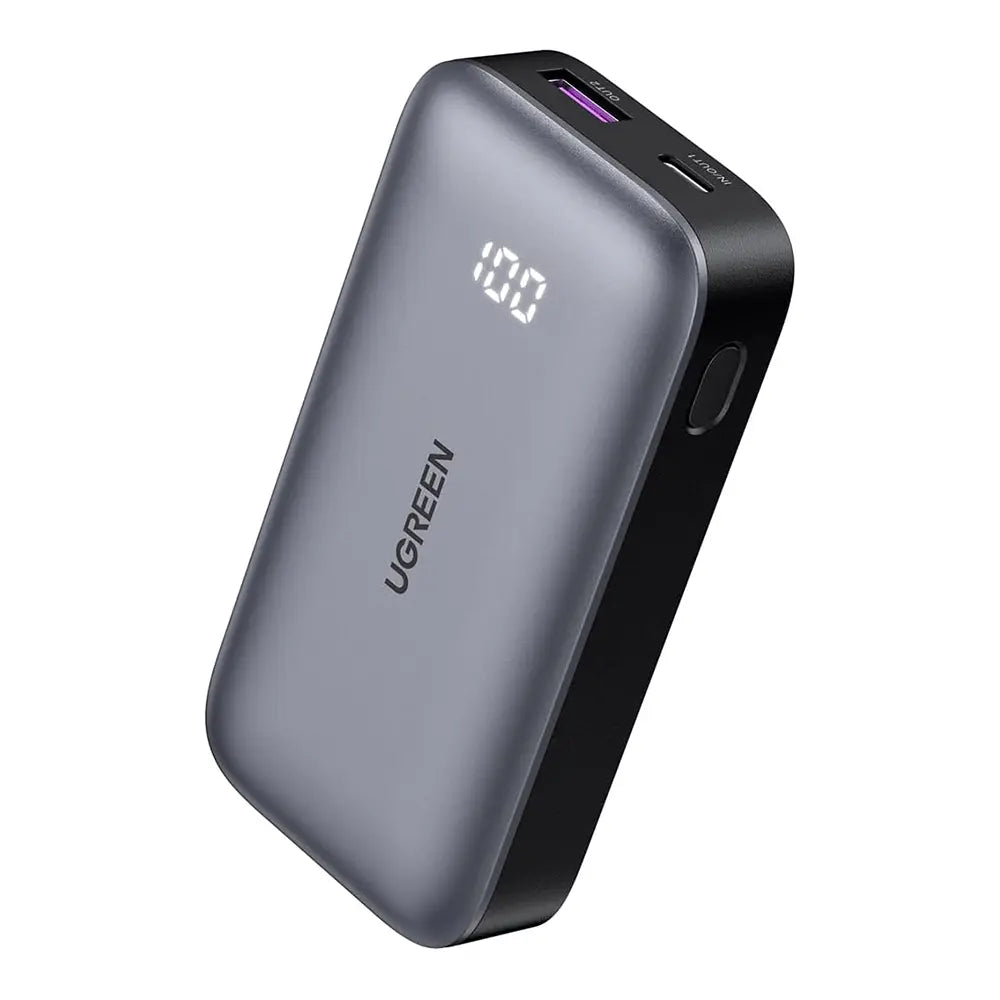

UGREEN PB502 30W Power Bank, 10000mAh/36Wh (25185)
UGREEN PB502 30W Power Bank, 10000mAh/36Wh (25185) is a rechargeable 10,000mAh (36Wh) USB power bank with one bidirectional USB-C port and one USB-A output. It is intended to charge compatible USB devices away from a wall socket while clearly showing remaining battery information on its display.
Overview
USB-C supports up to 30W input or output, while USB-A supports up to 22.5W output. When both ports charge devices together, total output is 5V/4A (20W maximum). Port-nameplate figures are conditional single-port or total maximums; actual power is negotiated and can be redistributed when more than one device is connected.
Capacity in mAh describes the internal battery at its nominal cell voltage. Usable 5V or higher-voltage output is lower after conversion losses, cable loss, temperature and the power bank’s reserved safety margin. The exact official listing gives a rated capacity of 6000mAh typical at 5V/3A.
10,000mAhnominal internal battery capacity
36Whenergy rating used for travel rules
30W maximum single-port USB-C; 20W total when both outputs are activemaximum listed output under supported conditions
Digital percentage displayremaining-power information
Exact-model check: This guide describes SKU 25185. Confirm the product number, connector direction, required protocol and intended role because related lengths, plug versions, capacities and visually similar accessories are not interchangeable.
Key features
The defining functions of this exact SKU are separated from headline marketing so connector roles, power, data, length and battery limits remain clear.
- 10,000mAh nominal capacity with a verified 36Wh energy rating.
- USB-C supports up to 30W input or output, while USB-A supports up to 22.5W output. When both ports charge devices together, total output is 5V/4A (20W maximum).
- Bidirectional USB-C: input/output profiles 5V/3A, 9V/3A, 12V/2.5A and 15V/2A, up to 30W.
- USB-A output: 5V/3A, 9V/2A, 12V/1.5A or 10V/2.25A, up to 22.5W.
- Dual-output mode: 5V/4A total, up to 20W shared across USB-C and USB-A.
- Digital percentage display for checking remaining battery state instead of relying only on indicator dots.
- Low-current/trickle mode supports compatible small accessories when activated and used according to the manual.
- Compact 102 × 52 × 25.5mm enclosure at approximately 180g.
- Built-in protection design is intended to monitor over-voltage, over-current, over-charge, over-discharge, short-circuit and temperature conditions; correct use and undamaged equipment remain essential.
Performance and planning
Headline watts and gigabits are negotiated maximums, not universal results. Plan around every device, port, cable, charger, battery state and protocol in the path.
A single compatible USB-C device can receive up to 30W. The USB-A output can reach 22.5W with a matching protocol, while connecting two devices changes the system to a 20W shared 5V output.

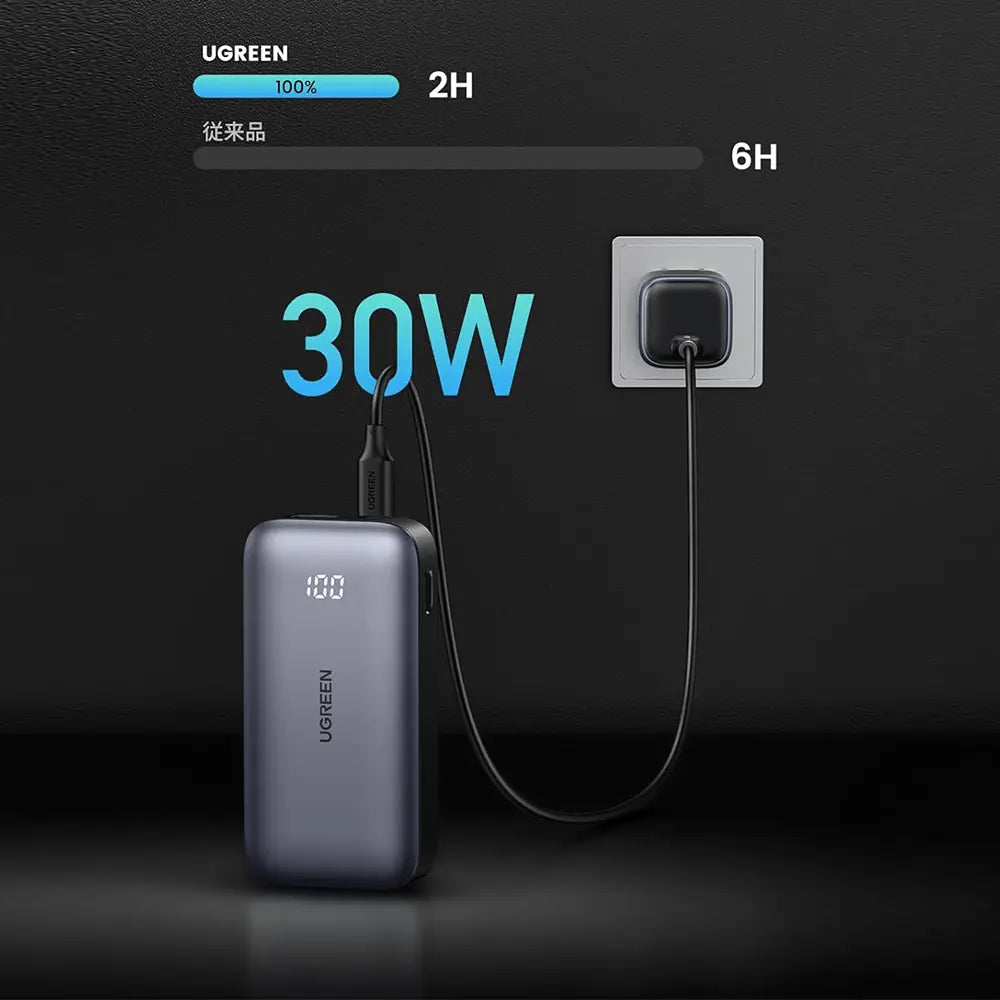

The USB-C port can recharge the PB502 at up to 30W. The exact gallery’s approximately two-hour example assumes a suitable 30W charging setup and controlled conditions; lower-rated chargers take longer.
When multiple outputs are active, the controller can reallocate the available total. A device may briefly reconnect or renegotiate when another cable is inserted; connect the most power-hungry device to the highest-rated port first.

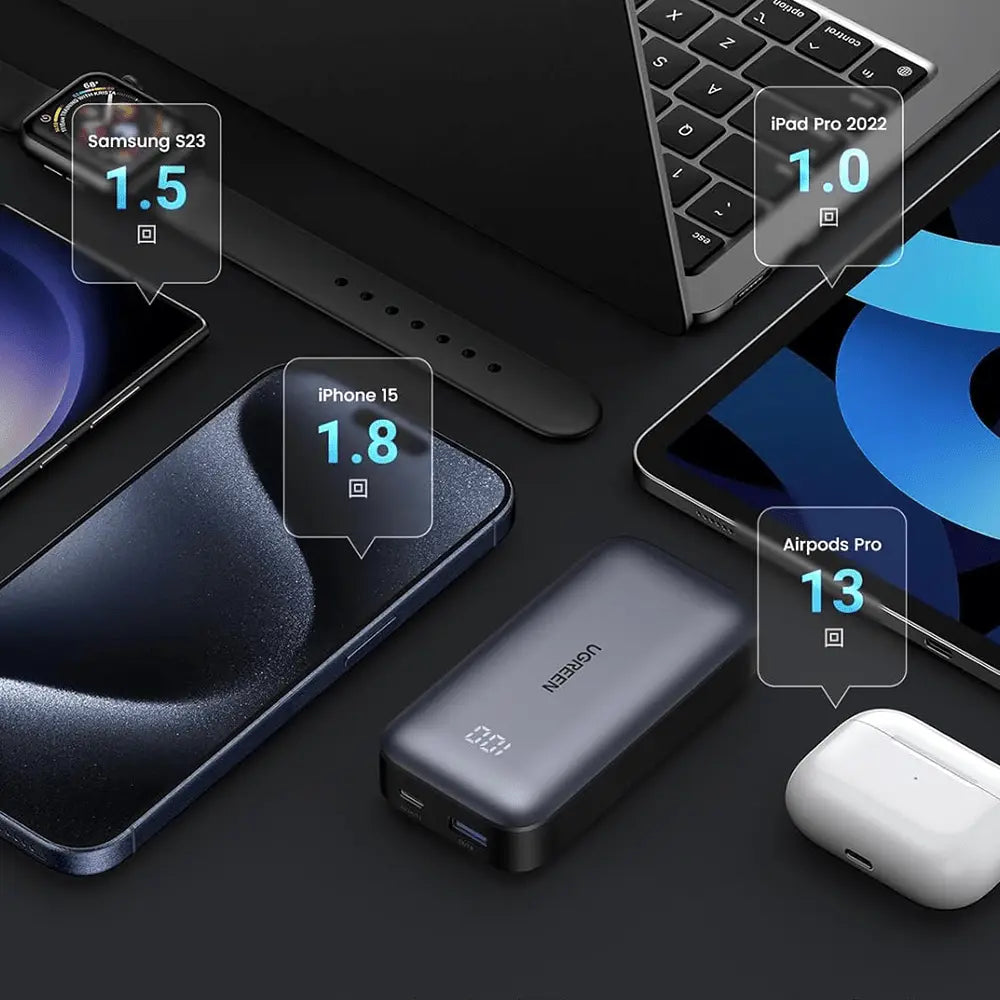

Advertised phone or laptop recharge counts are controlled examples, not guarantees. Device battery size, starting level, screen use, radio activity, temperature, protocol and conversion efficiency all change the result.
Charging normally tapers as the receiving battery fills. A lower displayed rate near full charge does not by itself indicate a fault.
Use scenarios
These practical examples keep the exact connector direction, supported protocol and safety limits in view.
Phone plus accessory
Use USB-C and USB-A together for two modest loads, understanding that total output changes to 20W shared.
Low-current accessory
Use the documented low-current mode for compatible earbuds or wearables that may otherwise draw too little to keep a power bank awake.
Carry-on travel planning
The 36Wh rating is the number used for transport checks. Keep the rating readable, protect the terminals and confirm carrier rules before a flight.
Setup and usability guidance
Use this sequence for a controlled first connection. Follow the connected-device maker’s stricter instruction whenever it differs.
- Charge the power bank on a hard, dry, ventilated surface using the designated USB-C input and a standards-compliant charger/cable that supports the required input profile.
- Before first use, verify the display operates normally and inspect the enclosure and all 2 ports for damage, contamination or looseness.
- Choose the output port by the connected device’s power need. Use the highest-rated USB-C path and an appropriately rated cable for a laptop or other high-power device.
- Connect one device first and confirm stable charging. Add further devices one at a time, expecting the available total to be shared.
- Keep the power bank uncovered and away from direct sun, bedding and other heat sources during charge or discharge.
- Disconnect finished devices, then recharge the power bank before long storage. Do not leave a depleted lithium battery unused for extended periods.
Compatible devices and systems
A connector that fits is only the first check. The host, accessory, operating system and power source must support the requested function.
- Compatible USB-C phones, smaller tablets and handheld electronics whose input matches one of the listed 5V, 9V, 12V or 15V profiles and stays within 30W.
- Not intended as a normal laptop source: the exact USB-C output list stops at 15V/2A and does not include 20V, while many notebooks require a 20V PD profile and 45W, 60W, 65W or more.
- USB-C phones and tablets that accept standard USB Power Delivery or one of the specifically supported negotiated profiles.
- USB-A phones, accessories and legacy cables within the listed USB-A port output.
- Low-power wearables or earbuds only when the connected product and power-bank mode support stable low-current charging.
- The operating system is not the deciding factor for ordinary charging; port protocol, voltage/current profile, cable rating and device input are decisive.
- Not every proprietary phone fast-charge mode is universal. Unmatched devices fall back to a mutually supported standard profile.
What this product does
These are the supported functions of this exact product when the complete connection is compatible.
- Stores rechargeable DC energy and supplies negotiated USB charging away from a wall outlet.
- Provides up to 30W through the bidirectional USB-C port.
- Provides up to 22.5W through USB-A when a compatible fast-charge mode is shared.
- Offers a documented low-current mode for compatible small devices.
- Shows remaining battery information on the built-in display.
- Can charge more than one compatible device within the stated shared-output limit.
- Automatically negotiates supported charging profiles rather than forcing maximum voltage into every device.
What this product does not do
These exclusions distinguish this SKU from visually similar cables, chargers, hubs, audio products and power stations.
- Does not provide an AC mains outlet or act as a UPS/inverter.
- Does not provide wireless charging.
- Does not guarantee the nameplate maximum to every device or every port simultaneously.
- Does not make an under-rated cable capable of high-current USB-C charging.
- Does not replace a device maker’s required charger for firmware updates, recovery or safety-critical use.
- Does not have the same usable output mAh as its internal nominal cell capacity because voltage conversion has unavoidable losses.
- Does not provide 30W from both ports at once; dual output is 20W shared.
- Does not list a 20V USB-C output profile and therefore cannot serve laptops that require 20V PD input.
- Does not offer the runtime or laptop performance of a larger high-wattage power bank.
Choose by function: If the required task appears in this exclusion list, select a purpose-built cable, charger, adapter or power product with the needed interface and rating.
What to do
These habits support reliable charging, data, audio and battery use while reducing avoidable connector strain.
- Use the correct high-rated USB-C port and cable for the most demanding device.
- Keep the battery’s Wh marking readable for transport inspection.
- Charge and discharge on a firm, uncovered, ventilated surface.
- Disconnect and inspect if charging repeatedly starts and stops or heat becomes excessive.
- Recharge periodically during storage and follow the manual’s temperature guidance.
- Check airline rules before every journey because carrier policy can be stricter than the baseline guidance.
What not to do
Avoid these common mistakes even when the plug appears to fit.
- Do not place the power bank in checked baggage.
- Do not use or recharge it inside a closed bag, under bedding or in direct sun.
- Do not puncture, crush, dismantle, burn or expose the battery to water.
- Do not use a swollen, leaking, dropped, cracked or unusually hot unit.
- Do not exceed cable ratings or use loose adapters for high-power charging.
- Do not rely on pass-through charging as a UPS; that role is not verified for this exact product.
- Do not allow keys, coins or metal tools to bridge any port or connector.
Warnings and limitations
Review these electrical, thermal, transport and physical limits before connecting valuable equipment.
- The battery is 36Wh, below the 100Wh threshold in current IATA power-bank guidance. That guidance places power banks in carry-on baggage only, limits a passenger to two power banks of 100Wh or less, and allows airlines to impose stricter rules. Check the operating carrier before travel; never place a power bank in checked baggage.
- Current IATA guidance also restricts onboard storage and use; keep the power bank accessible, not in an overhead locker, and follow crew instructions about use or recharging from aircraft power.
- Stop using the product if a connector, cable jacket, battery enclosure or plug is bent, cracked, loose, swollen, scorched or unusually hot.
- Keep connectors dry and free of lint or metal debris. Disconnect power before cleaning; never probe a port with metal.
- Never modify, splice, crush or tightly knot a charging cable, charger or battery pack.
- Lithium batteries require careful end-of-life handling. Use an authorised battery/e-waste channel; never place the product in fire or ordinary mixed waste.
- The compact enclosure can warm at 30W. Keep it uncovered and stop if heat, odour, swelling or repeated cycling appears.
Stop and recheck: Disconnect power if a connection becomes loose, wet, damaged, swollen, unstable or unusually hot. Never keep reconnecting equipment that shows a safety warning.
Technical specifications
Verified exact-model specifications are consolidated below. Maximum values remain conditional on the complete negotiated connection.
| Brand / model | UGREEN PB502 |
|---|---|
| Exact SKU | 25185 |
| Product type | Rechargeable USB power bank |
| Nominal battery capacity | 10,000mAh |
| Energy rating | 36Wh |
| Rated output capacity | 6000mAh typical at 5V/3A |
| Maximum listed total/output | 30W maximum single-port USB-C; 20W total when both outputs are active |
| Ports | one bidirectional USB-C port and one USB-A output |
| USB-C input/output | 5V/3A, 9V/3A, 12V/2.5A, 15V/2A; 30W max |
| USB-A output | 5V/3A, 9V/2A, 12V/1.5A, 10V/2.25A; 22.5W max |
| USB-C + USB-A simultaneous output | 5V/4A total; 20W max shared |
| Maximum recharge input | 30W through USB-C with compatible charger/cable |
| Low-current mode | Supported for compatible small accessories |
| Display | Digital percentage display |
| Wireless charging | Not supported |
| Dimensions | 102 × 52 × 25.5mm |
| Weight | Approximately 180g |
| Air-travel classification | Below 100Wh; current IATA power-bank guidance: carry-on only, maximum two ≤100Wh power banks, carrier rules may be stricter |
Package contents
Only components supported by the exact-model record or an official exact-SKU package list are included here. Scene devices and props are excluded.
- 1 × UGREEN PB502 30W 10000mAh power bank, SKU 25185.
- 1 × 0.5m 60W USB-C to USB-C cable, per the official exact-SKU package list.
- Product documentation.
- A 30W wall charger, phone, tablet and USB-A cable are not identified as included.
Check before ordering
Confirm connector direction, required protocol, power profile, cable length and package needs before choosing by appearance.
- Confirm 10,000mAh / 36Wh is the required balance of runtime, size and transport rules.
- Confirm the highest-rated output port matches the device’s input protocol and wattage.
- Confirm the included cable rating and whether a separate wall charger is needed.
- Confirm simultaneous-device power sharing is acceptable for the planned setup.
- Confirm the dimensions and weight suit the bag or workspace.
- Confirm airline and destination battery rules if the product will travel.
Care and troubleshooting
Disconnect power before inspection and change one variable at a time when diagnosing a connection.
- Disconnect all cables and wipe the enclosure with a soft, dry cloth. Do not allow liquid or cleaner into a port.
- Store partially charged in a cool, dry place away from combustible clutter; check and recharge it periodically according to the manual.
- If a device charges slowly, test one output at a time, use the highest-rated port, verify cable wattage and compare the device’s supported input profile.
- If the power bank reboots when a second device is attached, disconnect all loads, let it cool, then reconnect the highest-power device first and remain within the shared total.
- If the display seems inaccurate after long storage, complete a normal controlled charge/discharge cycle; stop if the enclosure or temperature appears abnormal.
- A damaged or end-of-life battery should be isolated from metal objects and delivered to an authorised battery service or recycling channel.
Product-specific FAQ
Open any question for a concise exact-model answer. The native collapsible format keeps this long guide easy to scan on a phone.
What is the exact battery capacity of SKU 25185?
10,000mAh nominal, corresponding to 36Wh. Usable delivered energy is lower after conversion and safety reserves.
What is the maximum output?
30W maximum single-port USB-C; 20W total when both outputs are active. It is conditional on the correct port, compatible device, cable and current power-sharing state.
Can it charge a laptop?
Only if the exact laptop explicitly accepts one of this bank’s 5V, 9V, 12V or 15V USB-C profiles. SKU 25185 does not list 20V output, so many USB-C laptops will not charge; use their required higher-power source instead.
Can it charge more than one device?
Yes, using its one bidirectional USB-C port and one USB-A output; the total is shared and per-port speed can reduce when several outputs are active.
Can I take it on a flight?
Its 36Wh rating is below 100Wh. Current IATA power-bank guidance says carry-on only, a maximum of two power banks of 100Wh or less, and permits stricter airline policy. Check the carrier before travel.
Can it go in checked luggage?
No. Power banks are spare lithium batteries and must not be placed in checked baggage.
Is the advertised mAh fully available at USB output?
No. The nominal mAh is measured at internal cell voltage; conversion to 5V or higher, cable loss, temperature and safety reserve reduce usable output.
Does it support wireless charging?
No. This exact product charges through its USB outputs.
Can I use it as a UPS while recharging it?
Do not rely on it as a UPS. Continuous pass-through operation is not verified here and can add heat and battery cycling.
Is a wall charger included?
No wall charger is included in the official exact-SKU package list. A compatible USB-C charger is needed; 30W input requires a suitable 30W setup.
Why is the output below the headline wattage?
The connected device requests its supported profile, charging tapers near full, heat can reduce power and simultaneous outputs share the total.
What if the battery swells, leaks or becomes very hot?
Disconnect it if safe, move it away from combustible materials without puncturing it, stop use and contact an authorised battery service. Do not ship or discard it casually.
Research and source note
This exact-SKU guide was reconciled against the current UGREEN India product record, every live Shopify-owned gallery asset and the official UGREEN or safety references listed below. Connector roles, cable lengths, power profiles, Wh ratings, port sharing and package items were kept only where they could be tied to this exact item or its documented electrical family.
Illustrated speed, charge-time and device-count results are examples rather than universal promises. The connected-device manual, charger label, cable rating, operating-system support and current transport rules remain decisive.
Exact-model and UGREEN India assurance
The corrected title, SEO fields, specifications and compatibility statements in this draft all refer to SKU 25185. Only media attached to the current exact Shopify product record has been selected, and each selected image appears once as a large contextual figure with its own caption.
Use the SKU as the final identity check on the product page, packaging and invoice. When a device, charger, airline or safety manual gives a stricter power, signal, plug, battery, temperature or transport instruction, that instruction takes priority.
-
