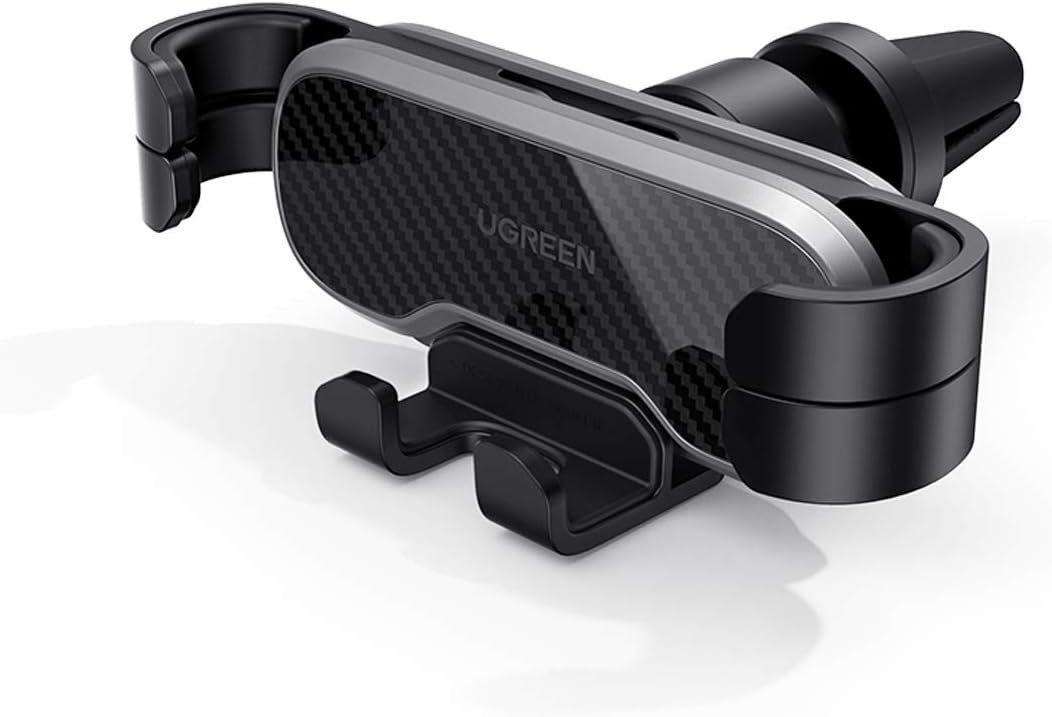

UGREEN LP228 Gravity Air Vent Car Phone Holder with Auto-Clamp &...
UGREEN LP228 • SKU 80539
A secure, convenient place for your phone inside the car
The UGREEN LP228 Gravity Air Vent Car Phone Holder uses the weight of your phone to close its five-point mechanical clamp automatically. Place the phone into the cradle and the arms move inward; lift the phone out and the arms release—without magnets, motors, batteries or a power connection.
Why choose this car phone holder?
Automatic mechanical grip
The phone’s weight operates the clamp, so no button, motor or charging connection is required.
Five supporting arms
Two side pairs and a lower support create a stable double-triangle holding structure around the phone.
Adjustable viewing angle
The 360° ball joint helps position the screen at a comfortable angle for navigation and hands-free viewing.
Open charging access
The lower opening leaves the phone’s charging port accessible while it is held in the cradle.

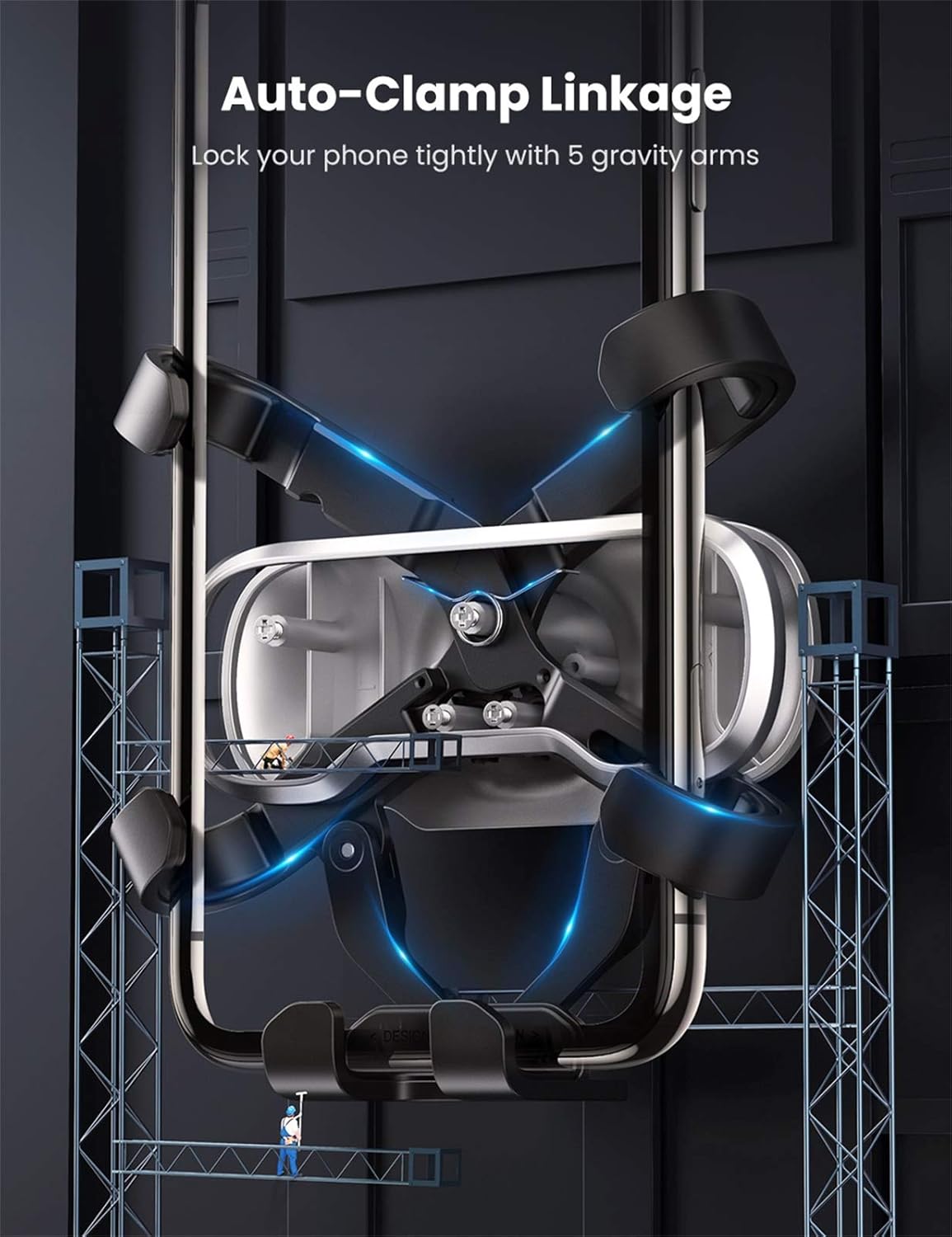

Place the phone in—gravity closes the holder
As the phone presses down on the lower support, the connected side arms move inward automatically. Five contact points form two triangular supporting structures around the device. When the phone is lifted, the arms open again for removal.

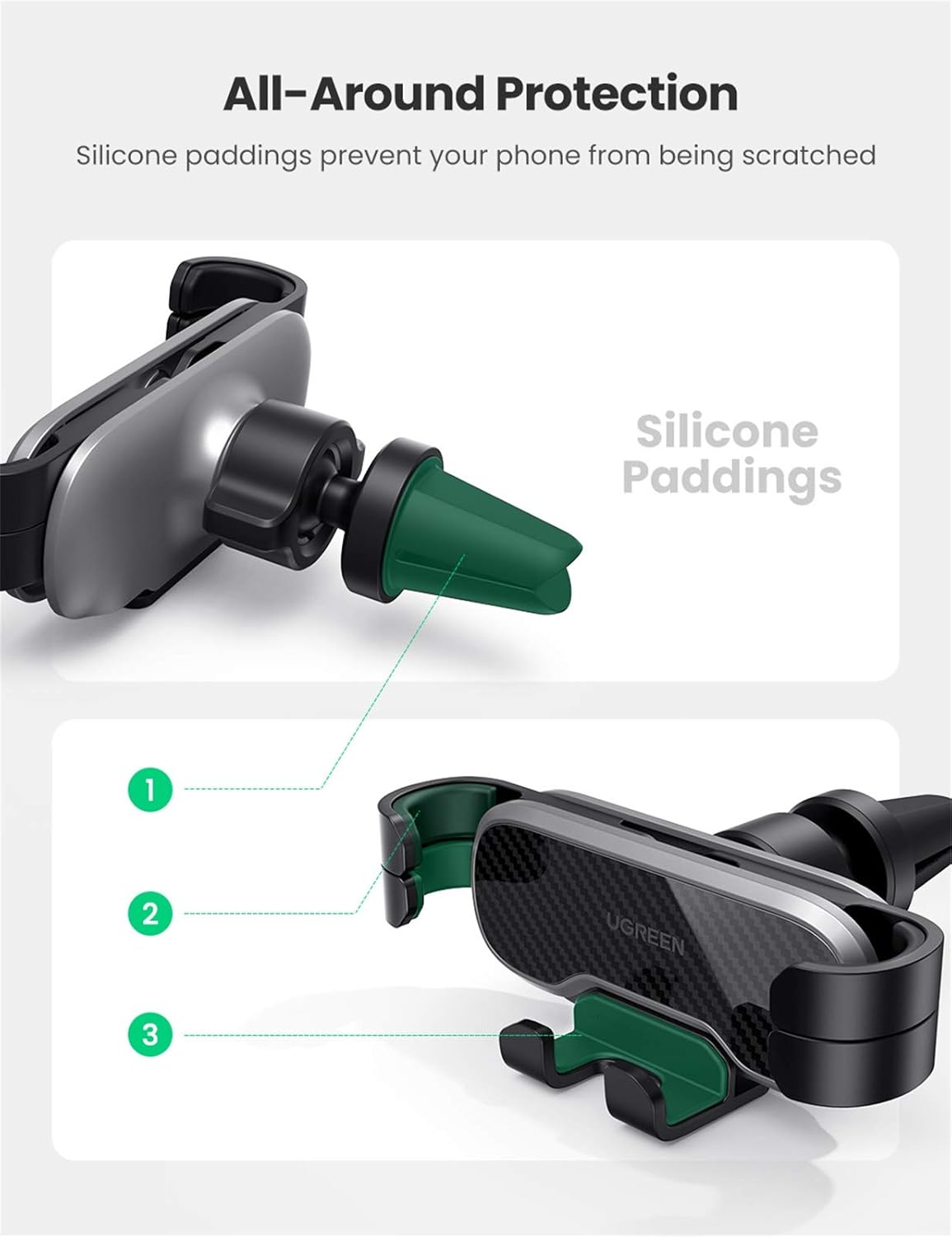

Cushioned contact points for everyday protection
Silicone padding is positioned around the areas that contact the phone and air vent. These cushions help improve grip while reducing direct contact between the hard holder body, the phone and the vent blade.

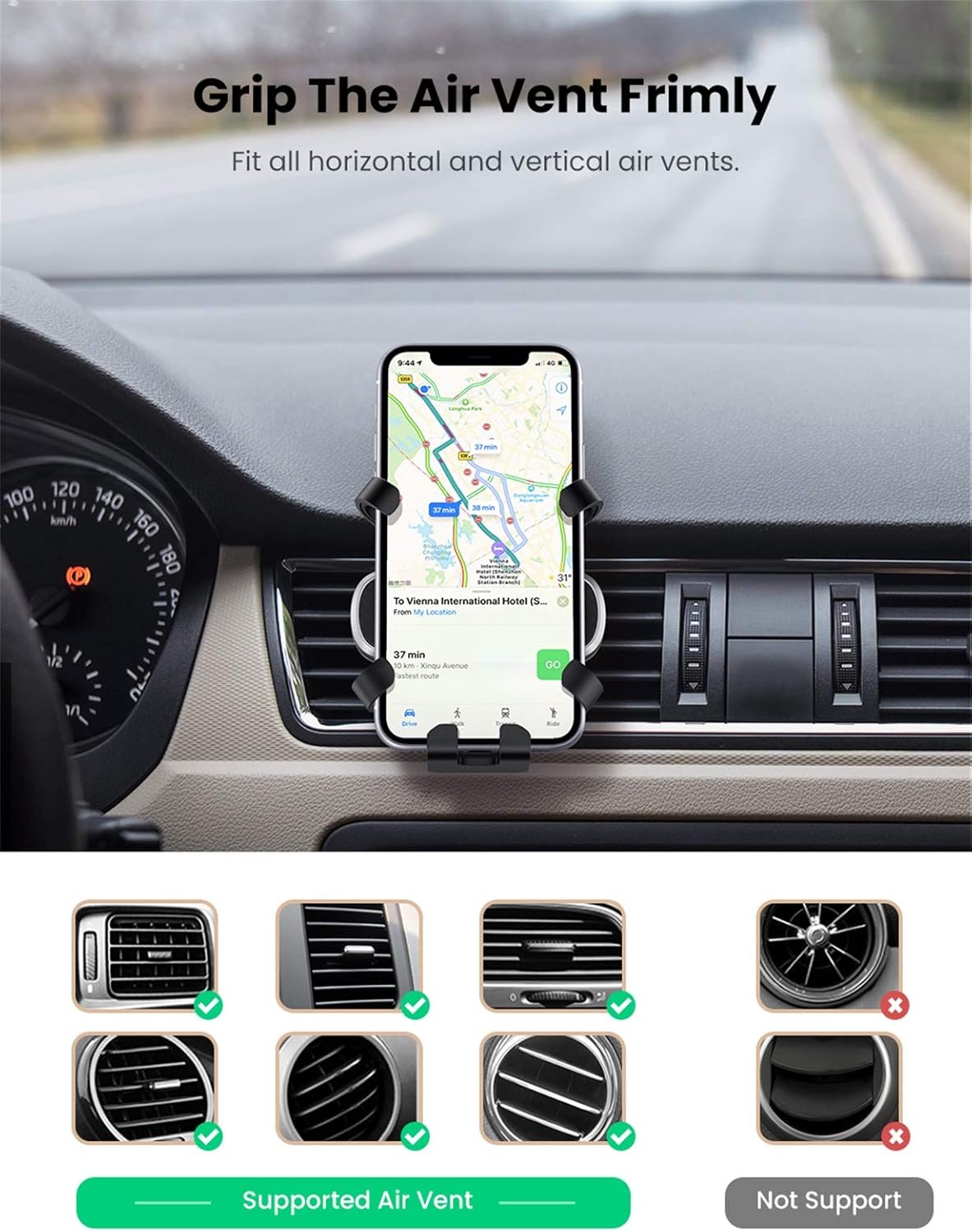

Check your car’s air vent before ordering
The extended vent prongs are designed to grip compatible horizontal and vertical air-vent blades. The listed prong length is approximately 28.3 mm. Because vehicle dashboards differ, the direction of the vent blades alone does not guarantee compatibility.
Generally suitable
- Standard horizontal vent blades
- Standard vertical vent blades
- Straight blades with sufficient depth
- Strong, undamaged vent slats
May not be suitable
- Round or turbine-style vents
- Deeply recessed or unusually curved vents
- Very short, thick or closely spaced blades
- Loose, fragile, damaged or motorised vent assemblies

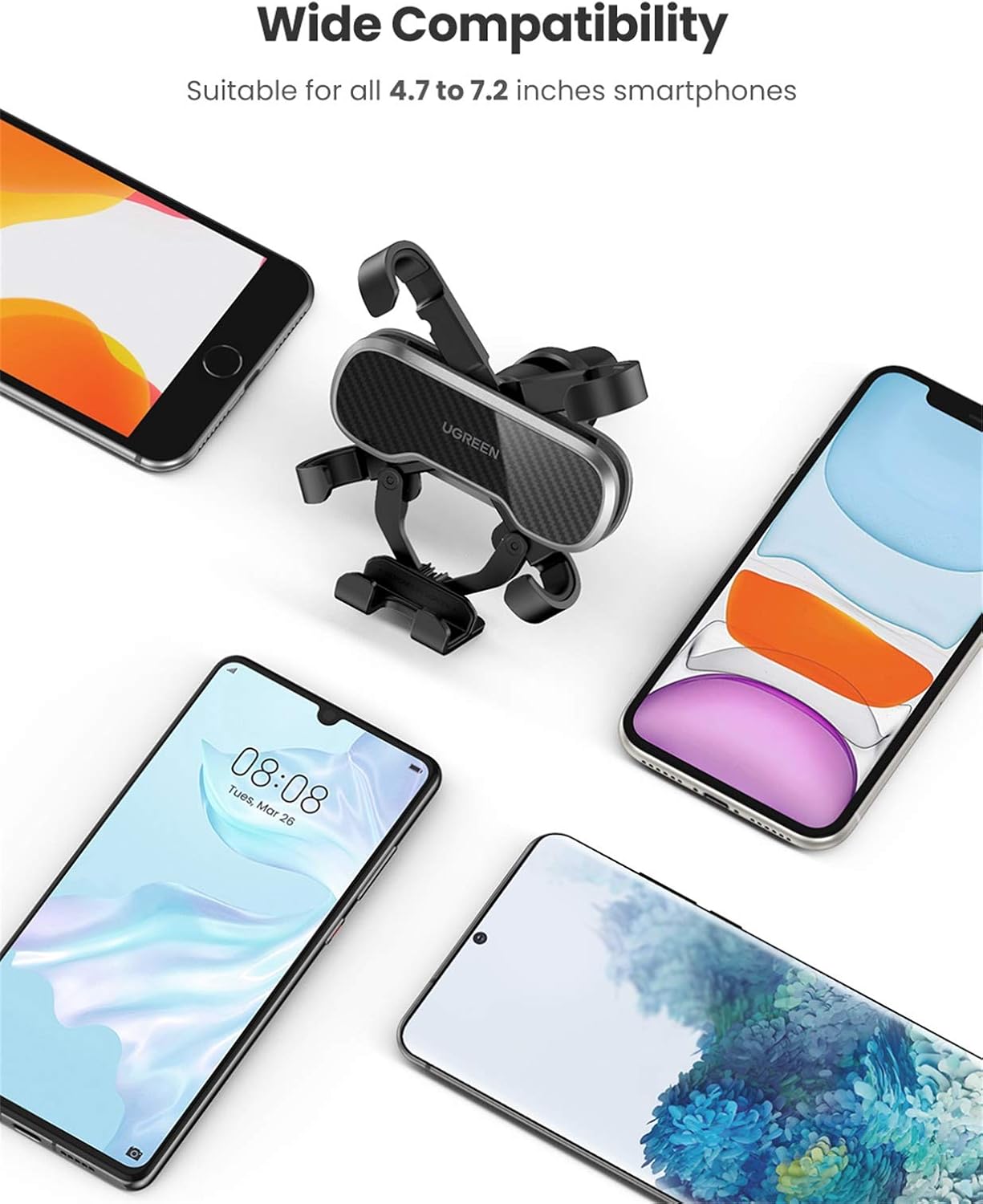

Phone compatibility
The holder is intended for smartphones measuring approximately 65–80 mm in total width. UGREEN lists a general screen-size range of approximately 4.7–7.2 inches, but the phone’s actual width—including its case—is the more reliable way to check compatibility.
| Phone width | 65–80 mm, measured with the case installed |
|---|---|
| Suggested screen size | Approximately 4.7–7.2 inches |
| Case compatibility | Most slim and regular cases within the supported width; bulky, wallet-style or unusually shaped cases may not fit correctly |
| Recommended orientation | Portrait/upright, because the automatic clamp depends on downward phone weight |
360° ball-joint adjustment
Adjust the holder’s angle to improve screen visibility and reduce reflections. The joint provides angle adjustment, but the gravity clamp itself is designed to hold the phone upright in portrait orientation.

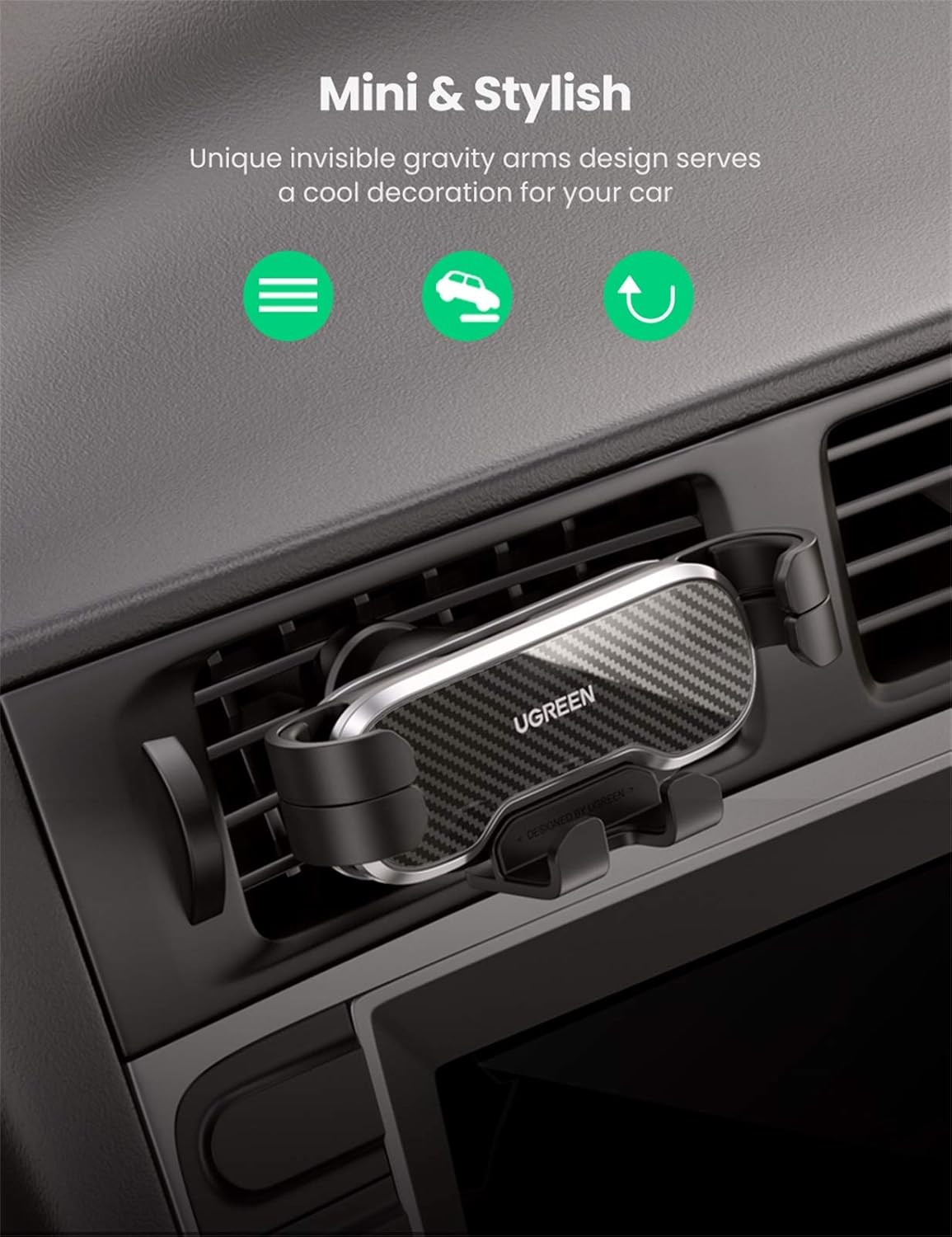

Compact dashboard appearance
The compact black body sits close to a compatible vent, helping keep the dashboard organised without adding a suction cup or adhesive pad to the windscreen or dashboard.
Connect a charging cable while the phone is mounted
The open lower cradle provides access to a centrally positioned charging port. A compatible charging or wired-audio cable can therefore remain connected while the phone is held in place.
Important: this product is a phone holder only. It does not include wireless charging, MagSafe magnets, a charging cable or a car charger.

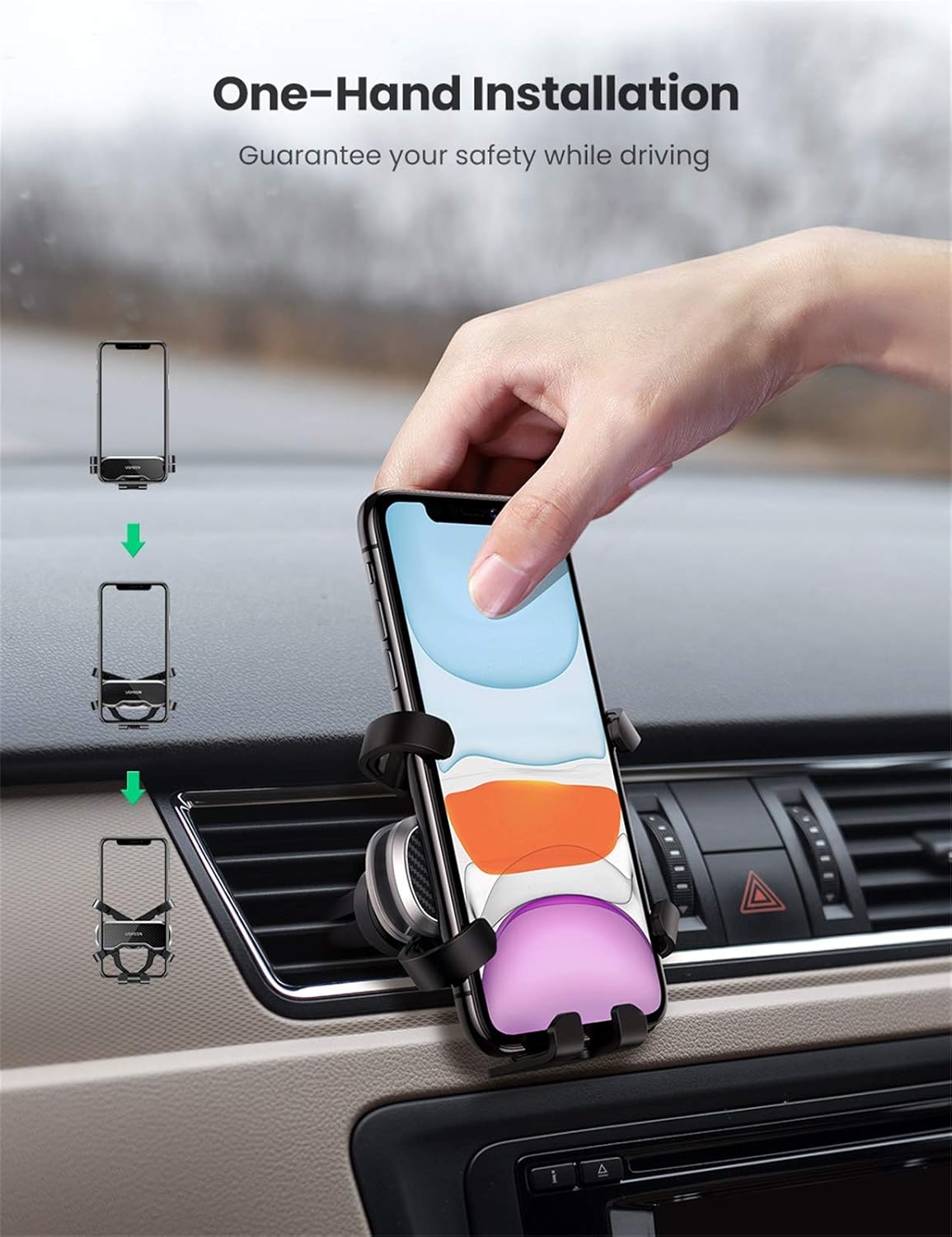

How to install and use
- Check the vent: confirm that the blade is compatible, firm and undamaged.
- Attach the holder: push the padded vent clip fully onto a suitable vent blade.
- Set the angle: adjust the ball joint while the vehicle is safely parked.
- Insert the phone: place the phone upright on the lower support and allow its weight to close the side arms.
- Check the grip: gently test that the phone and vent clip are secure before driving.
- Remove the phone: while parked, lift the phone upwards and the gravity arms will open automatically.
Technical specifications
| Brand | UGREEN |
|---|---|
| Model | LP228 |
| SKU | 80539 |
| Product type | Gravity air-vent car phone holder |
| Holding mechanism | Mechanical gravity-operated auto-clamp |
| Phone support | Five-point / five-arm support |
| Phone width | Approximately 65–80 mm |
| Suggested screen size | Approximately 4.7–7.2 inches |
| Adjustment | 360° rotatable ball joint |
| Recommended phone orientation | Portrait/upright |
| Vent compatibility | Compatible standard horizontal and vertical vent blades |
| Vent prong length | Approximately 28.3 mm |
| Main materials | PC + ABS, POM and silicone |
| Colour | Black |
| Charging function | No—passive phone holder only |
| EAN / GTIN | 6957303885398 |
Important installation and driving guidance
- Install, adjust, insert or remove the phone only while the vehicle is safely parked.
- Do not position the phone where it obstructs the driver’s view, controls, instruments or airbag deployment area.
- Confirm that the phone, case and vent blade are compatible before driving.
- Do not use the holder on loose, cracked, motorised or fragile vent blades.
- Recheck the holder after installation and periodically during use.
- Hot air from the vent may increase the phone’s temperature; redirect or close the airflow when necessary.
- Road conditions, phone weight, case design and vent strength can affect holding performance.
What’s in the box?
1 × UGREEN LP228 Gravity Air Vent Car Phone Holder
Phone, charging cable, car charger and other accessories shown for demonstration are not included.
Frequently asked questions
How does the gravity clamp work?
The phone presses down on the lower cradle, which mechanically moves the side arms inward. Lifting the phone releases the pressure and allows the arms to open again.
Will it fit my phone?
It is designed for phones measuring approximately 65–80 mm wide. Measure the phone with its case attached instead of relying only on the advertised screen size.
Can I use it with a phone case?
Most slim and regular cases should work if the combined phone-and-case width remains within 65–80 mm. Thick rugged cases, wallets, rings, card pockets and protruding accessories may interfere with the clamp.
Can the phone be used in landscape orientation?
The gravity mechanism is designed for upright portrait use because it requires downward pressure on the lower support. The 360° joint adjusts the viewing angle but does not turn the cradle into a conventional landscape clamp.
Does it fit horizontal and vertical air vents?
It supports many standard horizontal and vertical vent blades. Round, turbine-style, recessed and unusually shaped vents may not provide a suitable mounting surface.
Does the holder charge the phone?
No. This is a passive mechanical holder and contains no wireless charger, magnet, motor or battery.
Can a charging cable remain connected?
Yes. The lower opening provides access to a centrally positioned charging port, subject to the phone and connector design.
Does it require tools or power?
No electrical power is required. Installation is tool-free on a compatible air-vent blade.
Can I insert or remove the phone with one hand?
The gravity mechanism is designed for simple insertion and removal. For safety, install, adjust, insert and remove the phone only while the vehicle is securely parked.
