UGREEN Mini DisplayPort to HDMI Adapter, 1080p (10461)
An exhaustive, practical guide to the exact connector path, verified performance, construction, setup, compatibility, safe use and troubleshooting.
Product overview
Overview
UGREEN 10461 is a black one-way adapter for sending digital video from Mini DisplayPort or compatible Thunderbolt 1/2 output to an HDMI display. A separate HDMI Type-A male-to-male cable connects its female socket to the screen. It supports 1080p and 1920 × 1200, with no exact refresh figure stated and can carry compatible digital audio when the source provides it.
The buying decision begins with the exact interfaces and application, not the largest printed number. Confirm that the physical ports, protocol, device software and complete route match this model.
Product highlights
Key features

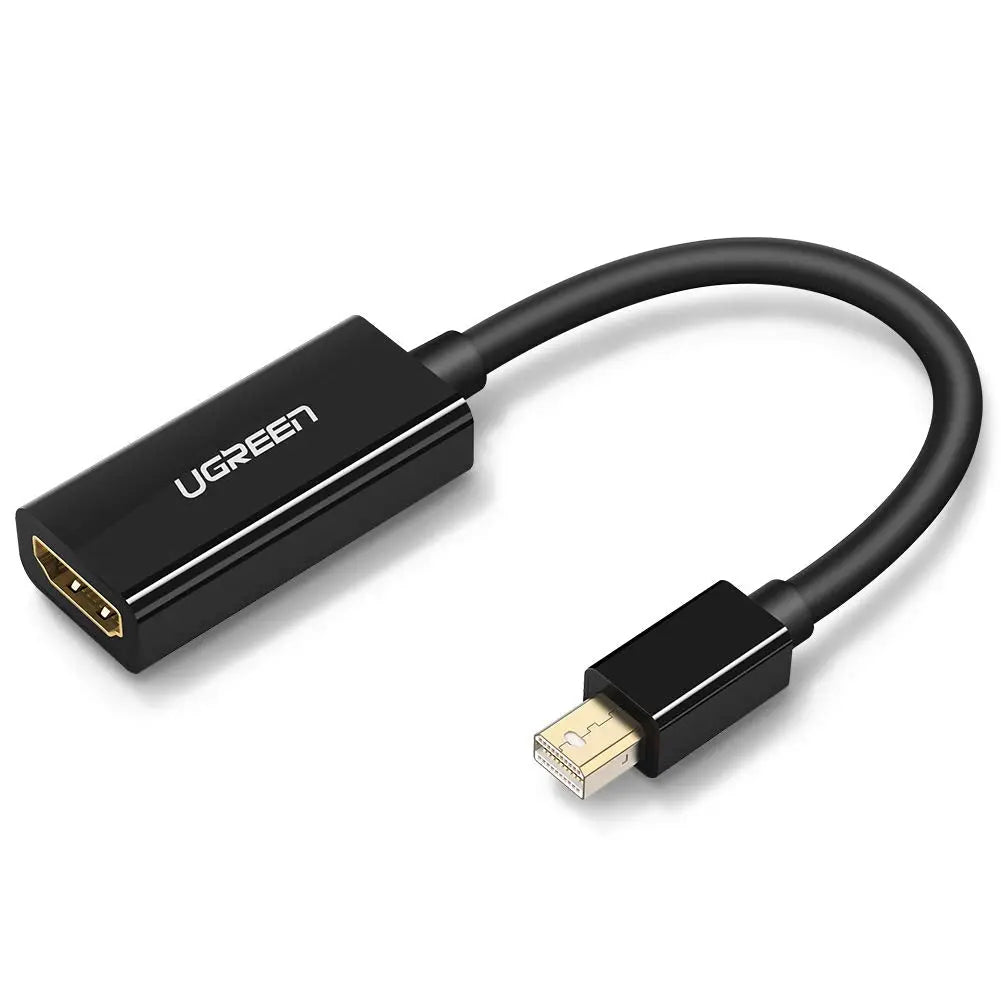

Black adapter
Exact model format or length for planning the physical connection.
1080p
Verified product capability, subject to the complete source-to-display path.
Mini DP / TB1–2 → HDMI
The defining connector, protocol or construction detail for this exact SKU.
One clear job
Converts one Mini DisplayPort or compatible Thunderbolt 1/2 video output to HDMI.
No hidden upgrade
It does not convert an HDMI source into a Mini DisplayPort display.
Exact media only
All 7 current Shopify-owned product images were reviewed; embedded images remain attached to SKU 10461.
Port and direction check
Choose the right connection
Mini DisplayPort male; compatible Thunderbolt 1/2 video output to HDMI Type-A female; separate HDMI Type-A male-to-male cable required
One-way Mini DisplayPort or Thunderbolt 1/2 video source to HDMI display. It is not HDMI-source to Mini DisplayPort-display, and it does not fit USB-C-shaped Thunderbolt 3/4 or USB4 ports.
Inspect port labels and connector shapes under good light before routing. Mini HDMI, Micro HDMI, Mini DisplayPort, full-size DisplayPort, USB-C, VGA and full-size HDMI are distinct interfaces even when two connectors appear similar at a glance.
Resolution, refresh and signal
Verified display modes and performance
Up to 1920 × 1200 and 1080p Full HD; no exact refresh figure is safely stated. Compatible digital HDMI audio when provided by the source. The selected mode also depends on the source graphics hardware, separate HDMI cable and receiving display. No 4K or exact refresh figure is claimed for this old exact SKU.
A maximum resolution or refresh rate is not forced by the product. The source GPU, source port, adapter or cable, receiving input and every intermediate device must negotiate a mode they all support.
When a high mode fails, establish a stable direct connection at a conservative timing, then raise one setting at a time while checking picture, colour and audio.

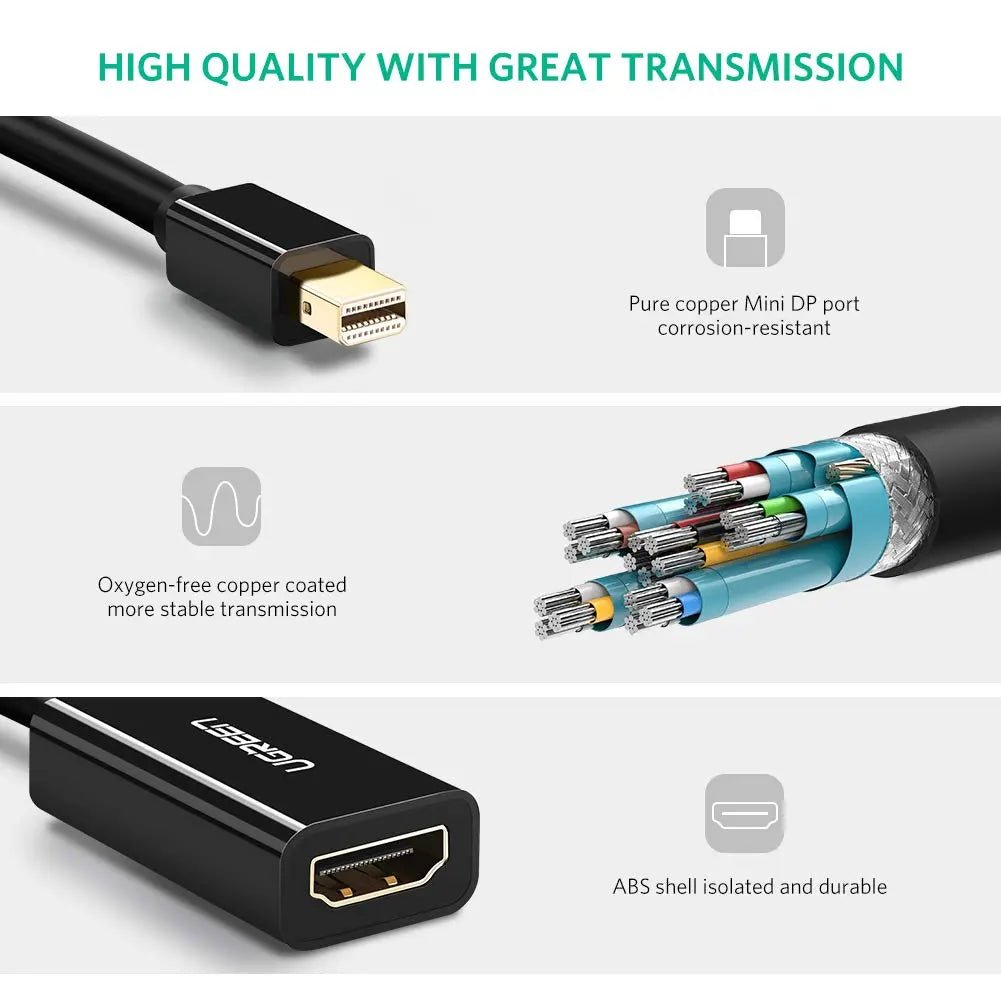

Physical build
Signal, audio and construction

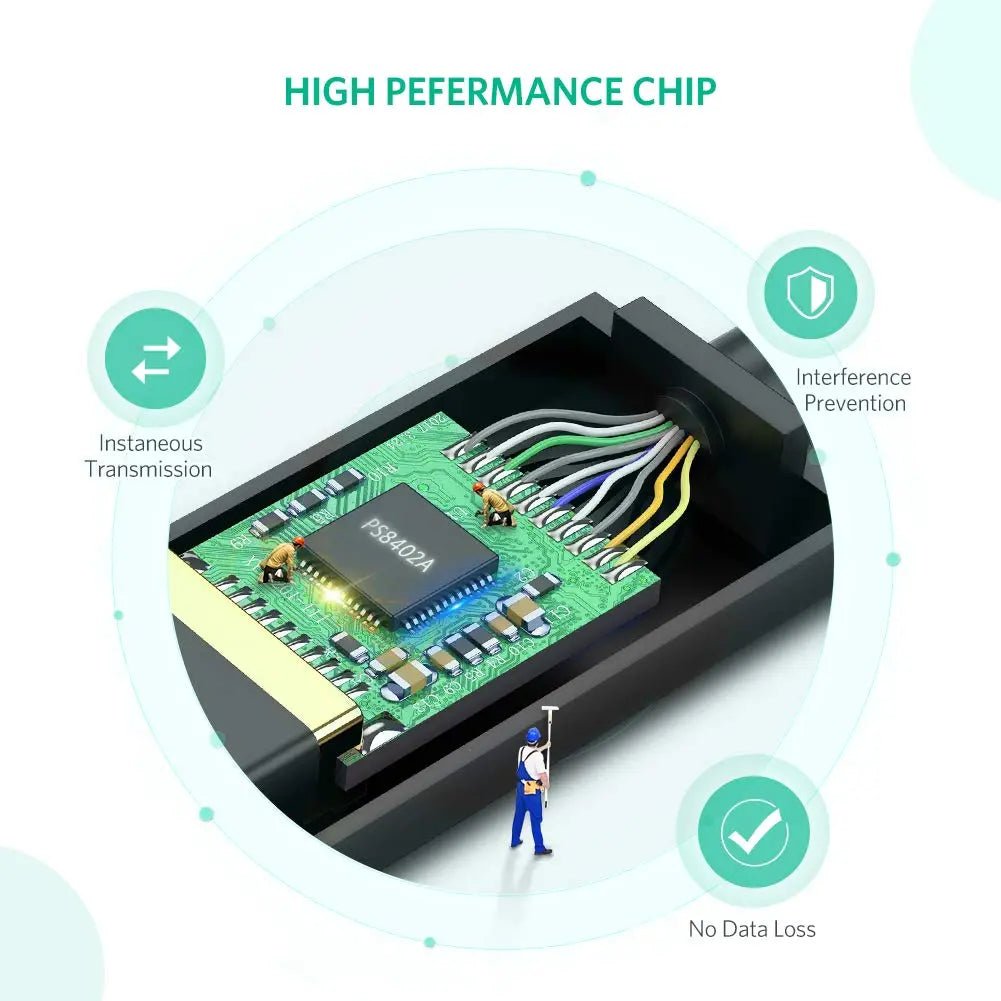

Integrated PS8402A conversion-chip artwork, copper and oxygen-free-copper wording, plated Mini DisplayPort contact surface, short black lead and ABS housing
| Source connector | Mini DisplayPort male; compatible Thunderbolt 1/2 video output |
|---|---|
| Display connector | HDMI Type-A female |
| Conversion | Active digital Mini DisplayPort to digital HDMI |
| Housing / lead | Integrated PS8402A conversion-chip artwork, copper and oxygen-free-copper wording, plated Mini DisplayPort contact surface, short black lead and ABS housing |
| Approximate length | Short integrated adapter lead; exact length not safely stated |
| Required accessory | Separate HDMI Type-A male-to-male cable |
| Power / driver | No separate power or product-specific driver stated |
Signal and construction details describe this exact product only. They are not borrowed from another connector direction, cable length or visually similar family model.
Where it fits
Use scenarios
Older notebook to HDMI monitor
Connect a Mini DisplayPort or Thunderbolt 1/2 computer to a standard HDMI-input monitor.
Presentation on a television
Send picture and compatible source audio to an HDMI television for a presentation or local media.
Meeting-room projector
Use a separately verified HDMI cable between the adapter and an HDMI projector.
Extended desktop
Add one HDMI screen and choose extend in the source display settings.
Mirrored instruction display
Duplicate the source screen for classroom, training or customer-facing use.
Legacy Mini DisplayPort workstation
Keep an older Mini DisplayPort computer useful with a modern Full HD HDMI display.

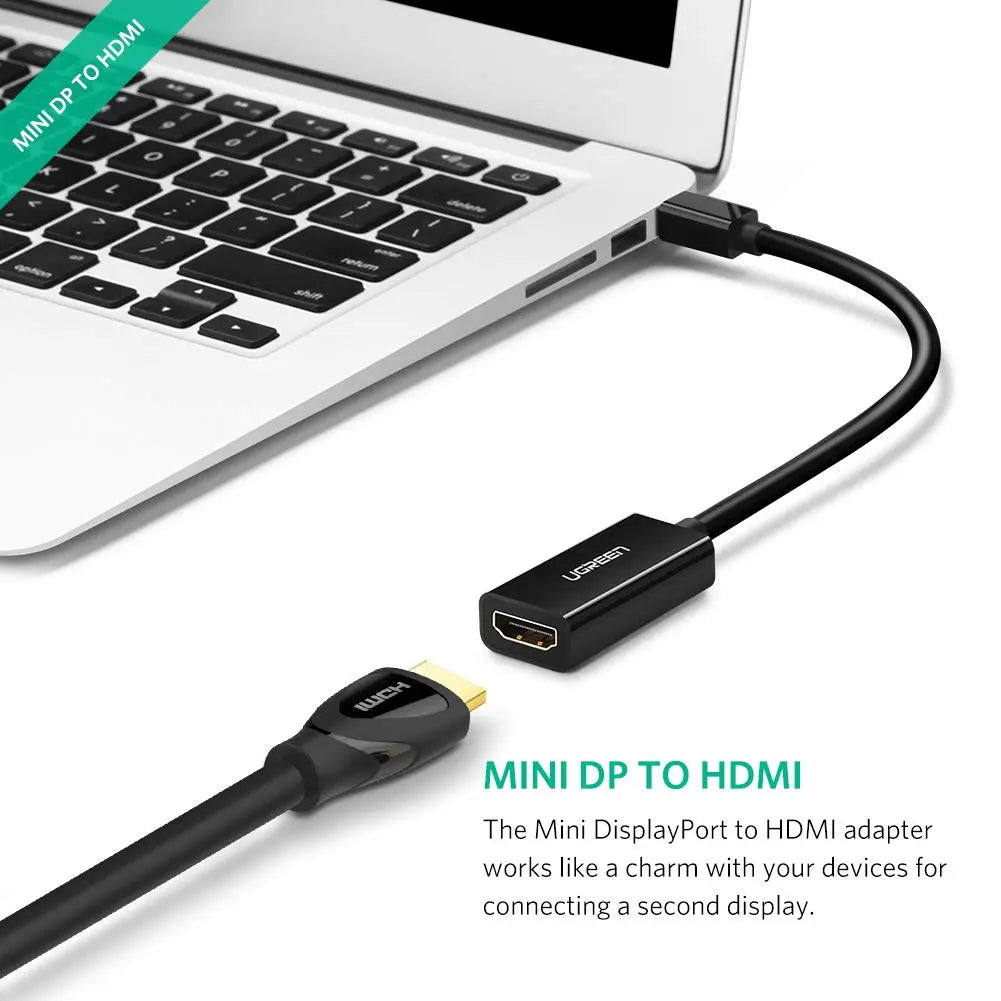

A reliable first connection
Setup and usability guidance
Follow a controlled sequence so connector, direction, display-mode and audio faults remain easy to isolate.
- Confirm the source has Mini DisplayPort or Mini DisplayPort-shaped Thunderbolt 1/2 video output, not USB-C.
- Connect the adapter’s Mini DisplayPort male plug to the source.
- Attach a known-good HDMI Type-A male cable to the adapter’s HDMI female socket.
- Connect the other HDMI plug to the receiving display and select that HDMI input.
- Start at 1080p or a lower shared mode; no exact refresh is promised and choose mirror or extend on the source.
- Select the HDMI device as the audio output only if the source hardware supplies audio over Mini DisplayPort.
- If the picture or sound fails, test a direct short HDMI path before adding switches, receivers or wall plates.

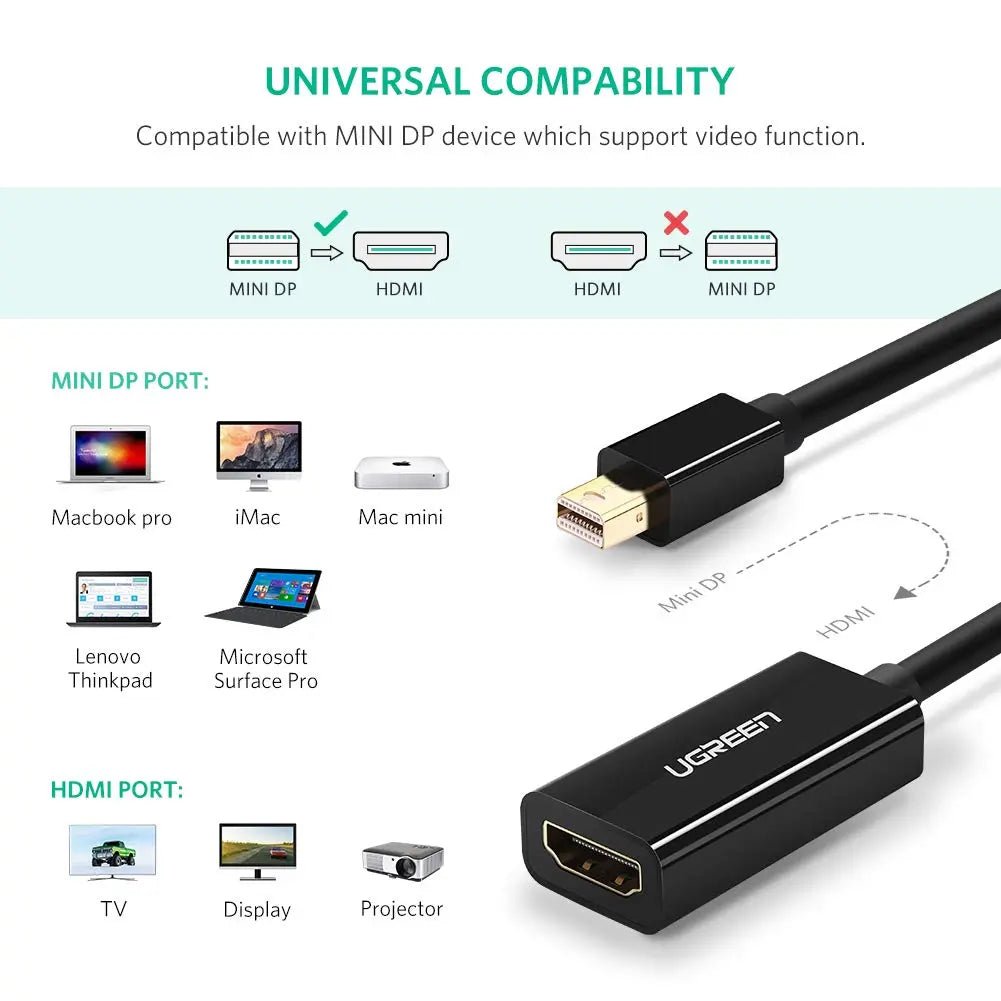

Compatibility explained
Compatible devices and systems
Required source side
- Mini DisplayPort or Mini DisplayPort-shaped Thunderbolt 1/2 video output
- The source port must provide video output, not merely share a similar connector shape
- Graphics hardware and system settings must support the requested display mode
Required display side
- HDMI Type-A input reached through a separate HDMI male-to-male cable
- The selected display input must be enabled and support the chosen timing
- Any separately required cable must be sound and correctly rated
System behaviour
- No product-specific application is required for ordinary display use
- Mirror and extended-desktop choices are controlled by the source operating system
- Resolution, refresh, colour, HDR and audio options depend on the complete signal chain
Important boundaries
- Not USB-C, Thunderbolt 3/4 or USB4
- Not reverse HDMI-source to Mini DisplayPort-display conversion
- Audio is conditional on the source Mini DisplayPort implementation
Compatibility is conditional. A device name or logo in product artwork identifies a use category, not universal support for every hardware revision, operating system, graphics mode, port direction or accessory chain.
Supported jobs
What this product does
Use SKU 10461 for these verified roles.
- Converts one Mini DisplayPort or compatible Thunderbolt 1/2 video output to HDMI.
- Provides an HDMI Type-A female socket for a separately purchased HDMI cable.
- Supports Up to 1920 × 1200 and 1080p Full HD; no exact refresh figure is safely stated.
- Carries compatible digital HDMI audio when the source supplies it.
- Allows mirror or extended display modes when supported by the source graphics system.
- Uses integrated conversion electronics without a separate external power input.
Each role stays within the product category described above; it does not imply conversion, amplification, routing or software support that is not listed.
Important exclusions
What this product does not do
These exclusions prevent the most common wrong-product purchases and unsafe installations.
- It does not convert an HDMI source into a Mini DisplayPort display.
- It does not fit USB-C, Thunderbolt 3/4 or USB4 ports.
- It does not include the separate HDMI male-to-male cable required for use.
- It does not support 4K or establish a safe 1080p refresh rate for this exact old SKU.
- It does not guarantee audio from an older Mini DisplayPort source that provides video only.
- It does not split one graphics output across several independent displays.
Best-practice checklist
What to do
Protect the connection and make later diagnosis straightforward.
- Identify both physical ports and confirm which device is the source before connecting anything.
- Start with a conservative display mode, then raise resolution or refresh only after a stable picture is established.
- Insert and remove connectors by their housings, keeping the lead free of tension and sharp bends.
- Select the intended input on the monitor, television or projector after the cable path is complete.
- Test the direct, shortest supported path before adding switches, wall plates, extensions or capture equipment.
- Keep the product dry, ventilated and accessible enough to inspect if picture or audio changes.
A labelled, supported and tested connection is easier to maintain than one hidden immediately after purchase.
Avoid these mistakes
What not to do
Most failures come from wrong interfaces, unsupported claims, strain or uncontrolled channel changes.
- Do not force a connector into a similar-looking port or use a direction opposite to the one stated for this model.
- Do not pull, kink, crush, staple or allow the cable or adapter to hang by either device port.
- Do not assume the maximum printed mode will work through an older source, display, cable or intermediate device.
- Do not hot-plug repeatedly while diagnosing; power-cycle the source and display after reseating the path.
- Do not install the product outdoors, underground or permanently inside a wall without the required published rating.
- Do not continue using damaged, loose, contaminated or unusually hot connectors or housings.
Stop using the product if a connector, housing, jacket or lead is cracked, loose, contaminated, unusually hot or exposes conductive parts.
Read before installation
Warnings and limitations
The following limits remain important even when the connector appears to fit.
- A printed maximum is a ceiling, not a forced mode. The source, graphics hardware, adapter or cable, receiving display and every intermediate connection must share the requested resolution and refresh rate.
- Some early Mini DisplayPort source hardware carries video but no audio; confirm the exact computer specification.
- USB-C-shaped Thunderbolt 3/4 and USB4 are physically different and unsupported.
- A broader 4K30 family tag conflicts with the exact old product body and artwork and is deliberately excluded.
- Long HDMI-extension guidance is not a guarantee; cable quality and the selected mode control reliable distance.
- No outdoor, direct-burial, in-wall, plenum, LSZH or fire-resistance rating is stated for this exact product.
Exact-model specification table
Technical specifications
| Product type | Active Mini DisplayPort-to-HDMI adapter |
|---|---|
| SKU | 10461 |
| Colour | Black |
| Source input | Mini DisplayPort male; compatible Thunderbolt 1/2 video output |
| Display output | HDMI Type-A female |
| Signal direction | One-way source to display |
| Signal type | Digital video and compatible digital audio |
| Maximum listed mode | Up to 1920 × 1200 and 1080p Full HD; no exact refresh figure is safely stated |
| Audio | Compatible digital HDMI audio when provided by the source |
| Required cable | Separate HDMI Type-A male-to-male cable |
| Construction | Integrated PS8402A conversion-chip artwork, copper and oxygen-free-copper wording, plated Mini DisplayPort contact surface, short black lead and ABS housing |
| Approximate adapter length | Not safely stated |
| External power | No separate input stated |
| Driver | No product-specific driver stated |
| Explicitly excluded | USB-C, Thunderbolt 3/4, USB4, reverse conversion and 4K |
“Not stated” means the current exact product sources do not safely establish that detail; it is intentionally not filled from another family model.
What is in the pack
Package contents
1 × UGREEN Mini DisplayPort-to-HDMI adapter (SKU 10461)
Included only as stated for this exact current product record.
Source devices, displays, separately required HDMI, VGA or audio cables, wall plates, switches, receivers and installation hardware are not included unless individually listed above. Inspect the retail package before installation.
Problem-to-check sequence
Troubleshooting guide
| No picture | Confirm Mini DisplayPort/TB1–2 source to HDMI display direction, select the correct HDMI input and restart both endpoints. |
|---|---|
| Plug does not fit the source | Do not force it into USB-C. Compare the connector shape and choose a USB-C display adapter if appropriate. |
| Picture works but there is no sound | Confirm the source Mini DisplayPort hardware supports audio, then select the HDMI display as the audio output. |
| No signal at a higher mode | Return to a lower shared timing, use a shorter known-good HDMI cable and remove intermediate devices. |
| Intermittent image | Support the adapter, reseat both plugs and test another HDMI cable directly to the display. |
| Mirror or extend is unavailable | Detect the screen in system display settings and confirm the graphics hardware supports another active display. |
Change one variable at a time. A known-good direct connection at a conservative display mode is the fastest way to separate a product fault from a port, direction, cable, graphics setting, display input or audio-path problem.
Collapsible answers
Product-specific FAQ
Open any question for a concise answer about exact SKU 10461.
What source connector is required?
A Mini DisplayPort output or compatible Thunderbolt 1/2 video output with the older Mini DisplayPort shape.
Will it work with USB-C or Thunderbolt 3/4?
No. Those ports use a USB-C shape and require a different compatible display adapter.
Can it work in reverse from HDMI to Mini DisplayPort?
No. The adapter is one-way from Mini DisplayPort source to HDMI display.
What is the maximum verified display mode?
Up to 1920 × 1200 and 1080p Full HD; no exact refresh figure is safely stated. No 4K mode is used for this exact SKU.
Does it carry audio?
Compatible digital HDMI audio when provided by the source. Some older Mini DisplayPort computers supply video only.
Is an HDMI cable included?
No separate HDMI male-to-male cable is listed as included; one is required from the adapter to the display.
Can it mirror or extend a desktop?
Yes when the source graphics hardware and operating system support the requested arrangement.
Does it require external power?
No separate power input is stated; the conversion electronics are integrated.
Does it need a driver?
No product-specific driver is stated, but the source graphics system must support external display output.
Why is 4K not claimed?
A broader tag is not supported by the exact old SKU body or artwork, which establish 1080p/1920 × 1200 only.
What should I check if sound is missing?
Verify that the exact Mini DisplayPort source supplies audio, select HDMI audio in system settings and test the display volume/input.
What is included?
1 × UGREEN Mini DisplayPort-to-HDMI adapter (SKU 10461) A separate HDMI cable is not listed as included.
Exact-model verification
Research and source note
The exact current body and seven gallery items establish a black Mini DisplayPort male to HDMI female adapter, Mini DisplayPort or Thunderbolt 1/2 video source to HDMI display, one-way conversion, up to 1920 × 1200 and 1080p, compatible audio, mirror/extend, integrated PS8402A-chip artwork and copper-based internal construction. The newer-family 4K30 tag is not used because neither the exact body nor current artwork supports it. USB-C, Thunderbolt 3/4 and reverse conversion are excluded.
The current Shopify record and all 7 exact product-owned gallery items were checked. Only exact-SKU media is embedded, once each at most, as a large contextual figure with unique alternative text and caption.
