UGREEN HDMI to DisplayPort Active Adapter, 4K 30Hz (40238)

Name: UGREEN HDMI to DisplayPort Active Adapter, 4K 30Hz (40238)
Brand: Ugreen
SKU: 40238
Price: 3888.00 INR
Availability: InStock

Rs. 3,888.00 Rs. 8,886.00

Tax included Shipping calculated at checkout.

4K Clarity

Smooth Signal

Plug & Play

Multi-Screen

Vivid Images

UGREEN 40238

HDMI Source to DisplayPort Display Active Adapter

Overview

UGREEN 40238 is an active, one-way converter for connecting an HDMI source—such as a computer, console, Blu-ray player or camera—to a monitor or projector that accepts DisplayPort. It combines an HDMI input lead with USB power and a female DisplayPort output. The specification supports up to 4K at 30 Hz or 1080p at 60 Hz and carries both video and compatible digital audio. A separate DisplayPort cable is required.

HDMI → DisplayPort4K at 30Hz1080p at 60HzUSB-powered active conversion

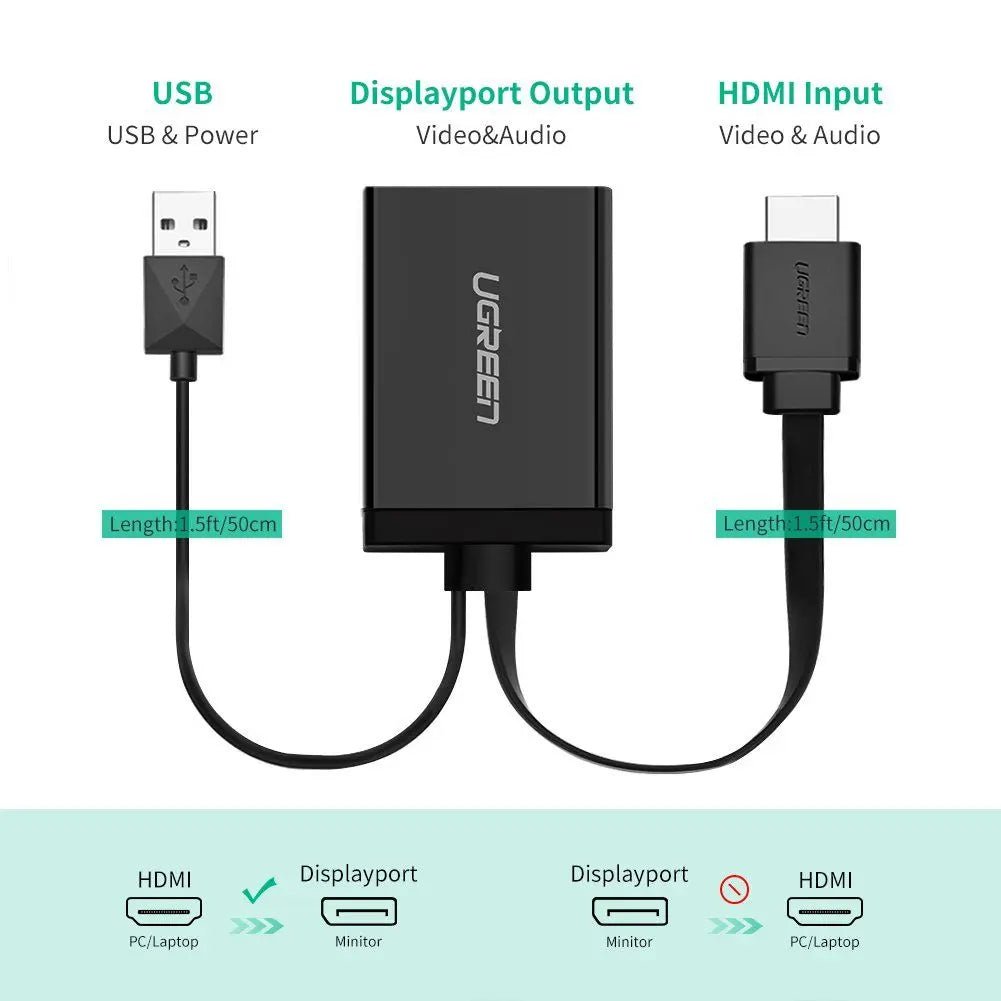

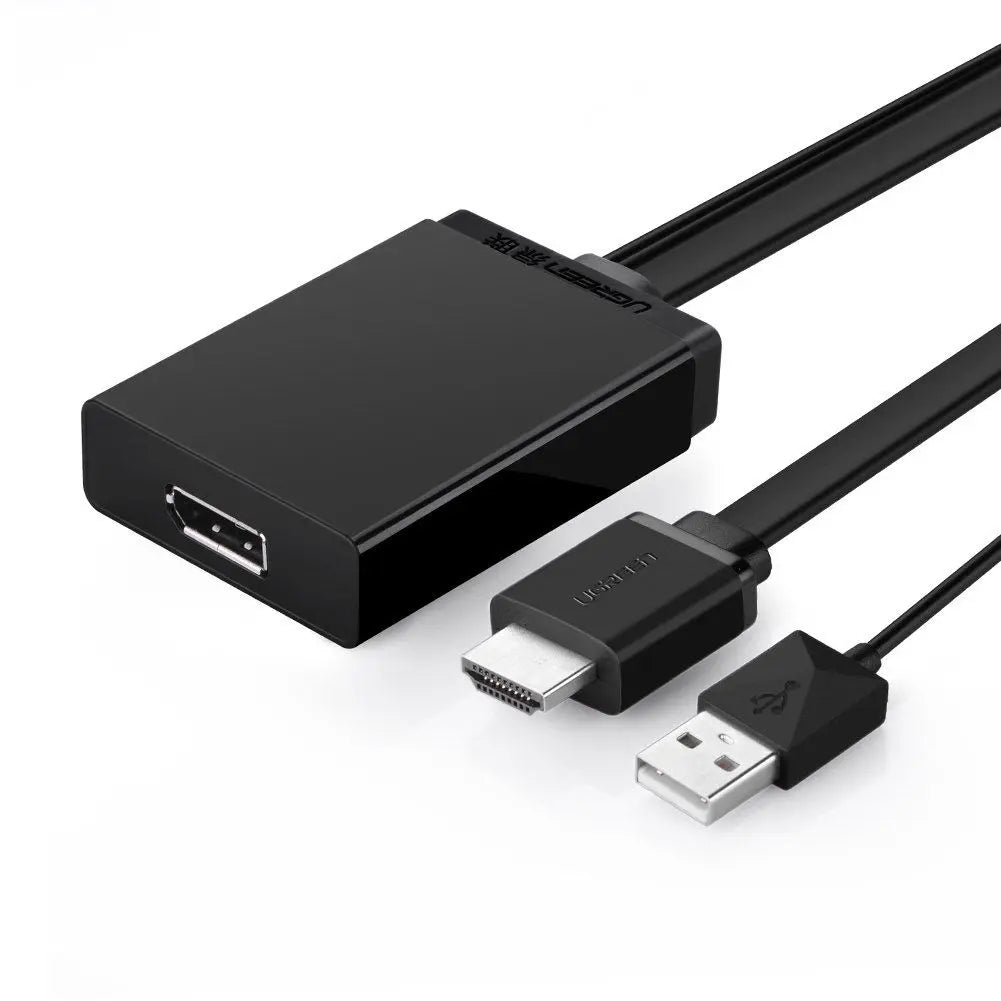

UGREEN 40238 active HDMI to DisplayPort adapter with USB power lead — **SKU 40238:** Exact-model view of the attached HDMI input, USB-A power lead and female DisplayPort output.

Signal direction cannot be reversed

This adapter accepts an HDMI source and feeds a DisplayPort monitor or projector. It will not connect a DisplayPort computer to an HDMI television. A separate male-to-male DisplayPort cable and a stable USB power source are required to complete the connection.

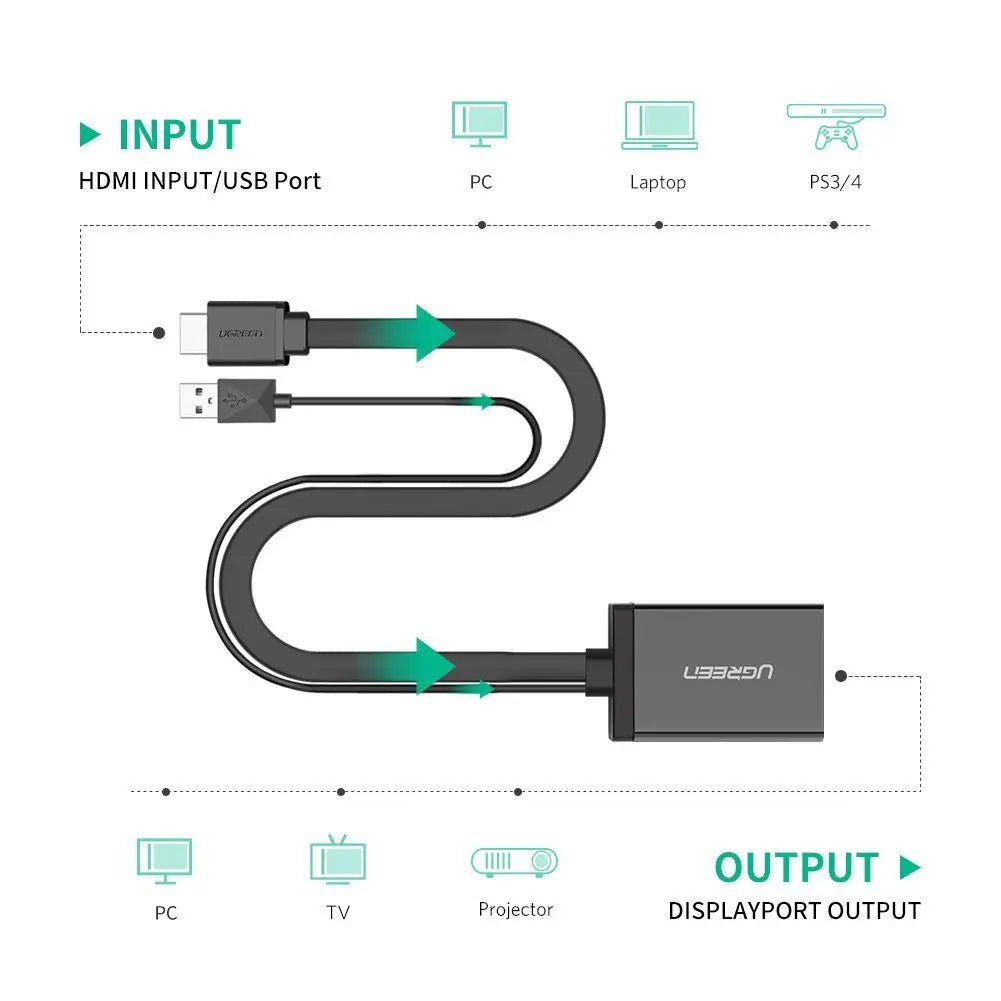

UGREEN 40238 one-way HDMI input USB power and DisplayPort output diagram — **SKU 40238:** The official port diagram confirms the one-way HDMI-source to DisplayPort-display path; USB supplies operating power.

Key features

Converts in the uncommon HDMI-source to DisplayPort-display direction.
Supports up to 3840×2160 at 30 Hz or 1920×1080 at 60 Hz when source, cable and display agree.
Carries compatible HDMI audio and video through to the DisplayPort display path.
Driver-free active conversion for normal supported operating-system display modes.
Attached 0.5 m HDMI lead and 0.5 m USB power lead.
Works with duplicate/mirror or extend modes when the computer and operating system support them.

Use scenarios

1

Reuse a DisplayPort-only office monitor with a laptop or desktop that has HDMI output.

2

Connect a compatible game console or Blu-ray player to a DisplayPort monitor.

3

View an HDMI camera feed on a DisplayPort-equipped screen.

4

Add a second DisplayPort screen to a computer whose available video output is HDMI.

5

Present slides on a DisplayPort projector from an HDMI-equipped source.

UGREEN 40238 use scenarios for gaming home cinema and presentations — **SKU 40238:** Typical supported contexts include a compatible game console, home-theatre source and conference computer feeding a DisplayPort screen.

Technical specifications

Model / SKU	40238
Signal direction	HDMI source → DisplayPort display only
Source connector	HDMI male
Power connector	USB-A power lead
Display connector	DisplayPort female
Maximum listed resolution	4K at 30 Hz
Other listed mode	1080p at 60 Hz
Media	Digital video and compatible audio
Attached lead length	HDMI lead 0.5 m; USB power lead 0.5 m
Additional cable required	Male-to-male DisplayPort cable, sold separately
Installation	No software driver required for the converter

UGREEN 40238 4K 30Hz and 1080p 60Hz display modes — **SKU 40238:** The exact artwork matches the verified ceilings: up to 4K at 30Hz or 1080p at 60Hz, subject to the complete signal chain.

Setup and usability guidance

1

Switch off or sleep the source and display before making the first connection.

2

Connect the adapter’s HDMI plug to the HDMI output on the source device.

3

Connect a separate DisplayPort cable from the adapter’s female DP socket to the display’s DP input.

4

Connect the USB lead to a powered USB port or suitable 5 V USB supply; using power is recommended for reliable conversion.

5

Select DisplayPort on the monitor, then choose duplicate or extend mode and a supported resolution on the source.

UGREEN 40238 HDMI source and DisplayPort display connection sequence — **SKU 40238:** Connect the HDMI source and USB power on the input side, then add a separate DisplayPort cable to the receiving screen.

Compatible devices and systems

1

The source must provide HDMI output; the receiving screen must provide DisplayPort input.

2

Suitable source categories include PCs, laptops, consoles, Blu-ray players and cameras with standard HDMI output.

3

A computer can use mirror or extend modes if its graphics hardware and operating system allow them.

4

DisplayPort cable quality and monitor capability must support the selected mode.

UGREEN 40238 connecting an HDMI game console to a DisplayPort screen — **SKU 40238:** Console use is possible only in this direction and only at a video, audio and protected-content mode shared by both endpoints.

Real-world performance and planning

The successful mode is negotiated across the HDMI source, active converter, separate DisplayPort cable and receiving display. All four parts must support the selected resolution, refresh rate, colour format and protected-content requirements. For first setup, begin at 1080p / 60Hz, confirm a stable picture, then select 4K / 30Hz if every endpoint supports it.

USB on this assembly is power only. It does not send graphics or install a virtual display device. When a screen remains blank, check the one-way signal path, attach USB power, select the monitor's DisplayPort input, reseat the separate DP cable and restart the HDMI source before changing advanced picture settings.

UGREEN 40238 mirror and extended desktop mode examples — **SKU 40238:** A compatible computer can mirror or extend its desktop; the source graphics hardware and operating system control the available modes.

What this product does

Actively changes an HDMI signal into a DisplayPort-compatible output.
Provides a practical connection where a passive HDMI-to-DP cable will not work.
Supports a second display when the computer exposes a usable HDMI output.
Can carry compatible audio to a DisplayPort monitor with speakers or audio output.

What this product does not do

It does not convert DisplayPort source to HDMI display; the direction cannot be reversed.
It does not raise a source beyond its native resolution, refresh rate, color format or protected-content capability.
It is not a USB graphics adapter; USB supplies power and does not carry the picture.
It does not include the required male-to-male DisplayPort cable.
It is not specified for 4K at 60 Hz, 120 Hz gaming or variable-refresh-rate features.

What to do

Use a short, standards-compliant DisplayPort cable and select a mode both devices explicitly support.
Connect USB power before troubleshooting a blank or unstable picture.
Set 1080p at 60 Hz first, then try 4K at 30 Hz after the link is stable.
Check the source output and monitor input selection whenever the display reports no signal.

What not to do

Do not connect a DisplayPort computer to an HDMI monitor with this product.
Do not treat the USB lead as a video input or data connection.
Do not force HDMI or DisplayPort connectors; inspect orientation and remove protective caps.
Do not assume HDCP-protected media or every console mode will work unless both endpoint devices support the same requirements.

Check before buying

1

Source device must have HDMI output; the screen must have DisplayPort input.

2

Add a separate standards-compliant male-to-male DisplayPort cable.

3

Plan for 4K at 30Hz or 1080p at 60Hz—not 4K/60, high-refresh gaming or VRR.

4

Provide stable 5V USB power and confirm the display supports the chosen video and audio mode.

Warnings and limitations

4K is limited to 30 Hz; use 1080p for the listed 60 Hz mode. Actual choices depend on EDID negotiation between source and display.
Connect the USB power lead for dependable active conversion, especially when the picture is blank or unstable.
A separate DisplayPort cable is mandatory. Buying only this adapter will not complete the connection.
Audio requires the source, converter path and DisplayPort display to support the same format; a monitor without speakers will not produce sound.

Package contents

1 × UGREEN 40238 HDMI + USB power to DisplayPort converter assembly
The attached HDMI and USB leads are part of the assembly.
DisplayPort cable, USB wall supply, monitor and source device are not included.

Product-specific FAQ

Can I connect a DisplayPort laptop to an HDMI TV?

No. This adapter works only from an HDMI source to a DisplayPort display. Use a DP-to-HDMI product for the opposite direction.

Does USB carry the video?

No. HDMI carries the source signal; USB supplies operating power to the active converter.

Is a DisplayPort cable included?

No. A male-to-male DisplayPort cable is required and sold separately.

Will it output 4K at 60 Hz?

No. The listed ceiling is 4K at 30 Hz. The listed 60 Hz mode is 1080p.

Can I extend my Windows desktop?

Yes, if the computer’s HDMI output and graphics settings support an additional display. Select Extend in the operating-system display settings.

Does it support sound?

UGREEN lists audio and video transmission. The source audio format and the DisplayPort monitor’s audio capability must also be compatible.

Why do I get a blank screen?

Confirm direction, attach USB power, select the monitor’s DP input, reseat the separate DP cable and begin at 1080p/60 Hz.

Will a passive HDMI-to-DP cable do the same job?

Usually not. HDMI-source to DP-display conversion requires active electronics, which this powered adapter provides.

Can it improve picture quality?

No. It converts the interface; it cannot create detail or refresh rate that the source does not output.

Can I use a USB phone charger for power?

A stable 5 V USB source is generally appropriate, but the power supply itself is not included and should be compliant and undamaged.

Can I use it with a game console?

Yes, when the console provides standard HDMI output and the monitor accepts DisplayPort input at a compatible mode. Start with 1080p/60Hz. Console-specific protected content, HDR, high-refresh or variable-refresh features are not guaranteed by this 4K/30Hz adapter.

Does the converter need a software driver?

The active converter itself is driver-free for normal supported display modes. The computer or console still needs a working HDMI output, and a computer user must select mirror or extend mode in the operating system. USB is used only for power.

Research and source note

This exact-SKU guide was checked against UGREEN India and the applicable official regional UGREEN model page. When official wording or artwork differed, the narrower verified claim was retained; gallery artwork never overrides the written limitations above.

Official source 1: https://www.ugreenindia.com/products/ugreen-hdmi-male-usb-to-displayport-female-converter-4k-30hz-1080p-60hz-0-5m-40238

Exact-model and UGREEN India assurance

This description applies to exact UGREEN model 40238. Match the SKU and connector direction before opening the installation, retain the product documentation and use compatible external cables. UGREEN India after-sales eligibility follows the exact listing terms.
