Legacy VGA display connection
UGREEN HDMI to VGA Adapter with 3.5mm Audio (40233)
Connect an HDMI source to a VGA display with UGREEN 40233. Supports up to 1080p 60Hz, 3.5mm audio output and optional Micro-USB power.
Overview

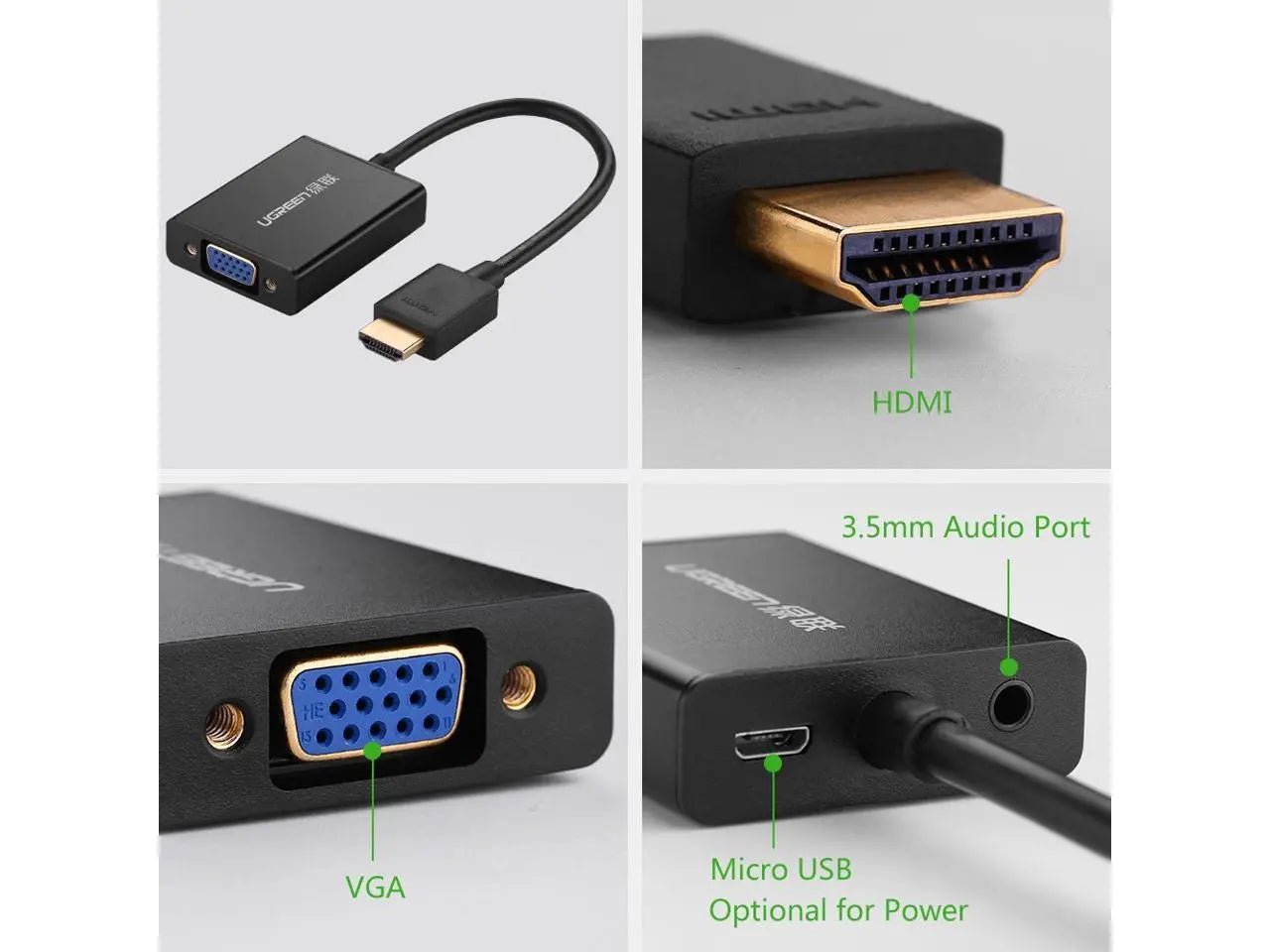

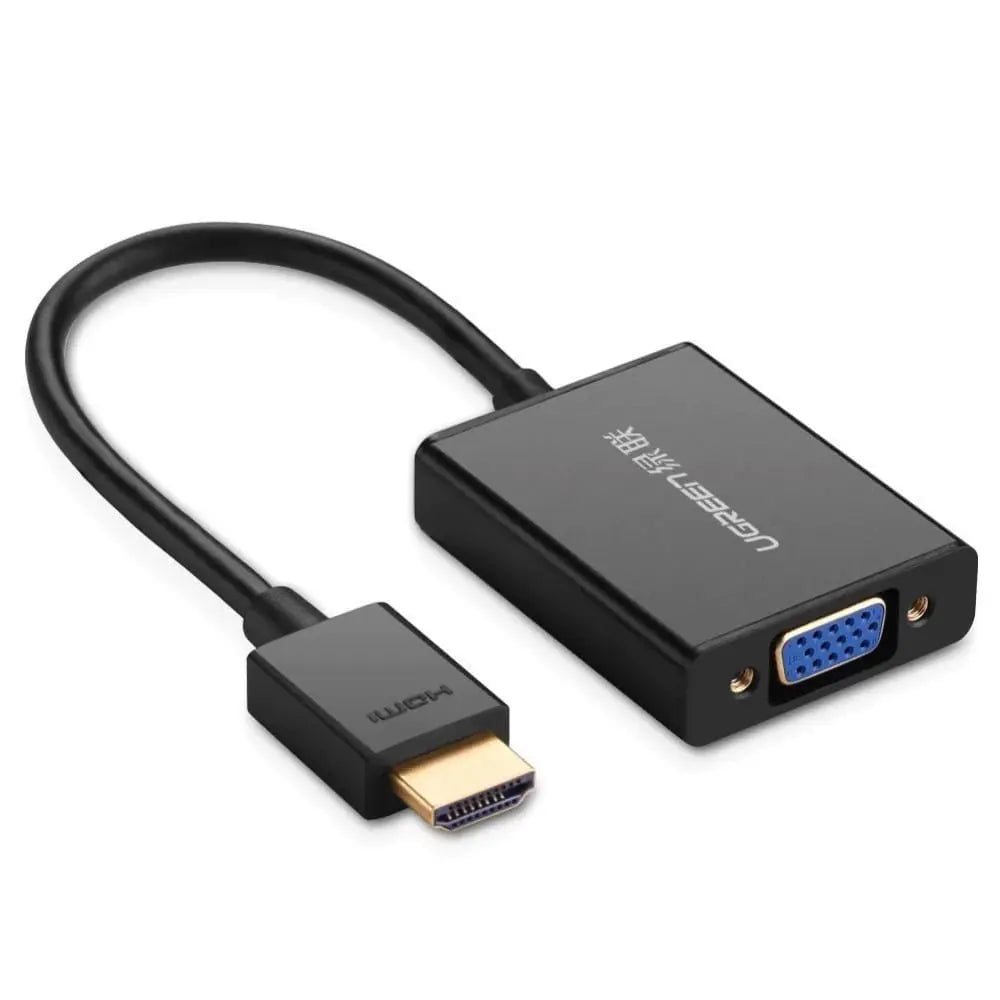

UGREEN MM102 model 40233 is an active, one-way converter for connecting an HDMI source to a legacy VGA display. It accepts digital video through its attached HDMI male plug, converts it to analogue VGA video through a VGA female socket, and provides a separate 3.5mm analogue audio output. Maximum stated output is 1920 × 1080 at 60Hz. A Micro-USB power input is available for HDMI sources that cannot supply enough operating power.
Key features
These capabilities apply to the exact UGREEN SKU and remain conditional on the connected equipment described below.
- Active HDMI-to-VGA conversion lets newer HDMI computers and media devices drive a monitor or projector that has VGA input.
- The 3.5mm line-out carries audio separated from the HDMI signal, because VGA itself carries video only.
- Supports output resolutions up to Full HD 1920 × 1080 at 60Hz, with lower VGA-compatible modes determined by source and display.
- Micro-USB auxiliary power can stabilise operation with low-power HDMI outputs such as some compact computers, TV boxes and Raspberry Pi systems.
- Driver-free hardware conversion for ordinary supported video modes; operating-system display settings may still need adjustment.
Map the one-way video, audio and power paths
This active converter has a fixed signal direction and three separate connection paths. Identifying each path before setup prevents the most common no-picture and no-sound problems.

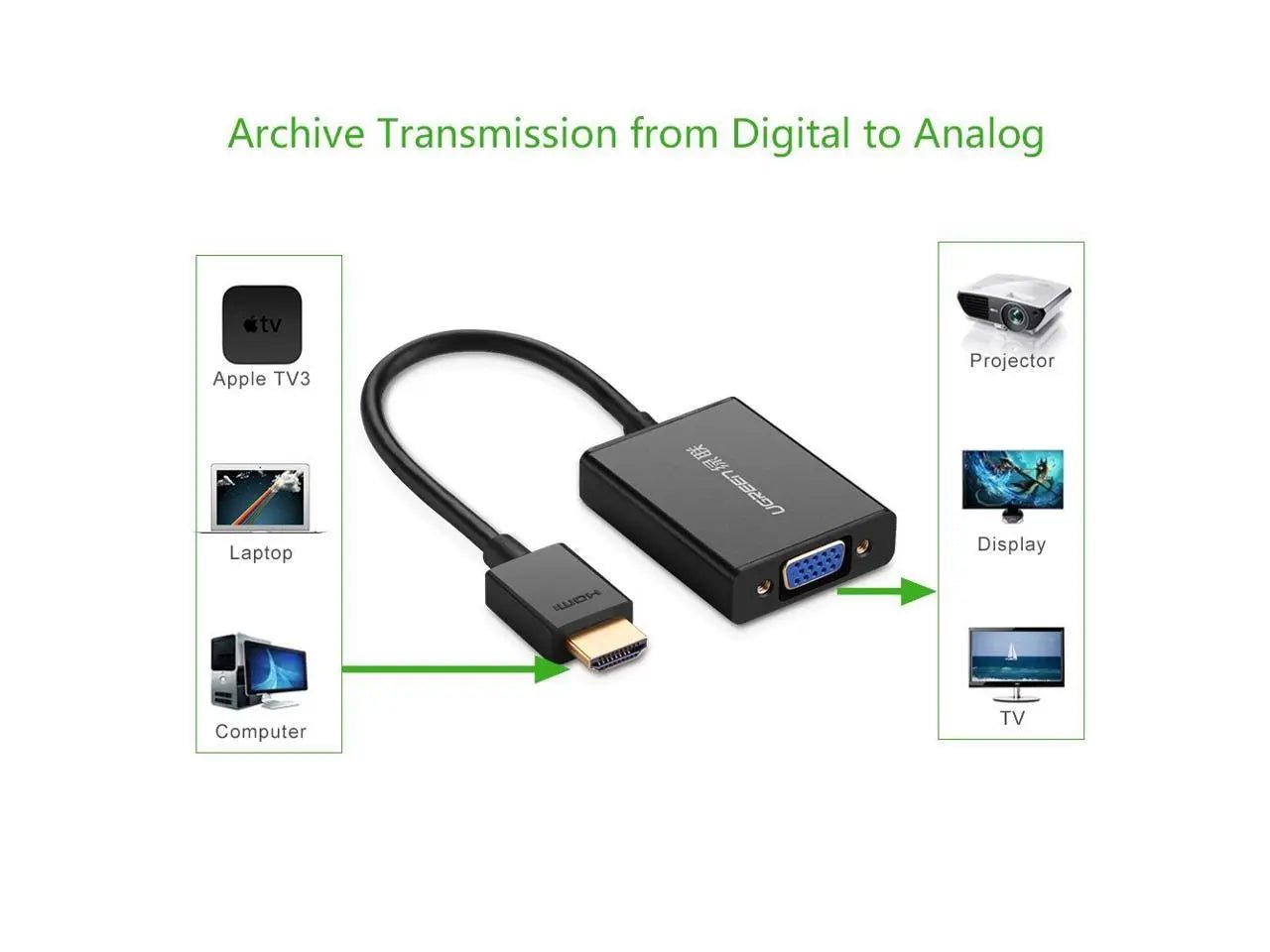

Connect the adapter’s HDMI male plug to the source. Run a VGA male-to-male cable from its VGA female socket to the display or projector. The adapter cannot operate in reverse.
VGA carries no sound. Connect the adapter’s 3.5mm output to powered speakers, headphones or the display’s compatible audio input when audio is required.

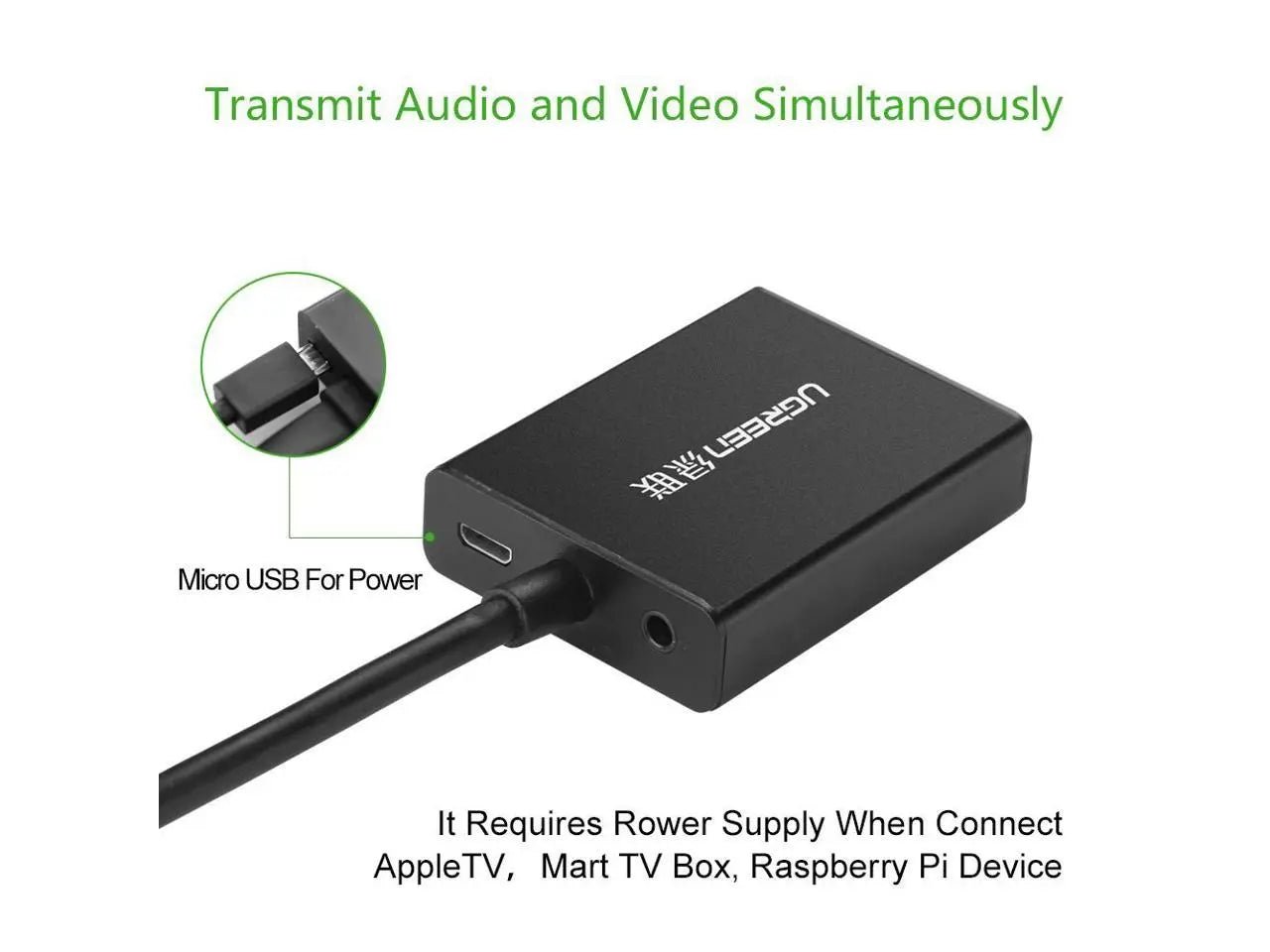

Many sources power the converter through HDMI. If the picture is unstable or absent, connect Micro-USB power using the supplied lead and a suitable 5V USB source.
The exact model supports up to 1080p60, but official documentation does not support HDCP. Protected streaming, Blu-ray or console content may therefore fail even when ordinary desktop video works.
Use scenarios
Connect an HDMI-equipped laptop to an older VGA projector for a presentation, classroom or meeting.
Reuse a VGA monitor as a secondary display for a desktop, mini PC or compatible HDMI computer.
Connect a Raspberry Pi or compact HDMI source to a VGA screen, using auxiliary Micro-USB power if the HDMI port is insufficient.
Feed audio to powered speakers, an amplifier or headphones through the 3.5mm output while VGA carries the picture.
Setup and usability guidance
Confirm the source has HDMI output and the display has VGA input. This converter cannot be installed in the reverse direction.
Connect a standard VGA cable from the adapter’s VGA female socket to the display’s VGA input.
If sound is required, connect a 3.5mm stereo cable from the adapter to powered speakers, an amplifier or the display’s audio input.
Insert the attached HDMI male plug into the source. If the picture is unstable or absent, connect the supplied Micro-USB cable to a suitable 5V USB port or adapter for auxiliary power.
Select VGA on the display and choose a supported mode on the source, beginning with 1920 × 1080 at 60Hz or a lower resolution.
On Raspberry Pi, display configuration may need to be adjusted before rebooting if HDMI output is not detected correctly.
Compatible devices and systems
Designed for HDMI source devices such as compatible laptops, desktops, Chromebooks, mini PCs, Raspberry Pi boards, cameras or TV boxes, used with VGA-input monitors, projectors or televisions. The source must be able to output an unprotected, VGA-convertible HDMI video mode. Audio requires a separate 3.5mm connection to an analogue audio device. A VGA cable and 3.5mm audio cable are separate unless explicitly shown in the selected package.
What this product does
- Converts one HDMI digital video output into one VGA analogue video signal.
- Separates compatible HDMI audio to a 3.5mm analogue line output.
- Accepts optional Micro-USB power when the source’s HDMI port cannot power the converter reliably.
What this product does not do
- It does not convert VGA to HDMI and is not bidirectional.
- It does not carry audio through VGA; audio leaves only through the 3.5mm socket.
- It does not add an HDMI input to a computer or capture video.
- It does not support 4K output and may not display HDCP-protected services, discs or console content.
What to do
- Check the printed port labels and required signal direction before ordering.
- Use a good VGA cable and tighten its retaining screws without overtightening.
- Add Micro-USB power if the image flickers, drops out or never appears from a low-power HDMI source.

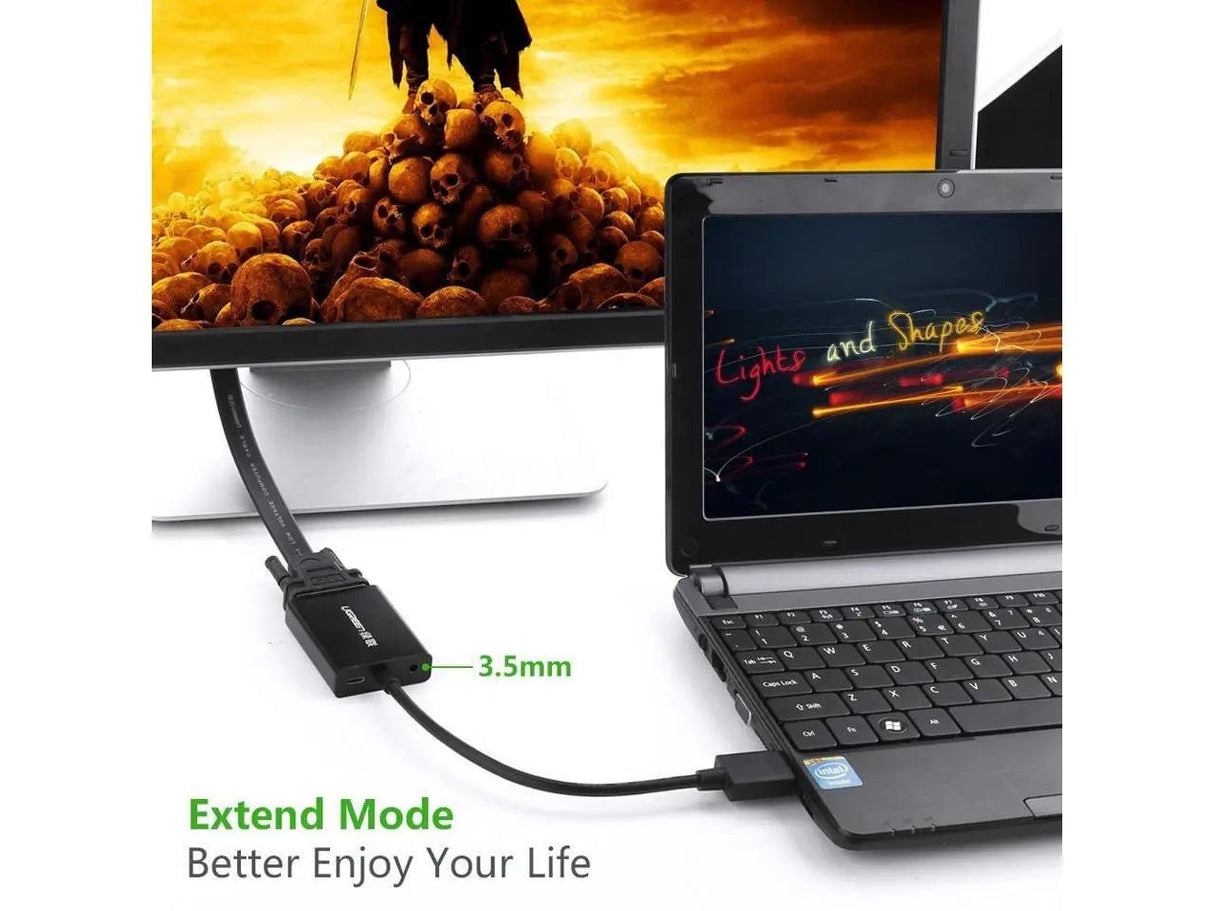

- Set the computer to duplicate or extend mode and select a resolution the VGA display supports.
What not to do
- Do not connect a VGA source to the adapter expecting an HDMI output.
- Do not rely on this adapter for protected streaming, Blu-ray or game-console playback; HDCP-protected content may show a blank screen.
- Do not force the HDMI plug or connect auxiliary power from an unknown or damaged supply.
- Do not expect VGA to carry digital audio, HDR or 4K video.
Warnings and limitations
HDCP-protected content is not supported reliably and may be blocked by the source.
The maximum 1080p60 mode is conditional on the source, VGA cable and display. Older projectors may require 720p, 1024 × 768 or another supported timing.
Micro-USB is an auxiliary power input, not a data port and not a charging output.
Analogue VGA quality is affected by cable length, display capability and electrical interference; use a sensibly short, shielded VGA lead.
Technical specifications
| Brand / model | UGREEN MM102 / SKU 40233 |
|---|---|
| Signal direction | HDMI source to VGA display only |
| Primary input | Attached full-size HDMI male |
| Auxiliary input | Micro-USB for 5V operating power when required |
| Video output | VGA female |
| Audio output | 3.5mm analogue stereo line-out |
| Maximum stated resolution | 1920 × 1080 at 60Hz |
| Approximate converter cable length | 15–16cm |
| HDCP | Not intended for HDCP-protected playback |
Package contents
- 1 × UGREEN HDMI-to-VGA converter with audio (SKU 40233)
- 1 × Micro-USB auxiliary power cable
Product-specific FAQ
Can I connect a VGA laptop to an HDMI television?
No. SKU 40233 works only from an HDMI source to a VGA display. A different active VGA-to-HDMI converter is required for the reverse direction.
Does the VGA connection carry sound?
No. VGA carries picture only. Use the adapter’s separate 3.5mm output and a suitable audio cable for sound.
What is the maximum resolution?
The maximum stated output is 1920 × 1080 at 60Hz. The actual selectable modes depend on both the HDMI source and VGA display.
Why is there a Micro-USB port?
It supplies extra 5V operating power when the HDMI source cannot power the active conversion circuit sufficiently. It does not transmit video or data.
Will it play Netflix, Blu-ray or protected console video?
Do not rely on it for protected playback. The exact model is listed as not supporting HDCP-protected content, which may produce a blank or blocked picture.
Do I need a driver?
Normally no. It is a hardware converter, but you may need to select the display, duplicate/extend mode and a compatible resolution in the operating system.
Can I use it with Raspberry Pi?
It can be used with a compatible Raspberry Pi HDMI output, but auxiliary USB power and a display-mode change in config.txt may be required.
What should I do if there is audio but no picture?
Confirm the signal direction, select VGA on the display, connect auxiliary power, reseat the VGA lead and choose a lower supported resolution on the source.
What should I do if there is picture but no sound?
Connect the 3.5mm output to powered speakers or an audio input, select the correct playback device on the source, and confirm the source is sending stereo audio.
Can the adapter output a 4K VGA picture?
No. Its stated maximum output is 1920 × 1080 at 60Hz. Choose a lower mode if the VGA display does not support Full HD.
