UGREEN 50596 USB-C Audio and Charging Adapter

Rs. 1,058.00 Rs. 2,887.00
Tax included Shipping calculated at checkout.

Crystal Sound
Fast Charge
Universal Fit
Slim Design
Durable Build
3.5MM HEADSET • USB-C CHARGE • LEGACY DEVICE LIST

UGREEN 50596 USB-C Audio and Charging Adapter

Overview

UGREEN 50596 is a compact two-in-one adapter for simultaneously using a compatible 3.5mm headset and USB-C charging input on a specifically supported USB-C phone. This guide uses the exact active Shopify record, every meaningful product-owned gallery image and exact UGREEN evidence to keep direction, connector, sample-rate, microphone, power and compatibility claims revision-specific.

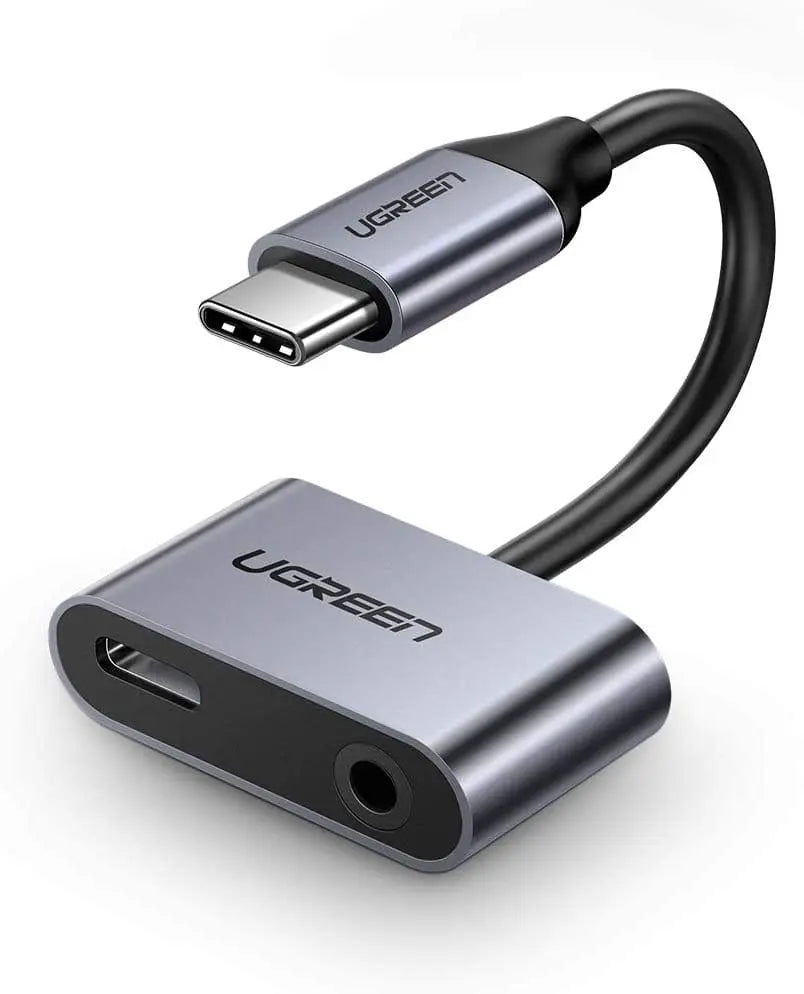

50596 USB-C adapter with 3.5mm and charging ports
50596 USB-C adapter with 3.5mm and charging ports

Key features

Exact product role

a compact two-in-one adapter for simultaneously using a compatible 3.5mm headset and USB-C charging input on a specifically supported USB-C phone.

Signal path

The USB-C male lead connects to the phone. The 3.5mm female socket handles stereo playback plus compatible microphone/inline controls; the USB-C female socket accepts charging power. It is not a general USB hub.

Conversion boundary

Exact live evidence describes a built-in filter capacitor and analogue audio circuitry but does not establish a 24-bit/96kHz DAC specification for SKU 50596. No sample-rate or Hi-Res claim is made here.

Power design

Exact product text states charging current up to 1.5A. The handle’s 30W wording conflicts with that body evidence, so no 30W/PD speed promise is used. The phone, charger and cable determine the actual rate.

Signal direction and connector roles

The USB-C male lead connects to the phone. The 3.5mm female socket handles stereo playback plus compatible microphone/inline controls; the USB-C female socket accepts charging power. It is not a general USB hub.

Connector rule: an output must feed the matching input. Physical fit does not prove electrical role, microphone wiring, charging protocol or signal level.

Safe start: lower volume or gain, check labels and connect one complete path before adding any charger, second endpoint or application.

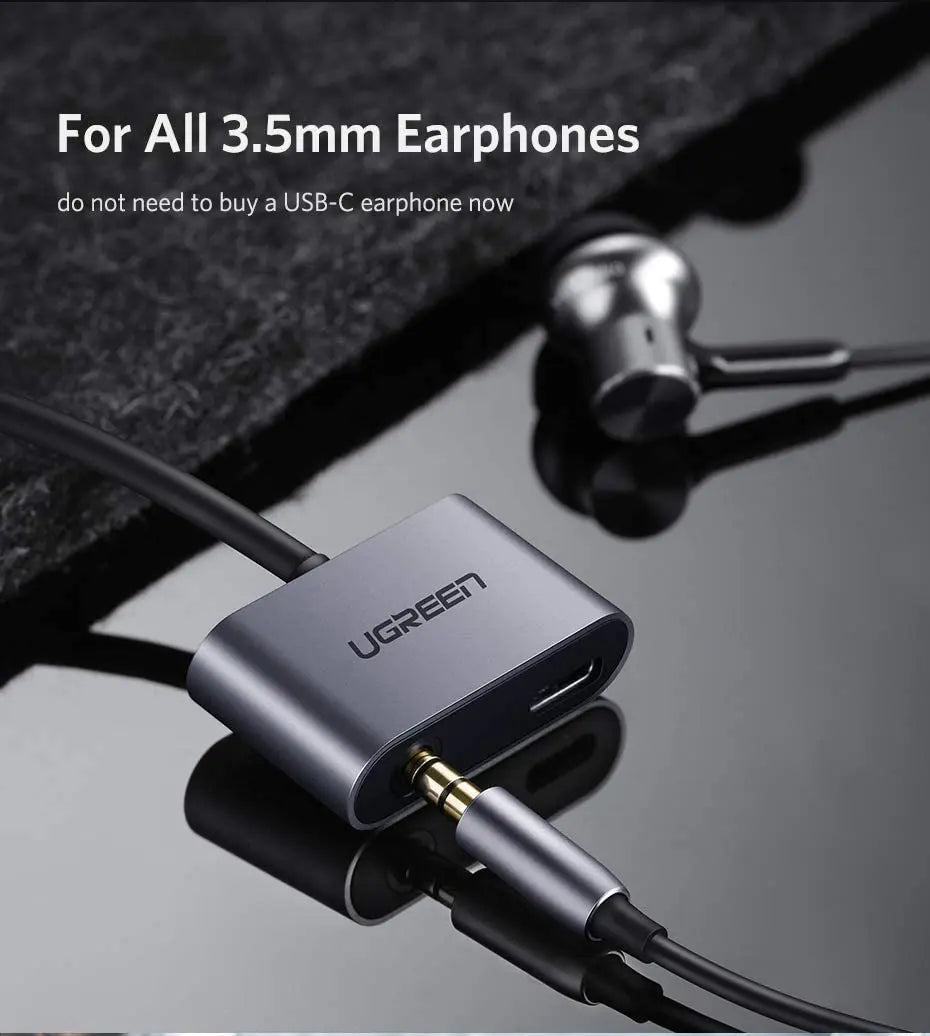

Connection with existing 3.5mm headphones
Connection with existing 3.5mm headphones

Conversion, sample rates and sound behaviour

Exact conversion evidence

Exact live evidence describes a built-in filter capacitor and analogue audio circuitry but does not establish a 24-bit/96kHz DAC specification for SKU 50596. No sample-rate or Hi-Res claim is made here.

Source recording, operating-system mode, app processing, cable path, gain staging and destination equipment all affect the heard or recorded result. A format ceiling is not a promise of better sound from every source.

Simultaneous headset and charging use
Simultaneous headset and charging use

Microphone, calls and controls

Microphone / call path

The four-pole 3.5mm socket is listed for CTIA and OMTP headsets, microphone, play/pause, track and volume functions where the phone supports them. A standalone lavalier or studio microphone is not promised.

Controls

No adapter buttons. Use the connected headset controls and phone interface; supported button mapping varies by device.

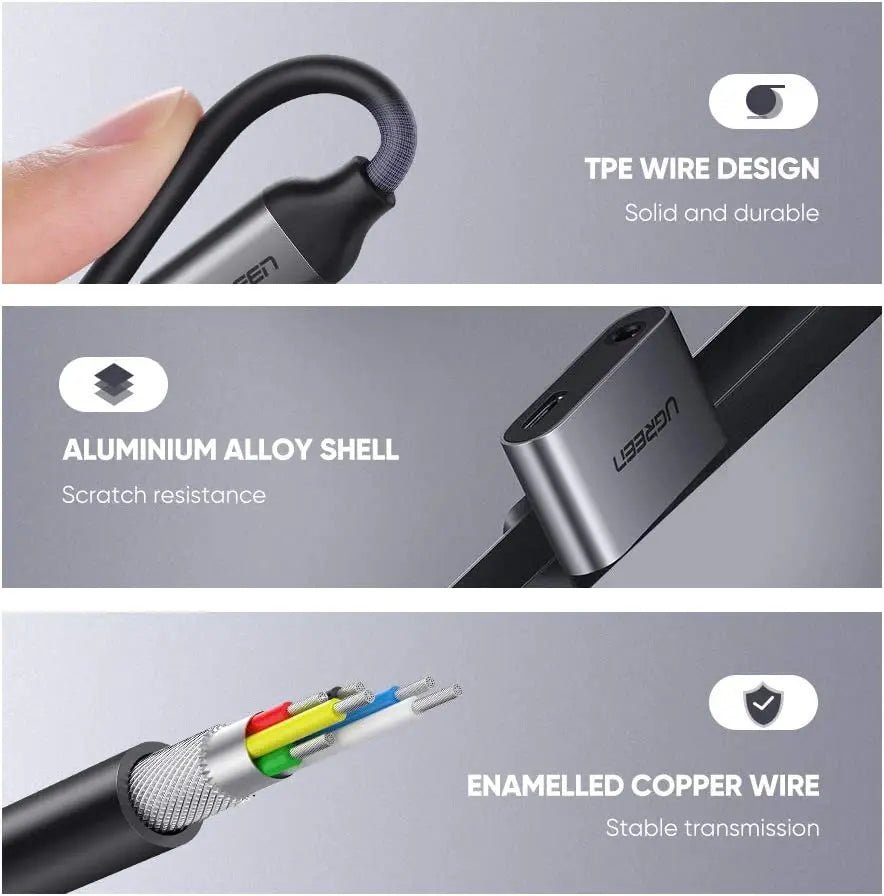

TPE lead, aluminium housing and internal conductor build
TPE lead, aluminium housing and internal conductor build

Use scenarios

Scenario 1

Charging a listed Huawei phone while using wired headphones.

Scenario 2

Calls through a compatible CTIA/OMTP headset.

Scenario 3

Music playback on a supported Xiaomi USB-C phone.

Scenario 4

Travel use with existing 3.5mm earphones and a compatible phone.

Scenario 5

Desk listening while the listed phone receives modest charging current.

Clearly labelled 3.5mm audio and USB-C charging sockets
Clearly labelled 3.5mm audio and USB-C charging sockets

Setup and usability guidance

  1. Step 1: Check the exact phone model against the supported list before purchase.
  2. Step 2: Lower volume and connect the adapter directly to the phone USB-C port.
  3. Step 3: Insert the 3.5mm headset fully and test playback and microphone.
  4. Step 4: Connect a compliant charger and cable to the USB-C female charging port.
  5. Step 5: Verify stable audio and charging; disconnect immediately for heat, noise or repeated charging interruptions.

Usability tip: test playback and microphone or charging separately before relying on simultaneous operation.

Headset call use with a compatible phone
Headset call use with a compatible phone

Compatible devices and systems

The exact listing restricts compatibility to named legacy USB-C models including selected Huawei P30/P20/Mate/Nova, Xiaomi Mi/Mix, OnePlus 7-series, Smartisan and Nubia devices. It explicitly excludes iPhone, iPad/iPad Pro, Google Pixel and Samsung Note 10/10+.

  • Match the exact connector role and wiring standard.
  • Check host operating-system audio settings and app permissions.
  • For USB audio, confirm the port supports data/audio rather than charging only.
  • For analogue audio, confirm input versus output and headset TRRS versus stereo TRS.
  • For XLR, confirm signal level, balanced wiring and phantom-power requirements.

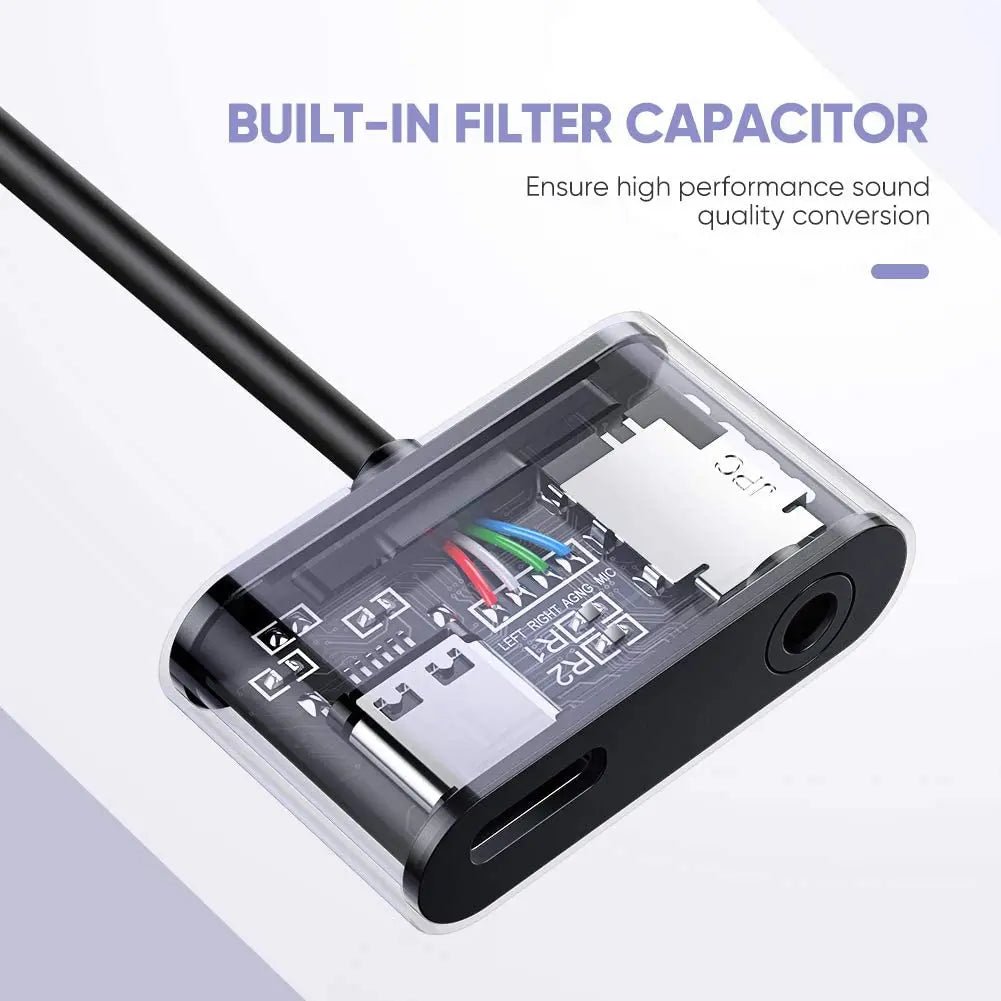

Built-in filter capacitor and internal port layout
Built-in filter capacitor and internal port layout

What this product does

  • a compact two-in-one adapter for simultaneously using a compatible 3.5mm headset and USB-C charging input on a specifically supported USB-C phone.
  • The USB-C male lead connects to the phone. The 3.5mm female socket handles stereo playback plus compatible microphone/inline controls; the USB-C female socket accepts charging power. It is not a general USB hub.
  • Exact live evidence describes a built-in filter capacitor and analogue audio circuitry but does not establish a 24-bit/96kHz DAC specification for SKU 50596. No sample-rate or Hi-Res claim is made here.
  • The four-pole 3.5mm socket is listed for CTIA and OMTP headsets, microphone, play/pause, track and volume functions where the phone supports them. A standalone lavalier or studio microphone is not promised.
  • Exact product text states charging current up to 1.5A. The handle’s 30W wording conflicts with that body evidence, so no 30W/PD speed promise is used. The phone, charger and cable determine the actual rate.

What this product does not do

  • not universal, not for iPhone/iPad, Pixel or Samsung Note 10/10+, no video or data hub function, no verified 30W PD promise and no support claim for standalone professional microphones.
  • Do not force a connector, bend it under side load or continue using damaged pins, plugs, insulation or housings.
  • Do not infer microphone, charging, data, phantom-power or console-chat support merely from a connector fitting.
  • Do not connect wet equipment or leave cables where they create a trip, snag or vehicle-control hazard.
  • Do not use consumer/headset audio connectors with mains, speaker-level or unknown industrial signals.

What to do

Confirm exact SKU

Check 50596 on the product or package before relying on these specifications.

Start at low level

Lower headphone volume, speaker level, microphone gain or channel fader before connection.

Test one path

Verify one source, adapter/cable and destination before adding more equipment.

Keep ports clean and dry

Disconnect power, remove lint without metal tools and allow complete drying before reuse.

Use system settings

Select the intended playback and recording devices; physical connection alone may not change routing.

Store without stress

Coil cables loosely and protect exposed plugs, pins and adapter housings.

What not to do

Do not force a fit

Stop if alignment, case clearance, pins or latch do not match.

Do not guess direction

Inputs and outputs can share the same connector shape.

Do not overstate formats

Use only the exact sample-rate or signal claim listed for this SKU.

Do not use at unsafe volume

High playback levels can injure hearing and overload equipment.

Do not patch live phantom power

For XLR, mute and disable phantom power before changing connections.

Do not create hazards

Keep leads away from pedals, controls, doors, wheels, children and walkways.

Power, charging and operating conditions

Power behaviour: Exact product text states charging current up to 1.5A. The handle’s 30W wording conflicts with that body evidence, so no 30W/PD speed promise is used. The phone, charger and cable determine the actual rate.

  • Use only compliant, undamaged hosts, chargers and cables.
  • Disconnect for unusual heat, smell, intermittent power, corrosion or visible damage.
  • Do not cover adapters during charging or operation.
  • Keep all contacts dry and free of conductive debris.
  • No product in this batch should be treated as weather-resistant unless an exact IP rating is published.

Warnings and limitations

  • Hearing: begin at low volume, limit exposure and stop if you notice discomfort or ringing.
  • Electrical: never connect audio pins to mains, unknown industrial wiring or incompatible high-power outputs.
  • Microphones: mute channels before plugging; for XLR, switch phantom power only when the connected microphone requires it.
  • Driving: connect and configure vehicle audio while parked; do not route cables across pedals, steering or airbags.
  • Water and heat: keep connectors dry and away from hot dashboards, heaters and direct sun.
  • Mechanical: do not pull by the cable, close doors on leads or leave adapters protruding where they can be struck.

Troubleshooting

No playback

Check source output selection, destination input, mute state, volume and full connector seating.

No microphone

Confirm an exact mic-return path, correct TRRS/XLR wiring, recording-device selection and app permission.

Charging absent or slow

Confirm that this SKU supports charging, then test a compatible charger/cable and inspect host limits.

Noise or hum

Separate signal leads from power bricks, test another port/path and verify balanced grounding or AUX input role.

One channel missing

Reinsert the plug fully, inspect contacts and test each device with a known-good cable or headset.

USB device not recognised

Try a direct data-capable USB port, reboot audio services and check exact operating-system support.

Technical specifications

Product USB-C to 3.5mm headset plus USB-C charging adapter
SKU 50596
Host connector USB-C male
Audio socket 3.5mm four-pole female
Headset wiring CTIA and OMTP listed
Microphone / inline controls Supported on compatible listed phones/headsets
Charging input USB-C female
Maximum stated current Up to 1.5A
Sample rate Not published for exact SKU
Data / video Not supported
Construction Aluminium-alloy housing, TPE lead, shielded copper wiring
Battery None

Format figures are device ceilings or stated maxima under suitable conditions; compatible equipment may negotiate or operate at lower values.

Package contents

Included: one UGREEN 50596 audio/charging adapter; charger, charging cable, headset and phone are not included.

Pre-purchase checklist

  • Confirm the exact SKU and connector gender.
  • Confirm input/output direction and TRS/TRRS/XLR wiring.
  • Confirm microphone, inline-control, charging or phantom-power needs separately.
  • Check operating-system and console limitations.
  • Confirm that every extra cable, charger, headset or adapter you need is actually included.
Exact-media review: Seven is the full meaningful exact gallery and all seven images are used. The imagery consistently shows one 3.5mm headset socket and one charge-only USB-C socket. The 1.5A live-body limit is kept; the conflicting 30W handle phrase is rejected.
UGREEN evidence: source 1 · source 2

Product-specific FAQ

What exactly is UGREEN 50596?

It is a compact two-in-one adapter for simultaneously using a compatible 3.5mm headset and USB-C charging input on a specifically supported USB-C phone.

Which port handles audio and which handles power?

The USB-C male lead connects to the phone. The 3.5mm female socket handles stereo playback plus compatible microphone/inline controls; the USB-C female socket accepts charging power. It is not a general USB hub.

Can it transfer files or video?

No. not universal, not for iPhone/iPad, Pixel or Samsung Note 10/10+, no video or data hub function, no verified 30W PD promise and no support claim for standalone professional microphones.

What charging limit applies?

Exact product text states charging current up to 1.5A. The handle’s 30W wording conflicts with that body evidence, so no 30W/PD speed promise is used. The phone, charger and cable determine the actual rate.

Do microphone and headset controls work?

The four-pole 3.5mm socket is listed for CTIA and OMTP headsets, microphone, play/pause, track and volume functions where the phone supports them. A standalone lavalier or studio microphone is not promised.

Is it compatible with every USB-C device?

No. The exact listing restricts compatibility to named legacy USB-C models including selected Huawei P30/P20/Mate/Nova, Xiaomi Mi/Mix, OnePlus 7-series, Smartisan and Nubia devices. It explicitly excludes iPhone, iPad/iPad Pro, Google Pixel and Samsung Note 10/10+.

Which devices are the right match?

The exact listing restricts compatibility to named legacy USB-C models including selected Huawei P30/P20/Mate/Nova, Xiaomi Mi/Mix, OnePlus 7-series, Smartisan and Nubia devices. It explicitly excludes iPhone, iPad/iPad Pro, Google Pixel and Samsung Note 10/10+.

What is the safest first setup?

Check the exact phone model against the supported list before purchase. Lower volume and connect the adapter directly to the phone USB-C port. Insert the 3.5mm headset fully and test playback and microphone.

What should I check if there is no sound or signal?

Confirm connector role and seating, system input/output selection, volume/gain, app permissions and one known-good source/destination before changing multiple variables.

What is included in the package?

one UGREEN 50596 audio/charging adapter; charger, charging cable, headset and phone are not included.

What should this product not be used for?

not universal, not for iPhone/iPad, Pixel or Samsung Note 10/10+, no video or data hub function, no verified 30W PD promise and no support claim for standalone professional microphones.
