MINI DISPLAYPORT • VGA • RTD2166 • 1080p
UGREEN 10437 Mini DisplayPort to VGA Adapter, 1080p
A one-way active adapter for connecting a Mini DisplayPort or early Thunderbolt computer output to an analogue VGA monitor or projector.
01 · Product introduction
Overview
UGREEN 10437 Mini DisplayPort to VGA Adapter, 1080p is documented for a specific connector pair, direction and ceiling. It should be selected by exact SKU and port geometry rather than by the broad words HDMI, DVI, DisplayPort or VGA.
Mini DisplayPort/Thunderbolt 1–2 source output to VGA display input only. It cannot convert VGA back to Mini DisplayPort. Active digital-to-analogue video conversion using an RTD2166 chipset. There is no verified 3.5mm audio output and VGA carries no audio. The source device, destination device, operating-system mode and any intermediate equipment must all agree before a picture can appear.

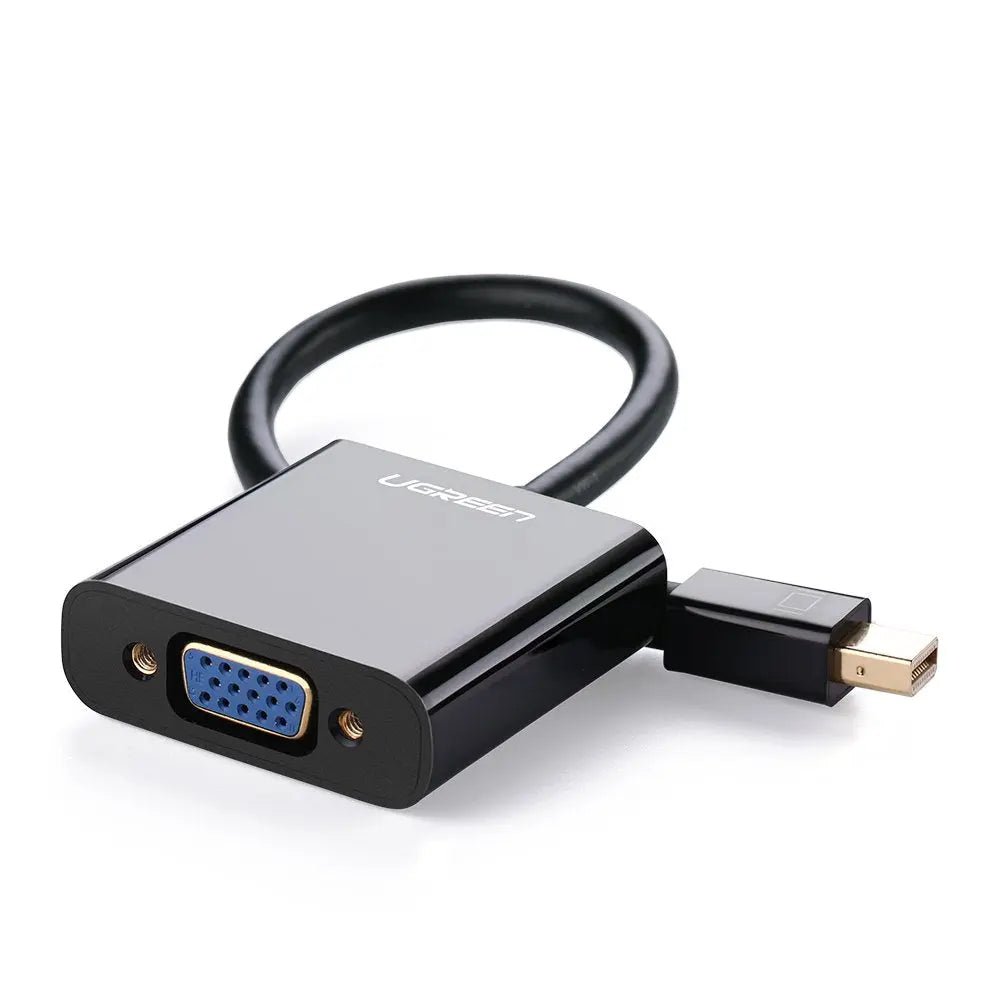

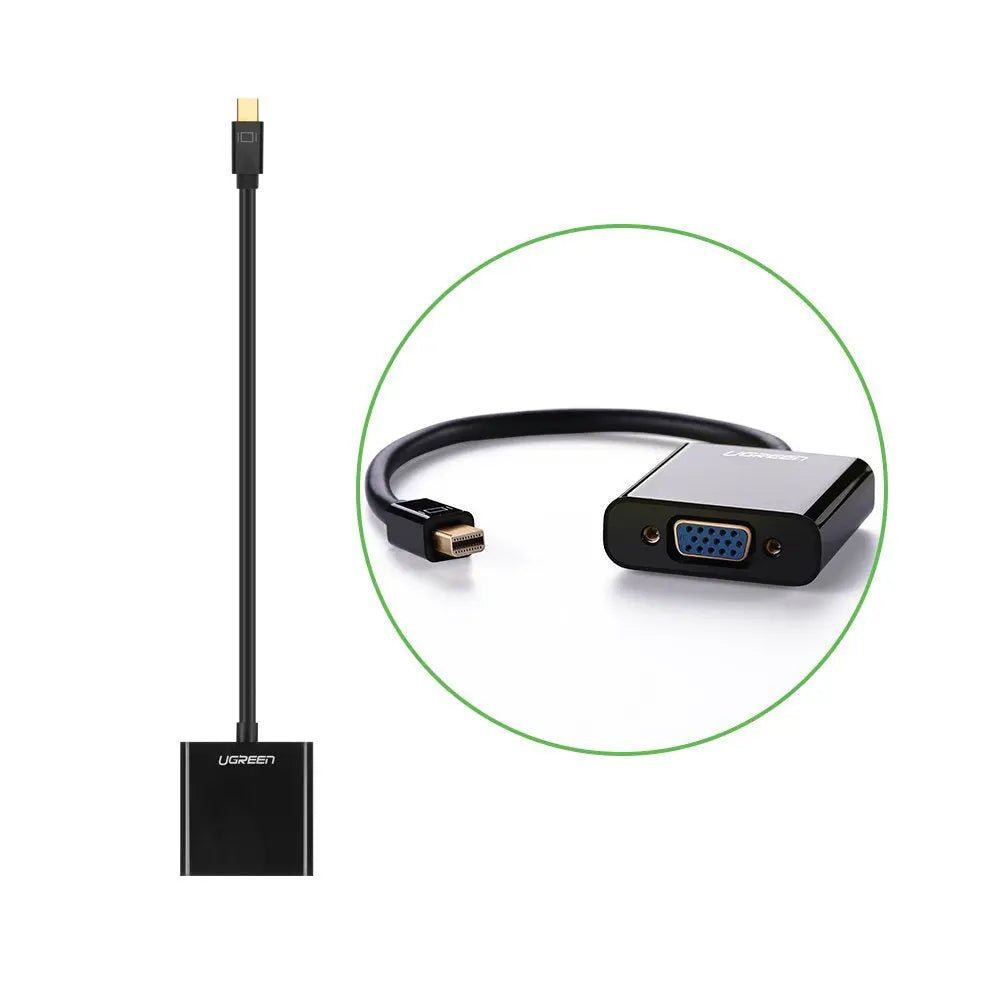

Compact ABS housing, tinned-copper wire core, multiple internal shielding and a short flexible lead. These construction details support everyday reliability but do not create a mode, audio stream or conversion feature absent from the endpoints.
This guide deliberately separates physical fit, signal direction, performance ceiling and real-world usability so a buyer can reject a superficially similar but electrically different product.
Exact-SKU evidence reconciliation
Five of seven exact live images are retained for product identity, Mini DisplayPort/Thunderbolt 1–2 source fit, one-way Mini DP-to-VGA topology, physical form and port-shape checks. Two category errors involving HDMI and audio are excluded. Primary UGREEN exact-product pages and the live Shopify gallery were reconciled before drafting; excluded artwork is recorded with the draft rather than silently repeated.
02 · At a glance
Key features
03 · Physical fit
Connectors, direction and interface clarity
04 · Capability
Signal, data or power performance
UGREEN lists video up to 1080p; the actual analogue timing depends on the source, chipset, VGA cable and display.
Active digital-to-analogue video conversion using an RTD2166 chipset. There is no verified 3.5mm audio output and VGA carries no audio. A listed maximum is the ceiling of a correct complete chain, not a promise that every device exposes that mode.
The adapter converts one display signal. It does not add a GPU, split one output, upscale content, carry audio or support a USB-C/Thunderbolt 3 port.
Use the shortest direct route that reaches without tension, leave a gentle service loop and remove unnecessary converters while testing.
Real digital links can fail as a blank screen, sparkles, dropouts or colour errors; analogue VGA can additionally show softness or ghosting. Start at a conservative known-supported mode before increasing resolution or refresh rate.
05 · Complete path
What the entire connection must support
Identify which device is the source/output and which is the display/input. A cable or adapter cannot make two outputs talk to each other, and many display connectors are input-only.

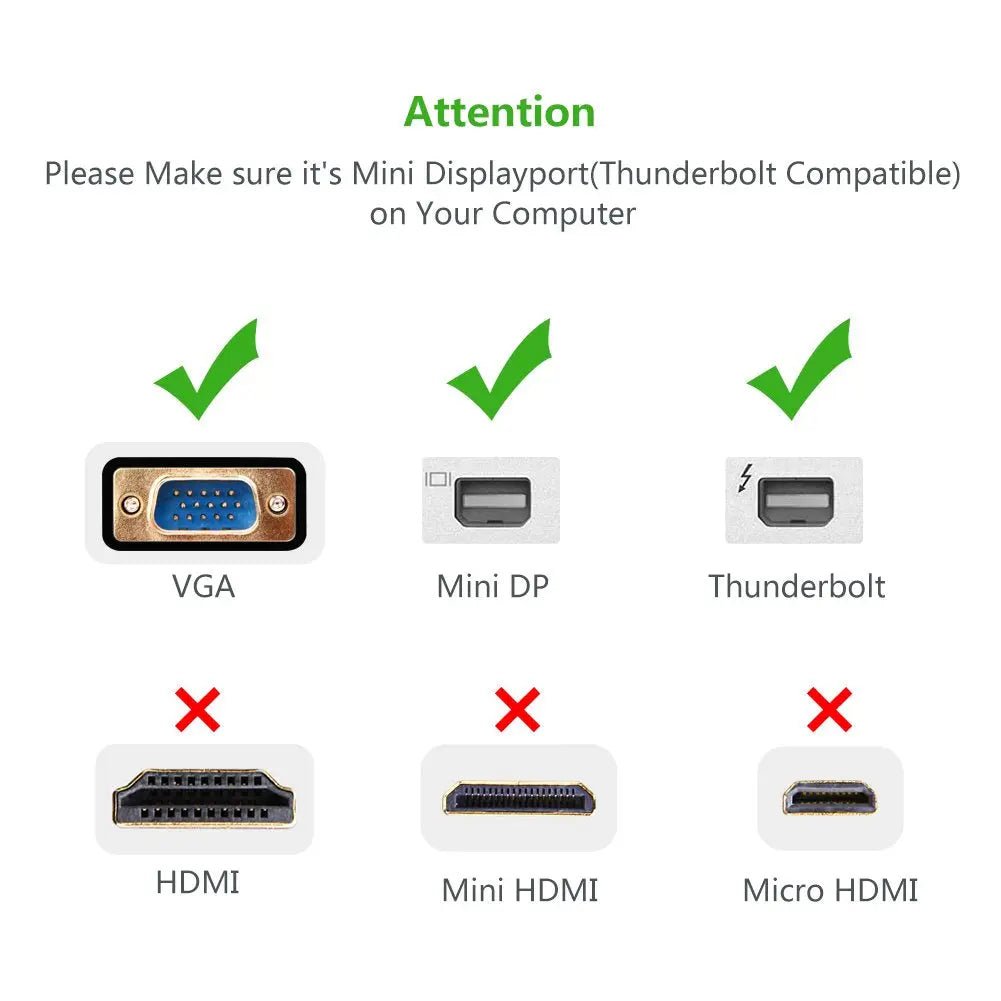

Match both physical connectors exactly. Mini DisplayPort/Thunderbolt 1–2 uses a small rectangular connector. USB-C/Thunderbolt 3–5, HDMI, Mini HDMI and Micro HDMI are different.
For protected commercial video, HDCP support must exist at the source, display and every active device. A passive cable or connector adapter cannot add, remove or repair copy protection.
Test one direct path before adding a dock, KVM, wall plate, AV receiver, capture device, coupler or extender. Each added item can change EDID, timing, bandwidth or direction behaviour.
If a separate cable is required at a female socket, that cable becomes part of the signal budget. Its connector type, length and rating matter as much as this product.
06 · Behaviour
Standards, negotiation and operating roles
Mini DisplayPort/Thunderbolt 1–2 source output to VGA display input only. It cannot convert VGA back to Mini DisplayPort. Direction is a device-role rule, not merely an arrow printed on a cable.
The adapter converts one display signal. It does not add a GPU, split one output, upscale content, carry audio or support a USB-C/Thunderbolt 3 port.

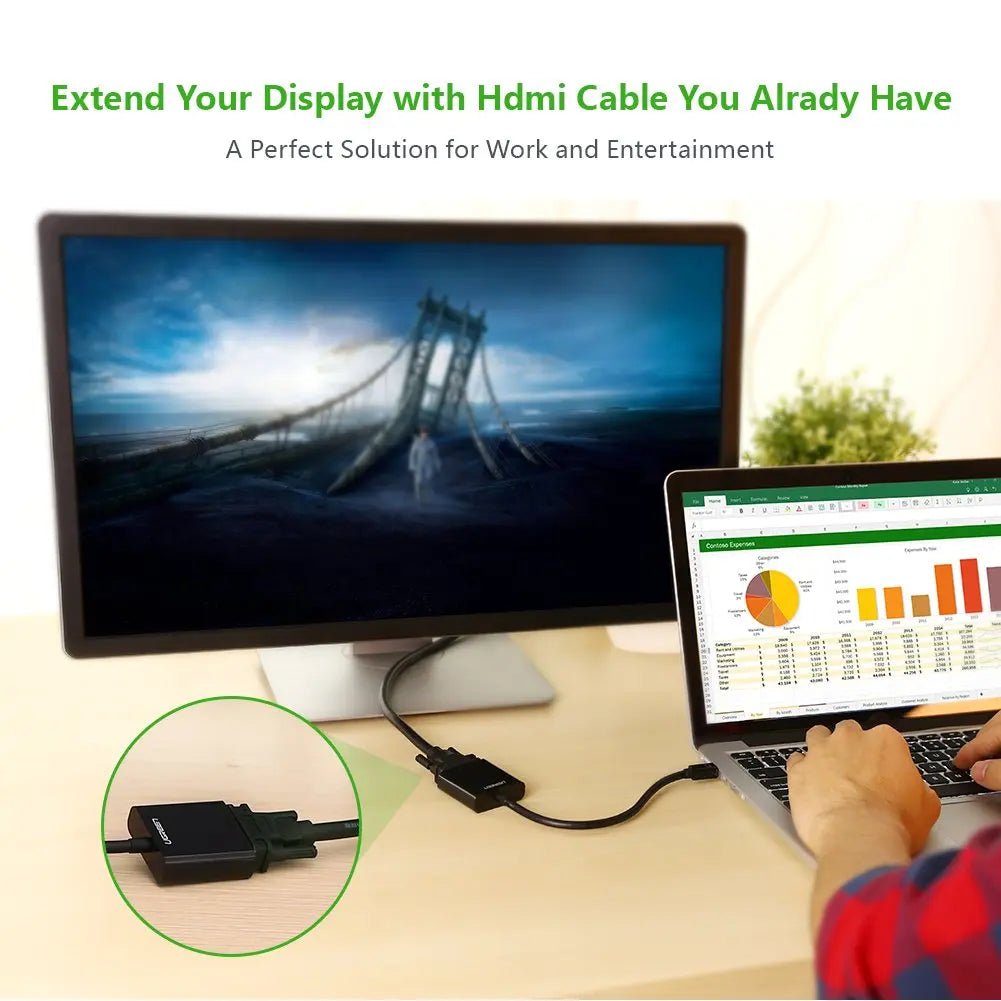

Mirror and extended-desktop layouts are created by the source computer and graphics system. One physical connection supplies one display path and does not create additional independent graphics outputs.
Resolution, refresh rate, colour depth, chroma, HDR, audio and protected-content behaviour are negotiated across the chain. A mode name on one device does not override the other endpoint.
The cable or adapter has no user firmware. The graphics driver, display EDID and operating-system settings select the final timing and can require updates even when the accessory itself is plug-and-play.
Ceiling, not a promise
Connector and standard labels describe capability. The complete source, destination, route, settings and negotiated mode determine the result.
07 · Device fit

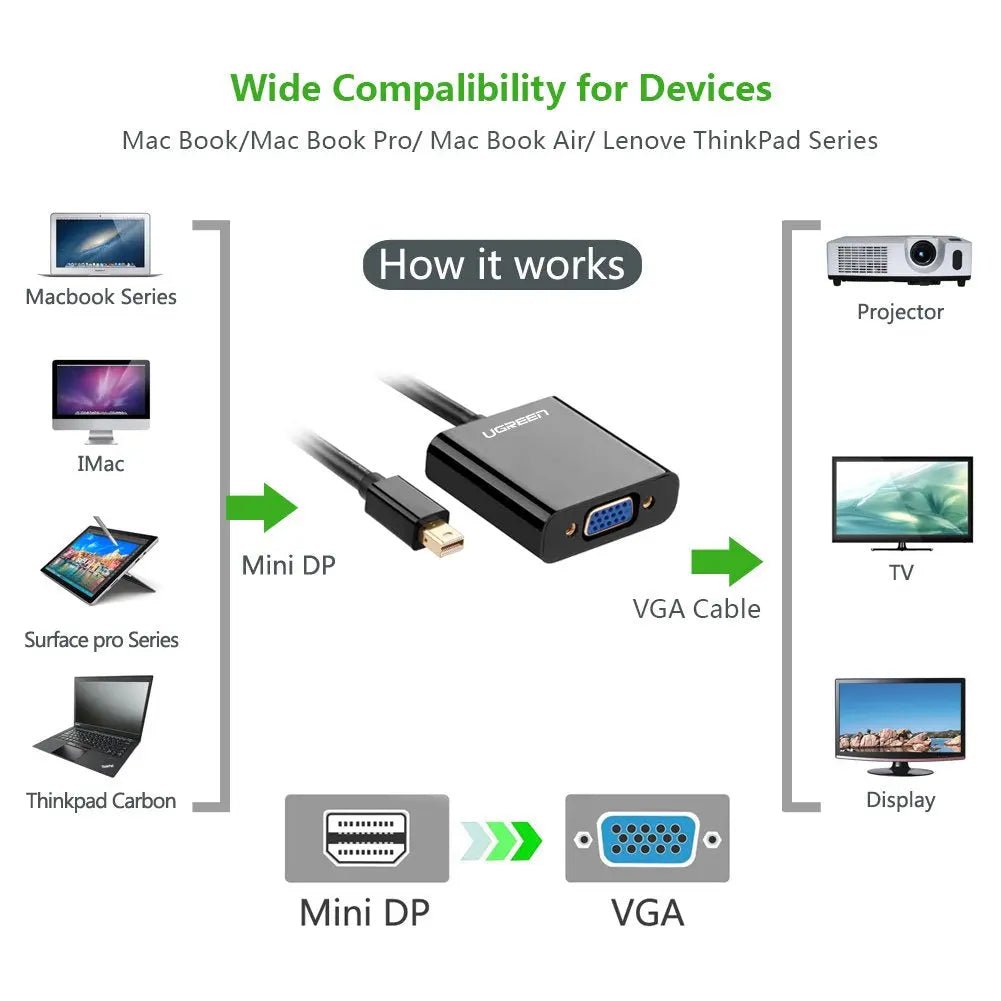

Compatible devices and systems
08 · Practical value
Use scenarios
09 · Usability
Setup and usability guidance
- Power down the display or stop active output before working around fragile, tightly packed or screw-retained connectors.

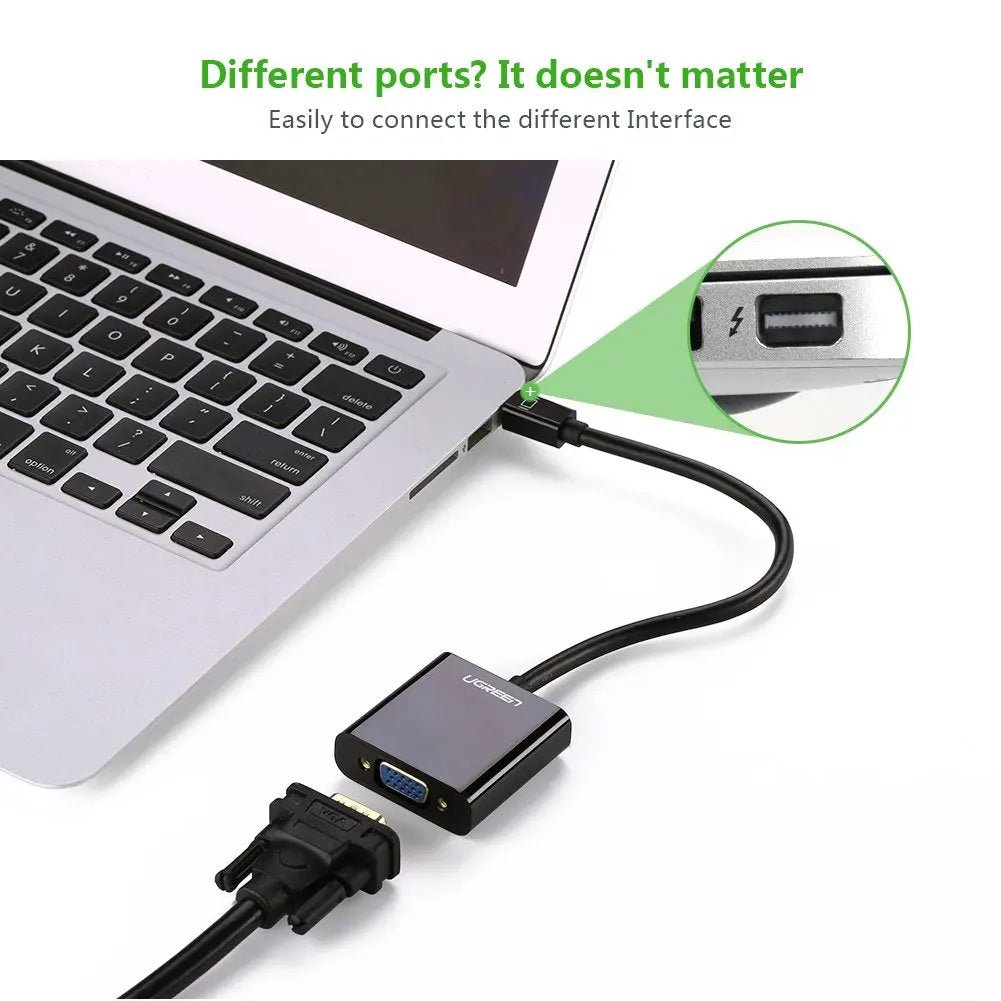

- Inspect the source and display ports under good light. Mini DisplayPort/Thunderbolt 1–2 uses a small rectangular connector. USB-C/Thunderbolt 3–5, HDMI, Mini HDMI and Micro HDMI are different.
- Align each plug with the socket and insert it straight using normal hand pressure. Stop immediately if the connector tilts, binds or requires force.
- Secure DVI or VGA screws finger-tight only, or fully seat the DisplayPort latch where present. Never use retention hardware to pull a plug into alignment.
- Select the correct display input, then begin with 1920×1080 at 60Hz or another documented safe mode before trying the product's maximum listed timing.
- Configure mirror or extended desktop on the source. Route audio separately whenever this product's signal description says video only.
- Support adapters and heavy cables so they do not lever a small HDMI, Micro HDMI or Mini DisplayPort socket; preserve a relaxed bend at every strain relief.
- To disconnect, release latches and screws first, hold the connector shell and pull straight. Do not twist, rock or pull on the cable jacket.
10 · Host behaviour
Operating-system, driver and software guidance
No product driver is installed for a passive cable. An active converter can still rely on the host graphics driver and supported output modes even when no separate app is required.
If the display is detected but blank, choose a lower resolution/refresh rate in the source settings and confirm the destination input. Detection alone does not prove the selected timing is usable.
If mirror works but extended desktop does not, inspect the operating-system display arrangement and GPU limits. The cable carries the configured signal; it does not decide the desktop layout.
If the picture works but there is no sound, compare the exact signal statement in this guide. DVI and VGA paths here are video-only and need a separate audio output selected in software.
For cameras and capture devices, configure clean output, frame rate, colour mode and HDCP at the source; the cable cannot remove menus, overlays or protected-content restrictions.
Software boundary
The accessory has no user application. Connected hosts and devices can still require exact-model drivers, firmware, permissions or settings.
11 · Verified scope
What this product does
- Provides the exact connector path described for UGREEN SKU 10437.
- Operates within the listed ceiling: UGREEN lists video up to 1080p; the actual analogue timing depends on the source, chipset, VGA cable and display.
- Uses the documented direction and signal role: Mini DisplayPort/Thunderbolt 1–2 source output to VGA display input only. It cannot convert VGA back to Mini DisplayPort.
- Provides the documented signal type: Active digital-to-analogue video conversion using an RTD2166 chipset. There is no verified 3.5mm audio output and VGA carries no audio.
- Requires no user application or firmware installation on the cable or passive adapter itself.
- Supports practical mirror, extended-desktop, presentation or entertainment use only when the source and display provide those functions.
12 · Clear boundaries
What this product does not do
- The adapter converts one display signal. It does not add a GPU, split one output, upscale content, carry audio or support a USB-C/Thunderbolt 3 port.
- It does not create a graphics output on a port that lacks video capability.
- It does not make an input become an output, join two sources, drive two independent displays from one connection or act as a capture device.
- It does not guarantee the maximum mode, HDR, HDCP, audio or refresh rate when any endpoint or intermediate device lacks support.
- It does not repair a damaged port, marginal cable, incorrect display input, disabled camera output or unsupported operating-system setting.
- It is not interchangeable with lookalike HDMI, Mini HDMI, Micro HDMI, DisplayPort, Mini DisplayPort, USB-C, DVI-I, DVI-D or VGA products.
13 · Best practice
What to do
14 · Common mistakes
What not to do
15 · Read before use
Warnings and limitations
16 · Diagnostics
Troubleshooting by symptom
17 · Exact data
Technical specifications
| Specification | Verified exact-SKU detail |
|---|---|
| Product | UGREEN 10437 Mini DisplayPort to VGA Adapter, 1080p |
| SKU | 10437 |
| Product family | 10437 |
| Model | 10437 |
| Input/source | Mini DisplayPort male / Thunderbolt 1–2 compatible shape |
| Output/display | VGA/DE-15 female |
| Direction | Mini DisplayPort to VGA only |
| Chipset | RTD2166 |
| Maximum listed video | 1080p |
| Audio | Not supported / no 3.5mm output |
| VGA cable | Not included |
| Housing | ABS |
| Configuration | Plug-and-play at the accessory; endpoint settings still apply |
| Performance rule | Complete-chain dependent |
| Package verification | Compare sealed exact SKU before installation |
Package contents
- 1 × UGREEN 10437 Mini DisplayPort to VGA Adapter, 1080p. Displays, computers, cameras, capture cards, VGA/HDMI/DVI extension cables, audio cables and converters are not included unless explicitly named in the exact product title.
Confirm the sealed exact SKU and included-item list before installation. Similar products can use different connectors, directions or limits.
18 · Native collapsible answers
Product-specific FAQ
Which direction does this exact model work?
Mini DisplayPort/Thunderbolt 1–2 source output to VGA display input only. It cannot convert VGA back to Mini DisplayPort.
What is the highest supported display mode?
UGREEN lists video up to 1080p; the actual analogue timing depends on the source, chipset, VGA cable and display. Treat it as a conditional complete-chain ceiling rather than a guaranteed result for every device.
Does it carry audio?
Active digital-to-analogue video conversion using an RTD2166 chipset. There is no verified 3.5mm audio output and VGA carries no audio. Audio still depends on the source, destination and selected mode.
How do I confirm the ports before buying?
Mini DisplayPort/Thunderbolt 1–2 uses a small rectangular connector. USB-C/Thunderbolt 3–5, HDMI, Mini HDMI and Micro HDMI are different.
Does it need a driver or app?
The accessory has no user application. Keep the source graphics driver and device firmware current, especially for active conversion, EDID and high-bandwidth modes.
Can I mirror or extend my desktop?
Yes when the source GPU and operating system support that layout. The product supplies one connection; it does not create extra independent graphics outputs.
Why is the screen detected but blank?
The selected timing, direction, HDCP state or intermediate device may be unsupported. Start at a conservative mode and test one direct source-to-display path.
Can I add another adapter or coupler?
Only when its connector, direction and ceiling are explicitly compatible. Every extra item can reduce signal margin or change EDID/HDCP behaviour.
Can this be used as a capture device or splitter?
No. It carries or converts one display path as documented; it neither records video nor produces multiple independent outputs.
How should I disconnect it safely?
Release any latch or screws, grip the connector shell and pull straight. Never twist the plug or pull the cable jacket.
What is included in the package?
One UGREEN 10437 Mini DisplayPort to VGA Adapter, 1080p. Check the package section for separately required display, source, audio or extension cables.
