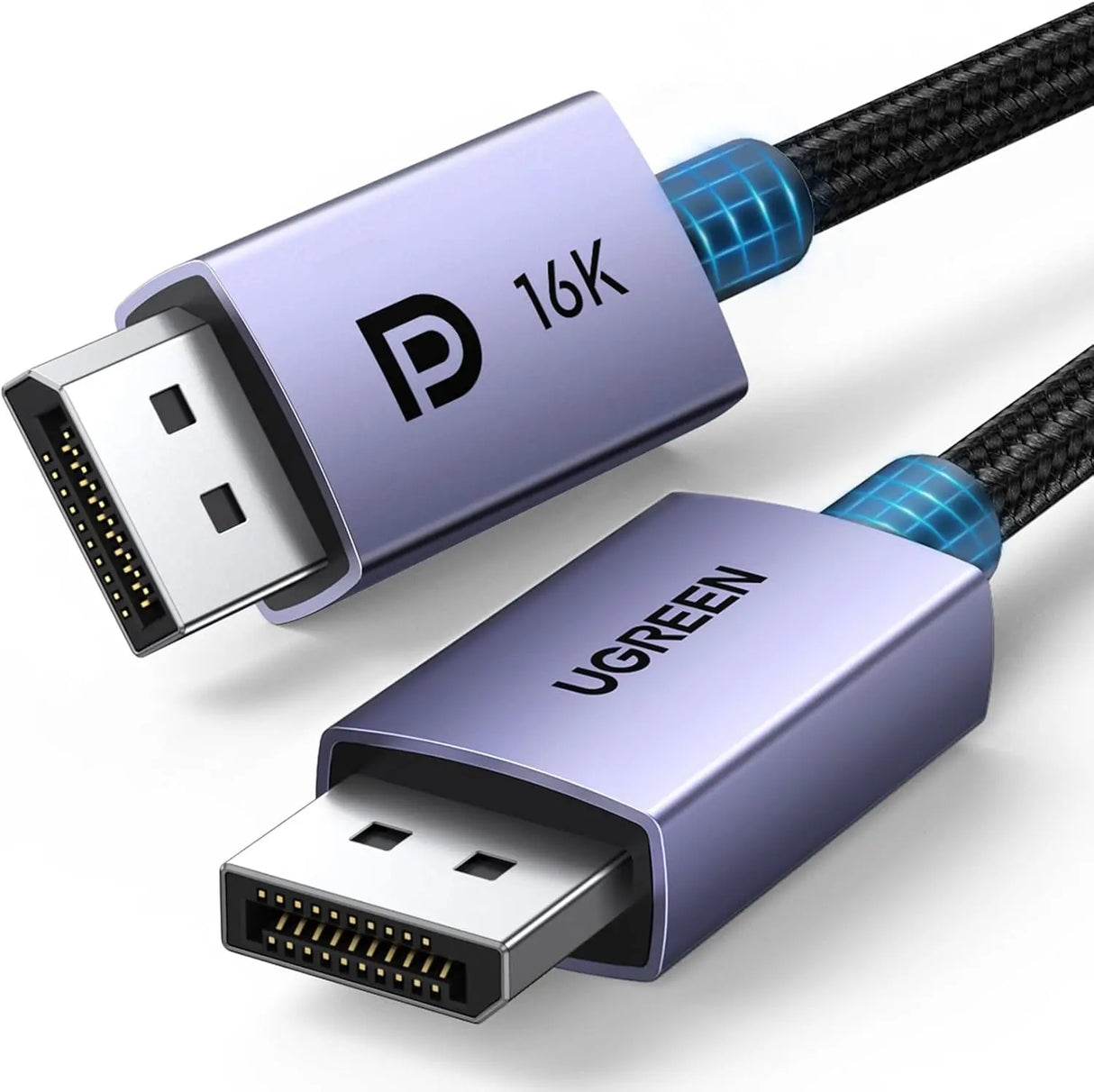

UGREEN 15383 1m VESA-Certified DP 2.1 Cable, 16K30/8K120/4K240
A short one-metre, VESA-certified full-size DisplayPort cable for a high-end graphics card and nearby monitor. Its exact India listing uses a 40Gbps UHBR10 ceiling, while the corrected mode table resolves conflicting 8K refresh claims in favour of the lower live-gallery figure.
Fast purchase decision
Overview
Best suited to
High-end graphics card to a nearby 4K high-refresh monitor; Creator workstation to a very-high-resolution DisplayPort panel.
Choose it for
1m reach, full-size displayport male to full-size displayport male and 16K30 / 8K120 / 4K240.
Check first
Both devices need compatible full-size DisplayPort. DP 2.1/UHBR10, DSC and the requested mode must be supported across source, display, drivers and settings.
Verified exact-model highlights
Key features
Exact length
1m; buy by the real route rather than a family length.
Connector fit
Full-size DisplayPort male to full-size DisplayPort male
Verified video target
Conservatively positioned up to 16K at 30Hz, 8K at 120Hz or 4K at 240Hz with compatible DSC equipment
Published signal rate
Up to 40Gbps UHBR10, as stated on the exact India page
Signal direction
No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input
Construction

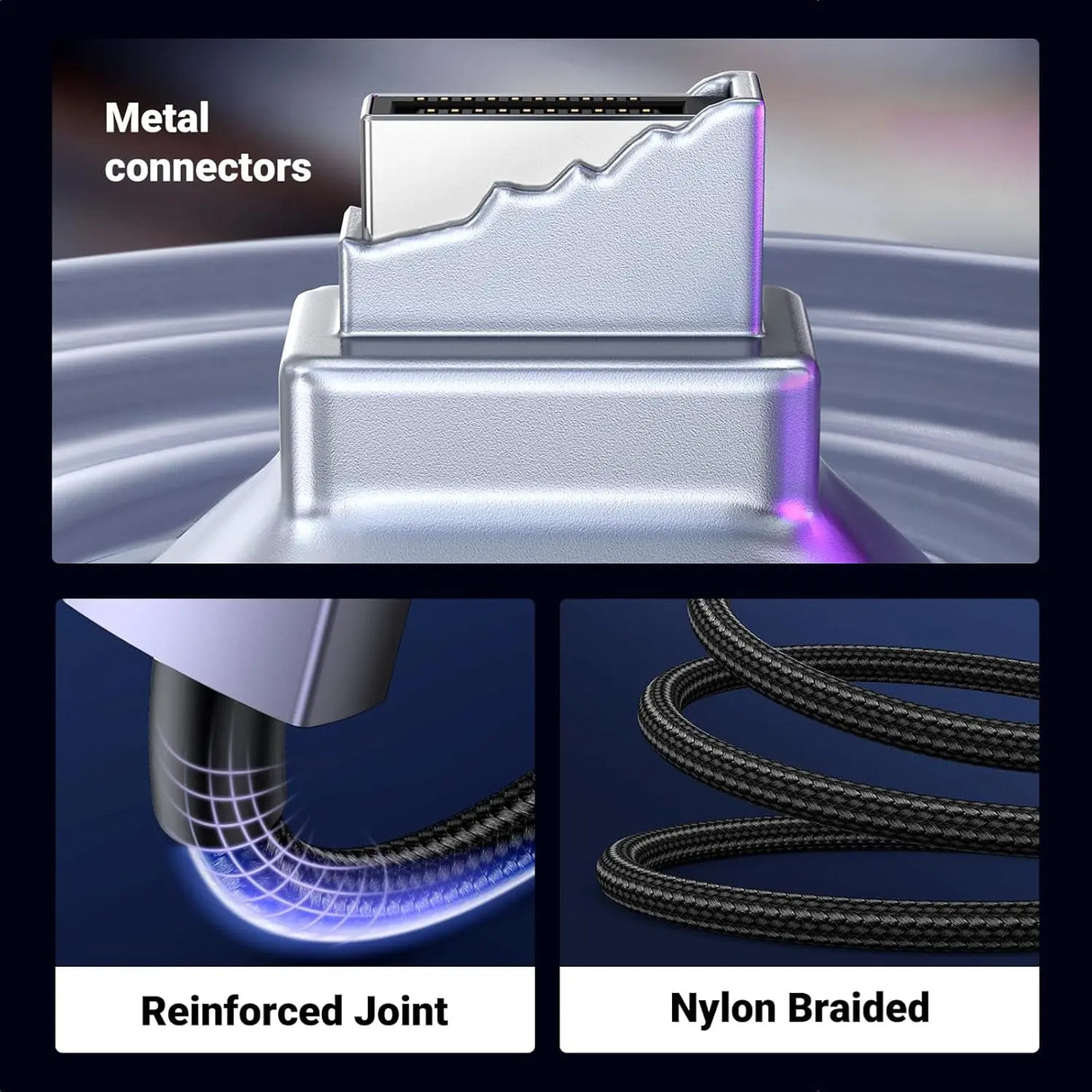

The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings, reinforced joints and a nylon-braided jacket. Pin 20 is disabled and supplies no power.
Exact-SKU guidance
How to read the video rating
Cable ceiling and actual device result are different

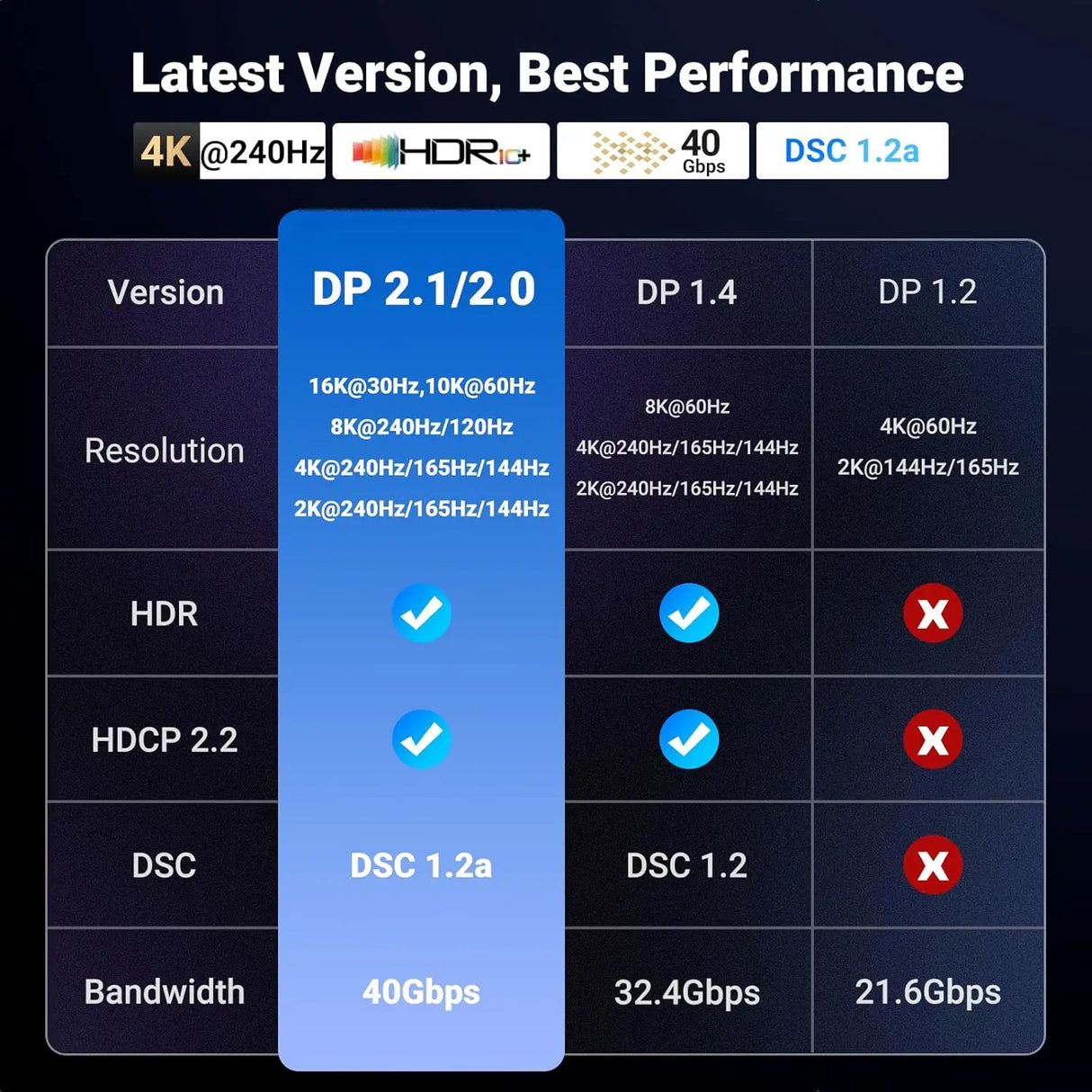

The India title/body says 8K240, but the exact live high-refresh chart labels 8K120. This corrected page uses the lower 8K120 figure while retaining the consistent 16K30 and 4K240 claims.
- Exact-SKU guidance: Conservatively positioned up to 16K at 30Hz, 8K at 120Hz or 4K at 240Hz with compatible DSC equipment.
- Published rate: Up to 40Gbps UHBR10, as stated on the exact India page.
- Both devices need compatible full-size DisplayPort. DP 2.1/UHBR10, DSC and the requested mode must be supported across source, display, drivers and settings.
- A dock, KVM, receiver, switch, splitter, adapter, coupler, wall plate or extra cable can lower the final mode.
Verified functions, plainly explained
Audio and display features
VESA-certified exact model
Verified for this exact SKU or its official exact-SKU family; connected equipment must support it.
DisplayPort 2.1/2.0 listing with UHBR10
Requires compatible source, display and settings.
DSC 1.2a and FEC support
Requires compatible source, display and settings.
HDR and HDCP 2.2 pass-through
Requires compatible source, display and settings.
VRR, AMD FreeSync and NVIDIA G-SYNC where supported
Requires compatible source, display and settings.
MST transport plus mirror and extended display modes
Requires compatible source, display and settings.
A cable cannot upscale content, generate frames or add a feature absent from the source or display.
Exact-SKU guidance
Construction and routing
Build and handling guidance
The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings, reinforced joints and a nylon-braided jacket. Pin 20 is disabled and supplies no power.
- No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input
- Plan a relaxed route and protect both connector housings from sideways pull.
- Test the exact intended mode before the route becomes hard to access.
- Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.
Practical examples
Use scenarios
Home and media
High-end graphics card to a nearby 4K high-refresh monitor
Work and presentation
Creator workstation to a very-high-resolution DisplayPort panel
Gaming or specialist display
Gaming desktop to a compatible FreeSync or G-SYNC display
Longer-term setup
MST-capable workstation and monitor chain within available bandwidth
Connect • configure • verify
Setup and usability guidance
- Step 1: Connect a compatible DisplayPort graphics output directly to the monitor input.
- Step 2: Enable the monitor’s DP 2.1/UHBR mode if its menu requires it.
- Step 3: Install current GPU drivers, then establish a stable base mode.
- Step 4: Enable DSC, HDR or adaptive sync only as supported by both devices.
- Step 5: For MST, calculate shared bandwidth and confirm each monitor’s input/output functions.
After setup, use the display information screen or operating-system display panel to confirm the resolution, refresh rate, HDR state and active audio device actually negotiated.
Exact-SKU guidance
Compatible devices and systems
Match connector shape, signal direction and port capability
- NVIDIA, AMD and Intel graphics cards with compatible full-size DisplayPort output
- Workstations and desktops with DP 2.1/2.0, DP 1.4 or earlier full-size ports
- DisplayPort gaming monitors, professional panels, ultrawide and high-resolution displays
- Backward operation with DP 2.0, 1.4, 1.3 and 1.2 equipment at lower mutually supported modes
Examples do not guarantee every generation or port reaches the cable ceiling; check both device manuals.
Avoid the common mismatch
Check before buying
- The route suits 1m, including connector clearance and relaxed service slack.
- The ports match: Full-size DisplayPort male to full-size DisplayPort male.
- Use one plug at the source graphics output and the other at the receiving DisplayPort input. The exact page states that pin 20 is disabled and supplies no power.
- Both devices need compatible full-size DisplayPort. DP 2.1/UHBR10, DSC and the requested mode must be supported across source, display, drivers and settings.
- The desired mode stays within: Conservatively positioned up to 16K at 30Hz, 8K at 120Hz or 4K at 240Hz with compatible DSC equipment.
- Any intermediate device supports the same video, audio and content-protection requirements.
Scope and limitations
What this product does
- Provides a 1m full-size DisplayPort-to-DisplayPort connection.
- Carries compatible digital video and source-to-display audio.
- Passes DSC, FEC, HDR, HDCP, VRR and MST signals when supported.
- Uses a disabled pin 20, so it does not send connector power.
What this product does not do
- It does not provide HDMI ARC/eARC; conflicting legacy wording is not treated as a DisplayPort function.
- It does not power or charge a monitor through pin 20.
- It does not convert HDMI, USB-C, DVI or VGA.
- It does not guarantee 16K, 8K or 4K240 on hardware that lacks the required bandwidth and DSC.
Care and installation practice
What to do
- Confirm DP version and DSC support on both devices.
- Use a direct connection for the highest modes.
- Check the monitor information screen for actual refresh and colour depth.
- Grip the metal housing and keep the braid in a gentle curve.
What not to do
- Do not claim or expect HDMI eARC from this DP-to-DP cable.
- Do not rely on pin 20 for power.
- Do not force the plug or sharply bend the cable.
- Do not treat marketing ceilings as a guarantee for every GPU and monitor.
Read before use
Warnings and limitations
Capability limit
8K refresh claims conflict between official body text and exact gallery; the lower 8K120 value is used here.
Compatibility caution
Official regional UGREEN pages also conflict on 40Gbps versus 80Gbps; exact India’s 40Gbps UHBR10 value governs.
Gallery or claim conflict
The exact body includes Dolby/eARC/ALLM language that is not relied on for this DP-to-DP product.
Installation warning
No in-wall, plenum, LSZH or fire rating is claimed.
Exact-model reference
Technical specifications
| Brand | UGREEN |
|---|---|
| SKU | 15383 |
| Product type | VESA-certified DisplayPort 2.1 male-to-male cable |
| Cable length | 1 metre |
| Connectors | Full-size DisplayPort male to full-size DisplayPort male |
| Direction | No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input |
| Verified video guidance | Conservatively positioned up to 16K at 30Hz, 8K at 120Hz or 4K at 240Hz with compatible DSC equipment |
| Published bandwidth / rate | Up to 40Gbps UHBR10, as stated on the exact India page |
| Construction | The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings, reinforced joints and a nylon-braided jacket. Pin 20 is disabled and supplies no power. |
| Feature support | VESA-certified exact model, DisplayPort 2.1/2.0 listing with UHBR10, DSC 1.2a and FEC support, HDR and HDCP 2.2 pass-through, VRR, AMD FreeSync and NVIDIA G-SYNC where supported, MST transport plus mirror and extended display modes |
| Display generation | DisplayPort 2.1/2.0 listing; backward compatible |
| Link rate | 40Gbps UHBR10 on exact India page |
| Certification | VESA certified |
| Compression / correction | DSC 1.2a and FEC |
| Content / sync | HDR, HDCP 2.2, VRR, FreeSync, G-SYNC and MST as listed |
| Pin 20 | Disabled; no power |
| Conductors | 28AWG tinned copper with tinplate and triple shielding |
In the box
Package contents
- 1 × UGREEN 15383 1m DisplayPort 2.1 male-to-male cable
Shown devices and accessories are not included. Confirm SKU 15383 and 1m before routing.
Tap a question to expand
Product-specific FAQ
What is the verified video guidance for UGREEN 15383?
Conservatively positioned up to 16K at 30Hz, 8K at 120Hz or 4K at 240Hz with compatible DSC equipment. The India title/body says 8K240, but the exact live high-refresh chart labels 8K120. This corrected page uses the lower 8K120 figure while retaining the consistent 16K30 and 4K240 claims.
Is the cable directional?
Use one plug at the source graphics output and the other at the receiving DisplayPort input. The exact page states that pin 20 is disabled and supplies no power.
What ports and source capability are required?
Full-size DisplayPort male to full-size DisplayPort male. Both devices need compatible full-size DisplayPort. DP 2.1/UHBR10, DSC and the requested mode must be supported across source, display, drivers and settings.
Will every compatible-looking device reach the maximum mode?
No. The source hardware, port version, graphics driver, operating system, display input, selected colour format and every intermediate device determine the negotiated result.
Does it need a driver or separate power adapter?
No separate cable driver or external power adapter is listed. The host graphics system may still need the correct driver and display settings.
Why does this page say 8K120 instead of 8K240?
The official India title/body says 8K240, but the exact live high-refresh gallery chart labels 8K120. The lower figure is used to resolve that conflict conservatively.
Does pin 20 carry power?
No. The exact official page states that pin 20 is disabled, so the cable does not provide power through that pin.
What should I check if there is no picture?
Verify connector direction and port type, select the correct display input, reseat both ends, test a direct connection, lower the resolution/refresh rate, and restart or update the graphics system if needed.
Can it be routed inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable markings and local installation requirements before any in-wall, ceiling or conduit route.
What is included in the package?
1 × UGREEN 15383 1m DisplayPort 2.1 male-to-male cable. Devices, adapters and cable-management accessories shown in use images are not included.
