Exact SKU 80392 • researched buying guide

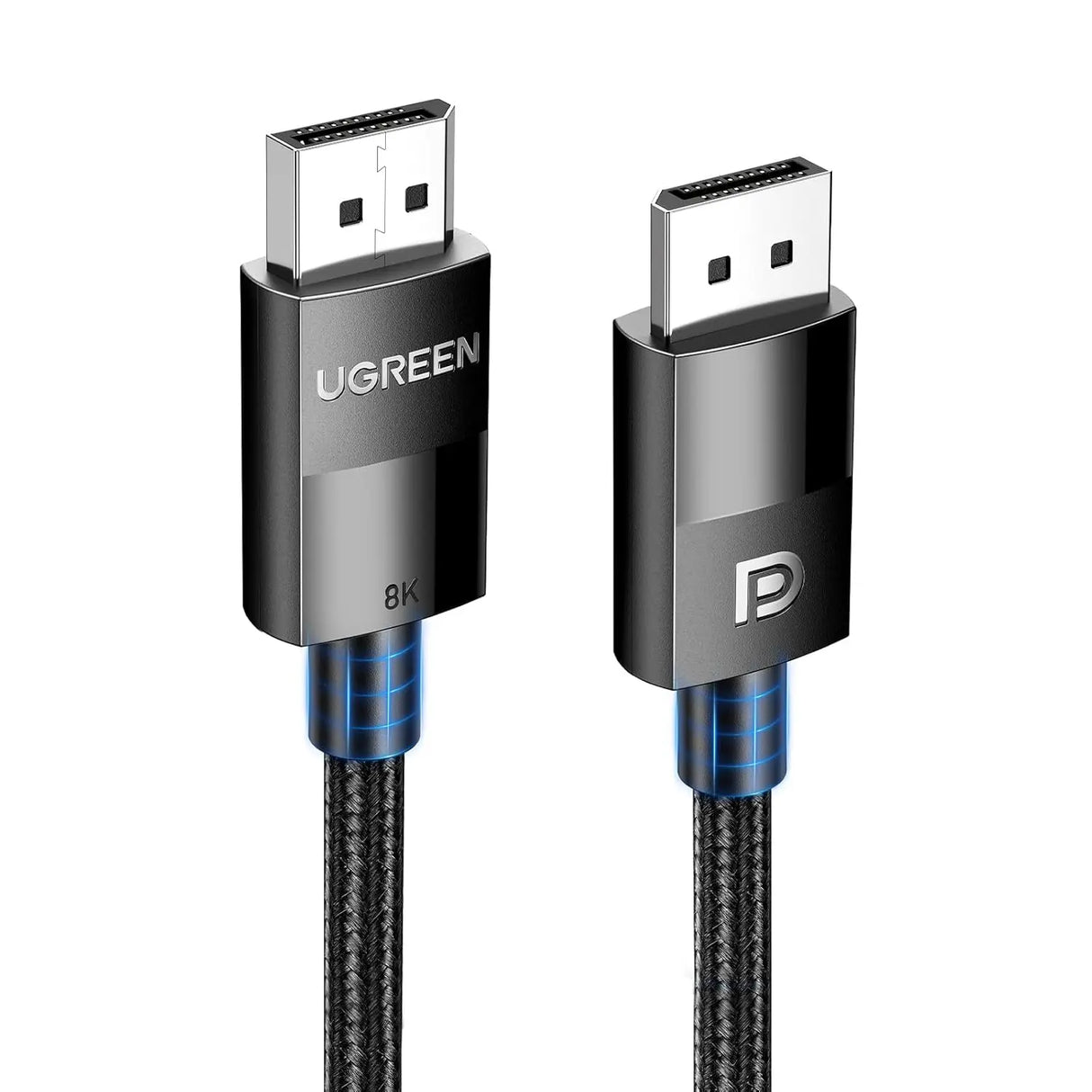

UGREEN 80392 2m VESA-Certified DisplayPort 1.4 Cable, 8K60/4K144
A two-metre, full-size DisplayPort cable for a desktop, workstation or laptop dock positioned near a compatible monitor. It is aimed at high-resolution creative work and high-refresh gaming without changing connector standards.
Fast purchase decision
Overview
Best suited to
Graphics card to a 4K high-refresh gaming monitor; Workstation to an 8K or high-resolution professional display.
Choose it for
2m reach, full-size displayport male to full-size displayport male and 8K60 / 4K144.
Check first
Both devices need full-size DisplayPort. The requested mode must be supported by the graphics output, display input, driver and monitor settings.
Verified exact-model highlights
Key features
Exact length
2m; buy by the real route rather than a family length.
Connector fit
Full-size DisplayPort male to full-size DisplayPort male
Verified video target
Up to 8K at 60Hz, 4K at 144Hz or 1440p/2K at 240Hz on compatible equipment

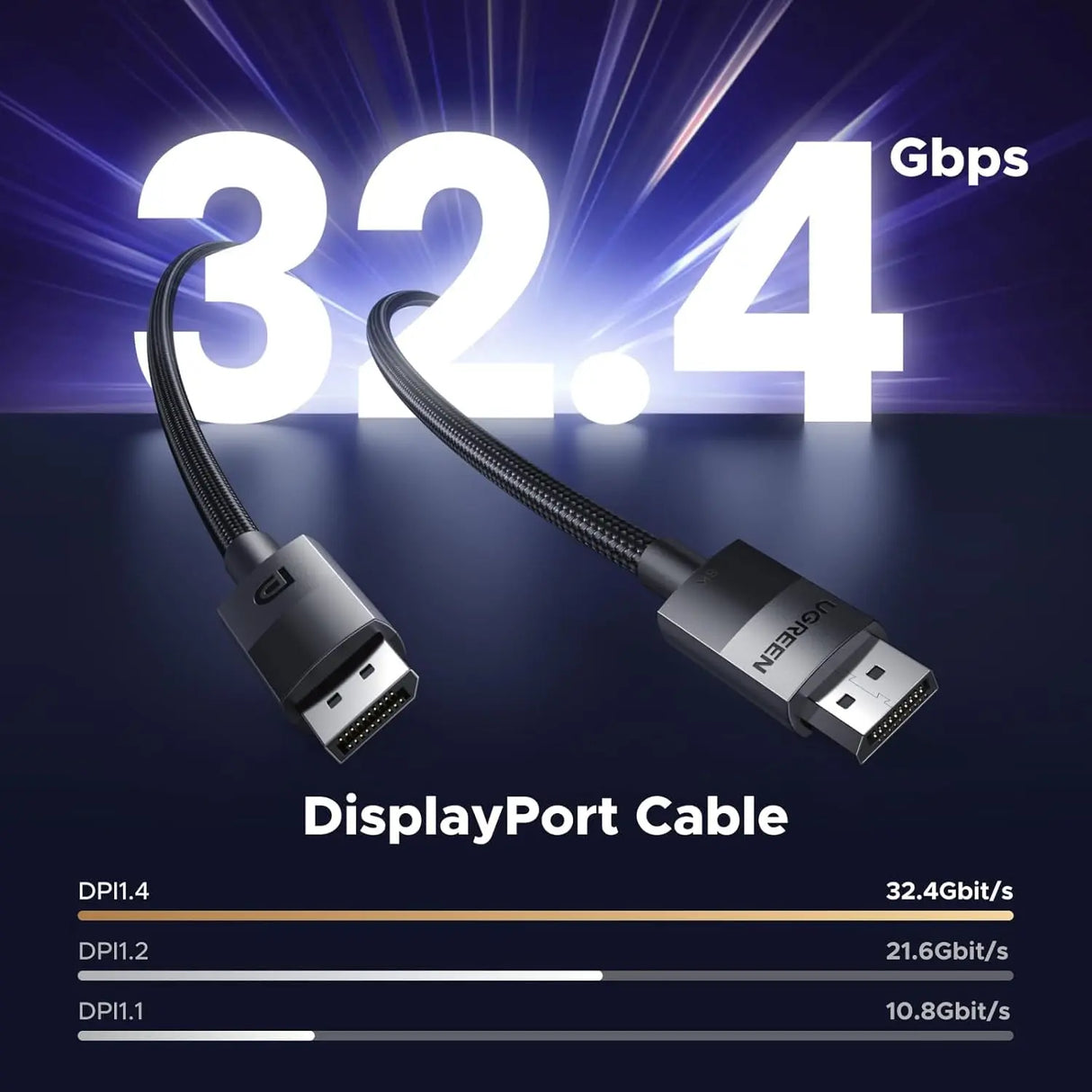

Published signal rate
Up to 32.4Gbps raw DisplayPort 1.4 link rate
Signal direction
No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input

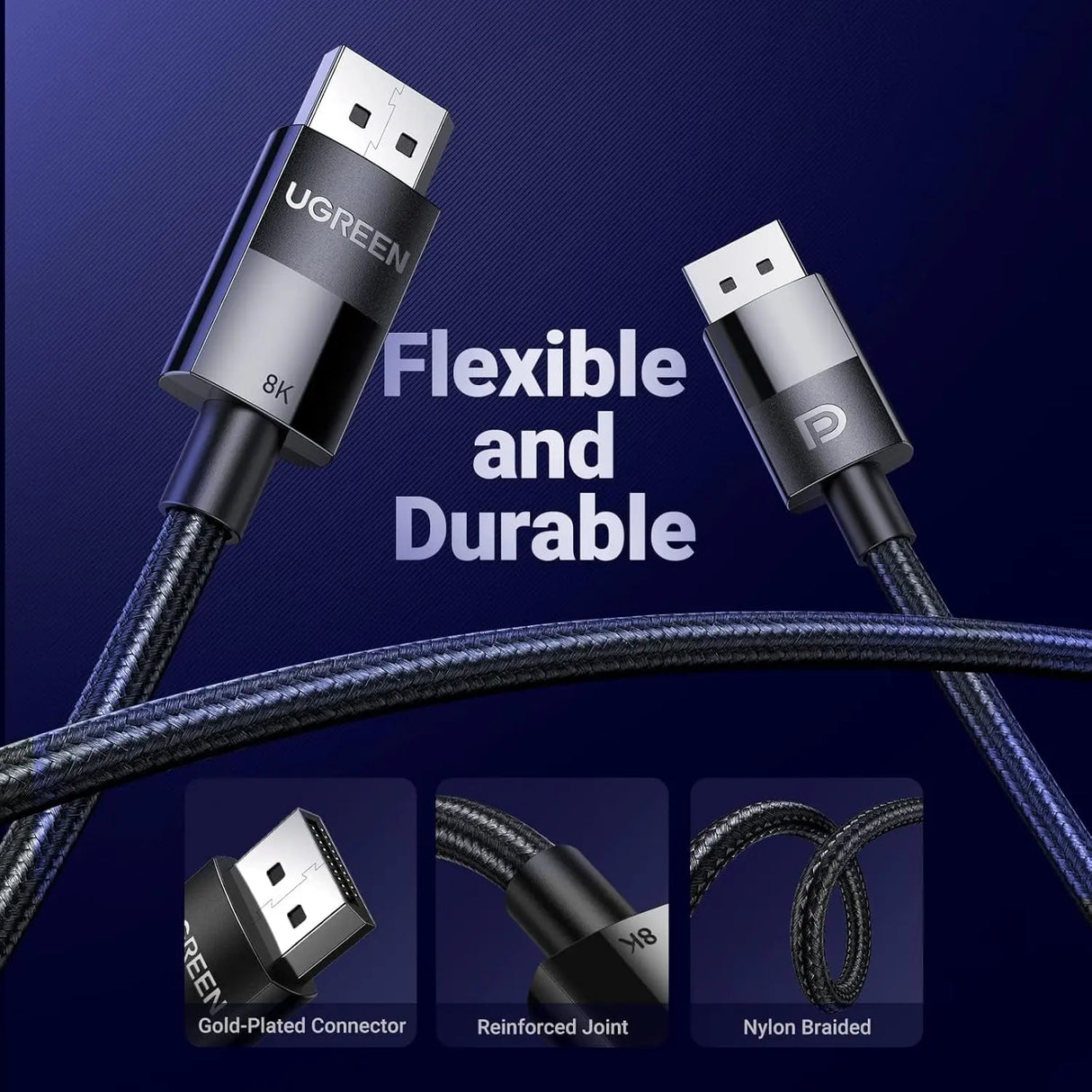

Construction
Nylon-braided jacket, reinforced joints, gold-plated contact wording and shielded copper construction are shown or stated on the exact official sources. The India page specifically notes that this model has no locking clip.
Exact-SKU guidance
How to read the video rating
Cable ceiling and actual device result are different
The exact India title and official exact family page establish 4K144; the India body also lists 8K60 and 2K240. DSC and compatible ports are required for demanding mode combinations.
- Exact-SKU guidance: Up to 8K at 60Hz, 4K at 144Hz or 1440p/2K at 240Hz on compatible equipment.
- Published rate: Up to 32.4Gbps raw DisplayPort 1.4 link rate.
- Both devices need full-size DisplayPort. The requested mode must be supported by the graphics output, display input, driver and monitor settings.
- A dock, KVM, receiver, switch, splitter, adapter, coupler, wall plate or extra cable can lower the final mode.
Verified functions, plainly explained
Audio and display features
VESA-certified exact 80392/80393 cable family
Verified for this exact SKU or its official exact-SKU family; connected equipment must support it.
DisplayPort 1.4 / HBR3 link
Requires compatible source, display and settings.
DSC 1.2 support for bandwidth-intensive modes
Requires compatible source, display and settings.
Dynamic HDR and HDCP 2.2 pass-through as listed
Requires compatible source, display and settings.
Digital audio including listed 2.0, 5.1 and 7.1 channel formats
Requires compatible source, display and settings.
Mirror, extended and compatible MST/splicing use
Requires compatible source, display and settings.
A cable cannot upscale content, generate frames or add a feature absent from the source or display.
Exact-SKU guidance
Construction and routing
Build and handling guidance
Nylon-braided jacket, reinforced joints, gold-plated contact wording and shielded copper construction are shown or stated on the exact official sources. The India page specifically notes that this model has no locking clip.
- No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input
- Plan a relaxed route and protect both connector housings from sideways pull.
- Test the exact intended mode before the route becomes hard to access.
- Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.
Practical examples
Use scenarios
Home and media
Graphics card to a 4K high-refresh gaming monitor
Work and presentation
Workstation to an 8K or high-resolution professional display
Gaming or specialist display
Desktop or dock to an ultrawide DisplayPort monitor
Longer-term setup
Supported MST or multi-display workflow within the source bandwidth
Connect • configure • verify
Setup and usability guidance
- Step 1: Connect the graphics output to the monitor DisplayPort input.
- Step 2: Select DisplayPort 1.4 or the enhanced mode in the monitor menu if required.
- Step 3: Install the current GPU driver, then select resolution, refresh rate, colour depth and HDR.
- Step 4: Enable adaptive sync only after confirming a stable base mode.
- Step 5: For MST, check the GPU, operating system and monitor output-port support before building a chain.
After setup, use the display information screen or operating-system display panel to confirm the resolution, refresh rate, HDR state and active audio device actually negotiated.
Exact-SKU guidance
Compatible devices and systems
Match connector shape, signal direction and port capability
- NVIDIA, AMD and Intel graphics outputs with full-size DisplayPort
- Desktop PCs, workstations, compatible laptops and docks with DisplayPort output
- DisplayPort monitors, gaming displays, ultrawide screens, projectors and professional panels
- Backward operation with DisplayPort 1.3, 1.2 and 1.1 equipment at the mutually supported mode
Examples do not guarantee every generation or port reaches the cable ceiling; check both device manuals.
Avoid the common mismatch
Check before buying
- The route suits 2m, including connector clearance and relaxed service slack.
- The ports match: Full-size DisplayPort male to full-size DisplayPort male.
- Use one plug at the source DisplayPort output and the other at the receiving DisplayPort input. This is not a DisplayPort-to-HDMI or USB-C conversion cable.
- Both devices need full-size DisplayPort. The requested mode must be supported by the graphics output, display input, driver and monitor settings.
- The desired mode stays within: Up to 8K at 60Hz, 4K at 144Hz or 1440p/2K at 240Hz on compatible equipment.
- Any intermediate device supports the same video, audio and content-protection requirements.
Scope and limitations
What this product does
- Provides a 2m full-size DisplayPort-to-DisplayPort link.
- Carries compatible digital video and audio up to the verified cable ceiling.
- Passes DSC, HDR, HDCP and adaptive-sync signals when the complete system supports them.
- Supports mirror, extended and compatible MST workflows as transport.
What this product does not do
- It does not convert DisplayPort to HDMI, USB-C, DVI or VGA.
- It does not make an older source or monitor support DP 1.4 modes.
- It does not create FreeSync, G-SYNC or MST on unsupported hardware.
- It does not have a DisplayPort locking clip on this exact model.
Care and installation practice
What to do
- Confirm both ports are full-size DisplayPort.
- Use the latest stable graphics driver and monitor firmware where applicable.
- Test the intended mode directly before adding a KVM, dock or adapter.
- Release the plug straight out; do not twist or lever the connector.
What not to do
- Do not force the plug into HDMI or another similarly shaped socket.
- Do not assume 8K60 or 4K144 without checking DSC and port support.
- Do not sharply kink, crush, pull or staple the cable.
- Do not expect the cable alone to eliminate every black-screen or handshake issue.
Read before use
Warnings and limitations
Capability limit
Actual resolution and refresh are limited by the lowest-capability device and selected colour format.
Compatibility caution
A dock, KVM, coupler, adapter or MST chain can reduce available bandwidth.
Gallery or claim conflict
The exact gallery contains a broader refresh chart than the India body; this page uses the exact title plus official family evidence and avoids unsupported 4K240 wording.
Installation warning
No in-wall, plenum, LSZH or fire rating is claimed.
Exact-model reference
Technical specifications
| Brand | UGREEN |
|---|---|
| SKU | 80392 |
| Product type | DisplayPort 1.4 male-to-male cable |
| Cable length | 2 metres |
| Connectors | Full-size DisplayPort male to full-size DisplayPort male |
| Direction | No Source/Display orientation is published; connect a DisplayPort output to a DisplayPort input |
| Verified video guidance | Up to 8K at 60Hz, 4K at 144Hz or 1440p/2K at 240Hz on compatible equipment |
| Published bandwidth / rate | Up to 32.4Gbps raw DisplayPort 1.4 link rate |
| Construction | Nylon-braided jacket, reinforced joints, gold-plated contact wording and shielded copper construction are shown or stated on the exact official sources. The India page specifically notes that this model has no locking clip. |
| Feature support | VESA-certified exact 80392/80393 cable family, DisplayPort 1.4 / HBR3 link, DSC 1.2 support for bandwidth-intensive modes, Dynamic HDR and HDCP 2.2 pass-through as listed, Digital audio including listed 2.0, 5.1 and 7.1 channel formats, Mirror, extended and compatible MST/splicing use |
| Display standard | DisplayPort 1.4 / HBR3 |
| Certification | VESA-certified exact 80392/80393 family, verified on official UGREEN regional page and exact live gallery |
| Compression | Display Stream Compression 1.2 support |
| Content protection | HDCP 2.2 listed |
| Audio | Digital audio pass-through; listed 2.0, 5.1 and 7.1 channel formats |
| Connector latch | No locking clip, as stated on the India page |
In the box
Package contents
- 1 × UGREEN 80392 2m DisplayPort 1.4 male-to-male cable
Shown devices and accessories are not included. Confirm SKU 80392 and 2m before routing.
Selected and visually checked
Exact-product media
Selected after exact-listing review; duplicates, wrong-model media and conflicting artwork were excluded.
Tap a question to expand
Product-specific FAQ
What is the verified video guidance for UGREEN 80392?
Up to 8K at 60Hz, 4K at 144Hz or 1440p/2K at 240Hz on compatible equipment. The exact India title and official exact family page establish 4K144; the India body also lists 8K60 and 2K240. DSC and compatible ports are required for demanding mode combinations.
Is the cable directional?
Use one plug at the source DisplayPort output and the other at the receiving DisplayPort input. This is not a DisplayPort-to-HDMI or USB-C conversion cable.
What ports and source capability are required?
Full-size DisplayPort male to full-size DisplayPort male. Both devices need full-size DisplayPort. The requested mode must be supported by the graphics output, display input, driver and monitor settings.
Will every compatible-looking device reach the maximum mode?
No. The source hardware, port version, graphics driver, operating system, display input, selected colour format and every intermediate device determine the negotiated result.
Does it need a driver or separate power adapter?
No separate cable driver or external power adapter is listed. The host graphics system may still need the correct driver and display settings.
Is SKU 80392 VESA certified?
Yes. The exact live gallery and official UGREEN regional page identify the 80392/80393 family as VESA certified.
Does the cable have a locking clip?
No. The exact India product page specifically states that this model does not come with a clip lock.
What should I check if there is no picture?
Verify connector direction and port type, select the correct display input, reseat both ends, test a direct connection, lower the resolution/refresh rate, and restart or update the graphics system if needed.
Can it be routed inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable markings and local installation requirements before any in-wall, ceiling or conduit route.
What is included in the package?
1 × UGREEN 80392 2m DisplayPort 1.4 male-to-male cable. Devices, adapters and cable-management accessories shown in use images are not included.
