Exact SKU 80397 • researched buying guide
UGREEN 80397 2m Active DisplayPort 1.4 to HDMI 2.1 Cable, 8K60/4K120
A two-metre active conversion cable for connecting a DisplayPort 1.4 computer or graphics card to an HDMI 2.1 television, monitor or projector. It targets high-resolution and high-refresh display use while clearly excluding reverse operation and adaptive-sync functions.
Fast purchase decision
Overview
Best suited to
Desktop graphics card with DisplayPort output to an HDMI 2.1 monitor; Workstation to an HDMI television for high-resolution presentation or media.
Choose it for
2m reach, full-size displayport male to full-size hdmi type-a male and 8K60 / 4K120.
Check first
A compatible full-size DisplayPort graphics output is required. HDMI-source devices—including consoles that only provide HDMI—cannot use this cable as a reverse converter.
Verified exact-model highlights
Key features
Exact length
2m; buy by the real route rather than a family length.
Connector fit
Full-size DisplayPort male to full-size HDMI Type-A male
Verified video target
Up to 8K at 60Hz or 4K at 120Hz on compatible source and HDMI display hardware
Published signal rate
Up to 32.4Gbps DisplayPort 1.4 input link rate

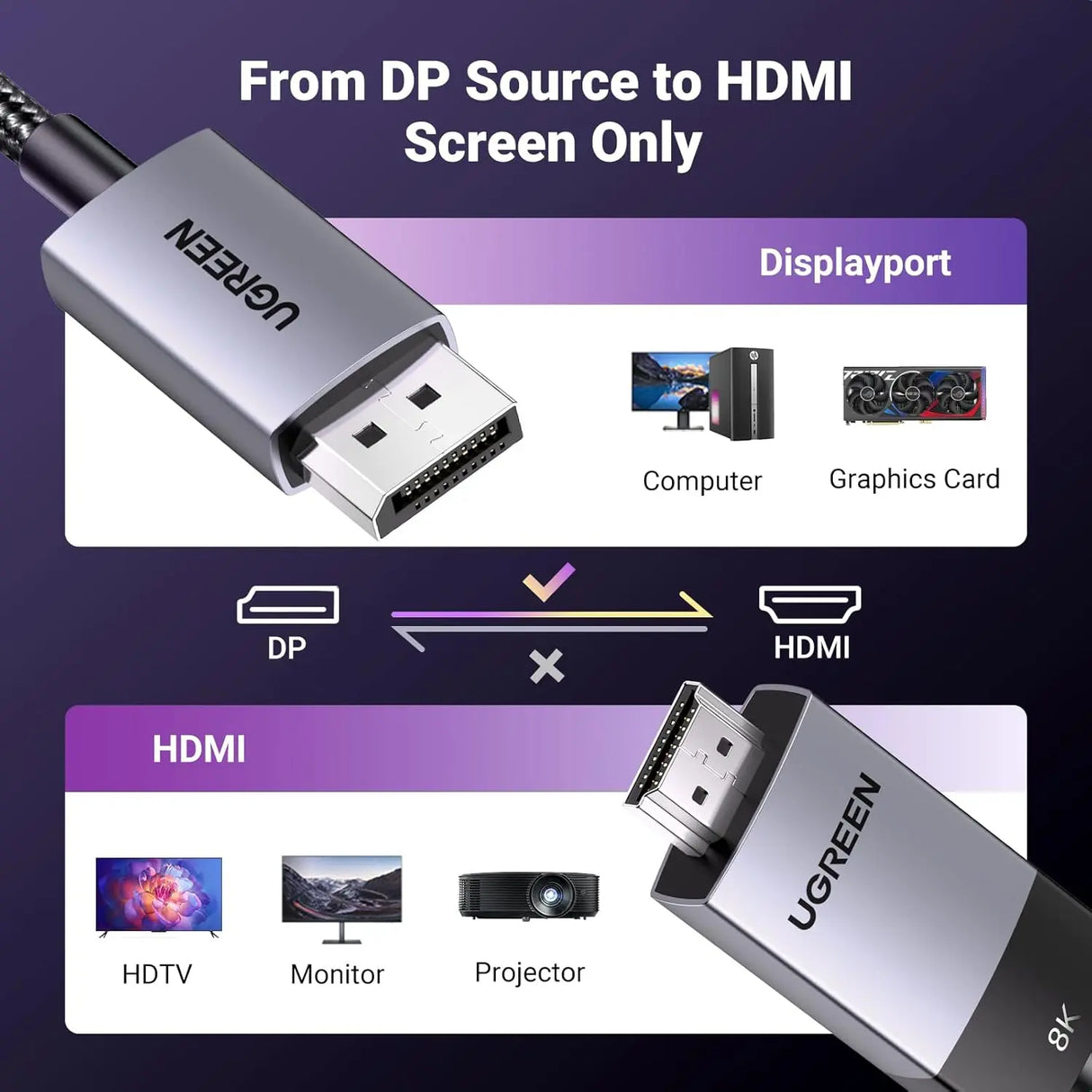

Signal direction
Unidirectional active conversion: DisplayPort source to HDMI display only

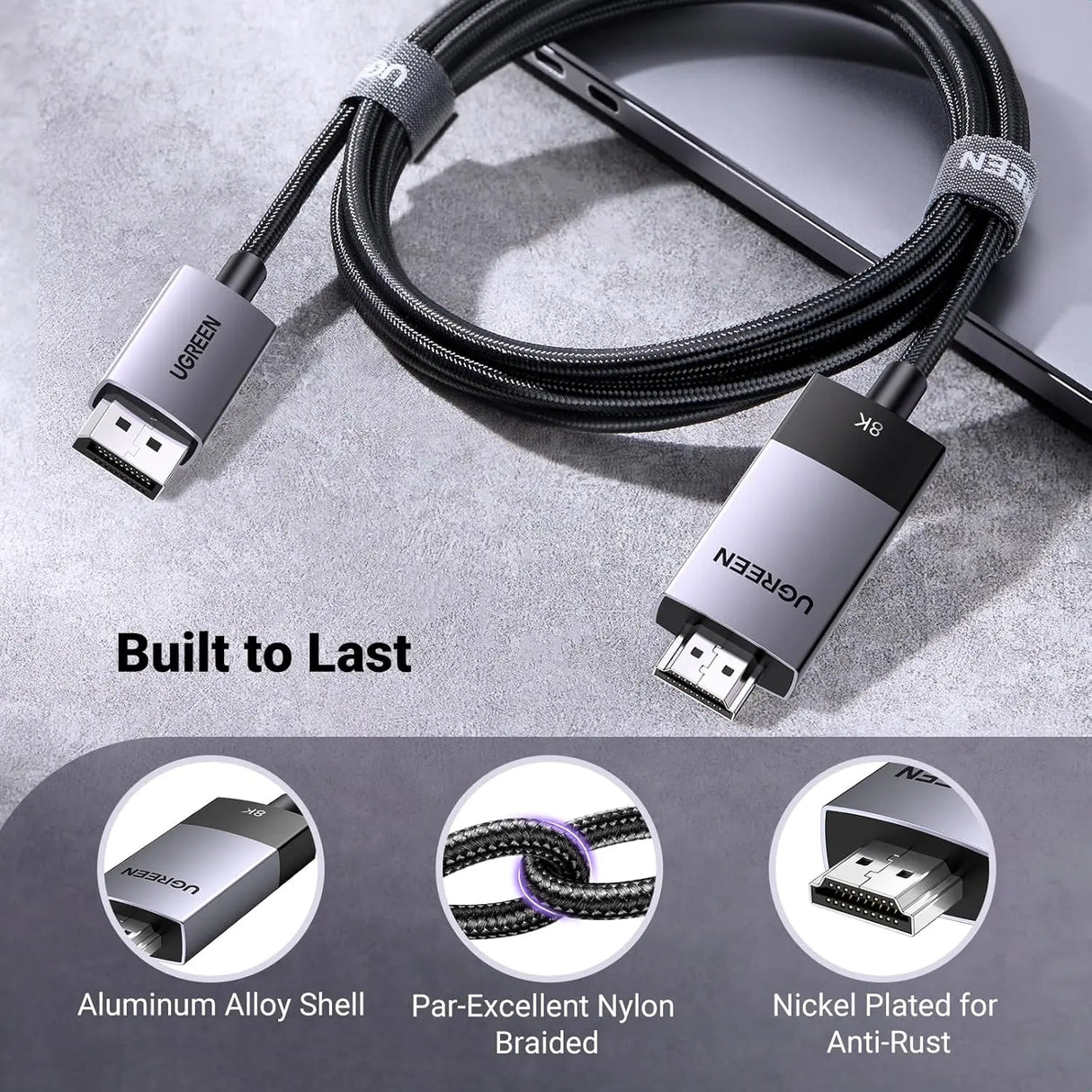

Construction
The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings and a nylon-braided jacket. The live gallery clearly labels DP-source-to-HDMI-screen direction.
Exact-SKU guidance
How to read the video rating
Cable ceiling and actual device result are different
The active converter path is one-way. The official exact page also explicitly states that VRR, ALLM, FreeSync and G-SYNC are not supported, even though 4K120 is listed.
- Exact-SKU guidance: Up to 8K at 60Hz or 4K at 120Hz on compatible source and HDMI display hardware.
- Published rate: Up to 32.4Gbps DisplayPort 1.4 input link rate.
- A compatible full-size DisplayPort graphics output is required. HDMI-source devices—including consoles that only provide HDMI—cannot use this cable as a reverse converter.
- A dock, KVM, receiver, switch, splitter, adapter, coupler, wall plate or extra cable can lower the final mode.
Verified functions, plainly explained
Audio and display features
Active DisplayPort 1.4-to-HDMI 2.1 conversion
Verified for this exact SKU or its official exact-SKU family; connected equipment must support it.
Up to 8K60 or 4K120
Requires compatible source, display and settings.
Dynamic HDR pass-through as listed
Requires compatible source, display and settings.
HDCP 2.3 and DSC 1.2a support as listed
Requires compatible source, display and settings.
Dolby 7.1 audio pass-through wording
Requires compatible source, display and settings.
Mirror and extended desktop modes controlled by the host
Requires compatible source, display and settings.
A cable cannot upscale content, generate frames or add a feature absent from the source or display.
Exact-SKU guidance
Construction and routing
Build and handling guidance
The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings and a nylon-braided jacket. The live gallery clearly labels DP-source-to-HDMI-screen direction.
- Unidirectional active conversion: DisplayPort source to HDMI display only
- Plan a relaxed route and protect both connector housings from sideways pull.
- Test the exact intended mode before the route becomes hard to access.
- Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.
Practical examples
Use scenarios
Home and media
Desktop graphics card with DisplayPort output to an HDMI 2.1 monitor
Work and presentation
Workstation to an HDMI television for high-resolution presentation or media
Gaming or specialist display
DisplayPort PC to an HDMI projector
Longer-term setup
Multiple-display PC setup using separate graphics outputs and one cable per display
Connect • configure • verify
Setup and usability guidance
- Step 1: Connect DisplayPort to the source PC or graphics card.
- Step 2: Connect HDMI to the receiving television, monitor or projector.
- Step 3: Prefer a direct connection; the official page advises against an intervening dock or hub for this active path.
- Step 4: Select the HDMI input and establish a basic picture before choosing 8K60 or 4K120.
- Step 5: Verify the display-reported mode; leave VRR, ALLM, FreeSync and G-SYNC disabled because the exact page says they are unsupported.
After setup, use the display information screen or operating-system display panel to confirm the resolution, refresh rate, HDR state and active audio device actually negotiated.
Exact-SKU guidance
Compatible devices and systems
Match connector shape, signal direction and port capability
- Desktop towers and graphics cards from AMD, NVIDIA or Intel with compatible full-size DisplayPort output
- Laptops and workstations with full-size DisplayPort output
- HDMI televisions, monitors, projectors and supported VR headsets
- Windows and other host systems able to output the requested mode through DisplayPort
Examples do not guarantee every generation or port reaches the cable ceiling; check both device manuals.
Avoid the common mismatch
Check before buying
- The route suits 2m, including connector clearance and relaxed service slack.
- The ports match: Full-size DisplayPort male to full-size HDMI Type-A male.
- DisplayPort connects to the source PC or graphics card and HDMI connects to the receiving display. It will not convert an HDMI source into a DisplayPort monitor signal.
- A compatible full-size DisplayPort graphics output is required. HDMI-source devices—including consoles that only provide HDMI—cannot use this cable as a reverse converter.
- The desired mode stays within: Up to 8K at 60Hz or 4K at 120Hz on compatible source and HDMI display hardware.
- Any intermediate device supports the same video, audio and content-protection requirements.
Scope and limitations
What this product does
- Actively converts a DisplayPort source signal for an HDMI display.
- Carries compatible high-resolution video and source-to-display audio.
- Passes listed HDR, HDCP and DSC functions when supported by the complete system.
- Supports mirror and extended modes selected by the host computer.
What this product does not do
- It does not work from HDMI source to DisplayPort display.
- It does not support VRR, ALLM, AMD FreeSync or NVIDIA G-SYNC.
- It does not make a PlayStation, Xbox, Switch or HDMI-output MacBook into a compatible source.
- One cable does not create six displays; every screen needs a supported graphics output and its own connection.
Care and installation practice
What to do
- Confirm DisplayPort-source and HDMI-display direction.
- Connect directly before testing through any other hardware.
- Use the display information screen to verify 8K60 or 4K120.
- Support the active connector housings and braided cable.
What not to do
- Do not reverse the cable.
- Do not use it for an HDMI-output console.
- Do not enable unsupported VRR/ALLM/FreeSync/G-SYNC features.
- Do not sharply bend, crush, pull or overheat the cable.
Read before use
Warnings and limitations
Capability limit
The exact official page explicitly excludes VRR, ALLM, FreeSync and G-SYNC.
Compatibility caution
4K120 and 8K60 require the source GPU, DP output, active converter and HDMI display input to support the full mode.
Gallery or claim conflict
Docks, hubs, KVMs and adapters may cause handshake or capability limits; direct connection is recommended.
Installation warning
No in-wall, plenum, LSZH or fire rating is claimed.
Exact-model reference
Technical specifications
| Brand | UGREEN |
|---|---|
| SKU | 80397 |
| Product type | Active unidirectional DisplayPort 1.4-to-HDMI 2.1 cable |
| Cable length | 2 metres |
| Connectors | Full-size DisplayPort male to full-size HDMI Type-A male |
| Direction | Unidirectional active conversion: DisplayPort source to HDMI display only |
| Verified video guidance | Up to 8K at 60Hz or 4K at 120Hz on compatible source and HDMI display hardware |
| Published bandwidth / rate | Up to 32.4Gbps DisplayPort 1.4 input link rate |
| Construction | The exact page lists 28AWG tinned copper, tinplate, triple shielding, aluminium-alloy housings and a nylon-braided jacket. The live gallery clearly labels DP-source-to-HDMI-screen direction. |
| Feature support | Active DisplayPort 1.4-to-HDMI 2.1 conversion, Up to 8K60 or 4K120, Dynamic HDR pass-through as listed, HDCP 2.3 and DSC 1.2a support as listed, Dolby 7.1 audio pass-through wording, Mirror and extended desktop modes controlled by the host |
| Conversion architecture | Active DisplayPort 1.4 to HDMI 2.1 |
| Signal direction | DisplayPort source to HDMI display only |
| Compression / protection | DSC 1.2a and HDCP 2.3 listed |
| Adaptive sync | VRR, ALLM, FreeSync and G-SYNC explicitly not supported |
| Conductors | 28AWG tinned copper with tinplate and triple shielding |
| Housing / jacket | Aluminium-alloy housings and nylon braid |
In the box
Package contents
- 1 × UGREEN 80397 2m active DisplayPort-to-HDMI cable
Shown devices and accessories are not included. Confirm SKU 80397 and 2m before routing.
Tap a question to expand
Product-specific FAQ
What is the verified video guidance for UGREEN 80397?
Up to 8K at 60Hz or 4K at 120Hz on compatible source and HDMI display hardware. The active converter path is one-way. The official exact page also explicitly states that VRR, ALLM, FreeSync and G-SYNC are not supported, even though 4K120 is listed.
Is the cable directional?
DisplayPort connects to the source PC or graphics card and HDMI connects to the receiving display. It will not convert an HDMI source into a DisplayPort monitor signal.
What ports and source capability are required?
Full-size DisplayPort male to full-size HDMI Type-A male. A compatible full-size DisplayPort graphics output is required. HDMI-source devices—including consoles that only provide HDMI—cannot use this cable as a reverse converter.
Will every compatible-looking device reach the maximum mode?
No. The source hardware, port version, graphics driver, operating system, display input, selected colour format and every intermediate device determine the negotiated result.
Does it need a driver or separate power adapter?
No separate driver or external power adapter is listed. The active conversion electronics operate through the connected ports, which must be compatible.
Does SKU 80397 support VRR, ALLM, FreeSync or G-SYNC?
No. The exact official page explicitly states that those adaptive-sync and low-latency features are not supported.
Can I use it with a PS5, Xbox or Nintendo Switch?
Not as a source cable. Those consoles output HDMI, while SKU 80397 requires a DisplayPort source and an HDMI display.
What should I check if there is no picture?
Verify connector direction and port type, select the correct display input, reseat both ends, test a direct connection, lower the resolution/refresh rate, and restart or update the graphics system if needed.
Can it be routed inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable markings and local installation requirements before any in-wall, ceiling or conduit route.
What is included in the package?
1 × UGREEN 80397 2m active DisplayPort-to-HDMI cable. Devices, adapters and cable-management accessories shown in use images are not included.
