DP102 • DISPLAYPORT 1.2 • 1M
UGREEN DP102 10244 DisplayPort 1.2 Cable, 1m
A direct full-size DisplayPort cable for digital video and audio, with locking tabs, a 21.6Gbit/s raw DP 1.2 link rate and exact-model UGREEN mode guidance.
01 · Product introduction
Overview
UGREEN DP102 10244 DisplayPort 1.2 Cable, 1m connects a full-size DisplayPort source to a full-size DisplayPort display over 1m. It carries digital video and compatible embedded audio without converting to another connector standard.
Exact-model UGREEN guidance lists 3840×2160 at 30Hz, 3440×1440 at 30Hz, 2560×1440 at 60Hz and 1920×1080 at 60Hz. These modes depend on the GPU, display, driver, colour format and every device in the path.

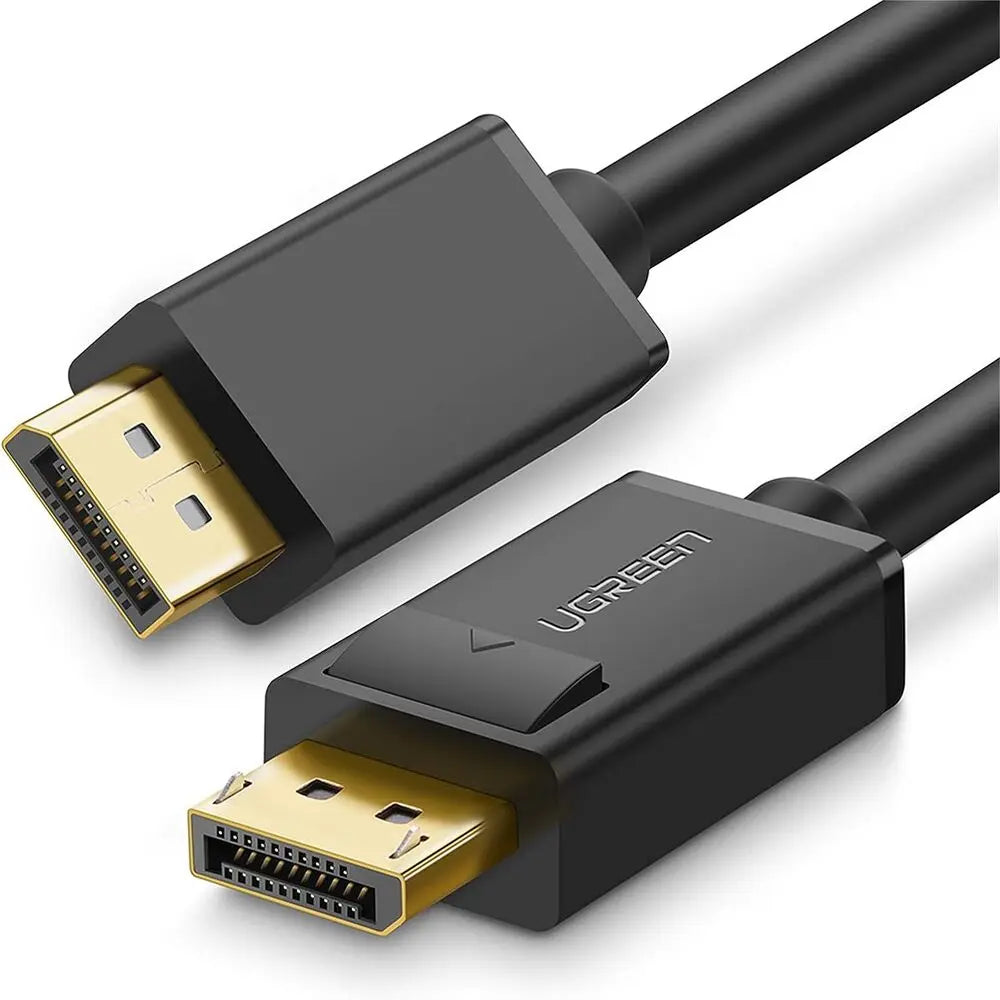

The plugs include latch tabs. Press the release before unplugging; pulling a locked connector can damage the DisplayPort socket or graphics card bracket.
Exact-SKU evidence reconciliation
All eight exact live images are used. The precise UGREEN Turkey mode table (4K30, 3440×1440@30, 2560×1440@60 and 1080p60) overrides a reseller-style 4K60 family claim. The two living-room scenes are distinct presentation and home-theatre examples, not extra performance evidence. Exact live artwork confirms full-size DisplayPort ends, mirror/extended use and shielded construction without establishing a higher refresh rate.
02 · At a glance
Key features
03 · Physical fit
Connectors, direction and interface clarity
04 · Capability
Signal, data or power performance
UGREEN identifies DisplayPort 1.2 with a 21.6Gbit/s raw four-lane link rate. Protocol overhead reduces payload, and a labelled standard is not a benchmark of application performance.
Verified exact-model modes are 4K 3840×2160@30Hz, ultrawide 3440×1440@30Hz, 2560×1440@60Hz and 1920×1080@60Hz. Use the table rather than assuming all DP 1.2 cables in a later family share 4K60 claims.
The cable can transport digital audio when the source sends it and the display exposes speakers or an audio output. Audio format, channel count and volume remain endpoint-controlled.

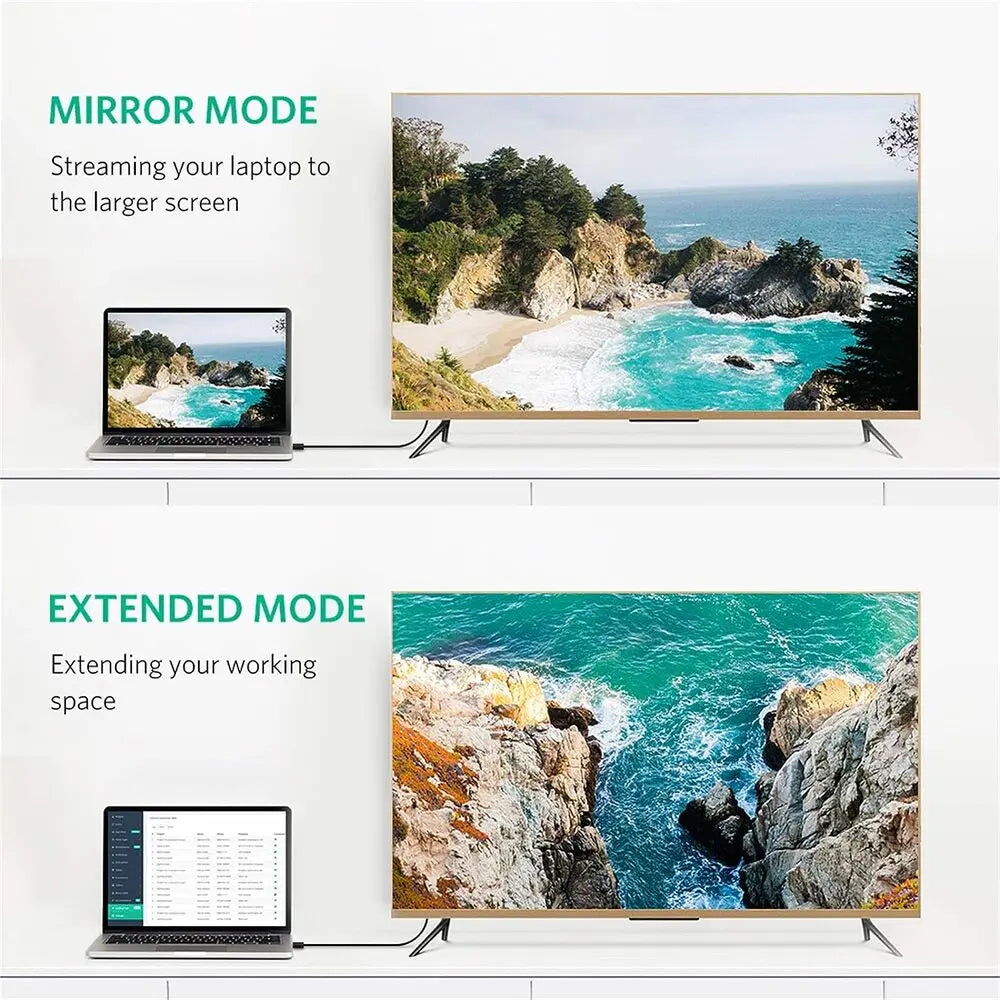

Mirror and extended-desktop modes are supported by the graphics system. The cable carries the selected stream; it does not add a second independent graphics engine.
05 · Complete path
What the entire connection must support
Both devices need full-size DisplayPort. A USB-C port works only through a separately verified USB-C-to-DisplayPort adapter or cable in the correct direction and with DisplayPort Alt Mode.
The source GPU and display must support the chosen timing. Colour depth, chroma, multiple displays and adapters can consume bandwidth or introduce a lower ceiling.
MST multi-display capability belongs to the DisplayPort source and downstream hub/display topology. A single passive cable cannot split one port into independent screens by itself.
HDCP-protected content requires support across source, display and any active intermediate device. This passive cable neither creates nor bypasses content protection.
06 · Behaviour
Standards, negotiation and operating roles
DisplayPort 1.2 is the exact UGREEN family designation. Backward operation with lower DisplayPort modes is normally negotiated by the endpoints, but newer labels do not force an older display to accept a new timing.
DisplayPort carries packetised digital video and optional audio. It is not electrically the same as HDMI, DVI, Thunderbolt or USB data, even when an active adapter can bridge selected functions.
The locking mechanism improves retention but increases removal discipline. Never pull the cable before pressing the release tab and confirming the hooks are free.
The passive cable needs no driver. Graphics drivers and operating-system display settings control resolution, refresh rate, colour, HDR availability, audio routing and layout.
Ceiling, not a promise
A connector or standard label describes capability. The complete source, destination, cable route, software and negotiated mode determine the real result.
07 · Device fit
Compatible devices and systems
08 · Practical value
Use scenarios
09 · Usability
Setup and usability guidance
- Confirm both ports are full-size DisplayPort and identify which device is the source output and which is the display input.
- Align each keyed plug, push it straight in until the latch seats and leave enough clearance to press the release tab later.
- Select DisplayPort on the display, then enable mirror or extended mode in the operating system or GPU control panel.
- Start with 1920×1080@60Hz or another known-supported mode. Increase resolution only within the exact device capabilities.
- Select the DisplayPort display as an audio output if sound is required and the display supports audio playback or pass-through.
- Before removal, stop the workload, press the latch fully, grip the connector body and pull straight out without twisting.
10 · Host behaviour
Operating-system, driver and software guidance
No cable driver is required. Install current graphics drivers from the computer or GPU maker if resolution, refresh-rate or audio choices are missing.
Windows, macOS and Linux expose different display controls, and hardware support varies by model. The cable is operating-system agnostic; the endpoints determine available settings.
If only one monitor appears in an MST topology, verify the source supports MST and that the hub/display is configured correctly. This direct cable is not an MST splitter.
Software boundary
The passive product has no firmware or driver. Connected hosts, adapters and peripherals can still require exact-model software, permissions or settings.
11 · Verified scope
What this product does
- Provides a 1m full-size DisplayPort male-to-male digital link.
- Carries compatible digital video and embedded audio.
- Supports the exact UGREEN mode table up to 4K@30Hz or 2560×1440@60Hz when the complete chain agrees.
- Uses locking tabs to resist accidental unplugging.
- Supports operating-system mirror or extended display modes when the graphics hardware supports them.
12 · Clear boundaries
What this product does not do
- It does not convert DisplayPort to HDMI, DVI, VGA, USB-C or Thunderbolt.
- It does not guarantee 4K@60Hz, HDR, adaptive sync or a gaming refresh rate not listed for this exact model.
- It does not create an MST hub, extra graphics adapter or independent second video output.
- It does not charge a laptop or carry general USB data or Ethernet.
- It does not add speakers or audio decoding to a display that lacks them.
13 · Best practice
What to do
14 · Common mistakes
What not to do
15 · Read before use
Warnings and limitations
16 · Diagnostics
Troubleshooting by symptom
17 · Exact data
Technical specifications
| Specification | Verified exact-SKU detail |
|---|---|
| Product | UGREEN DP102 DisplayPort cable |
| SKU | 10244 |
| Length | 1m |
| Connector A / B | Full-size DisplayPort male / male |
| DisplayPort family | 1.2 |
| Raw link rate | Up to 21.6Gbit/s listed |
| Verified 4K mode | 3840×2160@30Hz |
| Other listed modes | 3440×1440@30Hz; 2560×1440@60Hz; 1920×1080@60Hz |
| Audio | Supported when both endpoints support it |
| Display layouts | Mirror and extended, GPU/OS dependent |
| Retention | Locking tabs with release buttons |

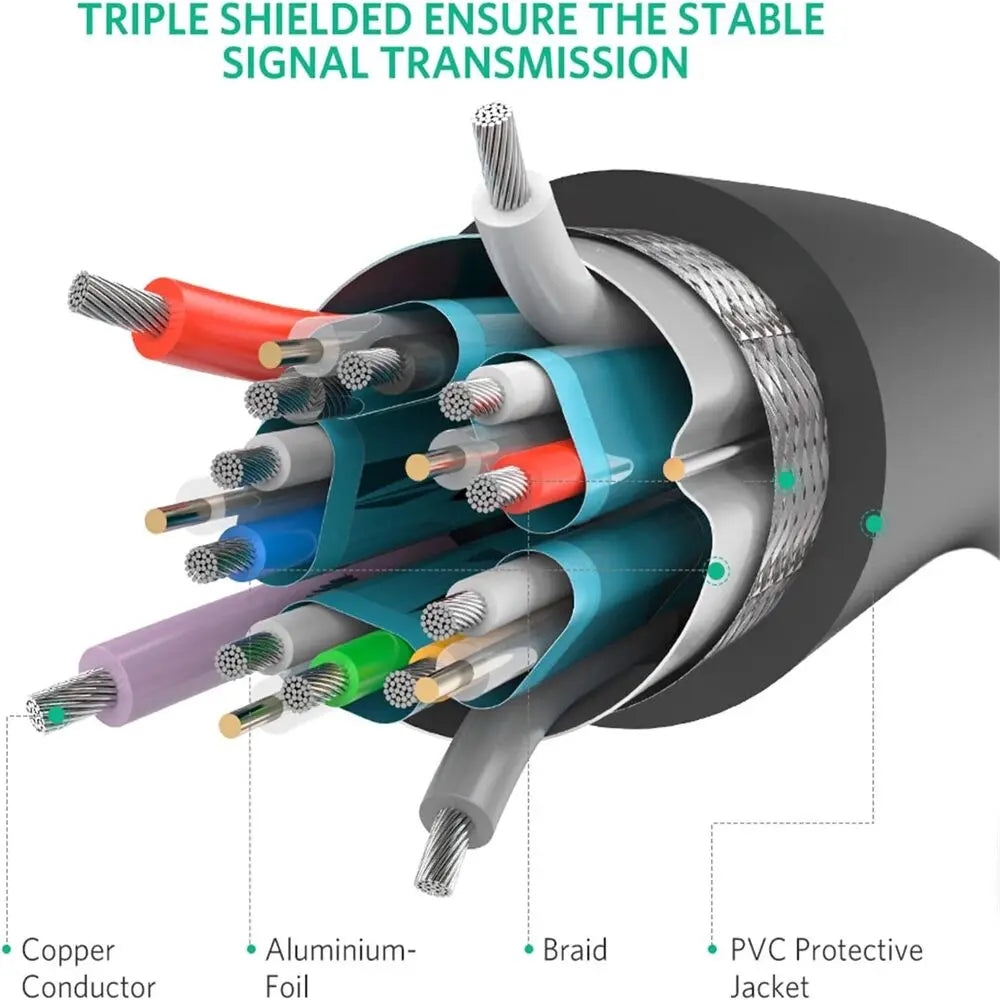

| Construction | Copper conductors, foil, braid and PVC jacket shown |
Package contents
- 1 × UGREEN DP102 10244 1m full-size DisplayPort male-to-male cable.
Confirm the sealed exact SKU and included-item list. Devices, converters, chargers, cables or mounting accessories are not included unless explicitly listed above.
18 · Native collapsible answers
Product-specific FAQ
What exact ports does UGREEN 10244 connect?

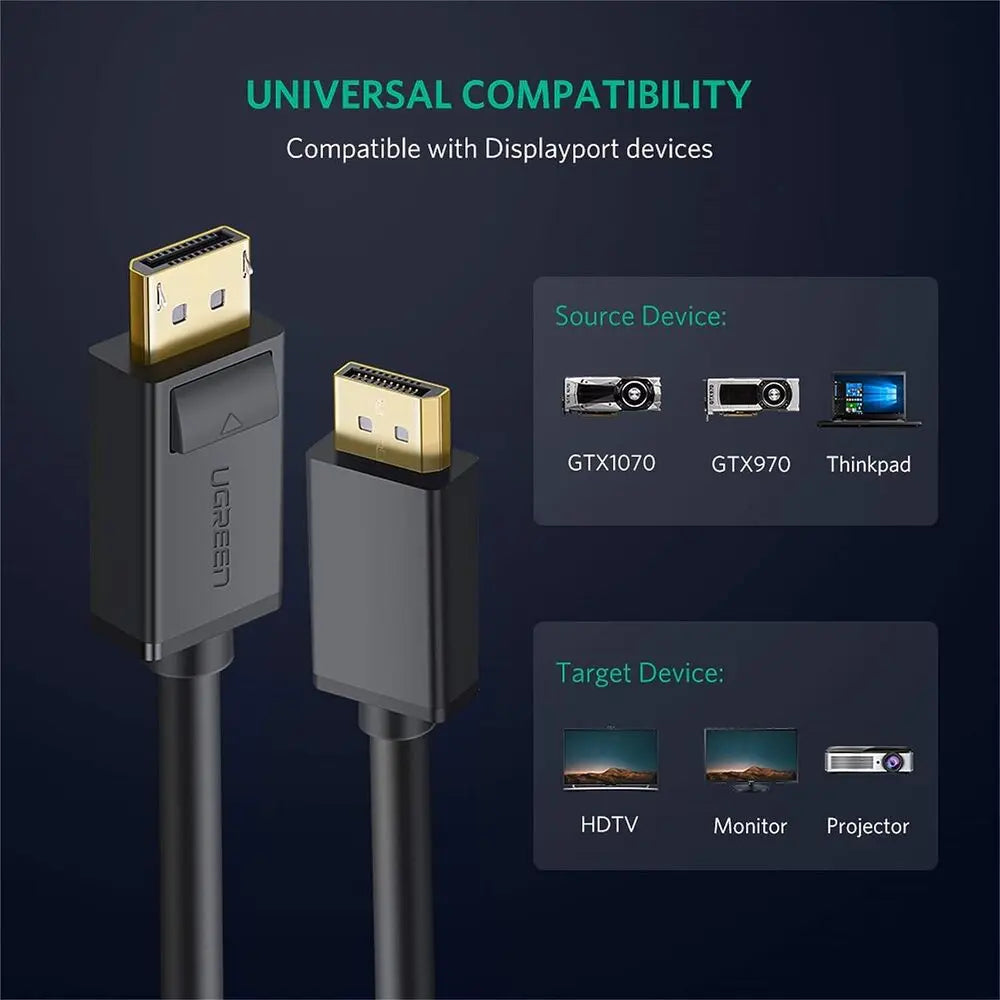

Full-size DisplayPort output to full-size DisplayPort input. It is not Mini DisplayPort, USB-C, HDMI or a protocol-conversion cable.
What is the verified 4K refresh rate?
UGREEN's exact-model mode table lists 3840×2160 at 30Hz. It also lists 2560×1440 at 60Hz and 1920×1080 at 60Hz.
Why do some pages call DisplayPort 1.2 a 4K60 standard?
A standard's theoretical capability is not the same as an exact product's verified table. This guide follows the conservative UGREEN 10244 mode list rather than importing a later-family claim.
Does the cable carry sound?
Yes, when the source sends audio over DisplayPort and the display has speakers or an audio-output path. Select that display in the operating-system audio settings.
Can it connect DisplayPort to HDMI or USB-C?
No direct conversion is present. Use a separately verified adapter or cable for the required direction, and accept that it can impose a lower mode ceiling.
Does it support mirror and extended mode?
Yes as display layouts selected by the graphics hardware and operating system. The cable does not create an extra GPU or split one stream independently.
Can it run multiple monitors through MST?
It can carry a compatible DP stream, but MST requires support from the source and a downstream MST hub or daisy-chain display. This cable alone is not a splitter.
Does it need a driver?
The cable does not. The graphics adapter, dock or monitor can require current drivers or firmware for the requested mode and audio.
How do I unplug the locking connector?
Press and hold the raised release tab, grip the plug body and pull straight. Never pull the cable while the hooks are engaged.
What should I try if the display flickers?
Use a direct connection, reduce the mode, reseat both plugs, update GPU drivers, remove adapters and test another DisplayPort input if available.
What is included?
One UGREEN DP102 10244 1m DisplayPort cable. Adapters, docks, graphics cards, monitors and audio equipment are not included.
