High-speed HDMI connection
UGREEN HDMI 2.0 Cable 1.5m, 4K 60Hz | 10128
Connect TVs, monitors, projectors or consoles with the UGREEN 10128 1.5m HDMI 2.0 cable, supporting up to 4K 60Hz, 18Gbps, HDR and ARC.
Overview

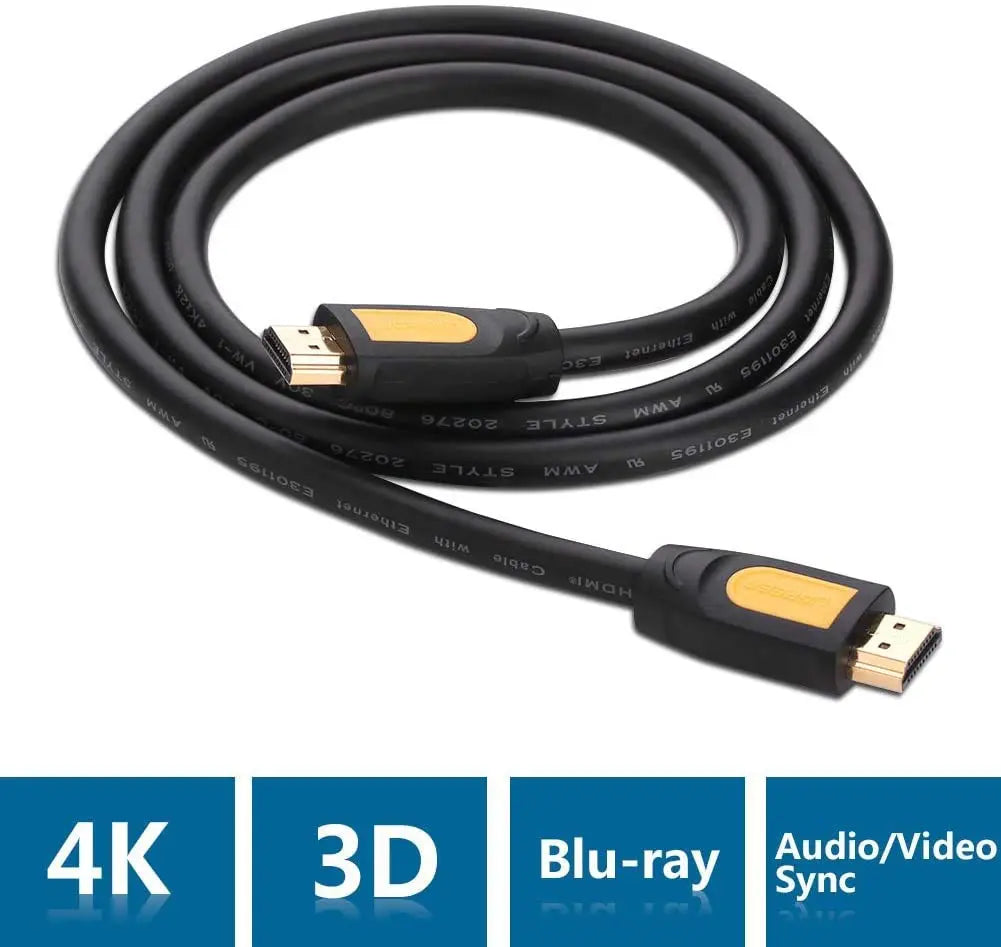

UGREEN HD101 model 10128 is a 1.5-metre, male-to-male HDMI cable for carrying digital video and audio between two full-size HDMI ports. It is suited to short connections such as a laptop to a monitor, a console to a television, or a media player to a projector. The exact model is specified for HDMI 2.0-class bandwidth up to 18Gbps and video up to 4K (3840 × 2160) at 60Hz when both connected devices support that format.
Key benefits and features
These capabilities apply to the exact UGREEN SKU and remain conditional on the connected equipment described below.
- One cable carries digital picture and audio, reducing the need for separate analogue audio leads in a standard HDMI setup.
- Up to 18Gbps link bandwidth supports common HDMI 2.0 video formats, including 4K at 60Hz, as well as lower resolutions and refresh rates negotiated by the source and display.
- Supports HDR, 3D video, Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) where the connected equipment supports the same feature.

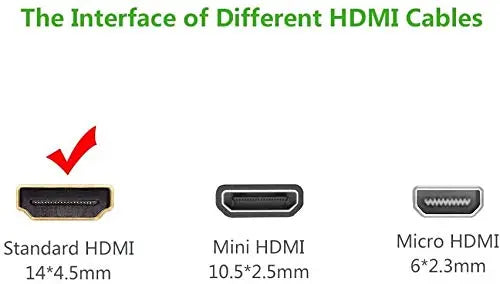

- Full-size HDMI male connectors at both ends suit televisions, monitors, projectors, desktop graphics cards, laptops, game consoles and media players with standard HDMI sockets.
- The 1.5m round PVC-jacketed design is intended for nearby equipment on a desk, television unit or presentation table.
Check the complete HDMI 2.0 signal chain
The 1.5-metre cable can carry the published HDMI 2.0 format only when every device and setting in the path supports it. Use these checks before diagnosing the cable or concealing it behind furniture.
Confirm the console, player or computer HDMI output can generate the required 4K60, HDR and audio format. A source limited to 1080p will still work, but the cable cannot increase its resolution.
Use an HDMI input rated for 4K60 and enable its enhanced or high-bandwidth mode if the display manual requires it. Some televisions apply that setting only to selected HDMI ports.
An AV receiver, soundbar, switch, coupler or wall plate must also pass the chosen 18Gbps-class signal and HDCP requirement. Bypass intermediate equipment first when troubleshooting.
Keep relaxed bends, seat both full-size HDMI plugs fully and support the cable so its weight does not pull sideways on a port. The round 1.5m cable is passive and has no separate power requirement.
Use scenarios
Connect a desktop or laptop HDMI output to a nearby HDMI monitor or projector for work, lessons or presentations.
Connect a PlayStation, Xbox, Nintendo Switch dock or other HDMI game source to a television or monitor, subject to the console and display’s supported resolution.
Link a streaming box, set-top box, Blu-ray player or AV receiver to an HDMI display over a short 1.5m run.
Use ARC between an ARC-enabled television port and compatible sound system; ARC must be enabled and supported at both ends.
Setup and usability guidance
Switch off or place the source and display in standby before rearranging connections.
Insert one HDMI plug fully into the source’s HDMI output and the other into the display or receiver’s HDMI input; do not force a plug into a non-HDMI port.
Select the corresponding HDMI input on the television, monitor, projector or receiver.
Choose a resolution and refresh rate supported by the complete chain. If 4K60 or HDR does not appear, check the source setting, the exact HDMI input capability and any receiver in between.
For ARC, use the ports specifically labelled ARC/eARC and enable the relevant audio-control settings on both devices.
Compatible devices and systems

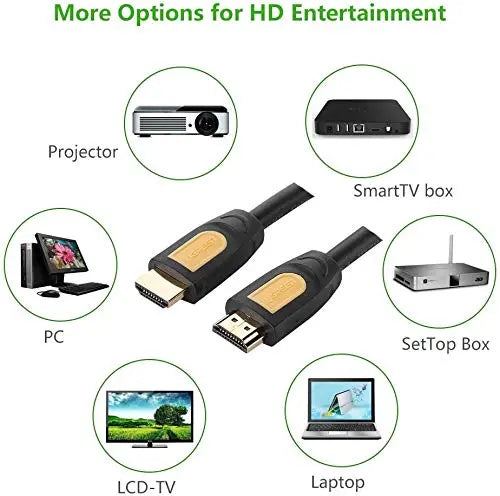

Compatible with equipment that has a full-size HDMI output on the source side and a full-size HDMI input on the receiving side. Typical sources include computers, graphics cards, consoles, streaming players, set-top boxes and disc players; typical receivers include televisions, monitors, projectors and AV receivers. Actual 4K60, HDR, ARC, 3D and multichannel-audio operation depends on every device and port in the signal path, not on the cable alone.
What this product does
- Transports a digital HDMI audio/video signal over a 1.5m connection.
- Allows supported source and display devices to negotiate resolution, refresh rate, colour and audio formats.
- Supports lower HDMI formats as well as the stated maximum, according to endpoint capability.
What this product does not do
- It does not convert HDMI to VGA, DisplayPort, USB-C, DVI or another connector type.
- It does not create 4K, HDR or surround sound when the source content or connected devices lack those capabilities.
- It is not an HDMI splitter, switch, capture device or signal extender.
- It is not specified for HDMI 2.1 features such as 8K60 or 4K120.
What to do
- Confirm that both devices use full-size HDMI ports and that 1.5m reaches without tension.
- Use HDMI inputs explicitly rated for the resolution and refresh rate you require.
- Route the cable with a relaxed bend and leave connector strain relief unobstructed.
- Troubleshoot by lowering the video mode first, then checking each endpoint and any intermediate receiver.
What not to do
- Do not pull the cable by its connector, crush it under furniture or make a sharp fold near either plug.
- Do not assume every HDMI-labelled port supports 4K60, HDR or ARC; port capabilities vary by device.
- Do not use passive adapters in a chain and expect all HDMI 2.0 features to remain available.
- Do not connect or disconnect repeatedly while a wall-mounted display is under mechanical tension.
Warnings and limitations
Maximum video performance is conditional on the source, display, content and any receiver or adapter in between supporting the same mode.
ARC and HEC are optional HDMI functions; the cable can carry them but cannot add them to equipment.
This listing is for a 1.5m cable. Measure the route, including bends and service slack, before purchase.
Keep connectors dry, free of debris and away from excessive heat. Replace the cable if the jacket or plug is visibly damaged.
Verified specifications
| Brand / model | UGREEN HD101 / SKU 10128 |
|---|---|

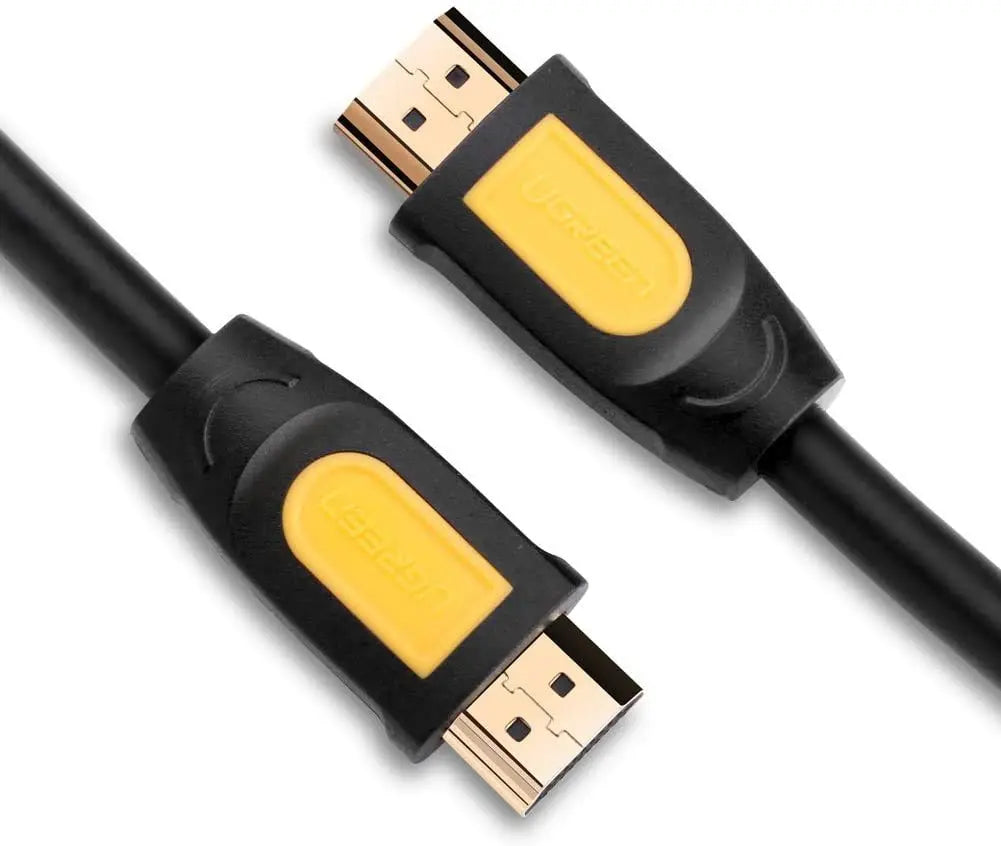

| Connector A | Full-size HDMI male |
| Connector B | Full-size HDMI male |
| Cable length | 1.5 metres |
| HDMI capability | HDMI 2.0-class, up to 18Gbps |
| Maximum stated video format | 3840 × 2160 at 60Hz |
| Supported feature set | HDR, 3D, ARC and HEC when supported by both endpoints |

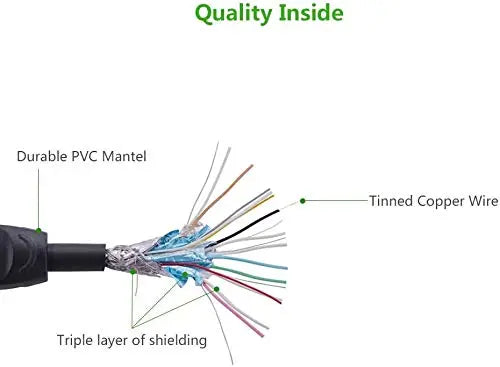

| Construction | Round PVC jacket with gold-plated connector contacts |
| Signal direction | Passive HDMI male-to-male cable; either end may be connected to source or display |
Package contents
- 1 × UGREEN HD101 HDMI cable, 1.5m (SKU 10128)
Product-specific FAQ
Can this cable show 4K at 60Hz?
Yes, SKU 10128 is specified up to 3840 × 2160 at 60Hz and 18Gbps. The source, content, HDMI port and display must all support that exact mode.
Will it work with a 1080p television or monitor?
Yes. HDMI devices negotiate a mutually supported format, so the cable can carry common lower-resolution modes such as 1080p.
Does it support HDR?
The exact model is listed with HDR support, but HDR will operate only when the source, content and selected display input also support a compatible HDR format.
Can I use it for ARC audio?
Yes, when connected between ports labelled ARC or eARC on compatible equipment. The cable does not turn an ordinary HDMI port into an ARC port.
Is the cable directional?
No. This is a passive HDMI male-to-male cable, so either plug can face the source. That differs from active optical HDMI cables, which may be directional.
Can it connect a USB-C laptop directly to HDMI?
Only if the laptop already has a full-size HDMI output. A USB-C-only laptop needs a suitable USB-C video adapter or dock, purchased separately.
Does it support 8K or 4K at 120Hz?
Those are HDMI 2.1-class modes and are not specified for this 18Gbps HDMI 2.0 cable.
What should I check if the screen flickers or shows no signal?
Reseat both plugs, select the correct display input, restart the endpoints and test a lower resolution. Also bypass any receiver or adapter to isolate the failing part of the chain.
Does the cable carry audio as well as video?
Yes. HDMI carries digital audio and video together. The available audio formats depend on the source, receiver or display and their selected settings.
Are either of the HDMI connectors angled?
No. This model uses straight full-size HDMI male connectors at both ends. Check rear clearance if the television or monitor sits close to a wall.
UGREEN India Assurance
Genuine UGREEN product supplied with GST invoice availability. Product warranty and after-sales assistance are provided subject to the applicable UGREEN India warranty terms, eligibility requirements and support policy. Match SKU 10128 on the product or retail package because similar-looking variants can have different specifications.
