UGREEN 40216 4×2 HDMI 1.4 Matrix Switch, 4K30, Audio Extraction

Rs. 12,254.00 Rs. 16,663.00
Tax included Shipping calculated at checkout.

Crystal Clarity
Instant Switch
Seamless Split
Rich Sound
Compact Durability
4 INPUTS • 2 OUTPUTS • MATRIX ROUTING

UGREEN 40216 4×2 HDMI 1.4 Matrix Switch, 4K30, Audio Extraction

UGREEN 40216 is a powered 4-input, 2-output HDMI matrix that can select which source feeds each HDMI display and can also send the same selected source to both displays. This buying guide makes the port direction, display behavior, power, cable requirements and limitations clear before installation.

Exact SKU 40216Up to 4K at 30Hz; up to 1080p at 60HzMATRIX

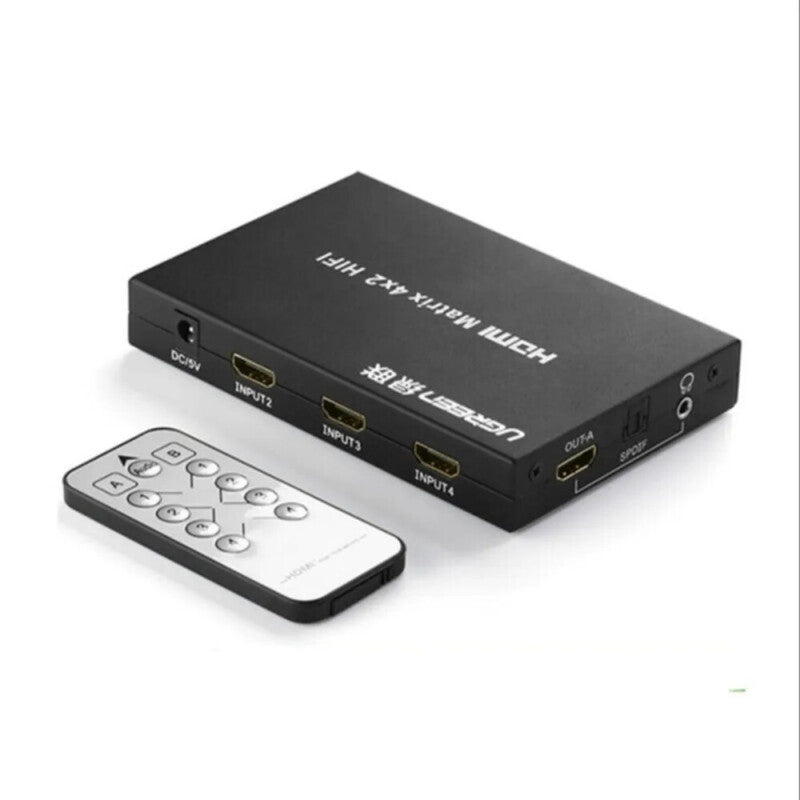

UGREEN 40216 4 by 2 HDMI matrix with IR remote control
SKU 40216: Exact-model overview: the powered matrix accepts four HDMI sources, drives two HDMI outputs and includes local plus IR selection.
1

Overview

Four HDMI source inputs → independent A/B matrix selection → two HDMI display outputs. Optical S/PDIF and 3.5mm analogue audio outputs provide separate audio connection options from the matrix path.

Correct direction is the first troubleshooting check. Similar-looking HDMI, DisplayPort and USB-C products can require completely different source and display sides.

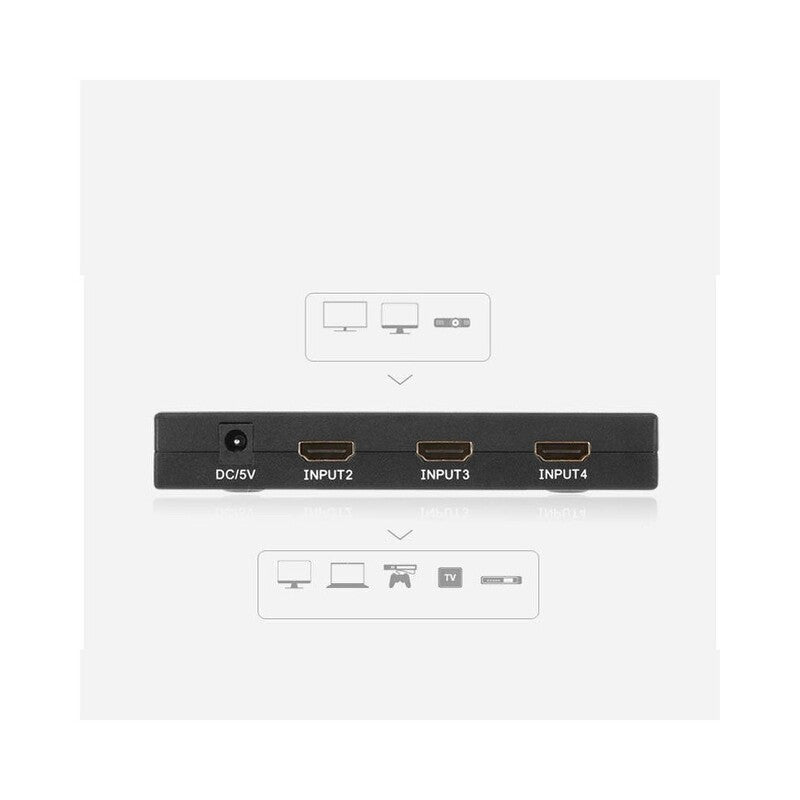

UGREEN 40216 DC power and numbered HDMI source input side
SKU 40216: The source side shows the 5V power inlet and numbered HDMI inputs; label each source before assigning it to Output A or B.
2

Key features

Inputs

4 × HDMI Type-A female

Outputs

2 × HDMI Type-A female; 1 × optical S/PDIF; 1 × 3.5mm audio

Video ceiling

Up to 4K at 30Hz; up to 1080p at 60Hz

Power

DC 5V/1A adapter required and listed in the kit

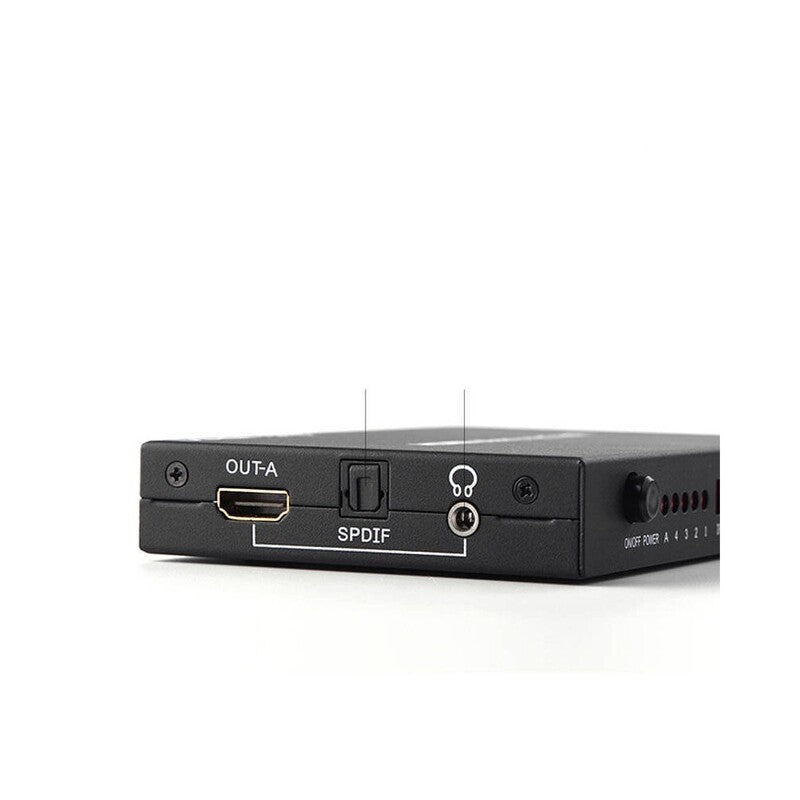

UGREEN 40216 HDMI output A optical SPDIF and 3.5mm audio ports
SKU 40216: Output A sits beside optical S/PDIF and 3.5mm audio connections, allowing compatible audio to leave the selected HDMI path separately.
3

How switching and multi-display behavior works

Matrix mode can route different selected inputs to Output A and Output B; splitter-style use can place the same selected source on both outputs. It does not create two independent desktops from one source.

Control: Front-panel controls and included IR remote.

Never assume: a product advertised as “bidirectional,” “splitter” or “matrix” behaves like another topology. Follow the exact source/output map above.

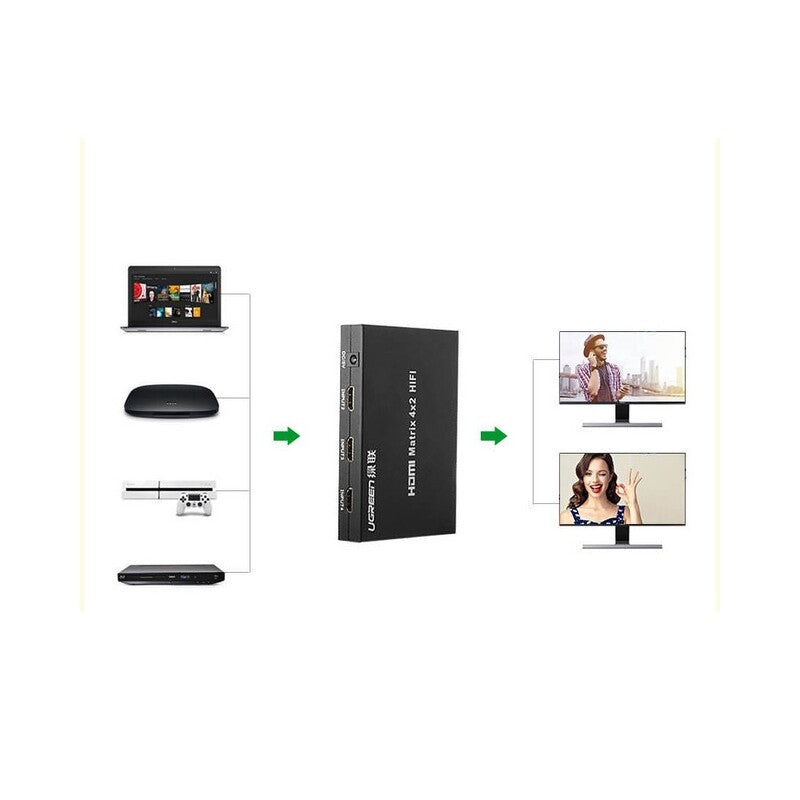

UGREEN 40216 four HDMI sources routed through the matrix to two displays
SKU 40216: The diagram illustrates source selection for a two-display installation; matrix routing can differ by output, while splitter-style use can duplicate one source.
4

Verified resolution, refresh and feature boundary

Maximum listed mode

Up to 4K at 30Hz; up to 1080p at 60Hz

Interface boundary

HDMI 1.4 as listed

Audio path

Compatible HDMI audio, plus optical S/PDIF and 3.5mm extraction. ARC is listed for the exact model, but eARC is not established and no eARC claim is made.

Complete-path rule

Source, every cable, selector/distributor, display input, EDID and protected-content requirements must all agree. One weaker component can lower or blank the link.
5

Use scenarios

Scenario 1

Route a PC to one monitor and a media player to a projector

Scenario 2

Send the same presentation to two HDMI displays

Scenario 3

Share four HDMI sources between a meeting-room display pair

Scenario 4

Extract audio to an optical receiver or 3.5mm speaker path
UGREEN 40216 media sources and display use scenario artwork
SKU 40216: A matrix is useful when several HDMI sources must remain connected to a television, monitor or projector pair without repeated cable swapping.
6

Setup and usability guidance

  1. Step 1: Connect the supplied 5V/1A adapter before source selection.
  2. Step 2: Connect each source to a numbered HDMI input and label the cable.
  3. Step 3: Connect Output A and Output B to the intended displays.
  4. Step 4: Add optical or 3.5mm audio only if required and supported by the chosen source format.
  5. Step 5: Power displays first, then the matrix, then sources; select a conservative 1080p mode for first test.
  6. Step 6: Use the panel or remote to assign inputs, then raise resolution only after both paths are stable.

Best first test: one source, one short cable path, one display and 1080p60. Expand only after this baseline works.

UGREEN 40216 IR remote selecting HDMI programmes from a viewing position
SKU 40216: Place the matrix where its IR receiver remains visible and keep the included remote pointed toward the unit when changing either output assignment.
7

Compatible devices and systems

Compatible system boundary

HDMI-output computers, consoles, set-top boxes, disc players and media devices with HDMI-input televisions, monitors, projectors or AV equipment that accept a mutually supported mode.

Cable planning

The exact listing gives up to 12m input + 12m output for 4K30 and up to 20m + 20m for 1080p60. These are best-case listed limits, not guarantees for every cable or environment.

Audio planning

Compatible HDMI audio, plus optical S/PDIF and 3.5mm extraction. ARC is listed for the exact model, but eARC is not established and no eARC claim is made.

Power planning

DC 5V/1A adapter required and listed in the kit
UGREEN 40216 HDMI matrix used with home entertainment and presentation displays
SKU 40216: Standard HDMI sources and displays can be combined only at modes, audio formats and HDCP requirements supported across each complete route.
8

What this product does

  • Follows this path: Four HDMI source inputs → independent A/B matrix selection → two HDMI display outputs. Optical S/PDIF and 3.5mm analogue audio outputs provide separate audio connection options from the matrix path.
  • Supports its exact ceiling: Up to 4K at 30Hz; up to 1080p at 60Hz.
  • Uses these ports: 4 × HDMI Type-A female → 2 × HDMI Type-A female; 1 × optical S/PDIF; 1 × 3.5mm audio.
  • Handles control this way: Front-panel controls and included IR remote.
  • Passes compatible audio: Compatible HDMI audio, plus optical S/PDIF and 3.5mm extraction. ARC is listed for the exact model, but eARC is not established and no eARC claim is made.
9

What this product does not do

  • Not an 18Gbps 4K60 matrix
  • Not a two-computer KVM; it does not switch USB keyboard or mouse
  • Not an HDMI capture or recording device
  • Not an eARC processor
  • Protected content still requires source, matrix and both displays to agree on the relevant HDCP path
10

What to do

Label

Label every source, output and power cable before installation.

Build gradually

Start at 1080p60 with one display, then add outputs or increase resolution in stages.

Verify cables

Use short, verified cables for 4K/high-refresh operation and replace suspect cables before changing advanced settings.

Power safely

Keep ventilation openings clear and use only the specified power arrangement.

Record settings

Save working resolution, HDR, HDCP and audio settings for future troubleshooting.
11

What not to do

Do not reverse

Do not infer reverse direction or simultaneous outputs beyond the exact topology.

Do not confuse

Do not treat a switch as a splitter, a splitter as a switch, or either as a capture device.

Do not assume scaling

Do not assume every display can use its own independent resolution or refresh rate.

Do not force

Do not force connectors, hot-plug damaged cables or use an unverified power supply.

Do not overclaim

Do not promise DSC, MST, eARC, VRR or gaming modes unless this exact SKU explicitly lists them.
12

Warnings and limitations

  • Power: DC 5V/1A adapter required and listed in the kit.
  • Display negotiation: mixed displays can force a lower common mode or create a blank screen.
  • Protected content: HDCP must be supported end to end; the device cannot bypass protection.
  • Heat and moisture: indoor use only; keep dry, ventilated and away from direct heat.
  • Cables: The exact listing gives up to 12m input + 12m output for 4K30 and up to 20m + 20m for 1080p60. These are best-case listed limits, not guarantees for every cable or environment.
13

Technical specifications

Brand / SKU UGREEN 40216
Product type a powered 4-input, 2-output HDMI matrix that can select which source feeds each HDMI display and can also send the same selected source to both displays
Signal path Four HDMI source inputs → independent A/B matrix selection → two HDMI display outputs. Optical S/PDIF and 3.5mm analogue audio outputs provide separate audio connection options from the matrix path.
Inputs 4 × HDMI Type-A female
Outputs 2 × HDMI Type-A female; 1 × optical S/PDIF; 1 × 3.5mm audio
Power DC 5V/1A adapter required and listed in the kit
Topology 4 HDMI inputs / 2 HDMI outputs
Listed maximum 4K@30Hz
Full-HD mode 1080p@60Hz
Listed standard HDMI 1.4
Audio outputs Optical S/PDIF + 3.5mm
Power DC 5V/1A
Listed dimensions 21 × 6.8 × 2cm
14

Troubleshooting checklist

No picture

Confirm direction, power, active source and display input. Test one display at 1080p60 with short cables.

Picture drops

Replace one cable at a time, reduce resolution/refresh and disconnect extra outputs until the failing leg is isolated.

Wrong resolution

Choose a mode supported by every connected display and check the exact EDID or output-selection behavior.

No audio

Select the display path as the source audio output and use a format supported by the display or receiver.

Remote or hotkey fails

Use the documented control path, check battery/IR line of sight or designated keyboard port, then test the local button.

Protected video blanks

Confirm the exact HDCP level across the source, device and every active display. This product cannot bypass HDCP.
15

Package contents

In the box

1 × UGREEN 40216 HDMI matrix, 1 × IR remote, 1 × 5V/1A power adapter and product documentation as pictured/listed. HDMI, optical and 3.5mm cables are not identified as included.

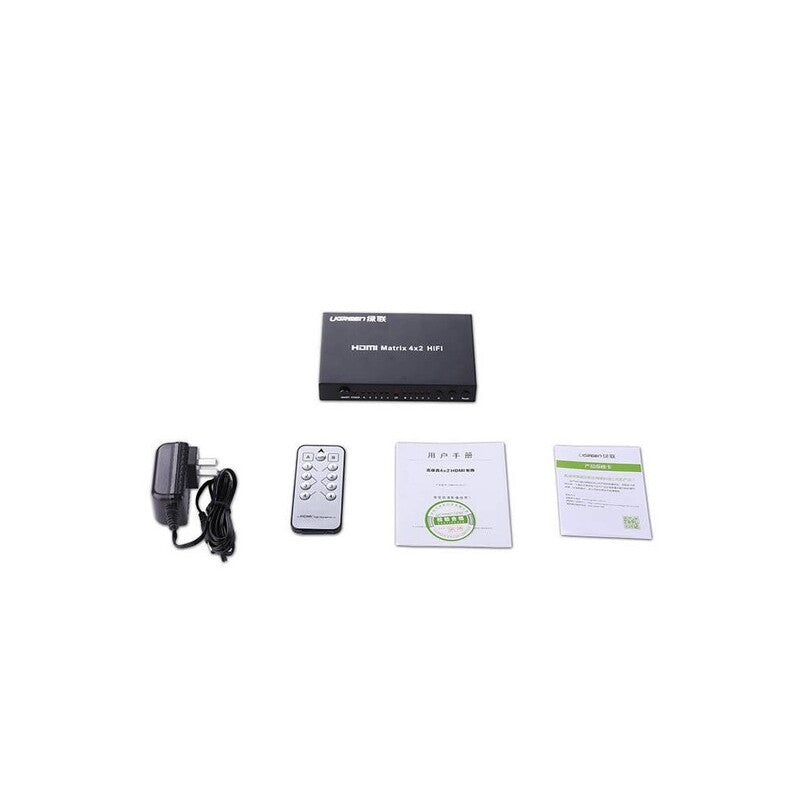

UGREEN 40216 matrix power adapter remote and documentation package
SKU 40216: The exact Shopify package view shows the matrix, 5V adapter, IR remote and documentation; signal and audio cables remain separate unless listed.
16

Exact-SKU research and media reconciliation

Primary source: the exact UGREEN India page and current live Shopify record.

Visual check: The exact record establishes four inputs, two HDMI outputs, audio extraction, 5V/1A power and 4K30. The old title leads with 1080p and calls the matrix a splitter; the corrected copy distinguishes independent matrix routing from duplicate-output use. Text conflicts between “metal” and “ABS” housing were excluded.

Research policy: conflicting shared artwork, adjacent-model specifications and unsupported feature combinations were excluded instead of being blended into the copy.

17

Product-specific FAQ

What does UGREEN 40216 do?
It is a powered 4-input, 2-output HDMI matrix that can select which source feeds each HDMI display and can also send the same selected source to both displays.
What is the exact signal direction?
Four HDMI source inputs → independent A/B matrix selection → two HDMI display outputs. Optical S/PDIF and 3.5mm analogue audio outputs provide separate audio connection options from the matrix path.
What is the maximum verified display mode?
Up to 4K at 30Hz; up to 1080p at 60Hz. The final mode is limited by the source, every cable, the switch/splitter and the display or displays.
Can it create an extended desktop?
The matrix can route selected sources independently to its two outputs, but it cannot create two independent desktops from one source. Matrix mode can route different selected inputs to Output A and Output B; splitter-style use can place the same selected source on both outputs. It does not create two independent desktops from one source.
Does it need external power?
DC 5V/1A adapter required and listed in the kit.
Does it carry audio?
Compatible HDMI audio, plus optical S/PDIF and 3.5mm extraction. ARC is listed for the exact model, but eARC is not established and no eARC claim is made.
Which cables are required?
The exact listing gives up to 12m input + 12m output for 4K30 and up to 20m + 20m for 1080p60. These are best-case listed limits, not guarantees for every cable or environment. Cables not named in the package contents must be supplied separately.
What should I try if there is no picture?
Confirm the signal direction and active source, attach required power, select the correct display input, reseat cables and begin at 1080p60 with one display. Add other outputs or higher modes only after a stable base link.
Can it improve resolution, refresh rate or HDCP?
No. It can only pass or route modes already supported throughout the complete connection. It cannot upgrade a source, cable or display.
What is included?
1 × UGREEN 40216 HDMI matrix, 1 × IR remote, 1 × 5V/1A power adapter and product documentation as pictured/listed. HDMI, optical and 3.5mm cables are not identified as included.
What exact-model conflicts were removed?
The exact record establishes four inputs, two HDMI outputs, audio extraction, 5V/1A power and 4K30. The old title leads with 1080p and calls the matrix a splitter; the corrected copy distinguishes independent matrix routing from duplicate-output use. Text conflicts between “metal” and “ABS” housing were excluded.

Before ordering UGREEN 40216

Match the source connector, display connector, exact topology, power method and highest mode you really need. Count separately purchased HDMI, DisplayPort and USB-C cables before installation day.
