Ugreen  |  SKU: 80182
52% off
New arrival

UGREEN 80182 Dual-Port Keystone Wall Plate, 86×86mm, White

Rs. 211.00 Rs. 443.00
Tax included Shipping calculated at checkout.

Clutter-Free
Easy Install
Neat Look
Max Ports
Space Save
2 KEYSTONE POSITIONS • 86 × 86MM • PASSIVE

UGREEN 80182 Dual-Port Keystone Wall Plate, 86×86mm, White

Overview

UGREEN 80182 is a two-position modular faceplate for finishing two independent low-voltage cable runs at one indoor wall location. It holds two compatible keystone-form modules. The modules and cables carry the signals; the plate itself is a passive mounting and protection component. This guide explains selection, installation, compatibility, real limitations and safe use without treating a passive accessory as active networking equipment.

Exact SKU 80182ACTIVE product2 KEYSTONE POSITIONS • 86 × 86MM • PASSIVE

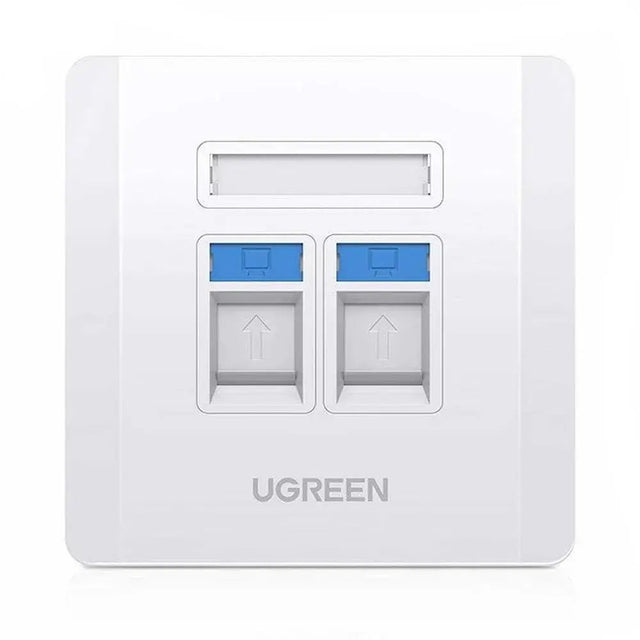

UGREEN 80182 exact product overview

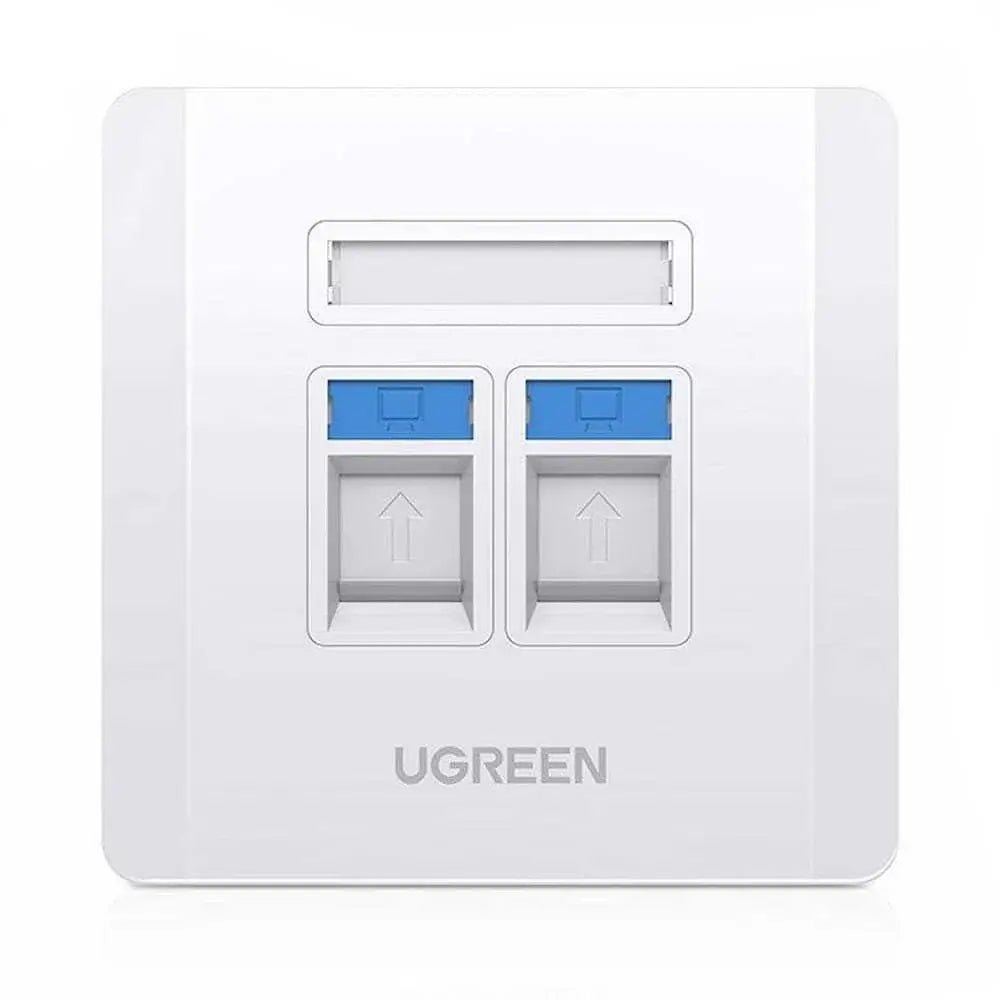

UGREEN 80182 exact product overview
1

Key features

Exact role

It holds two compatible keystone-form modules. The modules and cables carry the signals; the plate itself is a passive mounting and protection component.

Compatibility boundary

Two physically compatible keystone modules and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; other low-voltage keystone couplers must be checked for body size, latch position, depth and full-path signal support.

Performance reality

No speed or format is created by the plate. Each port is limited by its installed module, in-wall cable, patch leads and connected equipment.

Important exclusion

This is not an Ethernet splitter, network switch, router, signal combiner, converter, amplifier, mains outlet, weatherproof box or surface-mount enclosure.

2

Where it fits in the connection

1. Source / service
2. Patch lead
3. Keystone module
4. In-wall run
5. Destination

The system rule: every stage must match. The lowest-rated, damaged or incorrectly terminated component can limit speed, reliability, shielding, PoE operation or serviceability.

3

Use scenarios

Scenario 1

Two separately cabled Ethernet outlets at a desk or media point.

Scenario 2

One network module plus one telephone module in a shared wall position.

Scenario 3

Two independently labelled building-cabling runs.

Scenario 4

A serviceable outlet where either compatible module may be replaced later.

4

Compatibility and selection guide

Use when

Two physically compatible keystone modules and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; other low-voltage keystone couplers must be checked for body size, latch position, depth and full-path signal support.

Do not assume

not an Ethernet splitter, network switch, router, signal combiner, converter, amplifier, mains outlet, weatherproof box or surface-mount enclosure.

Before bulk purchase: trial the exact cable, module, plug or rack fit and complete one tested installation. Small physical differences can matter even within the same category name.

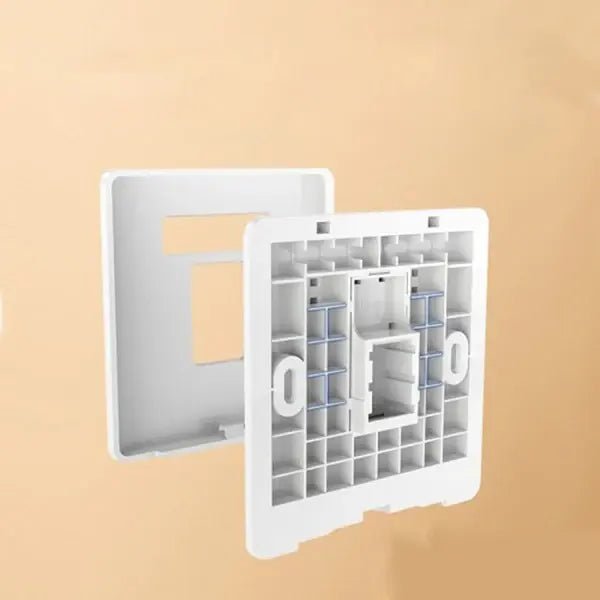

UGREEN 80182 construction or installation detail

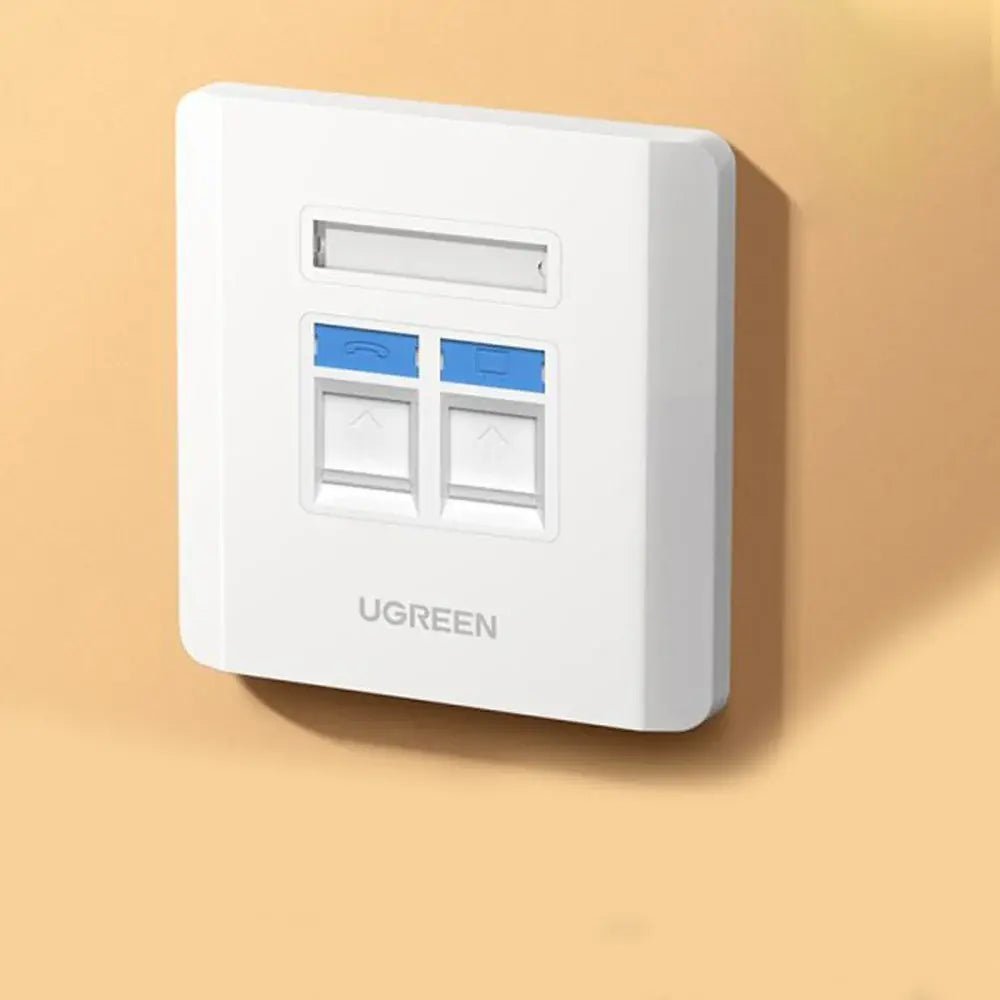

UGREEN 80182 construction or installation detail
5

Setup and usability guidance

  1. Step 1: Confirm the 86 × 86mm faceplate size, wall-box screw positions, usable depth and local installation requirements.
  2. Step 2: Choose two modules that physically fit the listed 14.7 × 19.5mm front openings and match their respective cable systems.
  3. Step 3: Route two independent low-voltage cable runs; do not expect one cable to create two ports.
  4. Step 4: Terminate and test each run before fitting it into the faceplate.
  5. Step 5: Snap modules into place without forcing or twisting their latches, then fasten the plate evenly.
  6. Step 6: Label both ports at the wall and at the patching end, then retest both links.

Work cleanly: dust, copper scraps and loose braid strands can create faults. Collect offcuts and inspect the finished area before energising connected equipment.

6

Compatible devices and systems

Network endpoints

Routers, switches, access points, computers, printers, smart televisions, cameras and other RJ45 network equipment only through a correctly built compatible link.

Structured cabling

Wall outlets, patch panels, permanent cable and patch leads must share a suitable category, shielding design and wiring scheme.

PoE equipment

Possible only within the verified boundary: The plate has no electrical contacts. PoE capability depends entirely on a compliant RJ45 keystone, cable, terminations and powered network equipment.

Operating systems

No operating-system driver is required for this passive accessory or manual tool; active adapters and switches are separate products.

7

What this product does

  • Provides its exact documented function: It holds two compatible keystone-form modules. The modules and cables carry the signals; the plate itself is a passive mounting and protection component.
  • Supports the stated compatibility class: Two physically compatible keystone modules and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; other low-voltage keystone couplers must be checked for body size, latch position, depth and full-path signal support.
  • Can form part of a serviceable labelled network: when installed with matched components and tested.
  • Keeps infrastructure modular: damaged or changed portions can be traced and replaced without rebuilding unrelated equipment.
  • Uses no software: this product is passive or manual and has no configuration app.
8

What this product does not do

  • It is not an Ethernet splitter, network switch, router, signal combiner, converter, amplifier, mains outlet, weatherproof box or surface-mount enclosure.
  • It does not upgrade a lower-category cable or repair split pairs, poor conductor material, corrosion or bad device ports.
  • It does not guarantee PoE, bandwidth or error-free operation without a compliant complete link.
  • It does not remove the need for correct tools, installation practice, labelling and testing.
  • It should not be installed outdoors, in wet areas or beside mains wiring without a suitable compliant enclosure and qualified design.
9

What to do

Match

Match the exact SKU: use the title, construction and limits for 80182 rather than borrowing specifications from a similar family member.

Check

Check the complete path: confirm cable category, shielding, conductor construction, connector geometry, patch leads and endpoints.

Label

Label both ends: record room/port, wiring scheme and destination so later maintenance does not become guesswork.

Test

Test in stages: verify the cable or module before closing a wall plate or rack, then test again after final assembly.

Protect

Protect bend radius and strain relief: route cable gently and keep load away from contacts, IDC slots and device sockets.

10

What not to do

Do not force

Do not force parts: a keystone, plug, cable or tool that does not fit cleanly is probably the wrong geometry.

Do not miswire

Do not mix T568A and T568B accidentally: document the chosen scheme and check all eight conductors.

Do not over-untwist

Do not untwist pairs excessively: preserving pair geometry near termination matters to high-frequency performance.

Do not guess

Do not claim speed from appearance: clear housings, gold colour or a category marking do not replace complete-link testing.

Do not reuse damage

Do not use damaged parts: discard cracked housings, bent contacts, dull blades, loose shutters or failed crimp terminations.

11

Warnings and limitations

  • Electrical work nearby: isolate nearby mains circuits before opening a wall box and use a qualified installer wherever rules require one.
  • Indoor low-voltage scope: no outdoor ingress rating is established. Keep the product dry, clean and away from corrosive environments or excessive heat.
  • Category is system-wide: a Cat5e, Cat6 or Cat7 label on one part does not upgrade the remaining cable, patch leads, terminations or equipment.
  • Test before service: visual inspection is not enough. Verify conductor map and real link negotiation; professional installations may require certification testing.
  • Do not work on live mains: networking hardware is low voltage, but wall boxes and racks may be close to hazardous electrical circuits.

Exact model limit: No speed or format is created by the plate. Each port is limited by its installed module, in-wall cable, patch leads and connected equipment.

12

Technical specifications

Brand / SKU UGREEN 80182
Product role a two-position modular faceplate for finishing two independent low-voltage cable runs at one indoor wall location
Product type Dual-port modular wall faceplate
Module positions 2 independent standard-keystone positions
Faceplate size 86 × 86mm
Listed front opening 14.7 × 19.5mm per position
Housing ABS + PC
Colour White
Listed weight 51g
Electronics None; passive
Exact-page use RJ45 LAN or RJ11 telephone modules; other keystone types require a physical and system check
Verified source https://www.ugreenindia.com/collections/networking-lan-cards/products/ugreen-dual-port-wall-plate-80182
13

Product research and claim reconciliation

Primary source: exact UGREEN India SKU page and the current live Shopify product record.

Visual check: Exact live media confirms two shuttered openings, a replaceable label area, white finish and reinforced rear structure. The long catalog title mentions several possible connector families, while the exact specification text explicitly names RJ45 and RJ11. Copy therefore treats HDMI/audio only as conditional third-party keystone possibilities, never as included modules or guaranteed compatibility.

Claim policy: conflicting family artwork, mistranslated metadata, impossible dimensions and adjacent-model specifications are excluded rather than averaged together.

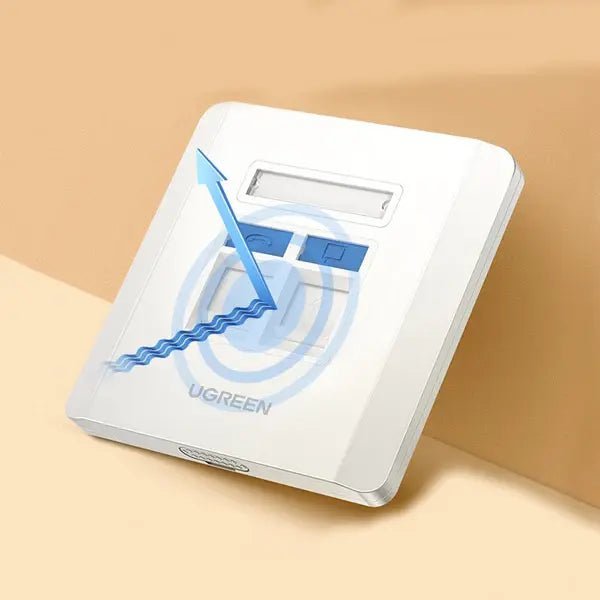

UGREEN 80182 exact detail retained after conflict review
UGREEN 80182 exact detail retained after conflict review
14

Troubleshooting checklist

No link

Confirm both active devices, patch leads and port selections. Then check conductor map, full insertion and the exact connector/cable fit.

Lower speed than expected

Verify negotiation settings and every component category. Excessive untwist, split pairs and unsuitable cable construction can pass continuity yet fail performance.

Intermittent link

Look for incomplete seating, weak strain relief, damaged latch, nicked conductor, IDC not fully closed or a crimp made with the wrong die.

PoE device restarts

Stop use and inspect conductor material, gauge, contact engagement, heat and the powered equipment budget. Do not continue with a hot or damaged termination.

Shield or noise concern

For shielded products, check end-to-end shield design and grounding practice. Mixing shielded and unshielded parts can defeat the intended system.

Port or label mismatch

Trace one cable at a time, compare labels at both ends and update records immediately after correction.

15

Package contents

In the box

1 × UGREEN 80182 dual-port wall faceplate. Keystone modules, signal cables and patch leads are not identified as included; mounting hardware is not confirmed in the current exact record.

Devices, cables, racks, wall boxes, modules, tools and testers are not included unless explicitly named above.

16

Product-specific FAQ

What exactly is UGREEN 80182?
A two-position modular faceplate for finishing two independent low-voltage cable runs at one indoor wall location.
What is included in the package?
1 × UGREEN 80182 dual-port wall faceplate. Keystone modules, signal cables and patch leads are not identified as included; mounting hardware is not confirmed in the current exact record.
Which cables, modules or devices are compatible?
Two physically compatible keystone modules and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; other low-voltage keystone couplers must be checked for body size, latch position, depth and full-path signal support.
Does it guarantee the advertised network speed?
No speed or format is created by the plate. Each port is limited by its installed module, in-wall cable, patch leads and connected equipment. Test the complete channel rather than judging one component in isolation.
Can it be used in a PoE network?
The plate has no electrical contacts. PoE capability depends entirely on a compliant RJ45 keystone, cable, terminations and powered network equipment.
Which tools are required?
Basic mounting tools may be required. Keystone modules must be installed or terminated with the method specified by their own manufacturer.
Does it split, switch, route or convert a network connection?
No. not an Ethernet splitter, network switch, router, signal combiner, converter, amplifier, mains outlet, weatherproof box or surface-mount enclosure. Any active switching, routing, conversion or power function requires separate purpose-built equipment.
How should a finished installation be tested?
Start with a wire-map or continuity test that checks all required conductors and shield where applicable. Then connect known-good equipment, confirm negotiated link speed and observe errors under normal traffic.
Is it suitable for outdoor or mains-power installation?
No outdoor or ingress-protection rating is verified. This is a low-voltage networking accessory; it is not a mains device. Follow separation, fire, grounding and building rules.
What should I do if the link is intermittent?
Remove power where applicable, inspect for partial insertion, wrong colour order, excessive untwist, nicked conductors, poor strain relief or an incompatible cable/connector fit. Reterminate only with matched parts, then test again.
How is this exact SKU different from similar UGREEN products?
Exact live media confirms two shuttered openings, a replaceable label area, white finish and reinforced rear structure. The long catalog title mentions several possible connector families, while the exact specification text explicitly names RJ45 and RJ11. Copy therefore treats HDMI/audio only as conditional third-party keystone possibilities, never as included modules or guaranteed compatibility.

Exact-model check before ordering

Match SKU 80182, product type, port or die count, cable category/construction and package contents. Similar UGREEN networking accessories can look nearly identical while using different shielding, conductor fit, rack format or termination method.

SKU 801822 KEYSTONE POSITIONS • 86 × 86MM • PASSIVE
