Ugreen  |  SKU: 50634
45% off
New arrival

UGREEN 50634 Cat7 Shielded RJ45 Modular Plugs, 10-Pack

Rs. 611.00 Rs. 1,109.00
Tax included Shipping calculated at checkout.

Blazing Speed
Stable Link
Corrosion Proof
Easy Fit
Interference Shield
CAT7 FTP • SHIELDED • 10 PACK

UGREEN 50634 Cat7 Shielded RJ45 Modular Plugs, 10-Pack

Overview

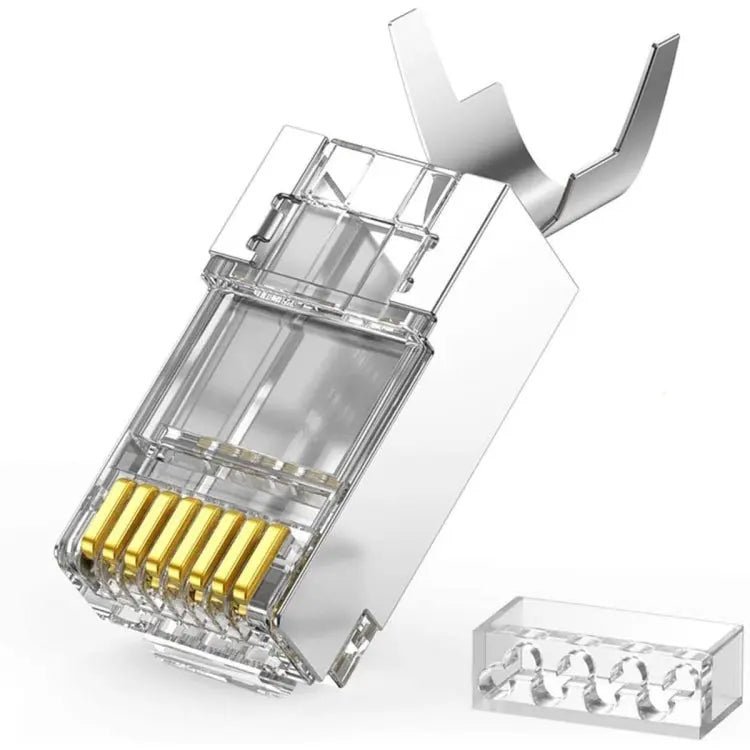

UGREEN 50634 is a 10-pack of shielded Cat7 8P8C modular plugs with separate cable-management clips for compatible FTP cable. Each plug forms a shielded male cable end after conductors are placed through the supplied guide/clip, the shield is engaged and the assembly is crimped. This guide explains selection, installation, compatibility, real limitations and safe use without treating a passive accessory as active networking equipment.

Exact SKU 50634ACTIVE productCAT7 FTP • SHIELDED • 10 PACK
UGREEN 50634 exact product overview
UGREEN 50634 exact product overview
1

Key features

Exact role

Each plug forms a shielded male cable end after conductors are placed through the supplied guide/clip, the shield is engaged and the assembly is crimped.

Compatibility boundary

Compatible four-pair Cat7 FTP cable whose conductor and jacket geometry fit this specific two-piece termination. The exact page lists an OD up to 1.3mm but does not clearly identify whether this refers to each insulated conductor; verify with a trial termination.

Performance reality

Listed for up to 10Gbps in a compliant Cat7 link. The connector pack alone does not certify channel bandwidth, grounding, crosstalk or installed-cable performance.

Important exclusion

This is not a universal fit for every Cat7/Cat8 cable, not a tool-free plug, not a pass-through design, not a female coupler and not suitable without the correct shield/strain termination.

2

Where it fits in the connection

1. Network device
2. Crimped plug
3. Matched cable
4. Crimped plug
5. Network device

The system rule: every stage must match. The lowest-rated, damaged or incorrectly terminated component can limit speed, reliability, shielding, PoE operation or serviceability.

3

Use scenarios

Scenario 1

Making short high-performance FTP patch leads from verified compatible cable.

Scenario 2

Repairing a shielded cable end while retaining correct shield continuity.

Scenario 3

Small professional batches where every finished lead is tested.

Scenario 4

Rack or equipment connections that require a shielded modular male end.

4

Compatibility and selection guide

Use when

Compatible four-pair Cat7 FTP cable whose conductor and jacket geometry fit this specific two-piece termination. The exact page lists an OD up to 1.3mm but does not clearly identify whether this refers to each insulated conductor; verify with a trial termination.

Do not assume

not a universal fit for every Cat7/Cat8 cable, not a tool-free plug, not a pass-through design, not a female coupler and not suitable without the correct shield/strain termination.

Before bulk purchase: trial the exact cable, module, plug or rack fit and complete one tested installation. Small physical differences can matter even within the same category name.

UGREEN 50634 construction or installation detail
UGREEN 50634 construction or installation detail
5

Setup and usability guidance

  1. Step 1: Confirm the exact FTP cable construction and perform a sample fit; do not rely on “Cat7” name alone.
  2. Step 2: Slide on any separately selected boot and prepare the braid/foil according to the connector design.

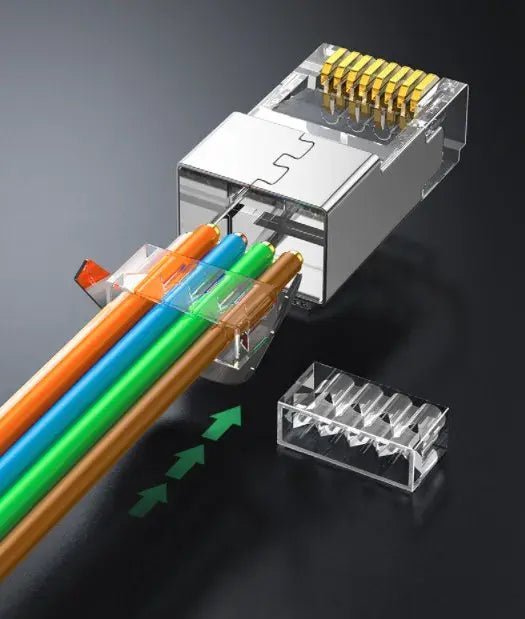

  3. Step 3: Use the supplied cable clip/guide to preserve conductor order and insertion geometry.
  4. Step 4: Keep pair untwist minimal, trim evenly and insert all conductors fully.
  5. Step 5: Engage the metal shield and strain support without stray braid strands or crushed pairs.
  6. Step 6: Crimp with compatible pliers, inspect every contact and shield joint, then test wire map, shield continuity and actual link negotiation.

Work cleanly: dust, copper scraps and loose braid strands can create faults. Collect offcuts and inspect the finished area before energising connected equipment.

6

Compatible devices and systems

Network endpoints

Routers, switches, access points, computers, printers, smart televisions, cameras and other RJ45 network equipment only through a correctly built compatible link.

Structured cabling

Wall outlets, patch panels, permanent cable and patch leads must share a suitable category, shielding design and wiring scheme.

PoE equipment

Possible only within the verified boundary: No PoE class or current ceiling is stated for SKU 50634. Any PoE use requires a complete compliant channel, correct shield practice, suitable copper conductors and thermal assessment.

Operating systems

No operating-system driver is required for this passive accessory or manual tool; active adapters and switches are separate products.

7

What this product does

  • Provides its exact documented function: Each plug forms a shielded male cable end after conductors are placed through the supplied guide/clip, the shield is engaged and the assembly is crimped.
  • Supports the stated compatibility class: Compatible four-pair Cat7 FTP cable whose conductor and jacket geometry fit this specific two-piece termination. The exact page lists an OD up to 1.3mm but does not clearly identify whether this refers to each insulated conductor; verify with a trial termination.
  • Can form part of a serviceable labelled network: when installed with matched components and tested.
  • Keeps infrastructure modular: damaged or changed portions can be traced and replaced without rebuilding unrelated equipment.
  • Uses no software: this product is passive or manual and has no configuration app.
8

What this product does not do

  • It is not a universal fit for every Cat7/Cat8 cable, not a tool-free plug, not a pass-through design, not a female coupler and not suitable without the correct shield/strain termination.
  • It does not upgrade a lower-category cable or repair split pairs, poor conductor material, corrosion or bad device ports.
  • It does not guarantee PoE, bandwidth or error-free operation without a compliant complete link.
  • It does not remove the need for correct tools, installation practice, labelling and testing.
  • It should not be installed outdoors, in wet areas or beside mains wiring without a suitable compliant enclosure and qualified design.
9

What to do

Match

Match the exact SKU: use the title, construction and limits for 50634 rather than borrowing specifications from a similar family member.

Check

Check the complete path: confirm cable category, shielding, conductor construction, connector geometry, patch leads and endpoints.

Label

Label both ends: record room/port, wiring scheme and destination so later maintenance does not become guesswork.

Test

Test in stages: verify the cable or module before closing a wall plate or rack, then test again after final assembly.

Protect

Protect bend radius and strain relief: route cable gently and keep load away from contacts, IDC slots and device sockets.

10

What not to do

Do not force

Do not force parts: a keystone, plug, cable or tool that does not fit cleanly is probably the wrong geometry.

Do not miswire

Do not mix T568A and T568B accidentally: document the chosen scheme and check all eight conductors.

Do not over-untwist

Do not untwist pairs excessively: preserving pair geometry near termination matters to high-frequency performance.

Do not guess

Do not claim speed from appearance: clear housings, gold colour or a category marking do not replace complete-link testing.

Do not reuse damage

Do not use damaged parts: discard cracked housings, bent contacts, dull blades, loose shutters or failed crimp terminations.

11

Warnings and limitations

  • Sharp tools and contacts: keep fingers clear of blades, IDC contacts, trimmed conductors and crimp dies. Wear appropriate eye protection during cutting and termination.
  • Indoor low-voltage scope: no outdoor ingress rating is established. Keep the product dry, clean and away from corrosive environments or excessive heat.
  • Category is system-wide: a Cat5e, Cat6 or Cat7 label on one part does not upgrade the remaining cable, patch leads, terminations or equipment.
  • Test before service: visual inspection is not enough. Verify conductor map and real link negotiation; professional installations may require certification testing.
  • Do not work on live mains: networking hardware is low voltage, but wall boxes and racks may be close to hazardous electrical circuits.

Exact model limit: Listed for up to 10Gbps in a compliant Cat7 link. The connector pack alone does not certify channel bandwidth, grounding, crosstalk or installed-cable performance.

12

Technical specifications

Brand / SKU UGREEN 50634
Product role a 10-pack of shielded Cat7 8P8C modular plugs with separate cable-management clips for compatible FTP cable
Product type Shielded Cat7 modular plugs with cable clips
Cable category Cat7 FTP
Connector 8P8C male modular plug
Pack quantity 10
Shielding Metal copper shielded casing, as listed

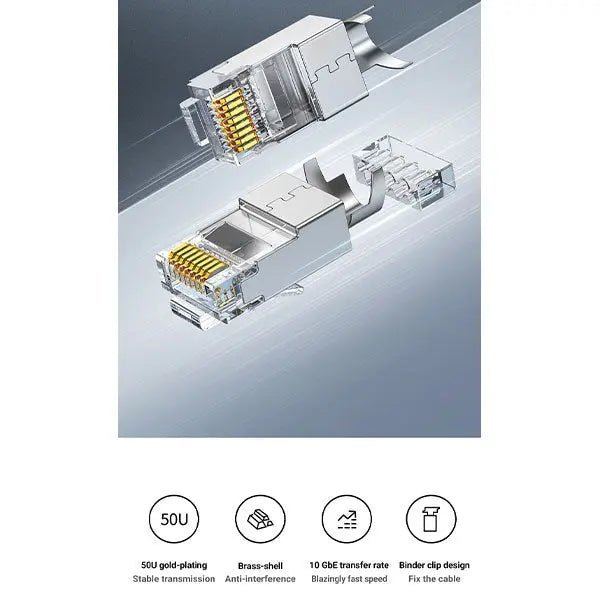

Contacts 50U gold-plated phosphor-bronze three-prong pins
Listed rate Up to 10Gbps in a compliant complete link

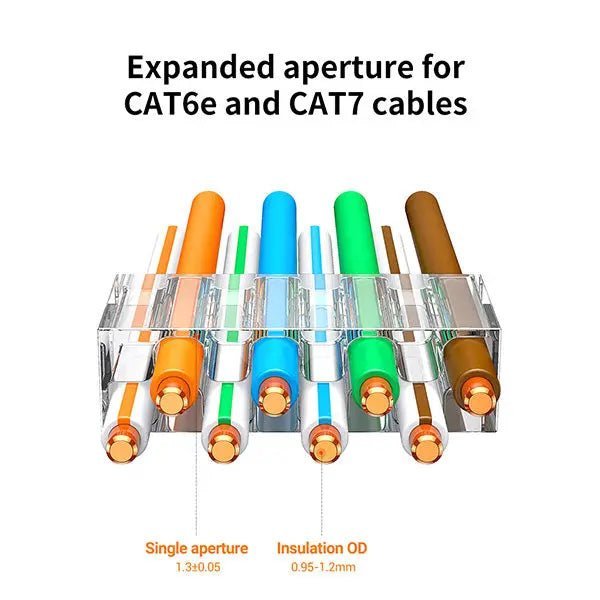

Listed fit note Four-pair Cat7 FTP; OD up to 1.3mm, reference ambiguous—trial fit required
Termination Crimp with compatible pliers
Electronics None; passive
Verified source https://www.ugreenindia.com/products/ugreen-cat-7-shielded-modular-plug-gold-plated-50u-10-pcs-50634
13

Product research and claim reconciliation

Primary source: exact UGREEN India SKU page and the current live Shopify product record.

Visual check: Exact live media confirms the shielded two-piece connector, cable clip, 50U artwork, 10Gbps positioning and need for suitable crimping pliers. Several gallery filenames say 50635 even though the live product is 50634; only slides with no conflicting printed SKU and physically matching NW193 construction were retained. The ambiguous 1.3mm OD statement is flagged instead of silently treating it as whole-cable diameter.

Claim policy: conflicting family artwork, mistranslated metadata, impossible dimensions and adjacent-model specifications are excluded rather than averaged together.

UGREEN 50634 exact detail retained after conflict review
UGREEN 50634 exact detail retained after conflict review
14

Troubleshooting checklist

No link

Confirm both active devices, patch leads and port selections. Then check conductor map, full insertion and the exact connector/cable fit.

Lower speed than expected

Verify negotiation settings and every component category. Excessive untwist, split pairs and unsuitable cable construction can pass continuity yet fail performance.

Intermittent link

Look for incomplete seating, weak strain relief, damaged latch, nicked conductor, IDC not fully closed or a crimp made with the wrong die.

PoE device restarts

Stop use and inspect conductor material, gauge, contact engagement, heat and the powered equipment budget. Do not continue with a hot or damaged termination.

Shield or noise concern

For shielded products, check end-to-end shield design and grounding practice. Mixing shielded and unshielded parts can defeat the intended system.

Port or label mismatch

Trace one cable at a time, compare labels at both ends and update records immediately after correction.

15

Package contents

In the box

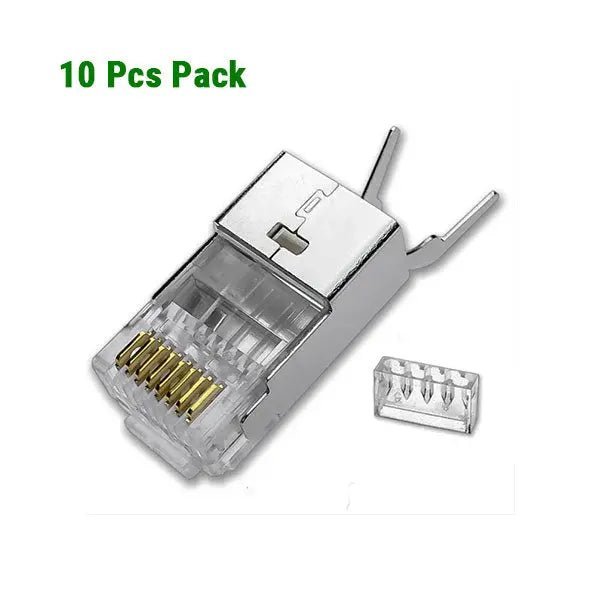

10 × UGREEN 50634 shielded Cat7 8P8C modular plugs with their cable clips. Cable, boots, compatible crimping pliers and tester are not identified as included.

Devices, cables, racks, wall boxes, modules, tools and testers are not included unless explicitly named above.

16

Product-specific FAQ

What exactly is UGREEN 50634?
A 10-pack of shielded Cat7 8P8C modular plugs with separate cable-management clips for compatible FTP cable.
What is included in the package?
10 × UGREEN 50634 shielded Cat7 8P8C modular plugs with their cable clips. Cable, boots, compatible crimping pliers and tester are not identified as included.
Which cables, modules or devices are compatible?
Compatible four-pair Cat7 FTP cable whose conductor and jacket geometry fit this specific two-piece termination. The exact page lists an OD up to 1.3mm but does not clearly identify whether this refers to each insulated conductor; verify with a trial termination.
Does it guarantee the advertised network speed?
Listed for up to 10Gbps in a compliant Cat7 link. The connector pack alone does not certify channel bandwidth, grounding, crosstalk or installed-cable performance. Test the complete channel rather than judging one component in isolation.
Can it be used in a PoE network?
No PoE class or current ceiling is stated for SKU 50634. Any PoE use requires a complete compliant channel, correct shield practice, suitable copper conductors and thermal assessment.
Which tools are required?

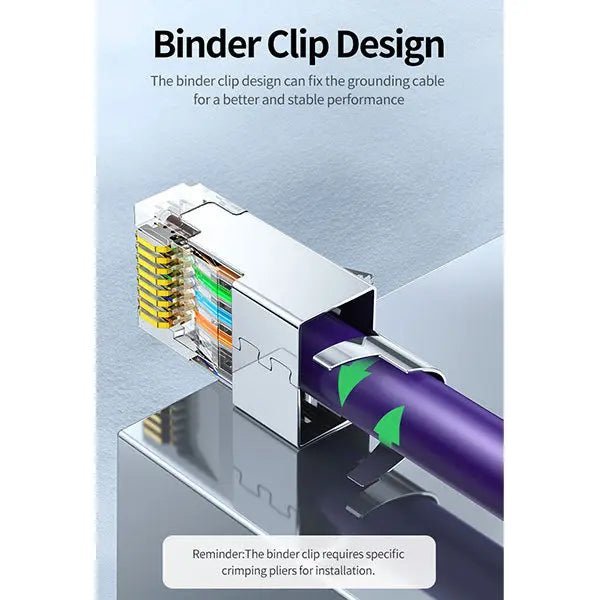

The exact gallery warns that the binder/cable clip requires specific crimping pliers. Use a compatible shielded-plug crimper and test the actual cable/plug combination before bulk work.
Does it split, switch, route or convert a network connection?
No. not a universal fit for every Cat7/Cat8 cable, not a tool-free plug, not a pass-through design, not a female coupler and not suitable without the correct shield/strain termination. Any active switching, routing, conversion or power function requires separate purpose-built equipment.
How should a finished installation be tested?

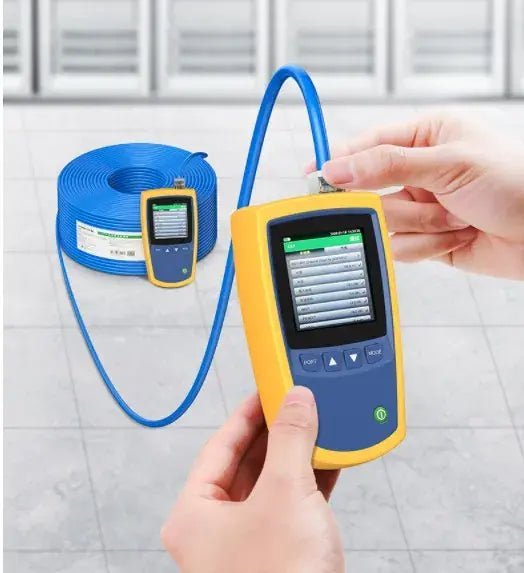

Start with a wire-map or continuity test that checks all required conductors and shield where applicable. Then connect known-good equipment, confirm negotiated link speed and observe errors under normal traffic.
Is it suitable for outdoor or mains-power installation?
No outdoor or ingress-protection rating is verified. This is a low-voltage networking accessory; it is not a mains device. Follow separation, fire, grounding and building rules.
What should I do if the link is intermittent?
Remove power where applicable, inspect for partial insertion, wrong colour order, excessive untwist, nicked conductors, poor strain relief or an incompatible cable/connector fit. Reterminate only with matched parts, then test again.
How is this exact SKU different from similar UGREEN products?
Exact live media confirms the shielded two-piece connector, cable clip, 50U artwork, 10Gbps positioning and need for suitable crimping pliers. Several gallery filenames say 50635 even though the live product is 50634; only slides with no conflicting printed SKU and physically matching NW193 construction were retained. The ambiguous 1.3mm OD statement is flagged instead of silently treating it as whole-cable diameter.

Exact-model check before ordering

Match SKU 50634, product type, port or die count, cable category/construction and package contents. Similar UGREEN networking accessories can look nearly identical while using different shielding, conductor fit, rack format or termination method.

SKU 50634CAT7 FTP • SHIELDED • 10 PACK
