Ugreen  |  SKU: 20826
60% off
New arrival

UGREEN 5m USB 3.0 Active Extension Cable, 5Gbps (20826)

Rs. 2,222.00 Rs. 5,553.00
Tax included Shipping calculated at checkout.

Long Reach
Fast Data
Clear Signal
Plug & Play
Universal Fit
ACTIVE USB 3.0 • 5Gbps • 5m

UGREEN 20826 5m Active USB 3.0 Extension Cable

Overview

This exact 5 m US175 cable extends a USB-A SuperSpeed peripheral connection. Its built-in signal amplifier/repeater supports data rates up to 5Gbps, while a nearby Micro-USB auxiliary input can accept 5V power when the connected peripheral needs a more stable power budget. The USB-A male end is the host side and the USB-A female end is the peripheral side.

Active repeater with auxiliary inputUp to 5Gbps5 mUS175

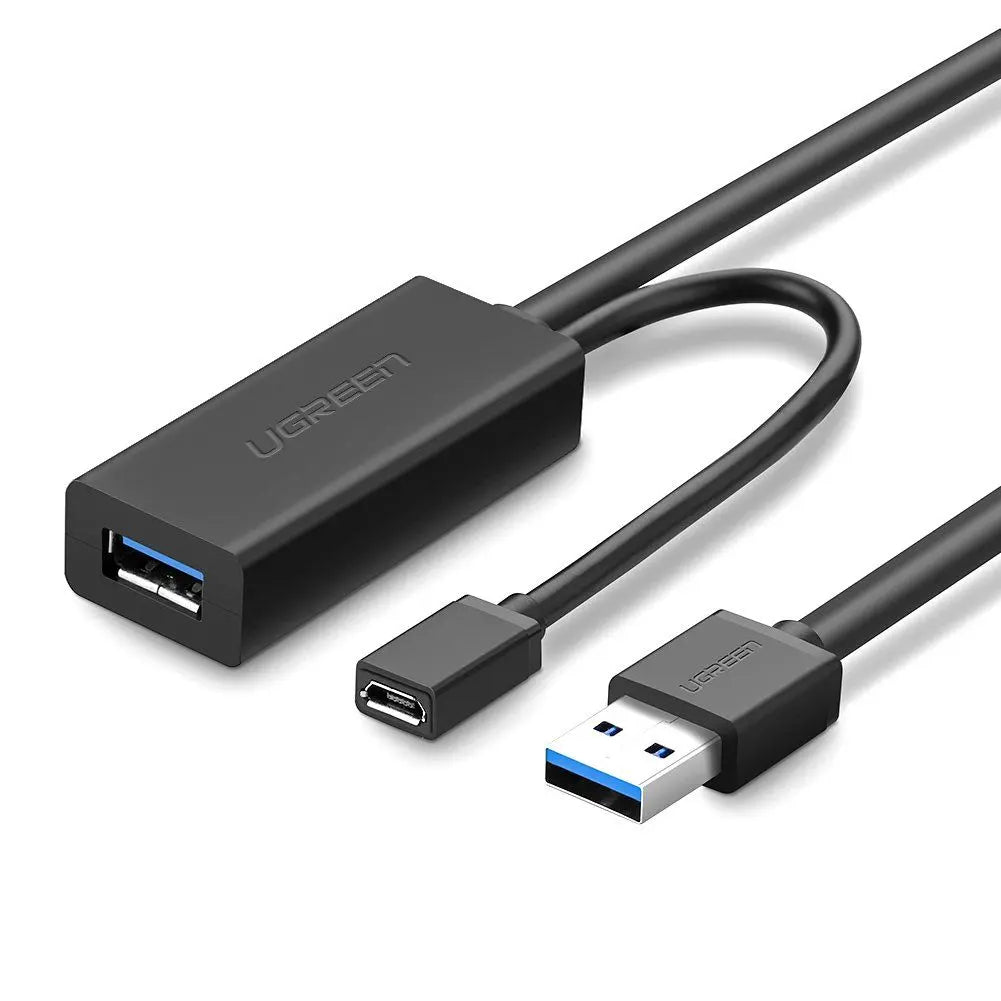

UGREEN 20826 5m USB 3.0 active extension cable with auxiliary Micro-USB power input
Exact SKU 20826 is a five-metre active USB-A extension with a blue USB-A 3.0 device socket and a separate Micro-USB auxiliary-power input.

Choose the right extension

Exact-model choice

SKU 20826 is the 5 m, active repeater with auxiliary input option. Match this identity instead of a similar family photograph.

Connector check

USB-A male to USB-A female. USB-A and USB-C are different; match both ends before ordering.

Performance check

USB 3.0 / USB 3.2 Gen 1 (5Gbps class), Up to 5Gbps. The slowest component and protocol overhead set the result.

Power check

USB bus power; Micro-USB 5V auxiliary input available. Signal extension and peripheral power are separate compatibility questions.

Plain-language rule: choose by exact SKU, connector, length, active/passive design, required data rate and power needs—not by an old device-name list.

Key features

Active repeater with auxiliary input

The exact US175 design is active repeater with auxiliary input; that determines signal reach and whether extra electronics are present.

Up to 5Gbps

The listed ceiling applies only when every relevant host, cable segment, adapter and peripheral supports the negotiated USB mode.

5 m exact reach

Measure the routed path around furniture and leave gentle slack. Do not stretch the cable, pinch it under furniture or make tight bends at either connector.

Power behaviour

USB bus power; Micro-USB 5V auxiliary input available. Auxiliary input is not a charging output.

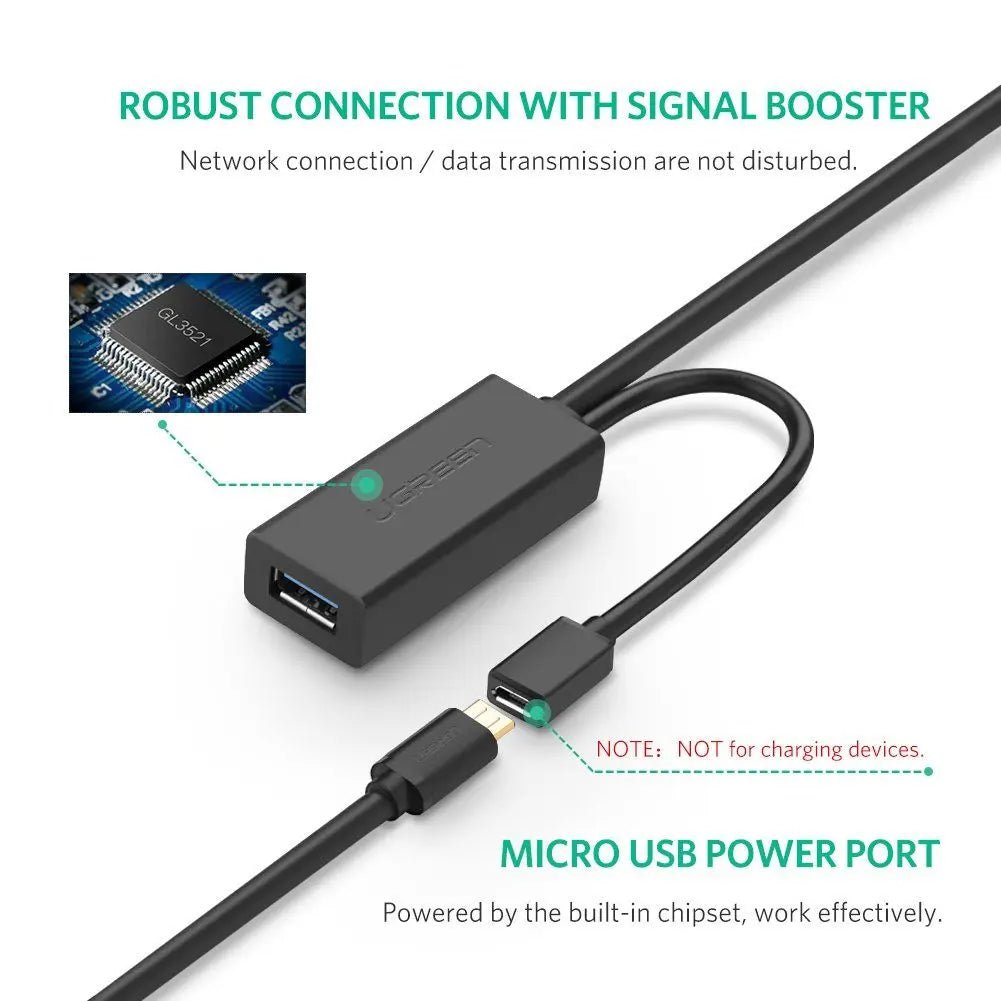

UGREEN 20826 signal-booster module and Micro-USB auxiliary-power input diagram
The inline repeater regenerates the USB 3.0 signal, while the Micro-USB socket can accept a compatible 5V supply for stability; it is not a charging output.

Use scenarios

Workspace reach

External storage, card readers and other USB 3.x peripherals after checking power draw

Peripheral placement

Printer, camera or capture hardware that documents operation through USB 3.x extensions

AV or imaging

Keyboard, mouse, controller or receiver when a long Type-A path is unavoidable

Long-route planning

A powered peripheral or powered hub placed at the far end of the 5 m route

A device category is not a compatibility promise. Confirm its connector, USB mode, driver, power demand and manufacturer guidance for extensions before permanent routing.

UGREEN 20826 extending a USB 3.0 connection from a computer to a printer
The five-metre path can move a compatible USB peripheral farther from the host; the printer example still depends on its own driver and power supply.

Setup and usability guidance

  1. Test direct first: confirm the peripheral works when connected straight to the host.
  2. Identify the host end: connect the male plug to the host/source and the female socket to the peripheral side.
  3. Simplify: remove unnecessary hubs, adapters and other extensions during setup.
  4. Connect securely: insert straight, support the cable weight and avoid side-load on either port.
  5. Verify the real task: test sustained transfer, printing, recording, wake/reconnect or display/charging as applicable—not only initial detection.
  6. Route last: once stable, use broad bends, dry indoor placement and strain relief.

Compatible devices and systems

Works with standard USB-A host ports and USB-A peripherals across Windows, macOS, Linux and ChromeOS when the device has suitable drivers. USB 2.0 devices may fall back to their lower rate. The exact India listing says USB headsets are not supported; do not select this cable for that use.

Host requirement

A functioning USB-A male host/source port with support for the required USB mode.

Peripheral requirement

A compatible USB-A female connection, suitable device driver and a power demand the complete setup can meet.

Backward modes

Backward operation uses the slowest mutually supported USB mode. A faster-labelled host port cannot raise the capability of a slower cable or device.

No cable driver

The extension itself is plug-and-play. Specialist devices may still need vendor software, permissions, firmware or a particular host controller.

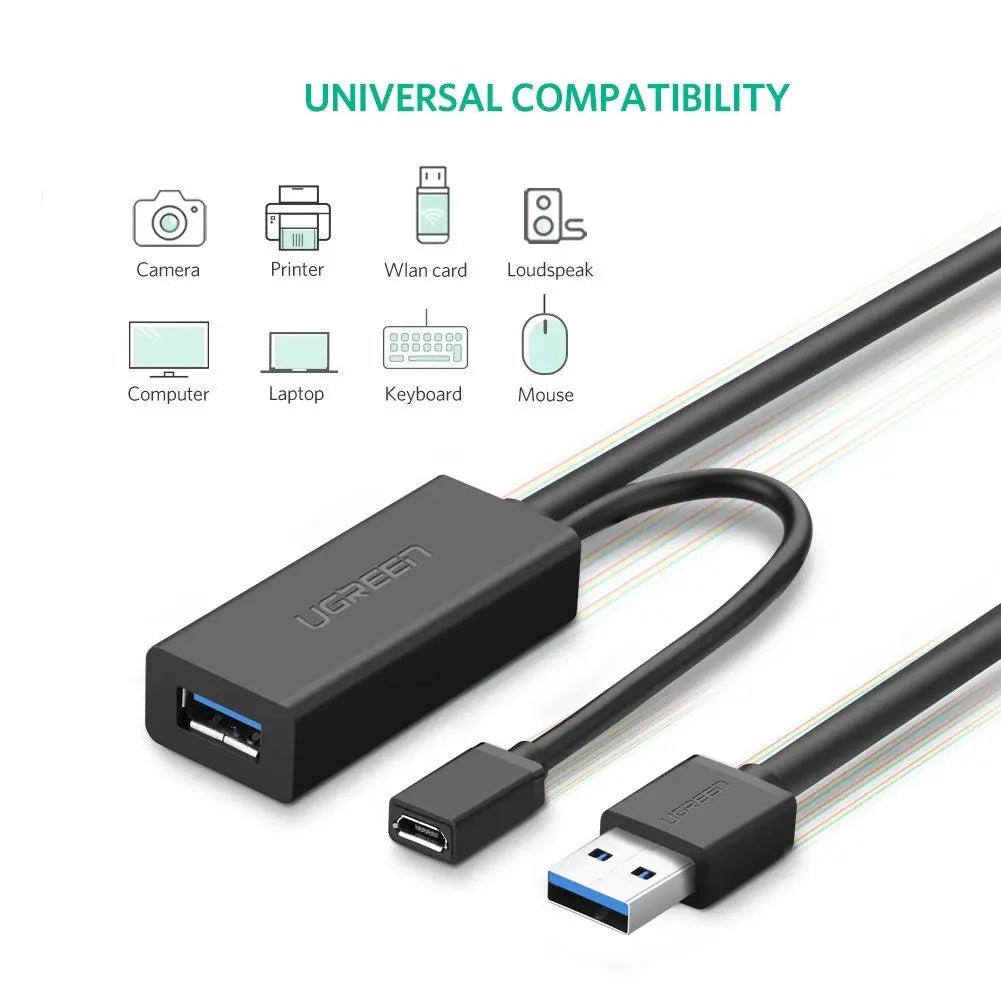

UGREEN 20826 compatibility artwork for computers cameras printers keyboards mice and USB adapters
The exact artwork shows representative USB-A categories. Real support depends on the device’s controller, driver, data mode, timing and power demand.

What this product does

  • Extends one USB-A host-to-peripheral link by 5 m.
  • Regenerates 5Gbps-class USB data with active electronics.
  • Offers a Micro-USB 5V auxiliary-power input near the peripheral end.
  • Supports backward USB operation at the slowest mutually supported mode.

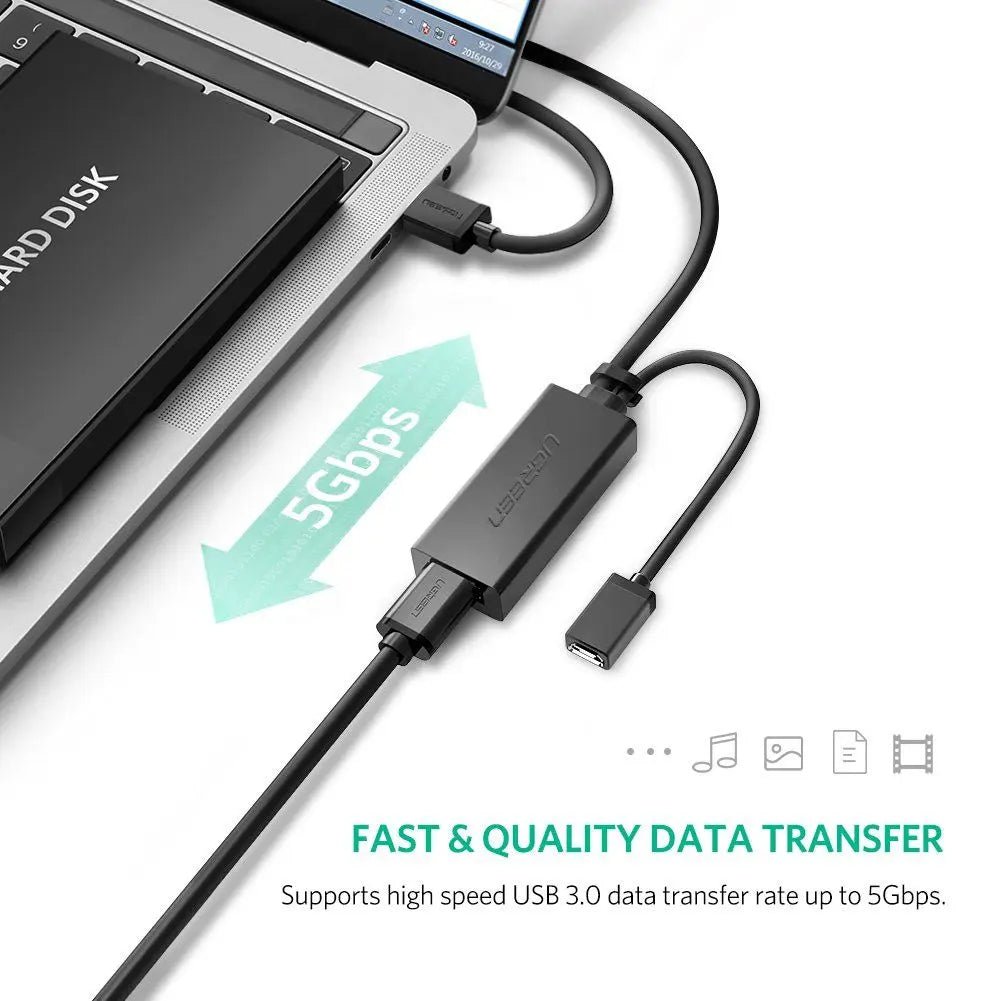

UGREEN 20826 extending a USB 3.0 external drive connection with a 5Gbps label
Up to 5Gbps is the USB 3.0 interface ceiling when the host and device negotiate that mode; actual storage throughput is lower and device-dependent.

What this product does not do

  • It does not provide USB-C, Thunderbolt, HDMI or DisplayPort connectivity.
  • It does not natively carry a display signal or add video capability.
  • Its Micro-USB socket is not an output for charging phones or accessories.
  • It does not guarantee sufficient power for every hard drive, camera or hub.
  • It is specifically not documented for USB headsets on the exact India listing.

What to do

Match the full chain

Check both connector ends, host capability, peripheral requirements, any downstream lead and the exact application before installation.

Protect the ports

Support the cable and leave a service loop. Hold the plug housing when disconnecting; do not pull or twist the cable.

Plan peripheral power

Try the direct host-powered connection for an ordinary compatible device. If a higher-current peripheral is unstable, connect a suitable regulated 5V supply to the Micro-USB auxiliary input, following the device and power-source guidance. The live media marks this port as auxiliary power and “not for charging devices.” An external Micro-USB lead and adapter are not part of the verified package.

Keep evidence simple

If troubleshooting, change one variable at a time and test direct operation before adding the extension back.

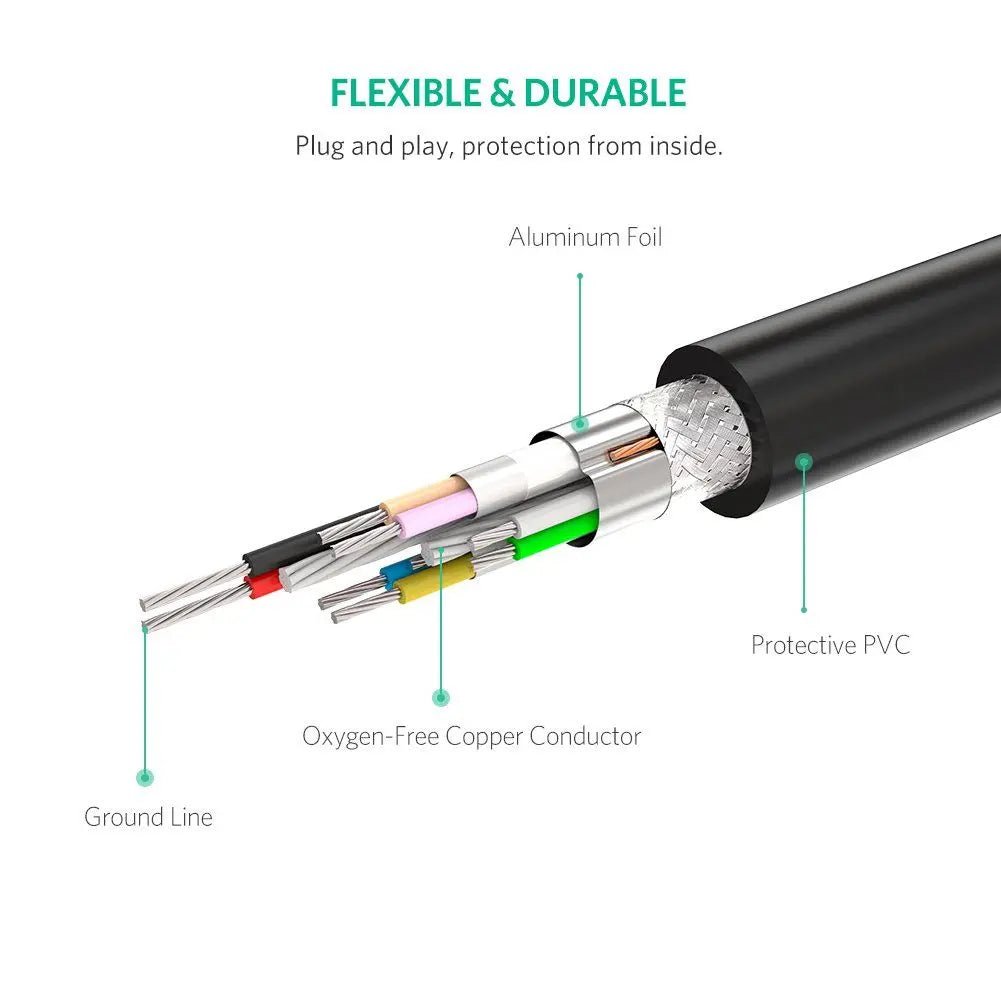

UGREEN 20826 cable cutaway showing conductors shielding and outer jacket
Route the shielded cable with broad bends and strain relief; the construction illustration does not make the cable crush-proof or suitable for pulling by its connectors.

What not to do

Do not join two hosts

Never connect two powered host ports; USB host-to-host wiring can cause damage.

Do not force connectors

USB-A and USB-C are different. Stop if a plug does not align, and never use a loose or damaged socket.

Do not build a cable chain

No supported chain count is published. Extra leads, adapters and hubs reduce signal and power margin.

Do not trust legacy name lists

The title and older listing copy mention legacy PlayStation, camera and HTC Vive examples. Current headset, console accessory and tracking-camera support is not documented as a certification and must not be assumed.

Warnings and limitations

Speed: Up to 5Gbps is an interface ceiling, not guaranteed application throughput.

Power: follow the exact power guidance above; device detection alone does not prove adequate power under load.

Video: No native video output. Connector shape alone does not establish display support.

Chaining: use one suitable length; no supported daisy-chain count is published.

Condition: keep dry, avoid heat, crushing and tight bends, and stop using damaged or unusually hot connections.

Fast troubleshooting path

1 — Prove the device

Connect the peripheral directly to the same host and verify the exact workflow. A direct failure points away from the extension.

2 — Reduce variables

Try another compatible host port; remove adapters and hubs; restart or update the peripheral driver/firmware if appropriate.

3 — Check power

Disconnect other bus-powered devices and follow the exact power guidance above. High-current hardware may need its own supply or a powered hub.

4 — Check performance

Confirm the negotiated USB mode and test sustained operation. For intermittent faults, inspect both connectors and try the shortest simple path.

Technical specifications

Brand / SKU UGREEN 20826
Model / family US175
Exact length 5 m
Topology Active repeater with auxiliary input
Connector direction USB-A male to USB-A female
USB mode USB 3.0 / USB 3.2 Gen 1 (5Gbps class)
Maximum listed data rate Up to 5Gbps
Power arrangement USB bus power; Micro-USB 5V auxiliary input available
Charging support Auxiliary input is not a charging output
Video support No native video output
Construction / electronics GL3521 booster shown in exact live media; oxygen-free copper conductors; PVC jacket; foil shielding; gold-plated connector contacts
Driver requirement No driver for the cable; connected device requirements still apply
Chaining No supported daisy-chain count published; use one suitable length
Listed dimensions 15 × 15 × 5 cm
Listed weight 274 g
Verified status ACTIVE Shopify product at research time

Dimensions and weight reproduce the exact India listing values where available; they can describe the listed packed/product record and should not be used as cable-installation tolerances.

See the exact model

SKU-first identification

This guide is for SKU 20826, model US175, 5 m. Similar UGREEN cables can differ in speed, length, repeater and power design.

Only images attached to this exact live Shopify record are used; unresolved media was omitted.

Package contents

1 × UGREEN 20826 5 m USB 3.0 active Type-A male-to-female extension cable with built-in repeater and integrated Micro-USB auxiliary-power input. No external Micro-USB lead, 5V adapter, hub or peripheral is promised in the verified package.

Product-specific FAQ

Is 20826 a passive extension?

No. It is an active US175 cable with a built-in repeater/signal amplifier for the long USB 3.0 path.

Which end connects to the host?

The USB-A male end plugs into the computer or other host. The device or its cable connects to the USB-A female end. Do not use it to link two host computers.

What is the maximum data rate?

Up to 5Gbps, the USB 3.0 / USB 3.2 Gen 1 class rate. Real throughput is lower and depends on the host, device, media, drivers and protocol overhead.

Is auxiliary power always required?

Not necessarily. Host bus power may be enough for many devices. The Micro-USB 5V input is available when the far-end peripheral needs additional power stability.

Does the Micro-USB port charge my device?

No. It is a power input for the extension/peripheral-side budget, not a charging output. The live exact-model media explicitly says it is not for charging devices.

Are a Micro-USB cable and adapter included?

They are not documented in the verified core package, so plan to supply a compatible lead and regulated 5V source separately if your setup requires auxiliary power.

Does it support video or USB-C Alt Mode?

No native display signal is specified. USB-A does not provide USB-C DisplayPort Alt Mode, and this cable does not convert to HDMI or DisplayPort.

Can I daisy-chain two active cables?

No supported chain count is published. Avoid stacking extensions; use one suitable length and test the exact device, software, power and reconnect cycle.

Does it work with USB 2.0 devices?

It can fall back when the host and peripheral support USB backward compatibility, but the complete link then runs at the slower negotiated USB mode.

Will old VR, Kinect or PlayStation camera accessories work?

Do not rely on historical title examples as a current guarantee. These products can be sensitive to controller, timing, power, firmware and port topology; follow the current device maker’s guidance.

Why is my drive or camera disconnecting?

First test it directly, then try another host port, remove hubs/adapters, use the auxiliary 5V input if appropriate, check the device’s own power supply and verify sustained transfers or recording—not only initial detection.

Selection confidence

Before purchase, match SKU 20826, 5 m, USB-A male to USB-A female, active repeater with auxiliary input and Up to 5Gbps. Then check power, software and any video or charging requirement against the whole setup.

Exact SKU 208265 mActive repeater with auxiliary inputUp to 5Gbps
UGREEN 20826 used in a long monitoring or security-camera workstation example
A monitoring system is only a use example. Check the exact camera or capture device’s current USB extension, bandwidth and power guidance before relying on it.
