Ugreen  |  SKU: 80180
50% off
New arrival

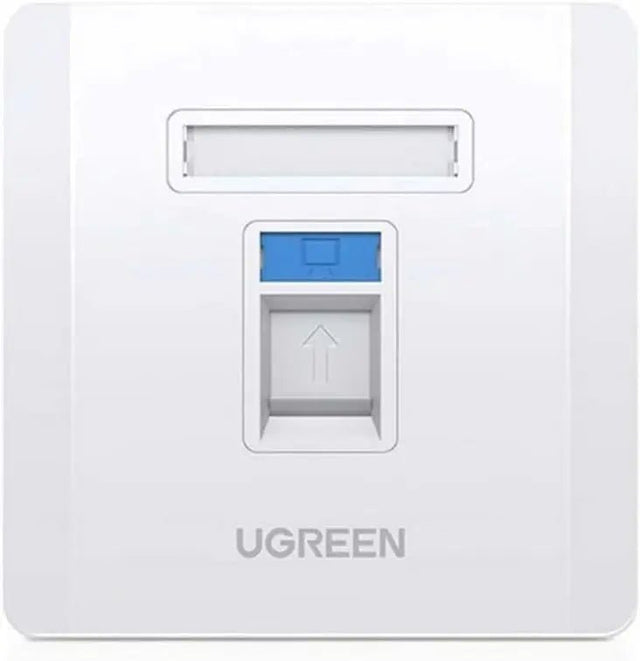

UGREEN 80180 Single-Port Keystone Wall Plate, 86×86mm, White

Rs. 166.00 Rs. 332.00
Tax included Shipping calculated at checkout.

Neat Setup
Clutter-Free
Quick Install
Secure Fit
Sleek Look
1 KEYSTONE POSITION • 86 × 86MM • PASSIVE

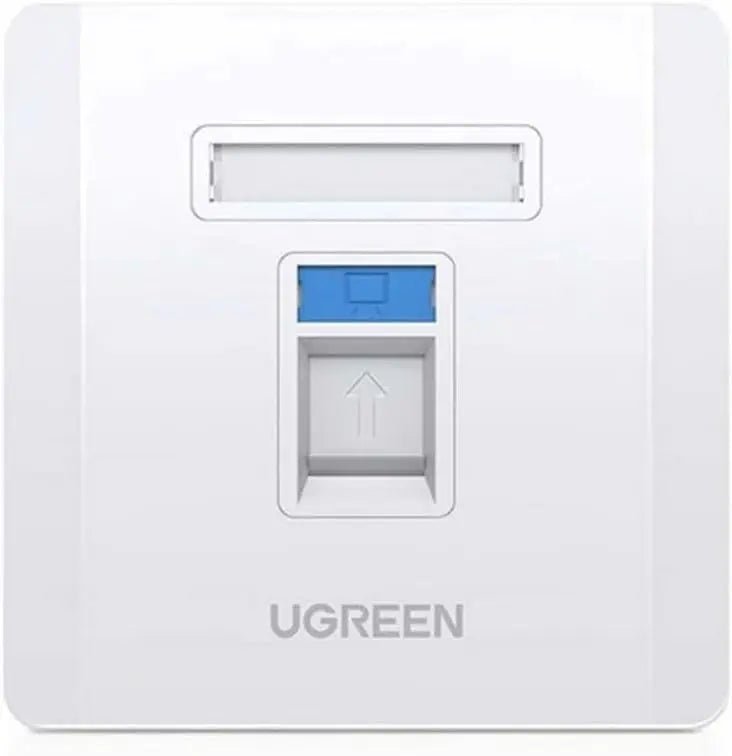

UGREEN 80180 Single-Port Keystone Wall Plate, 86×86mm, White

Overview

UGREEN 80180 is a single-position modular faceplate for finishing one low-voltage cable run at an indoor wall location. It holds one compatible keystone-form module and gives the outlet a clean, labelled finish. The installed module—not the faceplate—provides the actual connector and signal path. This guide explains selection, installation, compatibility, real limitations and safe use without treating a passive accessory as active networking equipment.

Exact SKU 80180ACTIVE product1 KEYSTONE POSITION • 86 × 86MM • PASSIVE
UGREEN 80180 exact product overview
UGREEN 80180 exact product overview
1

Key features

Exact role

It holds one compatible keystone-form module and gives the outlet a clean, labelled finish. The installed module—not the faceplate—provides the actual connector and signal path.

Compatibility boundary

One physically compatible keystone module and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; any other keystone coupler must be checked for opening size, latch geometry, body depth and complete signal-path capability.

Performance reality

The plate cannot raise Ethernet category, video resolution or audio capability. Results are controlled by the module, fixed cable, patch leads and endpoints.

Important exclusion

This is not a network jack by itself, splitter, switch, router, converter, signal booster, mains outlet, outdoor cover or surface-mount box.

2

Where it fits in the connection

1. Source / service
2. Patch lead
3. Keystone module
4. In-wall run
5. Destination

The system rule: every stage must match. The lowest-rated, damaged or incorrectly terminated component can limit speed, reliability, shielding, PoE operation or serviceability.

3

Use scenarios

Scenario 1

One labelled Ethernet outlet beside a desk, access point or television.

Scenario 2

One telephone outlet at reception or a workstation.

Scenario 3

A tidy serviceable pass-through using a separately verified keystone coupler.

Scenario 4

A room where the compatible module may later be replaced without changing the plate.

4

Compatibility and selection guide

Use when

One physically compatible keystone module and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; any other keystone coupler must be checked for opening size, latch geometry, body depth and complete signal-path capability.

Do not assume

not a network jack by itself, splitter, switch, router, converter, signal booster, mains outlet, outdoor cover or surface-mount box.

Before bulk purchase: trial the exact cable, module, plug or rack fit and complete one tested installation. Small physical differences can matter even within the same category name.

Selection checkpoint

Confirm port count, opening size, cable geometry, mounting depth and package contents. The connector family name alone is not a fit guarantee.

5

Setup and usability guidance

  1. Step 1: Measure the wall box, check the 86 × 86mm front size, screw positions and available depth.
  2. Step 2: Select one compatible module for the required low-voltage service; the listed front opening is 14.7 × 19.5mm.
  3. Step 3: Prepare and terminate the cable exactly as the module and cable manufacturer instruct.
  4. Step 4: Test the full link before closing the wall position.
  5. Step 5: Snap the module into the plate without forcing its latch, then fasten the faceplate evenly.
  6. Step 6: Label the port, close the shutter when unused and retest after final assembly.

Work cleanly: dust, copper scraps and loose braid strands can create faults. Collect offcuts and inspect the finished area before energising connected equipment.

6

Compatible devices and systems

Network endpoints

Routers, switches, access points, computers, printers, smart televisions, cameras and other RJ45 network equipment only through a correctly built compatible link.

Structured cabling

Wall outlets, patch panels, permanent cable and patch leads must share a suitable category, shielding design and wiring scheme.

PoE equipment

Possible only within the verified boundary: The plate has no conductive network path. PoE is possible only when every installed network component is correctly rated and terminated for the intended PoE system.

Operating systems

No operating-system driver is required for this passive accessory or manual tool; active adapters and switches are separate products.

7

What this product does

  • Provides its exact documented function: It holds one compatible keystone-form module and gives the outlet a clean, labelled finish. The installed module—not the faceplate—provides the actual connector and signal path.
  • Supports the stated compatibility class: One physically compatible keystone module and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; any other keystone coupler must be checked for opening size, latch geometry, body depth and complete signal-path capability.
  • Can form part of a serviceable labelled network: when installed with matched components and tested.
  • Keeps infrastructure modular: damaged or changed portions can be traced and replaced without rebuilding unrelated equipment.
  • Uses no software: this product is passive or manual and has no configuration app.
8

What this product does not do

  • It is not a network jack by itself, splitter, switch, router, converter, signal booster, mains outlet, outdoor cover or surface-mount box.
  • It does not upgrade a lower-category cable or repair split pairs, poor conductor material, corrosion or bad device ports.
  • It does not guarantee PoE, bandwidth or error-free operation without a compliant complete link.
  • It does not remove the need for correct tools, installation practice, labelling and testing.
  • It should not be installed outdoors, in wet areas or beside mains wiring without a suitable compliant enclosure and qualified design.
9

What to do

Match

Match the exact SKU: use the title, construction and limits for 80180 rather than borrowing specifications from a similar family member.

Check

Check the complete path: confirm cable category, shielding, conductor construction, connector geometry, patch leads and endpoints.

Label

Label both ends: record room/port, wiring scheme and destination so later maintenance does not become guesswork.

Test

Test in stages: verify the cable or module before closing a wall plate or rack, then test again after final assembly.

Protect

Protect bend radius and strain relief: route cable gently and keep load away from contacts, IDC slots and device sockets.

10

What not to do

Do not force

Do not force parts: a keystone, plug, cable or tool that does not fit cleanly is probably the wrong geometry.

Do not miswire

Do not mix T568A and T568B accidentally: document the chosen scheme and check all eight conductors.

Do not over-untwist

Do not untwist pairs excessively: preserving pair geometry near termination matters to high-frequency performance.

Do not guess

Do not claim speed from appearance: clear housings, gold colour or a category marking do not replace complete-link testing.

Do not reuse damage

Do not use damaged parts: discard cracked housings, bent contacts, dull blades, loose shutters or failed crimp terminations.

11

Warnings and limitations

  • Electrical work nearby: isolate nearby mains circuits before opening a wall box and use a qualified installer wherever rules require one.
  • Indoor low-voltage scope: no outdoor ingress rating is established. Keep the product dry, clean and away from corrosive environments or excessive heat.
  • Category is system-wide: a Cat5e, Cat6 or Cat7 label on one part does not upgrade the remaining cable, patch leads, terminations or equipment.
  • Test before service: visual inspection is not enough. Verify conductor map and real link negotiation; professional installations may require certification testing.
  • Do not work on live mains: networking hardware is low voltage, but wall boxes and racks may be close to hazardous electrical circuits.

Exact model limit: The plate cannot raise Ethernet category, video resolution or audio capability. Results are controlled by the module, fixed cable, patch leads and endpoints.

12

Technical specifications

Brand / SKU UGREEN 80180
Product role a single-position modular faceplate for finishing one low-voltage cable run at an indoor wall location
Product type Single-port modular wall faceplate
Module positions 1 standard-keystone position
Faceplate size 86 × 86mm
Listed front opening 14.7 × 19.5mm
Housing ABS + PC
Colour White
Listed weight 50g
Features Dust shutter, one-click disassembly and label management
Electronics None; passive
Verified source https://www.ugreenindia.com/products/ugreen-single-port-wall-plate-white-80180
13

Product research and claim reconciliation

Primary source: exact UGREEN India SKU page and the current live Shopify product record.

Visual check: The exact listing and sole live image establish a single shuttered keystone position and white plate. The title is broader than the specification text: RJ45/RJ11 are explicitly supported uses, while HDMI/audio depend on a separately sourced module that physically fits. Copy does not imply that any jack, cable or active function is built in.

Claim policy: conflicting family artwork, mistranslated metadata, impossible dimensions and adjacent-model specifications are excluded rather than averaged together.

One exact live image available

The product is presented with the available exact image and text-led diagrams; unrelated imagery was not imported to make the page look fuller.

14

Troubleshooting checklist

No link

Confirm both active devices, patch leads and port selections. Then check conductor map, full insertion and the exact connector/cable fit.

Lower speed than expected

Verify negotiation settings and every component category. Excessive untwist, split pairs and unsuitable cable construction can pass continuity yet fail performance.

Intermittent link

Look for incomplete seating, weak strain relief, damaged latch, nicked conductor, IDC not fully closed or a crimp made with the wrong die.

PoE device restarts

Stop use and inspect conductor material, gauge, contact engagement, heat and the powered equipment budget. Do not continue with a hot or damaged termination.

Shield or noise concern

For shielded products, check end-to-end shield design and grounding practice. Mixing shielded and unshielded parts can defeat the intended system.

Port or label mismatch

Trace one cable at a time, compare labels at both ends and update records immediately after correction.

15

Package contents

In the box

1 × UGREEN 80180 single-port wall faceplate and mounting screws as stated on the exact India listing. Keystone module, in-wall cable and patch lead are not identified as included.

Devices, cables, racks, wall boxes, modules, tools and testers are not included unless explicitly named above.

16

Product-specific FAQ

What exactly is UGREEN 80180?
A single-position modular faceplate for finishing one low-voltage cable run at an indoor wall location.
What is included in the package?
1 × UGREEN 80180 single-port wall faceplate and mounting screws as stated on the exact India listing. Keystone module, in-wall cable and patch lead are not identified as included.
Which cables, modules or devices are compatible?
One physically compatible keystone module and a suitable 86 × 86mm wall-box installation. The exact page specifically lists RJ45 LAN and RJ11 telephone use; any other keystone coupler must be checked for opening size, latch geometry, body depth and complete signal-path capability.
Does it guarantee the advertised network speed?
The plate cannot raise Ethernet category, video resolution or audio capability. Results are controlled by the module, fixed cable, patch leads and endpoints. Test the complete channel rather than judging one component in isolation.
Can it be used in a PoE network?
The plate has no conductive network path. PoE is possible only when every installed network component is correctly rated and terminated for the intended PoE system.
Which tools are required?
Basic mounting tools may be required. A separately purchased keystone may need a punch-down tool, tool-free closure or coupler connection according to its own design.
Does it split, switch, route or convert a network connection?
No. not a network jack by itself, splitter, switch, router, converter, signal booster, mains outlet, outdoor cover or surface-mount box. Any active switching, routing, conversion or power function requires separate purpose-built equipment.
How should a finished installation be tested?
Start with a wire-map or continuity test that checks all required conductors and shield where applicable. Then connect known-good equipment, confirm negotiated link speed and observe errors under normal traffic.
Is it suitable for outdoor or mains-power installation?
No outdoor or ingress-protection rating is verified. This is a low-voltage networking accessory; it is not a mains device. Follow separation, fire, grounding and building rules.
What should I do if the link is intermittent?
Remove power where applicable, inspect for partial insertion, wrong colour order, excessive untwist, nicked conductors, poor strain relief or an incompatible cable/connector fit. Reterminate only with matched parts, then test again.
How is this exact SKU different from similar UGREEN products?
The exact listing and sole live image establish a single shuttered keystone position and white plate. The title is broader than the specification text: RJ45/RJ11 are explicitly supported uses, while HDMI/audio depend on a separately sourced module that physically fits. Copy does not imply that any jack, cable or active function is built in.

Exact-model check before ordering

Match SKU 80180, product type, port or die count, cable category/construction and package contents. Similar UGREEN networking accessories can look nearly identical while using different shielding, conductor fit, rack format or termination method.

SKU 801801 KEYSTONE POSITION • 86 × 86MM • PASSIVE
