Exact-SKU research guide · 65822

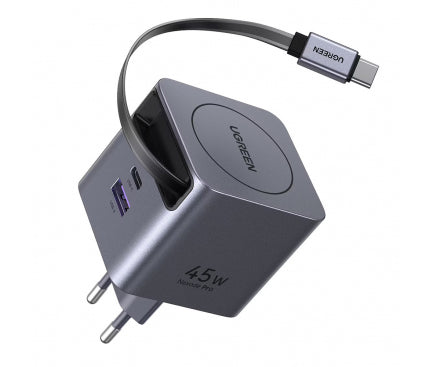

UGREEN Nexode Pro X614 65822 45W Retractable GaN Charger
A three-output 45W wall charger that integrates a 70cm retractable USB-C cable and still provides separate USB-C and USB-A receptacles.
45W system total70cm retractable USB-CUSB-C + USB-A ports30W + 7.5W + 7.5WEU 2-pin
Overview
UGREEN 65822 / X614 combines a permanently attached approximately 70cm retractable USB-C cable, one separate USB-C receptacle and one USB-A receptacle in a 45W total wall charger. Either USB-C path can reach up to 45W alone, and USB-A can reach up to 22.5W alone. The built-in cable plus either secondary output is documented at 30W + 15W. The separate USB-C and USB-A pair share 7.5W + 7.5W, while all three outputs provide 30W + 7.5W + 7.5W. The fixed mains pins are EU 2-pin; an India adapter is not confirmed.
Best-fit summary: A phone, tablet or 30W–45W USB-C device user who values a cable that cannot be forgotten and accepts a 45W shared system ceiling.
Key features
Cable built into the charger
The USB-C lead extends to about 70cm and retracts into the body, reducing the need to pack a separate C-to-C cable.
Three connection choices
Use the integrated cable, a separate USB-C cable or a legacy USB-A cable depending on the device and intended sharing mode.
Clear priority logic
The integrated cable retains 30W when any secondary connection is added and is therefore the priority multi-device path.

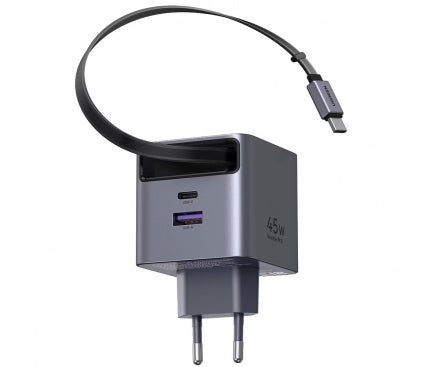

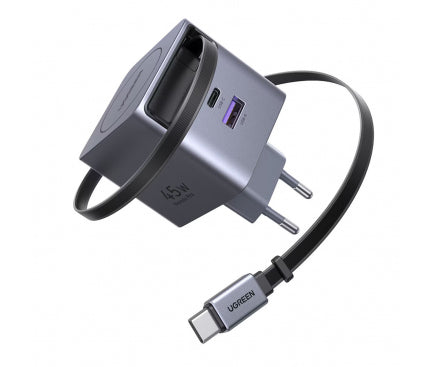

Port map and connector roles
Retractable USB-C cable
Up to 45W alone: fixed profiles through 20V/2.25A; PPS approximately 5–11V/2.75A. Retains 30W in documented multi-output modes.
USB-C receptacle
Up to 45W alone with fixed profiles through 20V/2.25A; PPS approximately 5–11V/4.5A. Requires a separate cable.
USB-A receptacle
Up to 22.5W alone: 5V/3A, 9V/2A, 10V/2.25A or 12V/1.5A on compatible modes.
Fixed EU 2-pin input
No India plug adapter is confirmed by the exact live bundle.
Port labels matter: Use the retractable cable for the priority device whenever two or three outputs are active; it retains the strongest 30W share.
Exact power allocation
| Retractable USB-C alone | Up to 45W. |
|---|---|
| USB-C receptacle alone | Up to 45W. |
| USB-A alone | Up to 22.5W. |
| Retractable C + USB-C port | 30W + 15W. |
| Retractable C + USB-A | 30W + 15W. |
| USB-C port + USB-A | 7.5W + 7.5W. |
| All three outputs | 30W + 7.5W + 7.5W = 45W total. |
Read this before connecting several devices: The two USB-C paths each reach 45W only alone. In all-three use the integrated lead is the 30W priority output and both receptacles drop to 7.5W.
Charging protocols and speed logic
The two USB-C paths support USB PD/PPS and common QC/SCP/FCP/AFC-family negotiation within their respective profiles. The integrated cable and separate USB-C port do not have identical PPS current ranges, even though both can reach 45W in single-output use. USB-A provides compatible legacy modes through 22.5W alone. UFCS appears in a regional detailed sheet but is intentionally not promised here without stronger exact India corroboration.
Two C paths, different PPS
The separate USB-C port has a higher documented PPS current range; choose it if a supported phone specifically needs that profile.
Built-in cable priority
Once another output is active, the retractable path becomes 30W and the second path is 15W or 7.5W.
Device still negotiates
A 45W label is a ceiling; the device can request a lower fixed or variable profile.
Compatible devices and systems
Phones and tablets
Compatible Galaxy, Pixel, iPhone, iPad and other USB-charged models work when their input matches a listed PD/PPS or legacy profile.
Handhelds and power banks
Compatible consoles, power banks and accessories can use either USB-C path within 45W.
Light USB-C laptops
A 30W–45W notebook may charge from one USB-C path; a 65W+ system may show slow charging or fail to keep pace.
USB-A cable devices
Older phones, cameras and accessories can use USB-A alone up to 22.5W or at the lower shared allocations.
Compatibility rule: If a device needs more than 30W, use one output only. In multi-device use, reserve the retractable cable for the priority device.
Use scenarios
Everyday phone charging
Pull out the integrated lead, connect one phone and use the 45W single-output ceiling where supported.
Phone + accessory
Use the retractable cable plus USB-A for a documented 30W + 15W arrangement.
Three-device bedside
Charge three lower-demand devices at 30W + 7.5W + 7.5W with realistic expectations.
Travel pouch
The built-in lead reduces forgotten-cable risk, but the EU mains pins may still require a secure separately sourced adapter.
Setup and usability guidance
- Read the product label and confirm that the mains-input range, fixed plug and wall socket are compatible before connecting power.
- This regional SKU uses fixed EU 2-pin pins. If the socket does not grip them securely, use a properly rated certified adapter rather than forcing or balancing the charger.
- Connect the charger to a sound, dry wall socket; connect a correctly rated cable to the intended USB output; then connect the device.
- For the highest-power session, begin with the strongest documented USB-C output and one device. Add other devices only after checking the sharing table.
- Unplug by holding the charger body. Do not remove it by pulling a charging cable.
- Pull the cable straight to a lock point, connect the device, then disconnect and guide the lead back gently rather than letting it snap.
Setup principle: Start with one device on the strongest intended output, then add lower-priority devices.
Everyday usability and care
Straight-line cable handling
Avoid sharp sideways pulls at the cable exit because the lead is integrated and not listed as user-replaceable.
Priority built-in path
Use the attached cable for the device that should retain 30W when another output is connected.
Separate-cable flexibility
The receptacles allow another C-to-C or USB-A cable when the built-in lead cannot reach or match the device connector.
Compact plug load
Even a compact charger should not hang from a loose EU-to-India adapter assembly.
Disconnect the device before releasing the retractable mechanism. Keep the cable tip dry and free of grit, and do not twist, kink or trap the lead in drawers or doors.
What this product does
- Converts 100–240V AC mains power into negotiated low-voltage USB charging outputs for compatible electronics.
- Selects a mutually supported voltage and current with the connected device; there is no manual voltage switch.
- Redistributes a finite total power budget when more than one output is occupied.
- Works without an app, account, driver, Wi-Fi or Bluetooth connection.
- Provides an integrated cable and two additional receptacles within a documented 45W allocation table.
What this product does not do
- It is not a voltage converter for AC appliances and it does not create a household AC outlet.
- Its USB connectors are charging outputs, not file-transfer, video, networking or docking ports.
- It cannot force a device to accept a wattage or fast-charge protocol that the device and cable do not support.
- It cannot keep every port at its single-port maximum when several devices share the charger.
- The built-in cable is not described as detachable or user-replaceable.
What to do
- Use sound cables rated for the current and power requested by the device.
- Keep the charger uncovered and exposed to air during high-power charging.
- Place the highest-demand device on the strongest documented output.
- Expect a brief charging reset when a connection changes and power is renegotiated.
- Disconnect mains power before cleaning and use only a dry, soft cloth.
- Guide the cable back under control after disconnecting the device.
What not to do
- Do not use a loose, scorched, cracked, wet or mechanically damaged wall socket, adapter, cable or charger.
- Do not cover the charger with bedding, clothing or other insulating material.
- Do not force EU pins into a socket that does not accept them securely.
- Do not assume connector shape alone proves protocol or wattage compatibility.
- Do not disassemble the housing or continue use after arcing, smoke, odour, deformation or repeated unexplained shutdown.
- Do not pull beyond the cable’s travel, release it uncontrolled or use it as a carrying strap.
Warnings and limitations
- The printed wattage is a maximum under defined conditions, not a promise that every device will draw that power.
- Charging normally slows as a battery fills, warms up or applies its own battery-health controls.
- Some warmth is normal at high load. Excessive heat, smell, noise, deformation or cycling requires immediate disconnection.
- This charger is intended for dry indoor use and is not documented as waterproof.
- A plug adapter changes only physical fit; it does not repair a loose socket or create a new charging protocol.
- The exact India bundle does not currently confirm an India plug adapter despite an inconsistent search snippet.
Stop-use trigger: Disconnect immediately for arcing, smoke, burning smell, melted material, visible deformation or repeated unexplained power loss.
Troubleshooting
Cable will not lock or retract
Stop pulling, align it straight and use a gentle short pull/release. Do not force the mechanism or open the housing.
Separate C + A are very slow
That pair is documented at 7.5W + 7.5W. Move the priority device to the retractable cable.
45W phone mode is missing
Test one USB-C path alone and verify the device’s required PPS range and cable capability.
EU plug fit is loose
Disconnect and use a sound compatible socket or secure rated adapter; no India adapter is confirmed in the box.
Useful diagnostic: Test the priority device first on the retractable cable alone, then on the separate USB-C port with a known-good cable. Differences can reveal a PPS-range or cable limitation.
Technical specifications
| Brand / model / SKU | UGREEN Nexode Pro X614 / 65822 |
|---|---|
| AC input | 100–240V~ 50/60Hz |
| Outputs | Built-in USB-C cable + USB-C receptacle + USB-A receptacle |
| Maximum total | 45W |
| Retractable USB-C | Approximately 70cm; up to 45W alone; PPS approximately 5–11V/2.75A |
| USB-C receptacle | Up to 45W alone; PPS approximately 5–11V/4.5A |
| USB-A | Up to 22.5W alone |
| Built-in C + either secondary | 30W + 15W |
| USB-C receptacle + USB-A | 7.5W + 7.5W |
| All three | 30W + 7.5W + 7.5W |
| Plug | Fixed EU 2-pin |
| India adapter | Not confirmed as included |
Package contents
Confirmed exact SKU package: 1 × UGREEN X614 / 65822 charger with permanently integrated retractable USB-C cable and 1 × user manual. No separate charging cable or India plug adapter is confirmed.
- Match SKU 65822 / model X614.
- Accept that the built-in cable is integral, not replaceable like a detachable cable.
- Use the retractable lead for the priority device in multi-output mode.
- Check whether a secure rated EU-to-India adapter is needed.
SKU assurance: This guide is written for SKU 65822 / model X614. Do not transfer its power table or package claims to a similar-looking product.
Product-specific FAQ
What is the maximum charging output?
Either USB-C path can provide up to 45W alone. The charger’s total ceiling is 45W.
How does power change with multiple devices?
Built-in C plus either secondary output is 30W+15W; separate C+A is 7.5W+7.5W; all three are 30W+7.5W+7.5W.
Can it charge a laptop?
It can charge a compatible USB-C laptop that accepts 45W or less. A 65W+ computer may charge slowly or fail to keep pace.
Which output or charging area should I use first?
Use the retractable USB-C cable for the priority device whenever more than one output is active.
Which fast-charging standards does it support?
USB-C supports PD/PPS and common quick-charge families within port-specific ranges; USB-A supports compatible legacy modes.
Can this regional product be used in India?
The fixed plug is EU 2-pin. The current exact bundle does not confirm an India adapter, so provide a secure rated adapter if required.
Why can charging pause or restart?
A brief pause can occur after adding or removing a device because the 45W budget is reassigned.
Why can real charging speed be lower than the printed wattage?
The device input, selected path, PPS range, cable capability, sharing, temperature and battery state can all reduce speed.
Do any of these connectors transfer data?
No. The integrated cable and both receptacles provide charging power only.
What is included in the package?
One X614 charger with its attached retractable cable and a user manual. No separate cable or India adapter is confirmed.
How do I confirm this exact model?
Match SKU 65822 and model X614 before using this exact cable and allocation table.
