Ugreen  |  SKU: 50109
59% off
New arrival

UGREEN 50109 3m Braided HDMI 2.0 Cable, 4K60, 18Gbps

Rs. 1,170.00 Rs. 2,887.00
Tax included Shipping calculated at checkout.

4K Clarity
Smooth Play
Durable Build
Fast Transfer
Universal Fit
HDMI 2.0 • 18Gbps • 3m

UGREEN 50109 3m HDMI 2.0 Cable

Overview

UGREEN 50109 is a 3m full-size HDMI male-to-male cable for carrying digital video and audio between compatible HDMI equipment. It supports HDMI 2.0 bandwidth up to 18Gbps and video up to 4K at 60Hz, with HDR, 3D, ARC, HDMI Ethernet Channel, CEC and HDCP 2.2 support when the complete connected system supports those functions. Its braided outer jacket with carbon-fibre-look zinc-alloy connector shells and an integrated signal chipset suits everyday home, office and entertainment connections.

Up to 4K 60Hz18GbpsHDR & ARCBraided cable with chipset
UGREEN 50109 3m HDMI 2.0 cable — Exact UGREEN 50109 3m HDMI cable
Exact UGREEN 50109 3m HDMI cable

Key features

HDMI 2.0 bandwidth

Carries compatible HDMI signals at up to 18Gbps, including up to 4K at 60Hz. It remains backward-compatible with lower HDMI modes negotiated by the connected devices.

Video and audio together

Transports digital picture and multichannel audio through the same cable, reducing the need for separate analogue audio wiring in a normal HDMI setup.

Feature-aware connection

Supports HDR, 3D, ARC, CEC, HDCP 2.2 and HDMI Ethernet Channel only where the source, display and intermediate equipment implement those features.

Braided cable with chipset

The braided outer jacket with carbon-fibre-look zinc-alloy connector shells and an integrated signal chipset is matched to the physical format of this exact 3m model.

A reliable HDMI 2.0 signal path

UGREEN 50109 3m HDMI 2.0 cable — HDMI 2.0 capability and connection details
HDMI 2.0 capability and connection details

A cable carries the mode selected by the source and accepted by the display; it does not create a new graphics capability. For 4K at 60Hz, use HDMI ports and settings that support the required bandwidth, enable an enhanced or UHD input mode if the display requires it, and choose a compatible colour format and bit depth.

Receivers, soundbars, switches, capture devices and wall plates inserted between source and screen become part of the signal chain. One older or lower-bandwidth component can limit the entire link even when the cable itself supports the requested mode.

Use scenarios

TV and streaming

Connect a set-top box, streaming player, Blu-ray player or compatible computer to an HDMI television. The 3m reach is easy to manage in a nearby media cabinet.

Gaming setup

Link a PlayStation, Xbox, Nintendo Switch dock or gaming PC to an HDMI display. Choose the resolution and refresh rate supported by the console, display and HDMI 2.0 bandwidth.

Desktop workspace

Connect a desktop or laptop with full-size HDMI output to a monitor for mirrored or extended desktop use; the operating system and graphics hardware control the display mode.

Projector or meeting room

Carry presentation video and audio from an HDMI source to a compatible projector. Keep adapters to a minimum for a simpler signal path.

Setup and usability guidance

The 3m reach is suited to nearby equipment such as a console below a TV, a laptop beside a monitor or a player in the same cabinet. Keep only the slack you need and route it without sharp folds or strain at either HDMI socket.

  1. Turn off or pause sensitive equipment before rearranging a complex AV chain.
  2. Insert each full-size HDMI plug straight and fully; do not force it into Mini HDMI, Micro HDMI, DisplayPort or USB-C.
  3. Select the correct HDMI input and output, then set a conservative known-good video mode before enabling HDR or a higher refresh rate.
  4. Secure the route so the cable’s weight does not pull sideways on a laptop, console, television or projector port.
UGREEN 50109 3m HDMI 2.0 cable — Example connection and supported HDMI use
Example connection and supported HDMI use

Compatible devices and systems

Compatibility is based on connector and signal standard—not brand alone. Both ends of this model are full-size HDMI Type-A male plugs.

HDMI source devices

Desktop PCs, laptops with full-size HDMI output, PlayStation and Xbox consoles, Nintendo Switch docks, media players, set-top boxes and Blu-ray/DVD players with HDMI output.

HDMI display devices

Televisions, monitors, projectors, AV receivers, soundbars and capture equipment with a compatible full-size HDMI input.

Operating systems

No cable driver is required. Resolution, audio routing, HDR and mirror/extend controls remain functions of the source operating system, graphics hardware and display.

Connection requirements

Use adapters only when they explicitly convert the source connector and direction required. Every adapter, switch, receiver or wall connection must support the intended video/audio mode.

What this product does

  • Creates one wired full-size HDMI connection between a compatible source and a compatible display or AV device.
  • Carries digital video up to the model’s stated HDMI 2.0 / 18Gbps / 4K60 capability.
  • Carries HDMI audio and supports negotiated features such as HDR, ARC, CEC, 3D, HDCP 2.2 and HEC when both sides support them.
  • Provides a 3m physical route with braided outer jacket with carbon-fibre-look zinc-alloy connector shells and an integrated signal chipset.

What this product does not do

  • It does not convert USB-C, DisplayPort, Mini HDMI, Micro HDMI, DVI, VGA or another connector into HDMI.
  • It does not split one source to several screens, switch between sources, capture video or create a wireless link.
  • It does not add HDR, ARC, CEC, HDCP compatibility or 4K60 support to ports that lack those functions.
  • It is not specified as an HDMI 2.1 / 48Gbps cable for 4K120, 8K, VRR or eARC-class bandwidth.
  • It is not an RJ45 network cable; HDMI Ethernet Channel requires rare HEC-compatible equipment.

What to do

Check the ports

Confirm both devices use full-size HDMI and that the selected ports support the intended resolution, refresh rate, HDR and audio feature.

Test the direct link

For diagnosis, connect source to display directly before adding a receiver, switch, wall plate or adapter.

Protect the connectors

Insert and remove by holding the connector shell. Give the cable a gentle bend radius and relieve tension at both ports.

Configure the system

Select the correct display input, source output, audio device and HDMI enhanced-mode setting where applicable.

What not to do

Do not force a mismatch

A full-size HDMI plug is not compatible with USB-C, DisplayPort, Mini HDMI or Micro HDMI sockets without the correct converter or adapter.

Do not exceed the spec

Do not advertise or expect HDMI 2.1-only modes such as 4K120 or 8K from this 18Gbps HDMI 2.0 cable.

Do not crush or kink

Avoid doors, chair wheels, staple guns, tight cable ties, repeated sharp folds and pulling on the connector shells.

Do not conceal blindly

Do not install inside a wall unless the jacket is explicitly rated and local rules allow it.

Warnings and limitations

Performance limit: The stated 4K 60Hz capability is a supported maximum, not a way to upgrade older ports. The source, display and every device in between must support the requested resolution, refresh rate, HDR mode and HDCP requirement.

Protected content: Streaming or disc playback that uses HDCP works only when every component in the route meets the required HDCP version.

ARC and CEC: These are optional device features. Use the labelled television/receiver ports and enable the matching menu settings.

Physical safety: Disconnect before cleaning. Keep connectors dry, avoid damaged sockets, and replace the cable if the jacket or plug is visibly damaged.

Technical specifications

Model / SKU UGREEN 50109
Cable length 3m
Connector A Full-size HDMI Type-A male
Connector B Full-size HDMI Type-A male
HDMI class HDMI 2.0 high-speed connection
Maximum stated bandwidth Up to 18Gbps
Maximum stated video Up to 4K at 60Hz
Supported functions HDR, 3D, ARC, CEC, HDCP 2.2 and HDMI Ethernet Channel when supported by the connected system
Construction braided outer jacket with carbon-fibre-look zinc-alloy connector shells and an integrated signal chipset
Colour Black
Signal direction Normal HDMI source-to-display connection; follow any printed Source/Display markings if present
Driver requirement No cable driver; device settings and graphics/audio drivers remain the responsibility of the source system

Product images and physical details

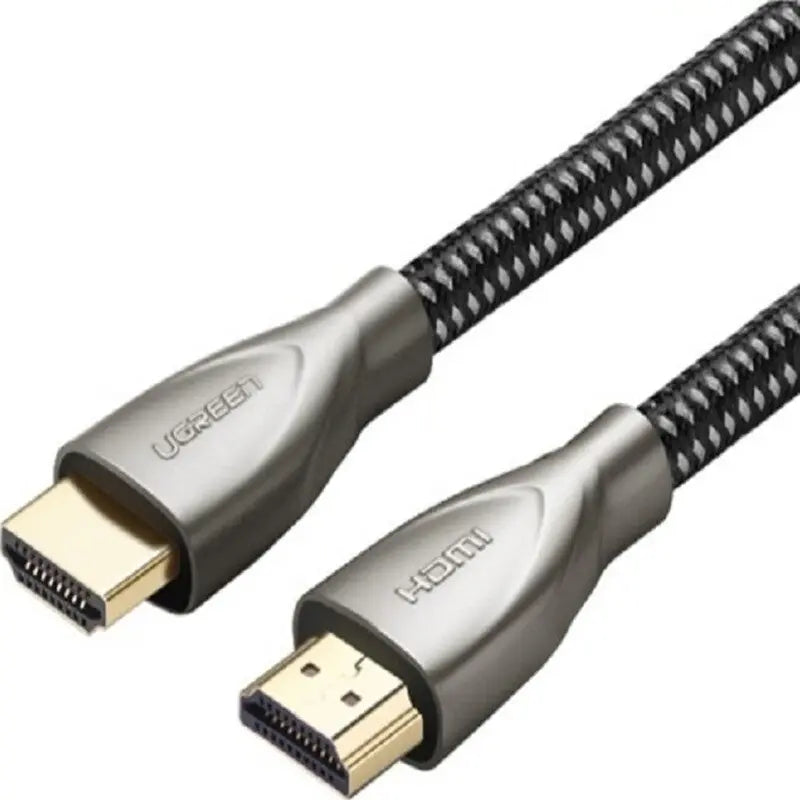

UGREEN 50109 3m HDMI 2.0 cable — Exact-model construction and connector detail
Exact-model construction and connector detail

Choose by exact model

This guide applies to UGREEN 50109, 3m. Related UGREEN HDMI cables can use different lengths, housings, jackets or bandwidth ratings. Match the SKU and length shown here rather than relying on a similar product image.

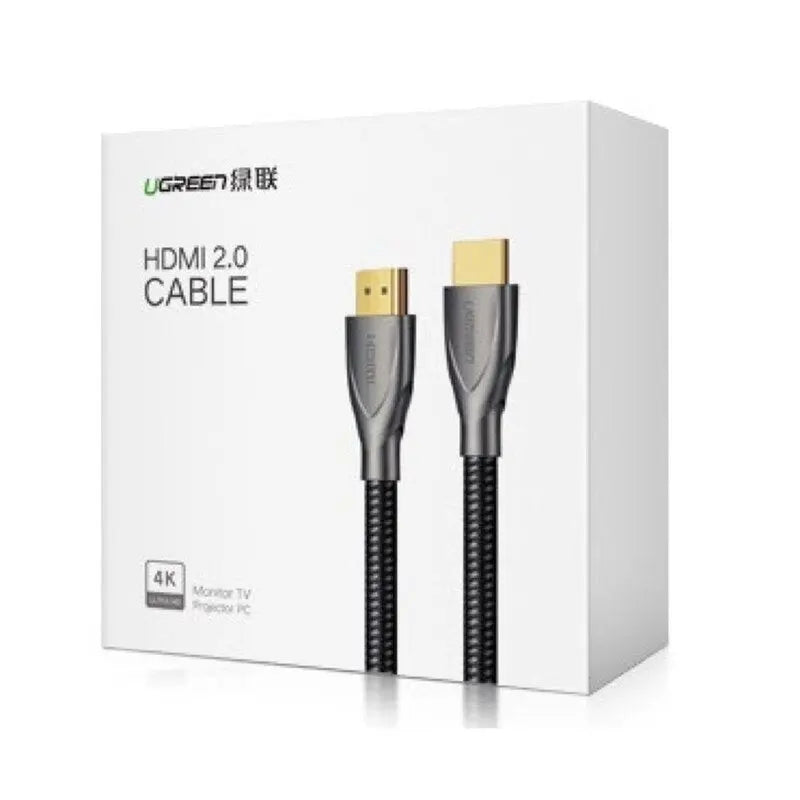

Package contents

1 × UGREEN 50109 3m HDMI 2.0 male-to-male cable

A source device, display, adapter, splitter, switch, receiver and external power equipment are not part of the verified core package.

Product-specific FAQ

Can UGREEN 50109 display 4K at 60Hz?

Yes. This exact HDMI 2.0 model is specified for video up to 4K at 60Hz and bandwidth up to 18Gbps. The source, display, selected HDMI ports, content and settings must all support that mode.

Will it work with a 1080p or 1440p screen?

Yes. HDMI connections negotiate a mutually supported mode, so compatible lower-resolution displays can be used. The actual resolution and refresh rate are controlled by the connected equipment.

Does it support HDR?

The cable is specified for HDR within its HDMI 2.0 / 18Gbps capability. HDR appears only when the source, display, port settings, content and any receiver or switch in the path also support the same HDR format.

Can it carry sound as well as video?

Yes. HDMI transports digital video and audio in one connection. Select the HDMI display, television or receiver as the audio output in the source device when sound does not switch automatically.

Can I use ARC with this cable?

Yes, on compatible ARC-equipped devices. Connect the television and sound system through the ports labelled ARC, then enable HDMI-CEC/ARC in their menus. ARC is a system feature; the cable alone cannot add it to an ordinary HDMI port.

Does HDMI Ethernet replace a normal network cable?

No. HDMI Ethernet Channel is available only between equipment that specifically implements HEC. It is not an RJ45 Ethernet cable and does not provide a general network connection to every TV, console or computer.

Can it deliver 4K at 120Hz or 8K?

Those modes are outside the stated HDMI 2.0 / 18Gbps specification of this model. Choose an appropriate HDMI 2.1 cable and compatible HDMI 2.1 ports when 4K120, 8K, VRR or other higher-bandwidth features are required.

Will it work with PS5 or Xbox consoles?

It can connect consoles with a full-size HDMI output to an HDMI television, monitor or receiver. The negotiated picture mode remains limited by the console, game, display and this cable’s HDMI 2.0 bandwidth; it is not a promise of 4K120.

Why do I see flicker, black screens or a lower refresh rate?

Reconnect both ends, confirm the correct input, restart the source and display, and test a direct connection without a switch or receiver. Then verify HDMI enhanced-mode settings and reduce bandwidth temporarily to identify a port, setting or chain limitation.

Is an adapter, splitter or signal converter built in?

No. This is a full-size HDMI male-to-male cable. It does not convert USB-C, DisplayPort, Mini HDMI, Micro HDMI, VGA or DVI, and it does not split one source across multiple displays.

Can it be installed inside a wall?

Do not assume an in-wall fire rating. Use it inside a wall, conduit or regulated building route only if the cable jacket and local installation rules explicitly permit that use. Avoid tight pulls and test before closing the route.

What comes in the package?

The verified core item is 1 × UGREEN 50109 3m HDMI 2.0 male-to-male cable. Source devices, displays, adapters, switches and power accessories are separate.

UGREEN India Assurance

Confirm model 50109, 3m, two full-size HDMI male connectors and HDMI 2.0 / 18Gbps capability against your intended setup. Choose this cable when those exact details—and the limitations above—match the source, display and route.

Exact SKU 501093mHDMI 2.0
