UGREEN HDMI Extension Cable 1M Male to Female 4K@60Hz 3D 1080P HDMI Extender Gold Plated High Speed ARC CEC (10141)
UGREEN HDMI Extension Cable 1M Male to Female 4K@60Hz 3D 1080P HDMI...
Model-specific connection guide
UGREEN 10141 1m HDMI Extension Cable 4K60
Extend an HDMI connection by 1m with UGREEN 10141. Supports 4K 60Hz within a 3m total cable run, plus ARC, CEC, 3D and Ethernet support.
Overview
UGREEN model 10141 is a 1-metre HDMI male-to-female passive extension cable. It adds reach to an existing HDMI male cable or moves a hard-to-access HDMI socket into a more convenient position. The exact model is listed for video up to 4K at 60Hz, but extension performance depends on the combined cable run: UGREEN specifies a maximum total length of 3 metres for 4K60 and 5 metres for 4K30.
Key benefits and features
The points below describe the exact UGREEN SKU and the conditions required to obtain its stated performance.

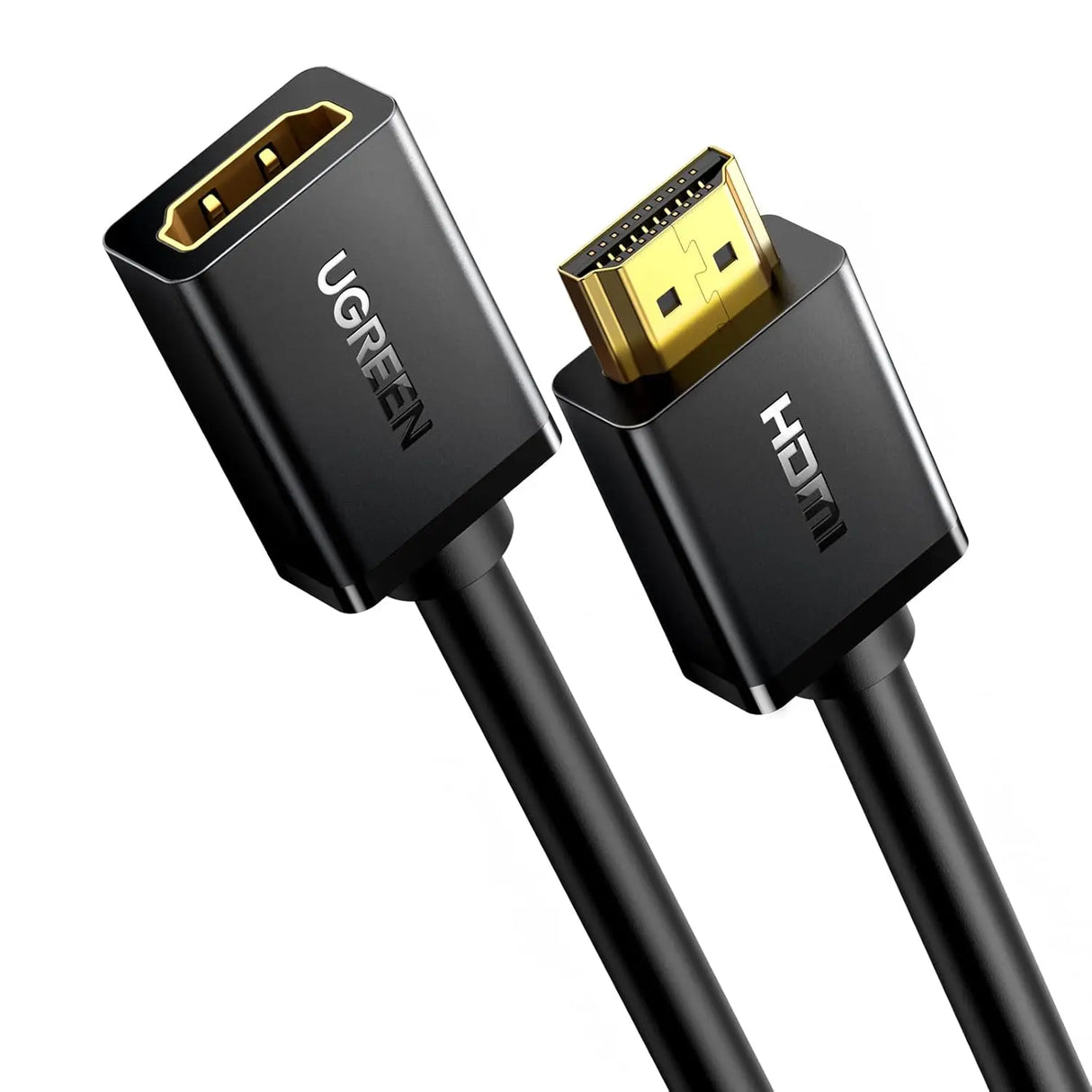

Full-size HDMI male plug to full-size HDMI female socket extends an existing HDMI lead or relocates a connection point.
Supports 4K60 when the extension plus attached HDMI male cable remain within the stated 3m total-run limit.
Supports common HDMI functions including 3D, ARC, CEC and HDMI Ethernet Channel when every connected device supports them.
Useful for streaming sticks, wall-mounted televisions, recessed ports and frequently accessed equipment.

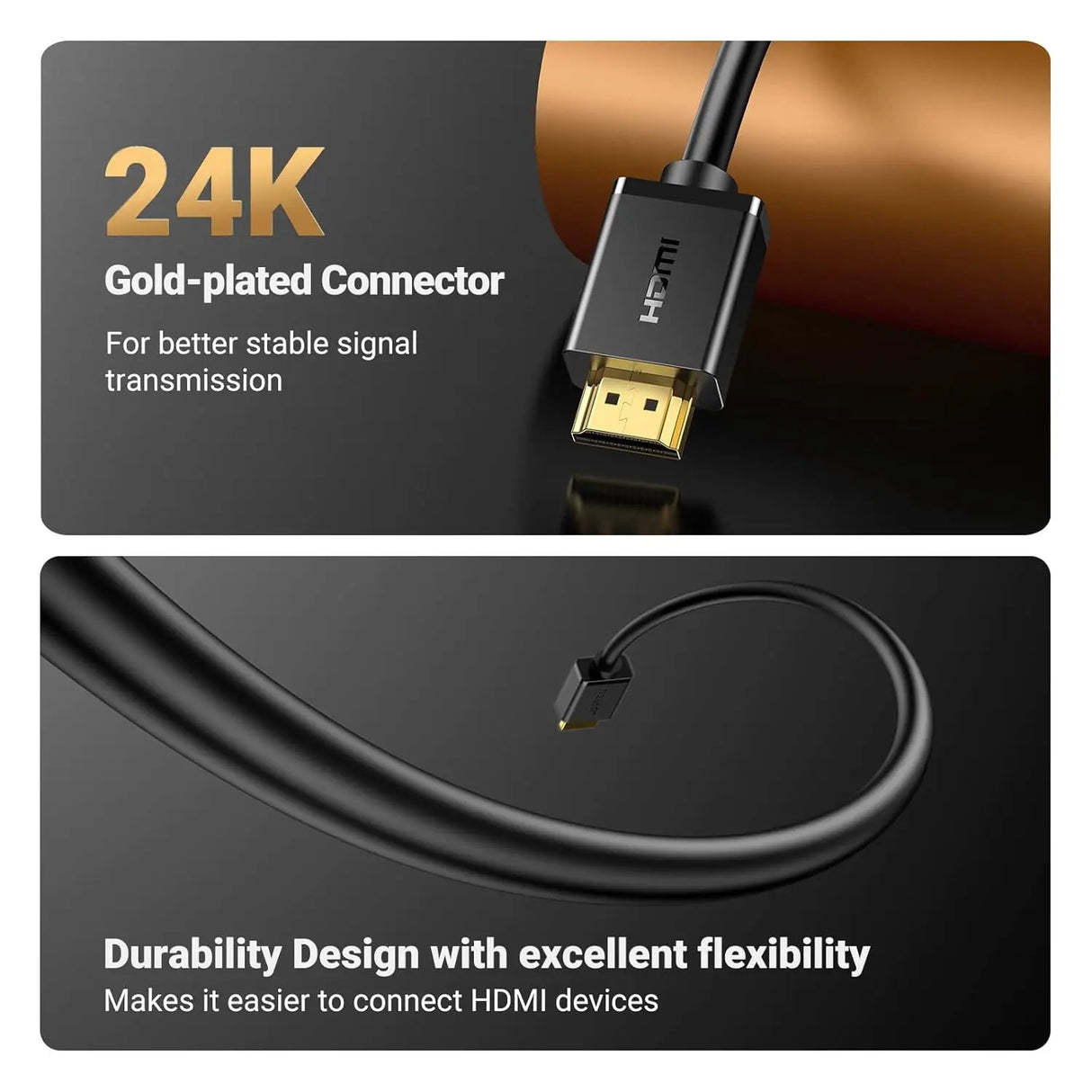

30AWG tinned-copper conductors, triple shielding and gold-plated contacts are specified for the one-metre extension.
Calculate the total HDMI run, not only the extension
This one-metre lead is passive. Its published 4K limit is based on the combined length of the extension and the HDMI cable or plug device attached to its female socket. The examples below turn that rule into a practical pre-purchase check.
The combined run is 2m, which remains within UGREEN’s stated 3m total-run guidance for 4K60, subject to compatible devices and connectors.
The combined run is 3m, the published upper guidance for 4K60. Test the exact setup before permanent routing, especially when a receiver or wall plate is also used.
The combined run is 5m. UGREEN lists this total for up to 4K30, not 4K60; choose the output format accordingly.
Use an active HDMI extension or another solution designed for the required distance. Daisy-chaining passive extensions adds connection points and falls outside the stated high-bandwidth guidance.
Use scenarios
Bring a rear-facing television HDMI socket into easier reach for a streaming stick or temporary device.
Protect a frequently used device port from repeated direct plug/unplug cycles by connecting through the extension socket.
Add one metre to a short HDMI cable for a presentation, console or desktop display setup within the total-run limit.
Move a connection away from a tight wall mount or cabinet opening while keeping the HDMI device accessible.
Setup and usability guidance
Measure the existing HDMI male cable and add this one-metre extension. Keep the combined run within 3m for 4K60 or 5m for 4K30.
Connect the extension’s HDMI male plug to the display, receiver or source port.
Connect the existing HDMI male cable or HDMI plug device to the female socket without forcing it.
Support heavy streaming sticks or adapters so their weight does not hang from the female connection.
Select the correct input and test the highest required resolution. If unstable, shorten the total run or lower the video mode.
Compatible devices and systems
Compatible with standard full-size HDMI male plugs and full-size HDMI ports on televisions, monitors, projectors, AV receivers, streaming sticks, consoles, media players and computers. It does not change connector type. 4K60 is conditional on a combined cable length no greater than 3m and compatible endpoints. ARC, CEC, 3D and HEC require support throughout the HDMI chain.
What this product does
- Adds one metre to a full-size HDMI connection.
- Relocates or helps protect a device’s HDMI port from frequent handling.
- Carries supported HDMI audio/video and control features within the stated total-run limits.
What this product does not do
- It does not boost, regenerate, convert, split or switch an HDMI signal.
- It does not provide a second independent display output.
- It cannot guarantee 4K60 when attached to a cable that makes the total run longer than 3m.

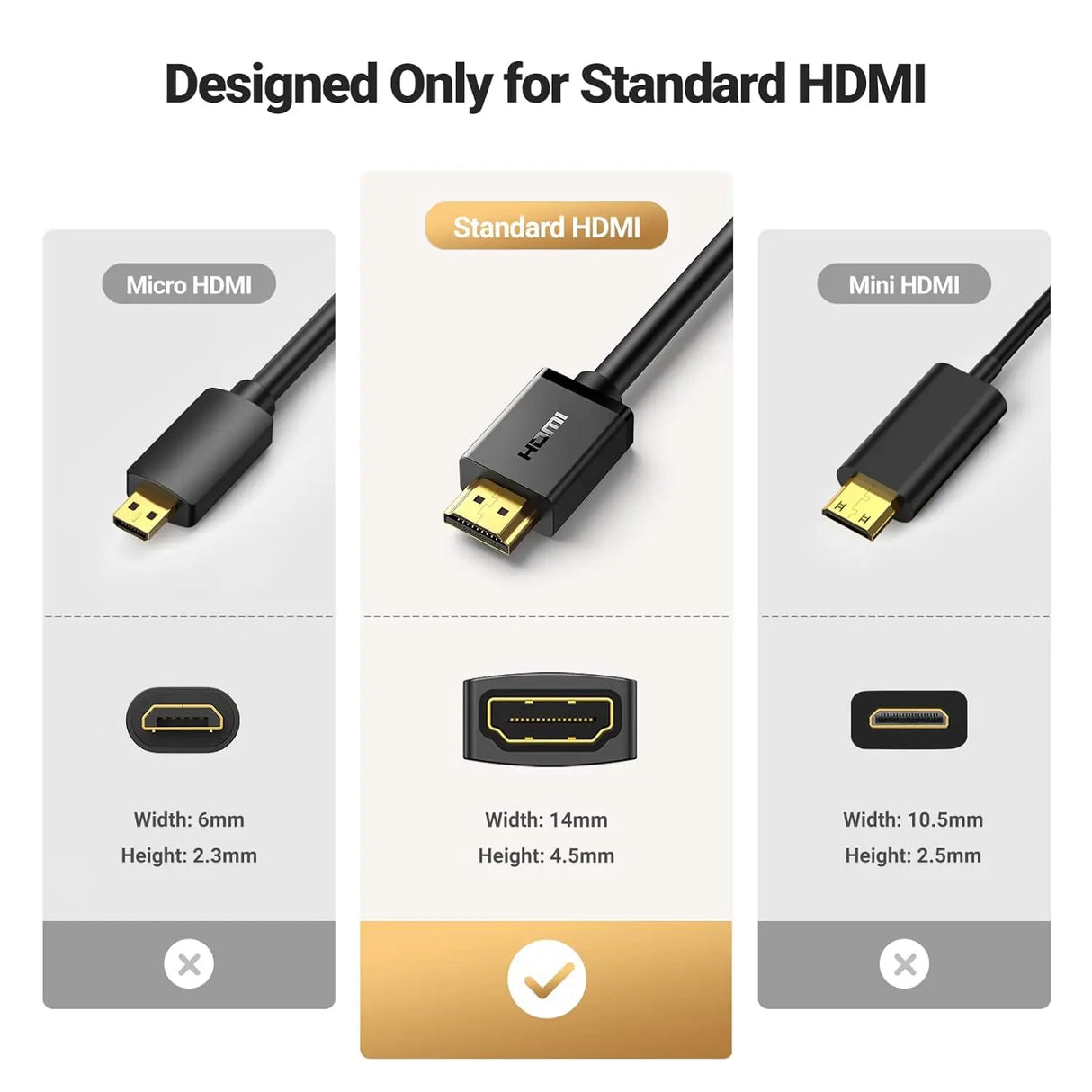

- It does not adapt Mini HDMI, Micro HDMI, USB-C, DisplayPort, DVI or VGA.
What to do
- Calculate the full end-to-end length before ordering.
- Support any heavy dongle or streaming stick connected to the female socket.
- Use the shortest base cable practical for high-bandwidth video.
- Test ARC, CEC and 4K/HDR with the actual devices before permanent routing.
What not to do
- Do not treat this passive extension as a signal amplifier.
- Do not exceed 3m total for 4K60 or 5m total for 4K30 and expect the stated mode.
- Do not daisy-chain multiple passive extensions for a high-bandwidth installation.
- Do not leave the female joint hanging where it can be pulled or struck.
Warnings and limitations
- Combined length, not only the extension length, controls the published 4K performance limit.
- Adapters, wall plates and receivers add further connections and may reduce the stable maximum format.
- ARC, CEC, HDR and HDCP depend on every component and setting in the signal path.
- Use an active HDMI solution designed for the distance when a longer run is required.
Verified specifications
| Brand / SKU | UGREEN / 10141 |
|---|---|
| Connector A | Full-size HDMI male |
| Connector B | Full-size HDMI female |
| Extension length | 1 metre |
| Maximum stated video | Up to 4K (3840 × 2160) at 60Hz under total-run limit |
| 4K60 total-run guidance | Extension plus connected HDMI cable: 3m maximum |
| 4K30 total-run guidance | Extension plus connected HDMI cable: 5m maximum |
| Listed functions | 3D, ARC, CEC and HDMI Ethernet Channel with compatible endpoints |
| Conductors | 30AWG tinned copper |
| Construction | Triple shielding and gold-plated contacts |
| Type | Passive extension; no signal booster |
Package contents
- 1 × UGREEN HDMI male-to-female extension cable, 1m (SKU 10141). No additional supplied accessories are specified.
Product-specific FAQ
What does this extension cable connect?
Its male end plugs into a full-size HDMI port and its female end accepts a full-size HDMI male cable or plug device.
Can it carry 4K at 60Hz?
Yes only when the combined extension and attached HDMI cable do not exceed UGREEN’s stated 3m total-run guidance and all devices support 4K60.
What is the 4K30 length limit?
UGREEN lists up to 5m total for 4K30, including this one-metre extension and the connected male HDMI cable.
Does it boost a weak HDMI signal?
No. It is passive and does not amplify or regenerate the signal.
Can I join several of these together?
Physical connection may be possible, but it exceeds the intended high-bandwidth total-run guidance and is not recommended for 4K60.
Will it work with a streaming stick?
Yes if the stick uses full-size HDMI. Support the stick so it does not place excessive weight on the female joint.
Does it support ARC and CEC?
It can carry ARC and CEC when the television, receiver and other cables/components support and enable those functions.
Can it protect a TV’s HDMI port?
It can move repeated handling to the extension’s female socket, but both joints still need strain relief and careful use.
What should I do if 4K flickers?
Shorten the total cable run, remove extra couplers, bypass receivers/adapters and test a lower resolution before reconnecting components.
Does the extension change the HDMI version of my equipment?
No. It adds a passive connection and one metre of length. The working format is limited by the source, display, attached cable, adapters and the combined run.
Confirm the exact UGREEN model
Use SKU 10141 on the product label or retail package as the reference for these specifications. Similar-looking UGREEN variants can have different cable lengths, connector layouts, output limits or compatibility requirements.
-
Dimentions
-
Warranty
-
Length
-
Version
-
Connector Type
-
Weight
