Exact SKU 70320 • researched buying guide
UGREEN 70320 1.5m HDMI 2.1 Cable, 8K60/4K120, 48Gbps
A short, braided HDMI connection for a console, gaming PC, media player or AV component placed close to its display. The exact official listing verifies a 48Gbps ceiling with up to 8K60 or 4K120, while the text below separates that cable rating from what a particular device can actually output.
Fast purchase decision
Overview
Best suited to
Console beside a TV or gaming monitor; Desktop GPU to a nearby high-refresh display.
Choose it for
1.5m reach, full-size hdmi type-a male to full-size hdmi type-a male and 8K60 / 4K120.
Do not assume
These are cable ceilings. The source, HDMI port, display, content, colour format, firmware and every intermediate device decide the actual mode.
Verified exact-model highlights
Key features
Exact length
1.5m, selected for the stated route—not a generic family length.
Connector fit
Full-size HDMI Type-A male to full-size HDMI Type-A male
Verified video target
Up to 8K at 60Hz or 4K at 120Hz
Signal capacity
Up to 48Gbps
Direction
Non-directional; either plug may face the source
Feature scope
Dynamic HDR signalling, Dolby Vision pass-through, eARC, high-refresh video on compatible equipment.
Exact-SKU guidance
How to read the video rating
Maximum capability is not a guarantee for every setup
These are cable ceilings. The source, HDMI port, display, content, colour format, firmware and every intermediate device decide the actual mode.
- Verified exact-SKU target: Up to 8K at 60Hz or 4K at 120Hz.
- Published capacity: Up to 48Gbps.
- The source, display and selected ports must all support the requested mode.
- Receivers, switches, splitters, capture devices, docks, adapters, wall plates and extra cables may lower the result.
What the cable can carry
Audio and feature support
Dynamic HDR signalling
The cable can transport the listed signal only when the source, content and receiving equipment support it.
Dolby Vision pass-through
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
eARC
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
high-refresh video on compatible equipment
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
backward operation with earlier HDMI equipment
This is a pass-through capability; it must be available and enabled across the complete HDMI chain.
A cable does not decode Dolby or DTS audio, create HDR, generate extra frames or add ARC/eARC to an ordinary HDMI port. Those functions come from compatible devices, content and settings.
Exact-SKU guidance

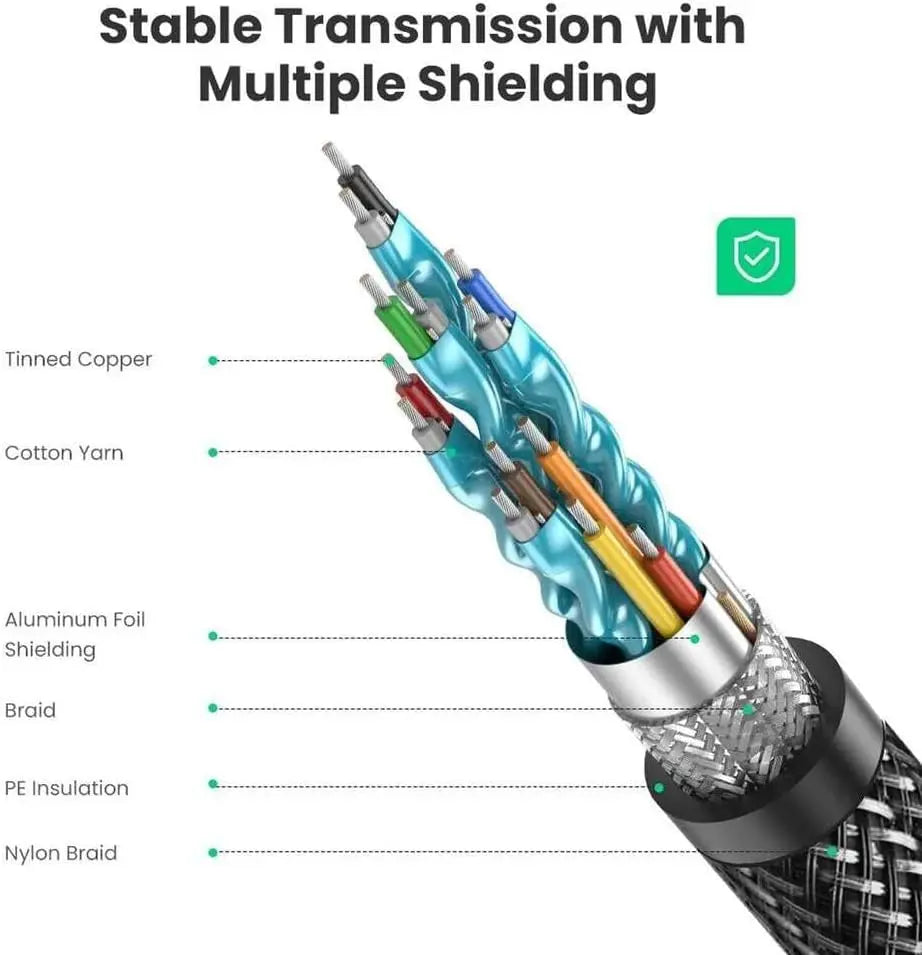

Construction and routing
Passive cable build
Tinned-copper conductors, multiple shielding layers, aluminium foil, cotton yarn, PE insulation, nylon braid and zinc-alloy connector shells.
- Non-directional; either plug may face the source
- Plan gentle bends and protect the connector housings from pulling force.
- Do not infer an in-wall, plenum, LSZH or fire rating unless it is printed on the supplied cable.
- Test the exact intended mode before any route becomes difficult to access.
Practical examples
Use scenarios
Home entertainment
Console beside a TV or gaming monitor
Work and presentation
Desktop GPU to a nearby high-refresh display
Gaming and media
Streaming player or Blu-ray player to a television
Audio or convenient routing
Television eARC port to a compatible soundbar or AV receiver
Connect • configure • verify
Setup and usability guidance
- Step 1: Measure the route and leave a relaxed service curve behind both devices.
- Step 2: Connect either plug to the source because this passive model is non-directional.
- Step 3: Use the display input specifically rated for the intended high-bandwidth mode and enable its enhanced HDMI setting.
- Step 4: Select resolution, refresh rate, HDR and audio on the source, then verify the received signal on the display information screen.
- Step 5: For eARC, use the ports labelled eARC and enable eARC/CEC or pass-through settings where required.
After setup, open the television or monitor signal-information page. It is the quickest way to confirm the actual resolution, refresh rate and HDR state received by the display.
Exact-SKU guidance
Compatible devices and systems
Match the connector and the port capability
- PS5, Xbox Series consoles and other full-size HDMI consoles, within each console and game limit
- Desktop graphics cards and laptops with a compatible full-size HDMI output
- TVs, monitors and projectors with full-size HDMI input
- AV receivers and soundbars with compatible HDMI/eARC ports
Operating systems normally need no cable driver. A computer may still require the correct graphics driver and display settings, while a USB-C-only device needs a separate video-capable adapter or dock.
Avoid the common mismatch
Check before buying
- The required physical route really suits 1.5m, with enough slack but no tight coil or tension.
- Both connector ends match the intended ports: Full-size HDMI Type-A male to full-size HDMI Type-A male.
- The requested mode stays within the exact-SKU guidance: Up to 8K at 60Hz or 4K at 120Hz.
- These are cable ceilings. The source, HDMI port, display, content, colour format, firmware and every intermediate device decide the actual mode.
- Every adapter, receiver, switch, splitter, wall plate or extra cable in the path supports the same video, HDCP and audio requirements.
- A concealed route does not require a safety rating that has not been verified for this cable.
Scope and limitations
What this product does

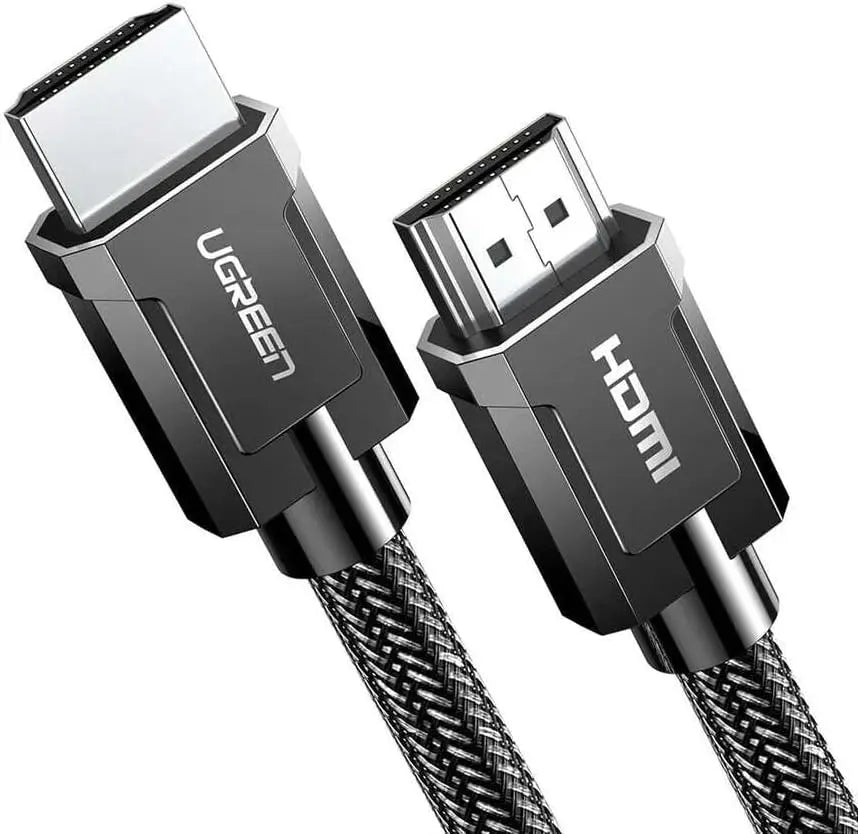

- Provides a 1.5m physical HDMI connection using full-size hdmi type-a male to full-size hdmi type-a male.
- Carries compatible digital video and audio within the verified 8K60 / 4K120 guidance.
- Passes supported functions such as Dynamic HDR signalling, Dolby Vision pass-through, eARC, high-refresh video on compatible equipment when the complete system supports them.
- Works as a passive cable without a separate power supply.
What this product does not do
- It does not upscale content, create HDR, decode audio, generate frames or improve the native quality of a display.
- It does not add a resolution, refresh rate, ARC/eARC feature or HDCP version to a port that lacks it.
- It does not convert USB-C, DisplayPort, Mini/Micro HDMI, DVI or VGA.
- It is not an active repeater, fibre extender or ordinary Ethernet/LAN cable.
Care and installation practice
What to do
- Check the exact SKU and length on the order and received package before installation.
- Hold the connector housing—not the cable body—when plugging or unplugging.
- Test the intended video and audio mode with a direct connection before adding other devices.
- Leave a relaxed curve and support the cable so the HDMI socket carries no weight.
What not to do
- Do not force a misaligned HDMI plug or pull a connector out by the cable.
- Do not sharply kink, knot, crush, staple, pinch under furniture or expose the cable to heat or moisture.
- Do not assume the cable upgrades the HDMI capability of a source, display, adapter or receiver.
- Do not conceal the cable in a wall or ceiling without verifying its printed rating and local installation rules.
Read before use
Warnings and limitations
Verified ceiling
It does not give a PS5, Xbox, GPU or display a mode that device cannot produce.
Installation caution
A USB-C/DisplayPort adapter, receiver, switch, splitter, capture device or wall plate can lower the available mode.
Not a converter
No in-wall, plenum or fire rating is claimed; check the cable marking before concealed installation.
Route and rating
Do not use the unrelated 4K60 family artwork in the exact gallery as the capability reference; the verified exact-model page governs.
Exact-model reference
Technical specifications
| Brand | UGREEN |
|---|---|
| SKU | 70320 |
| Product type | Passive HDMI cable |
| Cable length | 1.5 metres |
| Connectors | Full-size HDMI Type-A male to full-size HDMI Type-A male |
| Direction | Non-directional; either plug may face the source |
| Verified video guidance | Up to 8K at 60Hz or 4K at 120Hz |
| Published bandwidth / rate | Up to 48Gbps |
| Construction | Tinned-copper conductors, multiple shielding layers, aluminium foil, cotton yarn, PE insulation, nylon braid and zinc-alloy connector shells. |
| Feature support | Dynamic HDR signalling, Dolby Vision pass-through, eARC, high-refresh video on compatible equipment, backward operation with earlier HDMI equipment |
| HDMI capability stated for exact SKU | 48Gbps; up to 8K60 or 4K120 |
| Cable architecture | Passive copper |
| Outer construction | Nylon-braided |
| Connector shell | Zinc alloy |
| External power | Not required |
In the box
Package contents
- 1 × UGREEN 70320 1.5m HDMI male-to-male cable
Devices, adapters, cable-management accessories and any other cables shown in use images are not included. Confirm SKU 70320 and 1.5m on the received item.
Tap a question to expand
Product-specific FAQ
What is the verified video target for SKU 70320?
Up to 8K at 60Hz or 4K at 120Hz. These are cable ceilings. The source, HDMI port, display, content, colour format, firmware and every intermediate device decide the actual mode.
What connectors does it use?
Full-size HDMI Type-A male to full-size HDMI Type-A male. It does not fit Mini HDMI, Micro HDMI, USB-C, DisplayPort, DVI or VGA without a separate compatible adapter.
Does the cable create a higher resolution or refresh rate?
No. It carries a compatible HDMI signal; it cannot add a mode, upscale content or improve a display panel.
Which devices can I connect?
Use it with compatible full-size HDMI equipment such as PS5, Xbox Series consoles and other full-size HDMI consoles, within each console and game limit; Desktop graphics cards and laptops with a compatible full-size HDMI output; TVs, monitors and projectors with full-size HDMI input.
What determines the actual picture mode?
The lowest-capability source, port, display, content format, setting and intermediate device controls the final mode.
Can I use it with a console?
Yes, when the console, game and display support the selected mode. The cable cannot make a console output an unsupported refresh rate.
Can I route it inside a wall or ceiling?
No concealed-installation rating is claimed here. Check the physical cable marking and local requirements before any in-wall or ceiling route.
What should I check if there is no picture?
Reseat both ends, select the correct input, try a direct connection, lower the mode and verify every device and setting in the chain.
How should I care for the cable?
Use gentle curves, avoid crushing or pulling, grip connector housings, and keep the cable dry and away from heat.
What is included?
One UGREEN 70320 1.5m HDMI male-to-male cable. Connected equipment and adapters are not included.
