UGREEN HD175 1.5m HDMI 2.1 Cable – 8K 60Hz, 4K 120Hz, 48Gbps, HDR & eARC (45431)
UGREEN HD175 1.5m HDMI 2.1 Cable – 8K 60Hz, 4K 120Hz, 48Gbps, HDR &...
A Practical Length for TV, Gaming and Desktop Setups
The UGREEN HD175 1.5m HDMI 2.1 cable connects two devices equipped with full-size HDMI ports. Its manageable 1.5-metre length is suitable for a television cabinet, gaming desk, workstation or home-theatre system where the connected devices are positioned close together.
Supporting HDMI bandwidth of up to 48Gbps, the cable can carry video up to 8K at 60Hz or 4K at 120Hz, together with supported HDR, gaming and multichannel audio functions. Every connected device, port, application and setting must support the requested mode.
High-Resolution Video
Up to 8K 60Hz
Connect a compatible 8K source to an 8K television, monitor or projector and enjoy detailed output at up to 7680 × 4320 and 60Hz.
The cable transmits the signal supplied by the connected equipment. It does not increase the native resolution or picture quality of lower-resolution content.
High-Refresh-Rate Gaming
Up to 4K 120Hz on Compatible Equipment
Connect a compatible PlayStation 5, Xbox Series X, gaming PC or graphics card to a suitable TV or monitor. Higher refresh rates can make motion appear smoother and controls feel more responsive in supported games.
4K 120Hz
High-resolution, high-refresh-rate output for compatible games, consoles, graphics hardware and displays.
VRR
Variable Refresh Rate can help reduce visible tearing when supported throughout the connected system.
ALLM
Auto Low Latency Mode can automatically select a suitable low-latency display mode on compatible equipment.
QFT and QMS
Compatible systems can use Quick Frame Transport and Quick Media Switching functions.
Frame rate, resolution and gaming-feature availability depend on the console or graphics card, game, display, HDMI port and device settings.
Static and Dynamic HDR Pass-Through
The cable can pass supported HDR video information between compatible devices, allowing a suitable display to reproduce enhanced highlights, shadow detail, colour and contrast.
HDR performance depends on the content, media application, source device, HDMI output, selected television input and display capabilities. The cable does not convert SDR content into HDR.
Home-Theatre Audio
eARC, Dolby Atmos and DTS:X Pass-Through
The HD175 can carry supported multichannel audio formats such as Dolby Atmos, DTS:X and LPCM between compatible source, display and audio equipment.
The cable does not create or decode surround sound. The media, source, television, soundbar or AV receiver must support the required audio format.
Simplified Soundbar Connection with eARC or ARC
Connect the television’s HDMI eARC or ARC port to a compatible soundbar or AV receiver. Supported television audio can then return to the audio system through the HDMI connection.
Both devices must have compatible eARC or ARC ports. The relevant audio-output and HDMI-CEC settings may also need to be enabled.
HDCP and HDMI Ethernet Support
HDCP Pass-Through
Supports HDCP 2.3 and earlier HDCP handshakes when the source, intermediate equipment, display and content service are mutually compatible.
HDMI Ethernet Channel
Can carry HDMI Ethernet Channel data when both connected devices specifically implement HEC. It does not replace a normal Ethernet cable or provide internet access by itself.
Signal-Focused Construction
19-Core Copper Cable with Internal Shielding

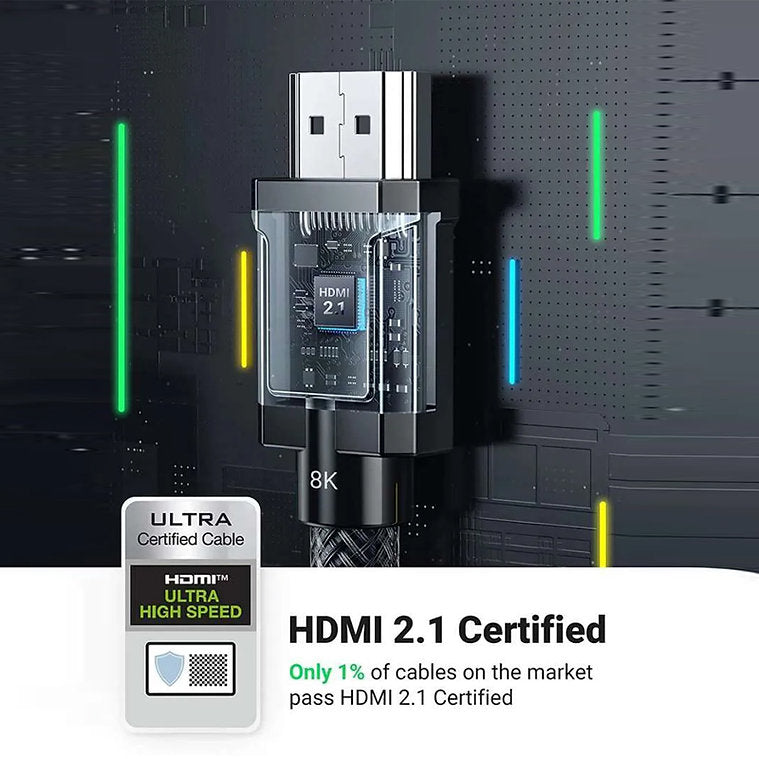

The HD175 uses a 19-core copper conductor arrangement and internal shielding designed to help protect the HDMI signal from surrounding electromagnetic interference.
- Passive copper HDMI construction
- Approximately 7mm cable diameter
- Black PVC outer jacket

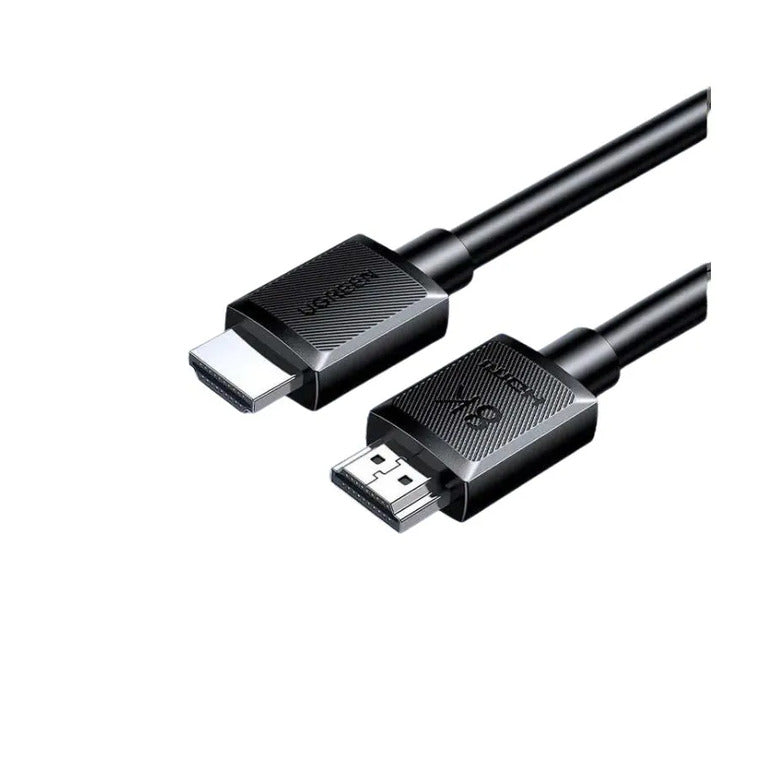

- Full-size HDMI Type-A connectors
- No external power connection required
- Non-directional installation
Suitable Applications
Connect compatible PlayStation, Xbox or other HDMI consoles to a television or monitor.
Connect a compatible graphics card or desktop computer to a high-refresh-rate display.
Connect streaming devices, media players, computers or receivers to suitable TVs.
Use matching eARC or ARC ports for supported television audio return.
Connect HDMI-equipped computers, docks and gaming devices to compatible displays.
Connect Blu-ray players, computers, consoles and AV receivers to HDMI projectors.
Compatibility Guide
| Device category | Compatible examples | Important check |
|---|---|---|
| Gaming consoles | PS5, Xbox Series X/S and other HDMI consoles | Use the correct high-bandwidth HDMI display input. |
| TVs and monitors | Compatible 4K and 8K displays | Confirm the selected input supports the required resolution and refresh rate. |
| Computers | Desktops, laptops and docks with HDMI output | The graphics hardware and HDMI output must support the intended mode. |
| Audio equipment | Soundbars and AV receivers | Use compatible eARC or ARC ports and enable the appropriate settings. |
| Media devices | Blu-ray players, streaming boxes and media players | Output depends on the media device, service, content and display. |
Backwards compatible with earlier HDMI equipment, with performance limited to the lowest capability in the connected system.
Check Before Ordering
- Confirm that both devices have full-size HDMI Type-A ports.
- Measure the required route and confirm that 1.5 metres provides sufficient length without tension.
- Check that the intended device ports support the required resolution, refresh rate, HDR or eARC feature.
- Remember that this is an HDMI-to-HDMI cable and does not convert USB-C, DisplayPort, Mini HDMI or Micro HDMI.
- Confirm that the television or monitor’s enhanced HDMI mode is enabled when using higher-bandwidth video settings.
Simple Connection and Setup
- Connect the source: insert one connector into the HDMI output of the console, computer, media player or AV receiver.
- Connect the display: insert the other connector into the appropriate HDMI input on the TV, monitor or projector.
- Select the input: choose the connected HDMI input using the display menu or remote control.
- Enable advanced modes: activate enhanced HDMI, HDR, 120Hz, VRR, eARC or HDMI-CEC where required.
- Protect the cable: avoid sharp folds, crushing, excessive pulling or repeated twisting near the connector housing.
Package Contents
1 × UGREEN HD175 1.5m HDMI 2.1 Cable
Frequently Asked Questions
Does this cable support 8K at 60Hz?
Can I use it for 4K 120Hz gaming?
Does it support VRR and ALLM?
Does it support eARC and Dolby Atmos?
Is this cable directional?
Is it an optical or fibre HDMI cable?
Does HDMI Ethernet replace a LAN cable?
Will it work with HDMI 2.0 equipment?
Can it convert USB-C, DisplayPort or Micro HDMI?
What should I check if 4K 120Hz is unavailable?
UGREEN India Assurance
Genuine UGREEN product supplied with a GST invoice. Warranty and after-sales assistance are provided in accordance with the applicable UGREEN India warranty and support policy.
Product appearance, packaging and minor presentation details may change between production batches without affecting the stated core functionality.
-
